Aristel AN1808-12S Quick Start Manual

4g audio keypad intercom (access control system)
Hide thumbs Also See for AN1808-12S:
Table of Contents

Advertisement

Quick Links

Download this manual
ARISTEL NETWORKS
AN1808-12S
4G AUDIO KEYPAD INTERCOM
(ACCESS CONTROL SYSTEM)
For Single Apartment
For your protection, read these instructions completely
And keep them for future reference.
AN1808-12S Single 4G Audio Intercom (E1.3)
1/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN1808-12S and is the answer not in the manual?

Questions and answers

Related Manuals for Aristel AN1808-12S

Summary of Contents for Aristel AN1808-12S

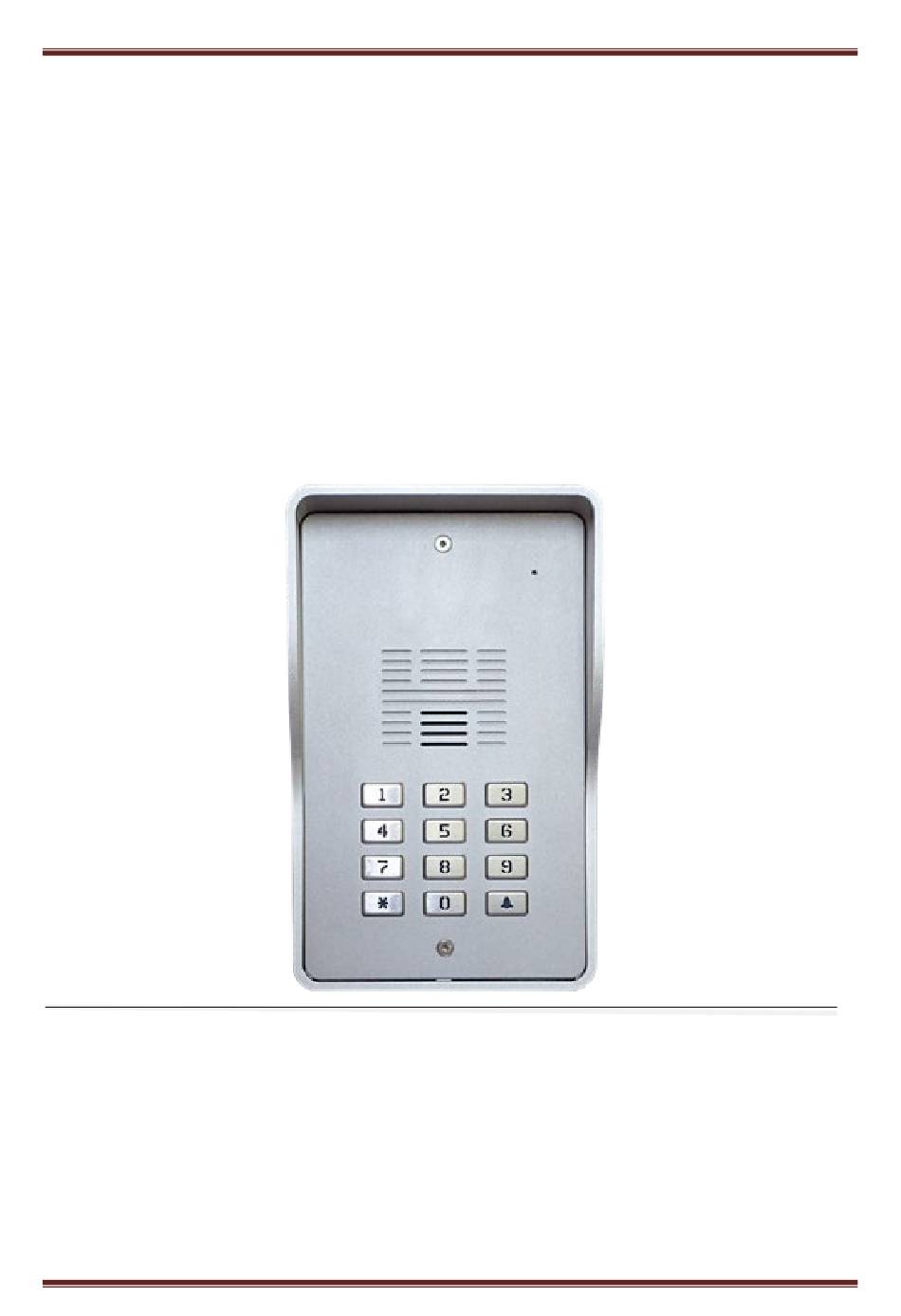

  • Page 1 ARISTEL NETWORKS AN1808-12S 4G AUDIO KEYPAD INTERCOM (ACCESS CONTROL SYSTEM) For Single Apartment For your protection, read these instructions completely And keep them for future reference. AN1808-12S Single 4G Audio Intercom (E1.3) 1/16...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS ........................... 3 INTRODUCTION ................................4 PARTS LIST .................................. 4 INSTALLATION ................................4 AN1808-12S SINGLE 4G AUDIO KEYPAD INTERCOM UNIT ................... 5 WIRING DIAGRAM ..............................8 USING THE AN1808-12S SINGLE ..........................9 ..........................9 ETTING YOUR CALL OUT NUMBERS ..........................

  • Page 3: Important Safety Instructions

    ARISTEL NETWORKS Thank you for purchasing AN1808-12S SINGLE 4G audio keypad intercom. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problem or question should arise. Important Safety Instructions 1.

  • Page 4: Introduction

    ARISTEL NETWORKS Introduction AN1808-12S SINGLE 4G audio keypad intercom system is designed for an apartment, single-family residence and gated communities. It is suitable for a villa or apartment. When the visitor presses "call button " on the intercom it will then call your landline or mobile phone.

  • Page 5: An1808-12S Single 4G Audio Keypad Intercom Unit

    ARISTEL NETWORKS This 4G audio intercom is suitable for both flush mounting and surface mounting. AN1808-12S SINGLE 4G audio Keypad Intercom Unit Microphone Speaker Call button Keypad AN1808-12S Single 4G Audio Intercom (E1.3) 5/16...
  • Page 6 1.7 Insert the SIM card (Note orientation of notched corner) 1.8 Replace holder and slide towards the rear of the unit to lock in place 1.9 Replace rear plastic cover AN1808-12S Single 4G Audio Intercom (E1.3) 6/16...
  • Page 7 3. Connecting the Antenna (Fig 3) 3.1 Plug in the antenna cord to the connector on the rear of the unit 3.2 Place the antenna away from electrical/electronic systems (computers, microwave ovens, etc) AN1808-12S Single 4G Audio Intercom (E1.3) 7/16...

  • Page 8: Wiring Diagram

    4.2 The blue indicator of call button should be on and you will hear Du Du tone. 4.3 Fix the unit in position before activating. 4.4 When the Du Du tone has disappeared, the device is ready. Wiring Diagram AN1808-12S Single 4G Audio Intercom (E1.3) 8/16...

  • Page 9: Using The An1808-12S Single

    4.1 Please search 3G intercom on Apple store or Google Play 4.2 The App will enable remote and speedy programming. 4.3 You can use the App to unlock the door through call or SMS. AN1808-12S Single 4G Audio Intercom (E1.3) 9/16...
  • Page 10 To make changes on settings please refer to the command codes in page 12. To end program setting mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or program by text message. AN1808-12S Single 4G Audio Intercom (E1.3) 10/16...
  • Page 11 SMS format: (delete 2&3 phone numbers from a call button) *12*1234#12*#13*# User command code CORRECT SMS format: *12*1234#1105857235#120865682554#130862235644# SMS reply: 1105857235#120865682554#130862235644# OK User command code ERROR (user command error) SMS format: *12*1234#1105857235#190865682554#130862235644# SMS reply: 110587235#190865682554# Error AN1808-12S Single 4G Audio Intercom (E1.3) 11/16...

  • Page 12: Command Codes

    73 [phone number ] # Delete phone number 1150 numbers) 73*# Delete all phone numbers admin number= 3~15 digits Add administrator phone number 74 [ admin number ] # None ( no number no restriction) AN1808-12S Single 4G Audio Intercom (E1.3) 12/16...
  • Page 13 *27*[ password ]#[content] Case open (when Intercom is moved) content= up to 100 characters Send SMS message Password=setting password *28*[ password ]#[content] Power loss (when external power is off) content= up to 100 characters AN1808-12S Single 4G Audio Intercom (E1.3) 13/16...
  • Page 14 PIN code X= 0, disable (keypad flashing) Set PIN code error alarm buzzer 893+X# X= 1, enable alarm buzzer X=0 (LED ON) Set keypad LED indicator 897+X# X=1 (LED OFF) AN1808-12S Single 4G Audio Intercom (E1.3) 14/16...

  • Page 15: How To Reset The Hardware When You Forget Your Password

    Even if you have already programmed a number to receive a call from the intercom, if you also want that number to have caller ID access, it must be programmed under the 72 feature also. Ensure the number is entered as you would normally dial it from another phone. AN1808-12S Single 4G Audio Intercom (E1.3) 15/16...

  • Page 16: Specification

    Check steps above on improving reception. Try pressing the buttons longer when attempting to activate the gates or door. Specification Model AN1808-12S SINGLE 4G audio Keypad Intercom GSM 850/900/1800/1900 MHz, WCDMA 800/850/900/1900/2100 MHz GSM / WCDMA Frequency LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28...
