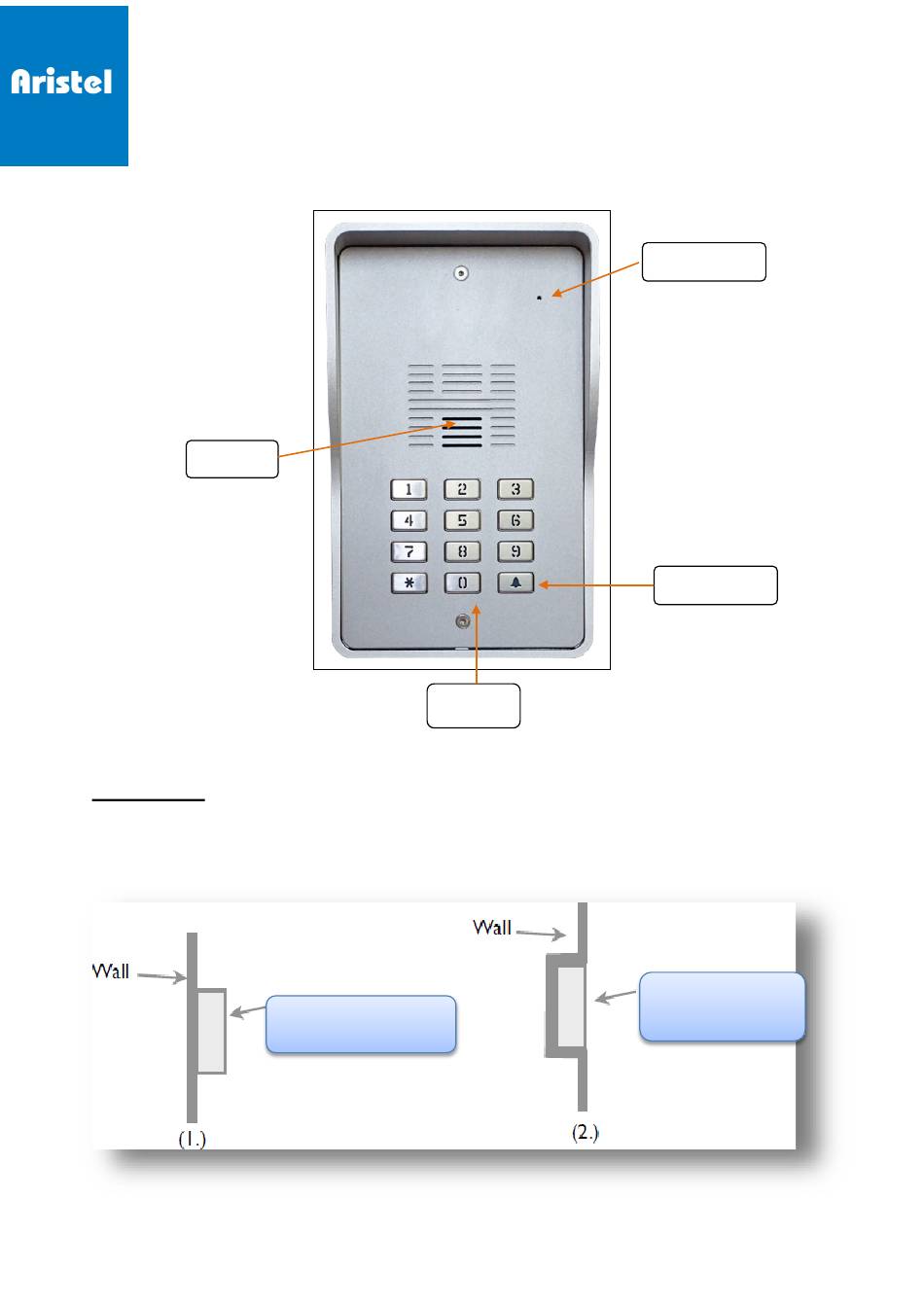

- Page 1 AN1808-12S (SINGLE) QUICK INSTALLATION GUIDE Microphone Speaker Call button Keypad Installation This 4G audio intercom is suitable for both flush mounting and surface mounting. 4G AUDIO INTERCOM 4G AUDIO INTERCOM (FLUSH MOUNTING) (SURFACE MOUNTING)
- Page 2 AN1808-12S (SINGLE) QUICK INSTALL GUIDE 1. SIM card installation (Fig 1) 1.1 Disconnect the 12V adaptor from the intercom. 1.2 Remove the rear plastic cover 1.3 Remove the SIM card cover from the bottom of the unit 1.4 Slide the SIM card holder towards the front of the unit 1.5 Lift up the holder...
- Page 3 AN1808-12S (SINGLE) QUICK INSTALL GUIDE 2. Connecting with the door lock system (Fig 2) 2.1 See below for your relevant door lock type wiring instructions. 3. Connecting the Antenna (Fig 3) 3.1 Plug in the antenna cord to the connector on the rear of the unit 3.2 Place the antenna away from electrical/electronic systems (computers,...
- Page 4 AN1808-12S (SINGLE) QUICK INSTALL GUIDE 4. Power on. 4.1 Connect the power adaptor into the connector marked AC 4.2 The blue indicator of call button should be on and you will hear Du Du tone. 4.3 Fix the unit in position before activating.
