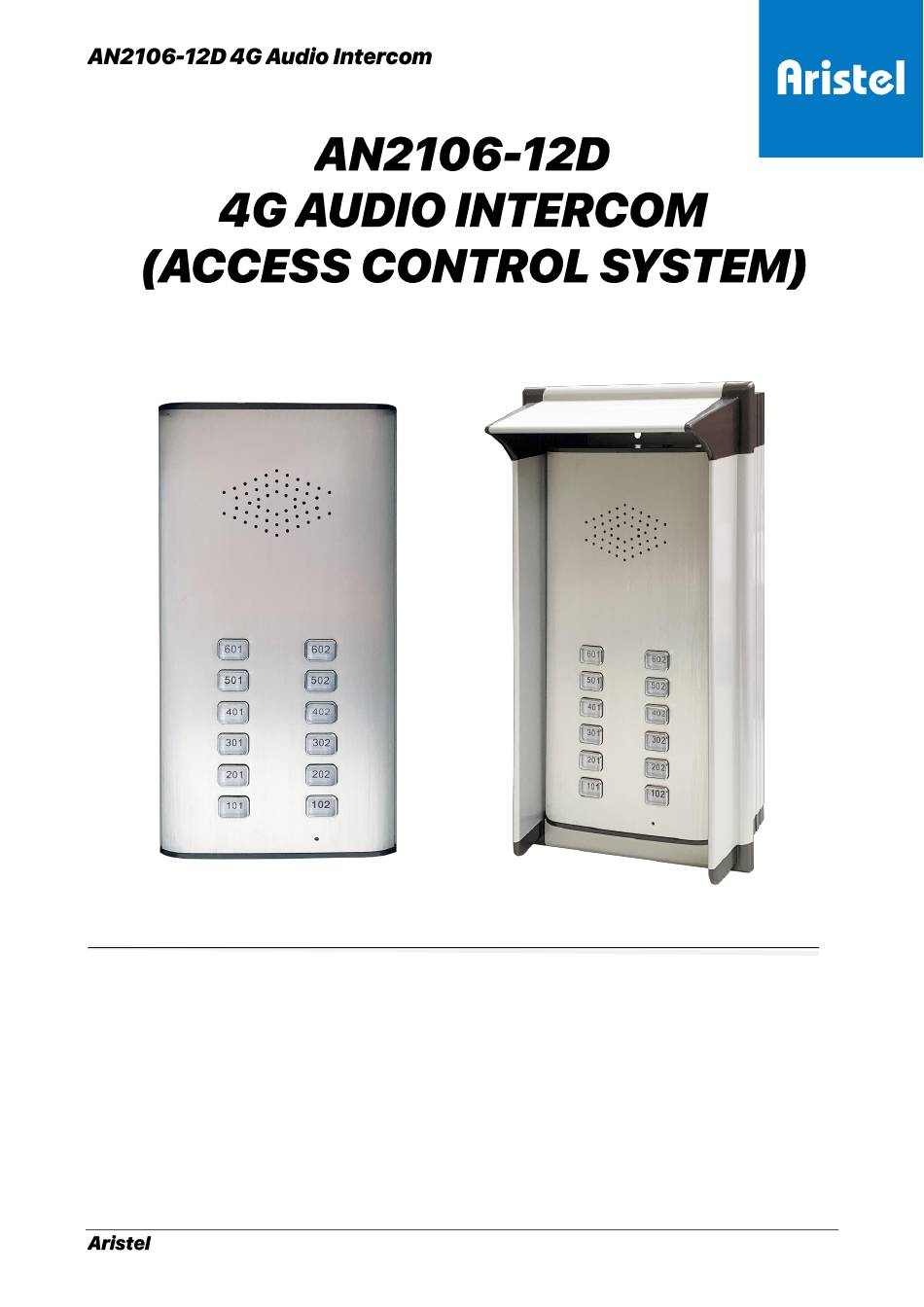

- Page 1 For your protection, read these instructions. Keep it for future reference. 2023 1/19...
-
Page 2: Table Of Contents
INSTALLATION ............................... 5 HOW TO EXTEND THE SYSTEM TO 24 HOUSEHOLDERS ..............8 CALL BUTTON WITH HOUSEHOLDER NUMBER .................. 9 USING THE AN2106-12D ......................... 10 Setting your call-out numbers ....................10 Setting your call in numbers ...................... 10 App on iOS and Android download ..................10 SMS/ PHONE MODE CODE ........................ -
Page 3: Important Safety Instructions
Thank you for purchasing the AN2106-12D 4G audio intercom. Please read this manual carefully before using it. Be sure to keep this manual for future reference in case any problem or question arises. Important Safety Instructions 1. When using this AN2106-12D 4G intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. -
Page 4: Introduction
Introduction The AN2106-12D 4G intercom system is designed for multiple family complexes. AN2106- 12D 4G has 12 call buttons. One button is for one householder. When a visitor presses the call button on the intercom, which will then connect to your phone number, whatever landline or mobile, once you answer the call, you can speak with the visitor and open the gate from your phone remotely from anywhere anytime. -
Page 5: Installation
Installation 1. SIM card installation (Fig 1) 1.1 Disconnect the 12V adaptor from the AN2106-12D 1.2 Remove the SIM card cover from the bottom of the unit 1.3 Slide the SIM card holder towards the front of the unit 1.4 Lift up the holder 1.5 Before inserting the SIM card, ensure that it is not PIN number locked. - Page 6 2. Connecting with the door lock system (Fig 2) 2.1 According to your door lock type to wire with door latch of connector. 2.2 Plug on the antenna cord to the connector on the rear of the unit 2.3 Place antenna away from electrical/electronic systems (computers, microwave ovens, etc) 3.
- Page 7 4. This intercom is suitable for surface mounting. 2023 7/19...
-
Page 8: How To Extend The System To 24 Householders
How to extend the system to 24 householders 1. Set the rotary switch as "1" of the slave device (AN2106S-12D) Slave device AN2106S-12D 2. Connect the slave device and master device with two HL-086 together Master device Slave device AN2106M-12D AN2106S-12D MAX 150 meters (The distance will be different from the... -
Page 9: Call Button With Householder Number
Call button with householder number Each button has an assigned householder number. When you program the "call-out NO. " by SMS, you need to set the correct householder number for the call button Master Device (AN2106M-12D) 000601 000602 000501 000502 000401 000402 000301... -
Page 10: Using The An2106-12D
Using the AN2106-12D 4G Setting your call-out numbers Store your apartment NO (householder number) and your phone number by SMS. SMS format: (store 3 phone numbers of an apartment 010101) *12*1234#911010101*05857235#912010101*0865682554#913010101*08622356 Check if the SMS Setting is correct SMS reply: 911010101*05857235#912010101*0865682554#913010101*0862235644#OK... -
Page 11: Enter System Menu
Enter System Menu 1. Please call the number of the 4G intercom device. 2. The device will answer and sound one beep to enter the system menu. 3. Enter the password of the mode you would like to enter. 3.1 Listener monitoring mode: 【*13*1212＃】... -
Page 12: Programming By Text Message
Programming by text message Programming by text message is the simplest way to customise the 4G audio intercom settings and add or delete telephone numbers. Simply send texts in the format to the telephone number of the SIM within the 4G audio intercom. Note: A Single SMS text message is limited to 140 characters. -
Page 13: Sms/ Phone Mode Code
SMS/ Phone mode code Feature Command NOTE: Phone mode: Dial the phone and enter *12*1234 to enter the setting mode. (listen to DO), you can enter the command codes below. *12*[setting password] # Setting mode SMS: You can program many different command codes in one text message with SMS command format. -
Page 14: Command Codes
Command Codes You can program many command codes in one text message with SMS command format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #..Feature Command Description Default Change setting Password 01 [ password ] # password:4 digit codes 1234 Change... - Page 15 status X=1 (enable SMS reply) Dial tone volume 898+X# X=1~3 ( levels) X=0 (relay 1) Set Egress Pin output relay 900[X]# X=1 (relay 2) Set Detect pin output relay X=0 (relay 1) 901[X]# (Detect Pin is egress mode) X=1 (relay 2) X=0~3 0: disable 1: egress mode (901)
-
Page 16: Sms Inquire
SMS Inquire (only one format per seal, length limit 140) Feature Command Reply content Operator name , Network Signal Level = X *20# Check signal strength Network : GSM/WCDMA X= 0~31，0：poor 31：strong I+Call in(TEL),…..E(N) *21# Check device save number I：Call in number E：End N：Next SMS Relay1=(status),Relay2=(status),Detect=(Input... -
Page 17: E-Mail Settings
E-mail settings Feature Command GPRS setting NOTE: AUTH_type:0: none 1: PAP 2: CHAP *40*setting password#APN AUTH_type APN User name APN Password# E-mail setting NOTE: Type: 1: Normal 2: SSL/TLS *41* setting password #type SMTP server Port User name Password E-mail address E-mail sender name# Recipient &... -
Page 18: How To Reset The Hardware When You Forget Your Password
Ｍ: monitor call to activate relay stored number order 3: relay 1 Ｒ: incoming call and enter release password to activate relay - PIN code 4: relay 2 Ｓ: SMS to activate relay trigger Ｔ: during the call, householder to 5: relay 2 hold activate relay 6: relay 2... -
Page 19: Specification
Check the steps above on improving reception. Try pressing the buttons longer when attempting to activate the gates or door. Specification Model AN2106-12D 4G Audio Keypad Intercom 2G / GSM 850/900/1800/1900 MHz, 3G / WCDMA 800/850/900/1900/2100 MHz GSM / WCDMA / 4G...
