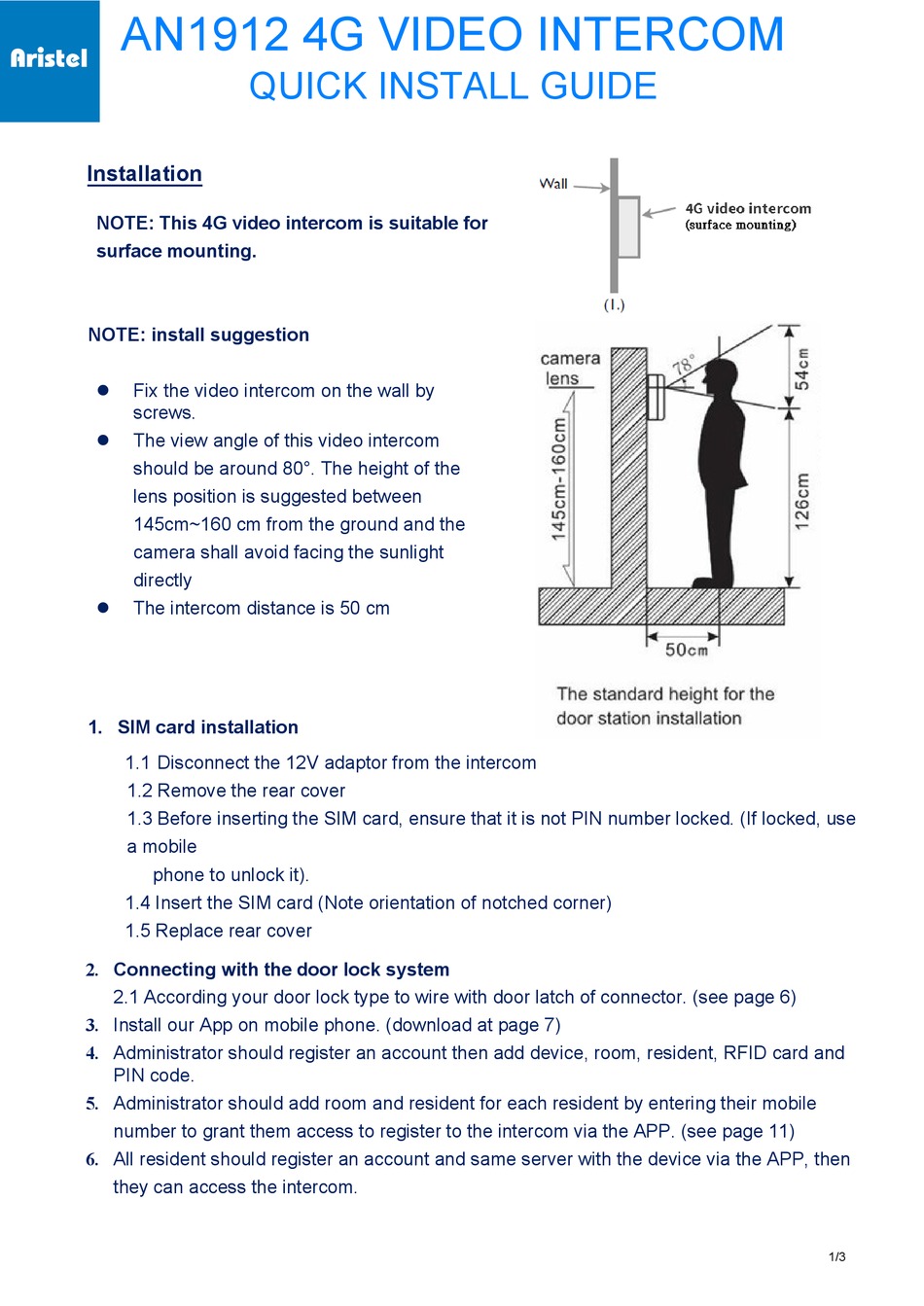

Aristel AN1912 Quick Install Manual

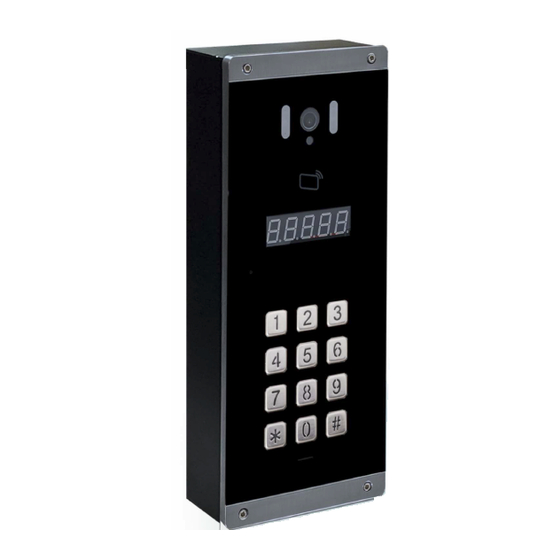

AN1912 4G VIDEO INTERCOM
QUICK INSTALL GUIDE

Installation

NOTE: This 4G video intercom is suitable for
surface mounting.
NOTE: install suggestion
Fix the video intercom on the wall by

screws.
The view angle of this video intercom

should be around 80°. The height of the
lens position is suggested between
145cm~160 cm from the ground and the
camera shall avoid facing the sunlight
directly
The intercom distance is 50 cm


1. SIM card installation

1.1 Disconnect the 12V adaptor from the intercom
1.2 Remove the rear cover
1.3 Before inserting the SIM card, ensure that it is not PIN number locked. (If locked, use
a mobile
phone to unlock it).
1.4 Insert the SIM card (Note orientation of notched corner)
1.5 Replace rear cover

2. Connecting with the door lock system

2.1 According your door lock type to wire with door latch of connector. (see page 6)
3. Install our App on mobile phone. (download at page 7)
4. Administrator should register an account then add device, room, resident, RFID card and
PIN code.
5. Administrator should add room and resident for each resident by entering their mobile
number to grant them access to register to the intercom via the APP. (see page 11)
6. All resident should register an account and same server with the device via the APP, then
they can access the intercom.
