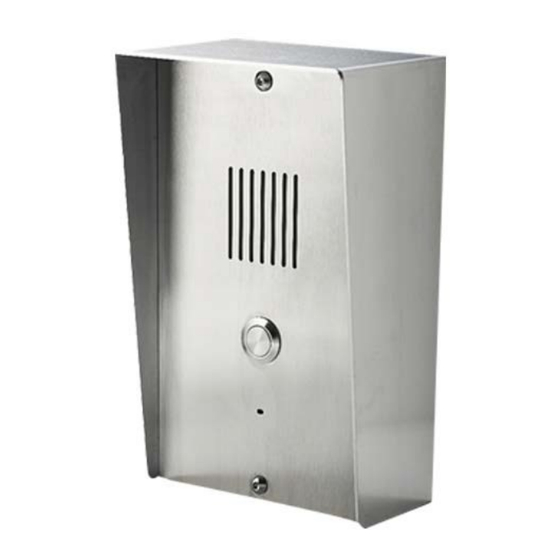

- Page 1 ARISTEL NETWORKS AN1804 4G INTERCOM & ACCESS CONTROL OPERATING MANUAL For your protection, read these instructions completely Keep for future reference. For Models: AN1804-4G Revision ARB2.8, Apr. 2020 AN1804 4G Intercom...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTION ..............3 INTRODUCTION......................4 INTERCOM & ACCESSORIES ..................4 INSTALLATION....................... 5 AN1804-4G Intercom Unit ..................6 Wiring Diagram ......................6 LED Indicator ....................... 7 INTERCOM OPERATION ................... 8 Enter Listener Monitoring Mode .................. 10 Enter Access Control Mode .................. -
Page 3: Important Safety Instruction
INTRODUCTION The 4G door station AN1804-4G is an intercom system and access control device which can be installed at the entrance of a building, gate, fence or door. The device can operate on local 12-24 volt AC or DC power. -
Page 4: Intercom & Accessories
INTERCOM & ACCESSORIES Item Description Q’ty Included Optional ◎ AN1804-4G Intercom ◎ Power adapter ◎ External antenna ◎ Mounting Bracket for antenna ◎ Operational manual Revision ARB2.8, Apr. 2020 AN1804 4G Intercom... -
Page 5: Installation
INSTALLATION This 4G Intercom is suitable for both flush and surface mounting. Note: For surface mounting, you will have to remove the plastic enclosure before fitting main station into the stainless steel cabinet. Revision ARB2.8, Apr. 2020 AN1804 4G Intercom... -
Page 6: Wiring Diagram
Intercom Unit Speaker Call Button Microphone Wiring Diagram Revision ARB2.8, Apr. 2020 AN1804 4G Intercom... -
Page 7: Led Indicator
LED INDICATORS 1. LED “Intercom Status “ Indicator Status Yellow (standby) Flashes once per 5 seconds Yellow (using) Solid 2. LED ‘Network “Indicator Status Green (ready) Flashes once per 3 seconds Green (searching) Flashes once per second Green (busy) Solid 3. -
Page 8: Intercom Operation
* will open the door. The relay switches can also be temporarily or permanently switched on or off by press # and 1. The AN1804-4G intercom supports all Telstra, Optus & Vodafone CSFB networks Enter system menu There are three different modes under system menu. - Page 9 Intercom Revision ARB2.8, Apr. 2020 AN1804-4G...
-
Page 10: Enter Listener Monitoring Mode
To make changes on settings please refer to the user commands.(P15,16) To end programming mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. AN1804-4G Intercom Revision ARB2.8, Apr. 2020... -
Page 11: Programming
SMS format: (delete 2&3 phone numbers from a call button) *12*1234#12*#13*# User command code CORRECT SMS format: *12*1234#1105857235#120865682554#130862235644# SMS reply: 1105857235#120865682554#130862235644# OK User command code ERROR (user command error) SMS format: *12*1234#1105857235#190865682554#130862235644# SMS reply: 110587235#190865682554# Error AN1804-4G Intercom Revision ARB2.8, Apr. 2020... -
Page 12: Door/ Gate Release
When the Intercom receives a call from a user, it will check the calling number and if the number is in the guest list, the intercom will drop the call and then open the gate / door. The intercom doesn’t answer the call, so this is a free call. AN1804-4G Intercom Revision ARB2.8, Apr. 2020... - Page 13 To release relay 1 by pressing *35*5678# To trigger relay 2 by pressing *36*5678# To hold relay 2 by pressing *37*5678# To release relay 2 by pressing *38*5678# *Above operation same as sending SMS commands AN1804-4G Intercom Revision ARB2.8, Apr. 2020...
-
Page 14: Check Signal Strength
SMS programming. Example: Program a mobile number as an administrator number via SMS Mobile number: 0865682554 Command to use *12*1234#74 [Admin number]# SMS format *12*1234#740865682554# To delete the Admin number *12*1234#74*# AN1804-4G Intercom Revision ARB2.8, Apr. 2020... -
Page 15: Check A Log Of Dial In And Dial Out Numbers Via E-Mail Or Sms
E-mail parameters setting e-mail address, e-mail sender name# ( Doesn’t support default Gmail) Command code Example : *42*1234# recipient e-mail address, recipient name, carbon copy e-mail address, carbon copy name# Recipient & Carbon copy settings AN1804-4G Intercom Revision ARB2.8, Apr. 2020... - Page 16 When the device detects NITZ information is not available from the network will automatically send a command to itself via the SIM card used in the intercom for time correction which will keep your “ dial in numbers log” with correct date and time. AN1804-4G Intercom Revision ARB2.8, Apr. 2020...
- Page 17 *12*1234 # [command Code1] # [command Code 2] # [command Code3] #..Example: Mobile number for receiving a log 0907967223 SIM phone number used in opener 0948778458 *12*1234#841#850907967223#860948778458# Send *44*1234# to check log Replied log information via SMS example: AN1804-4G Intercom Revision ARB2.8, Apr. 2020...
- Page 18 Password mode access option 5678 Hold Relay 2 *37* [ password ] # To hold relay to keep door 5678 opened Release Relay 2 *38* [ password ] # To release relay for door close 5678 AN1804-4G Intercom Revision ARB2.8, Apr. 2020...
- Page 19 No reply (default :5678) Release relay 2 *38* [ password ] # No reply (default :5678) SMS data error (Only 0~9、*、# are available) SMS Data Error ● ● Function code error Function Code Error AN1804-4G Intercom Revision ARB2.8, Apr. 2020...
-
Page 20: User Commands
Ring in to open the door 72 [relay] [phone number ] Relay: 1 or 2 Relay=3, answer incoming call directly (Max: 1152 numbers) 73 [phone number ] # Delete phone number 73*# Delete all phone numbers AN1804-4G Intercom Revision ARB2.8, Apr. 2020... -
Page 21: How To Reset The Hardware If You Forget Your Password
X=1~4 ( levels) Pin DET type 902+Type# 0 : Disable 1 : Egress mode(901) 2 : Trigger 3 : Resistance=10KΩ(7.5K~13K) Reset 999# reset default None How to reset the hardware if you forget your password AN1804-4G Intercom Revision ARB2.8, Apr. 2020... -
Page 22: Quick Programming Via Sms
*38*5678# (release relay 2) *20# (check reception level of intercom) *21# (check stored number. The unit will reply with list of stored numbers. I= dial in / O= dial out ) *22# (check gate / door status) AN1804-4G Intercom Revision ARB2.8, Apr. 2020... -
Page 23: Troubleshooting (Q&A)
Q. There is no audio from the gate, but the person at the gate can hear ok. A. This can be due to low reception. -Check reception level by *20#. -Change SIM card if necessary to another network which may have better coverage. AN1804-4G Intercom Revision ARB2.8, Apr. 2020... - Page 24 SS1704V-S / SS1704AV-S / SS1804-3G Module Gemalto EHS6 WCDMA Frequency WCDMA 850/900/1900/2100 MHz GSM Frequency GSM 850/900/1800/1900 MHz 4G Models SS1804AUV-S Module Quectel EC21-AUV FDD-LTE Frequency B1/ B3/ B5/ B8/ B28 WCDMA Frequency B1/ B5 /B8 AN1804-4G Intercom Revision ARB2.8, Apr. 2020...
- Page 25 E.&O.E. www.aristel.com.au AN1804-4G Intercom Revision ARB2.8, Apr. 2020...
