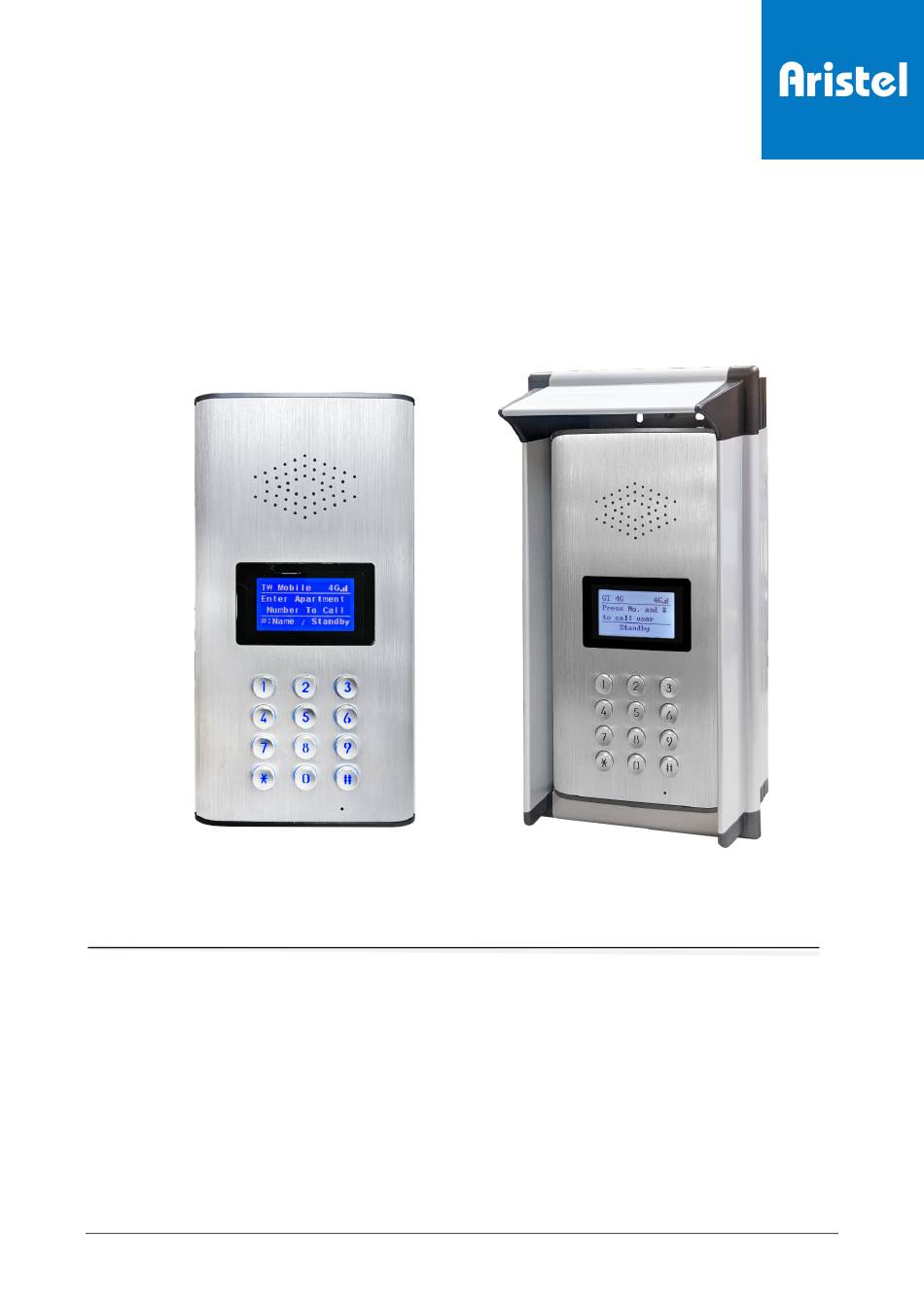

- Page 1 AN2106-12K 4G Audio Intercom AN2106-12K-4G 4G AUDIO INTERCOM (ACCESS CONTROL SYSTEM) For your protection, read these instructions. Keep it for future reference. Aristel E2 Jul 2023 1/19...
-
Page 2: Table Of Contents
PARTS LIST ....................................4 INSTALLATION ..................................5 HOW TO INSTALL A SLAVE INTERCOM ..........................8 USING THE AN2106-12K ..............................9 Setting your call out numbers ......................... 9 Setting your call in numbers ........................9 App on iOS and Android download ......................9 SMS/ PHONE MODE CODE .............................. -
Page 3: Important Safety Instructions
Be sure to keep this manual for future reference in case any problem or question should arise. Important Safety Instructions 1. When using this AN2106-12K intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Please read the following before using your equipment. -
Page 4: Introduction
AN2106-12K 4G Audio Intercom Introduction The AN2106-12K intercom system is designed for multiple family complexes. AN2106-12K has 12 call buttons. One button is for one householder. When a visitor presses the call button on the intercom, which will connect to your phone number, whatever landline or mobile, you can speak with the visitor once you answer the call. -
Page 5: Installation
AN2106-12K 4G Audio Intercom Installation 1. SIM card installation (Fig 1) 1.1 Disconnect the 12V adaptor from the AN2106-12K 1.2 Remove the SIM card cover from the bottom of the unit 1.3 Slide the SIM card holder towards the front of the unit 1.4 Lift up the holder... - Page 6 AN2106-12K 4G Audio Intercom 2. Connecting with the door lock system (Fig 2) 2.1 According to your door lock type to wire with door latch of connector. 2.2 Plug on the antenna cord to the connector on the rear of the unit 2.3 Place antenna away from electrical/electronic systems (computers, microwave...
- Page 7 AN2106-12K 4G Audio Intercom 4. This intercom is suitable for surface mounting. Aristel E2 Jul 2023 7/19...
-
Page 8: How To Install A Slave Intercom
AN2106-12K 4G Audio Intercom How to install a slave intercom 1. Set the rotary switch as "1" of the slave device (AN2106S-12K) NOTE: If you are installing multiple slave intercoms, please adjust the numbers in sequence. Slave device AN2106S-12K 2. Connect the slave device and master device with two HL-086 together... -
Page 9: Using The An2106-12K
AN2106-12K 4G Audio Intercom Using the AN2106-12K Setting your call-out numbers Store your apartment NO (householder number) and your phone number by SMS. SMS format: (store 3 phone numbers of an apartment 010101) *12*1234#911010101*05857235#912010101*0865682554#913010101*08622 35644# 1.4 Check if the SMS Setting is correct... -
Page 10: Enter System Menu
AN2106-12K 4G Audio Intercom Enter System Menu 1. Please call the number of the 4G intercom device. 2. The device will answer and sound one beep to enter the system menu. 3. Enter the password of the mode you would like to enter. - Page 11 AN2106-12K 4G Audio Intercom Programming by text message Programming by text message is the simplest way to customise the 4G audio intercom settings and add or delete telephone numbers. Send texts in the format to the telephone number of the SIM within the 4G audio intercom.
-
Page 12: Sms/ Phone Mode Code
AN2106-12K 4G Audio Intercom SMS/ Phone mode code Feature Command NOTE: Phone mode: Dial the phone and enter *12*1234 to enter the setting mode. (listen to DO), you can enter the command codes below. *12*[setting password]# Setting mode SMS: You can program many different command codes in one text message with SMS command format. -
Page 13: Command Codes
AN2106-12K 4G Audio Intercom Command Codes You can program many command codes in one text message with SMS command format. *12*1234 # [command Code1] # [command Code 2] # [command Code3] #..Feature Command Description Default Change setting Password 01 [ password ] #... - Page 14 AN2106-12K 4G Audio Intercom Set Detect pin output relay X=0 (relay 1) 901[X]# (Detect Pin is egress mode) X=1 (relay 2) X=0~3 0: disable 1: egress mode (901) Detect pin on PCB setup 902[ X]# 2: trigger Resistance=10KΩ(7.5K~13K) Emitting bleep when correct PIN...
-
Page 15: Keypad Command Codes
AN2106-12K 4G Audio Intercom Keypad command codes Feature Command Description Default Set PIN length for auto enter 899+X# X=1~14 X=0, only digits Set PIN code Type 895+X# X=1, apartment no. with digits relay=1: relay1 trigger relay=2: relay1 hold/ release Store PIN code... -
Page 16: Sms Inquire
AN2106-12K 4G Audio Intercom SMS Inquire (only one format per seal, length limit 140) Feature Command Reply content Operator name , Network Signal Level = X *20# Check signal strength Network : GSM/WCDMA X= 0~31，0：poor 31：strong I+Call in(TEL),…..E(N) *21# Check device save number I：Call in number... -
Page 17: E-Mail Settings
AN2106-12K 4G Audio Intercom E-mail settings Feature Command GPRS setting NOTE: AUTH_type:0: none 1: PAP 2: CHAP *40*setting password#APN AUTH_type APN User name APN Password# E-mail setting NOTE: Type: 1: Normal 2: SSL/TLS *41* setting password #type SMTP server Port... -
Page 18: How To Reset The Hardware When You Forget Your Password
AN2106-12K 4G Audio Intercom How To Reset the Hardware When You Forget Your Password Keep both the reset and egress buttons pressed Release all buttons after you hear continuous “Dou” tones The device will restart, and the hardware reset will be done Troubleshooting (Q &A) -
Page 19: Specification
Try pressing the buttons longer when attempting to activate the gates or door. Specification Model AN2106-12K 4G/3G Audio Keypad Intercom 2G / GSM 850/900/1800/1900 MHz, 3G / WCDMA 800/850/900/1900/2100 MHz GSM / WCDMA / 4G...
