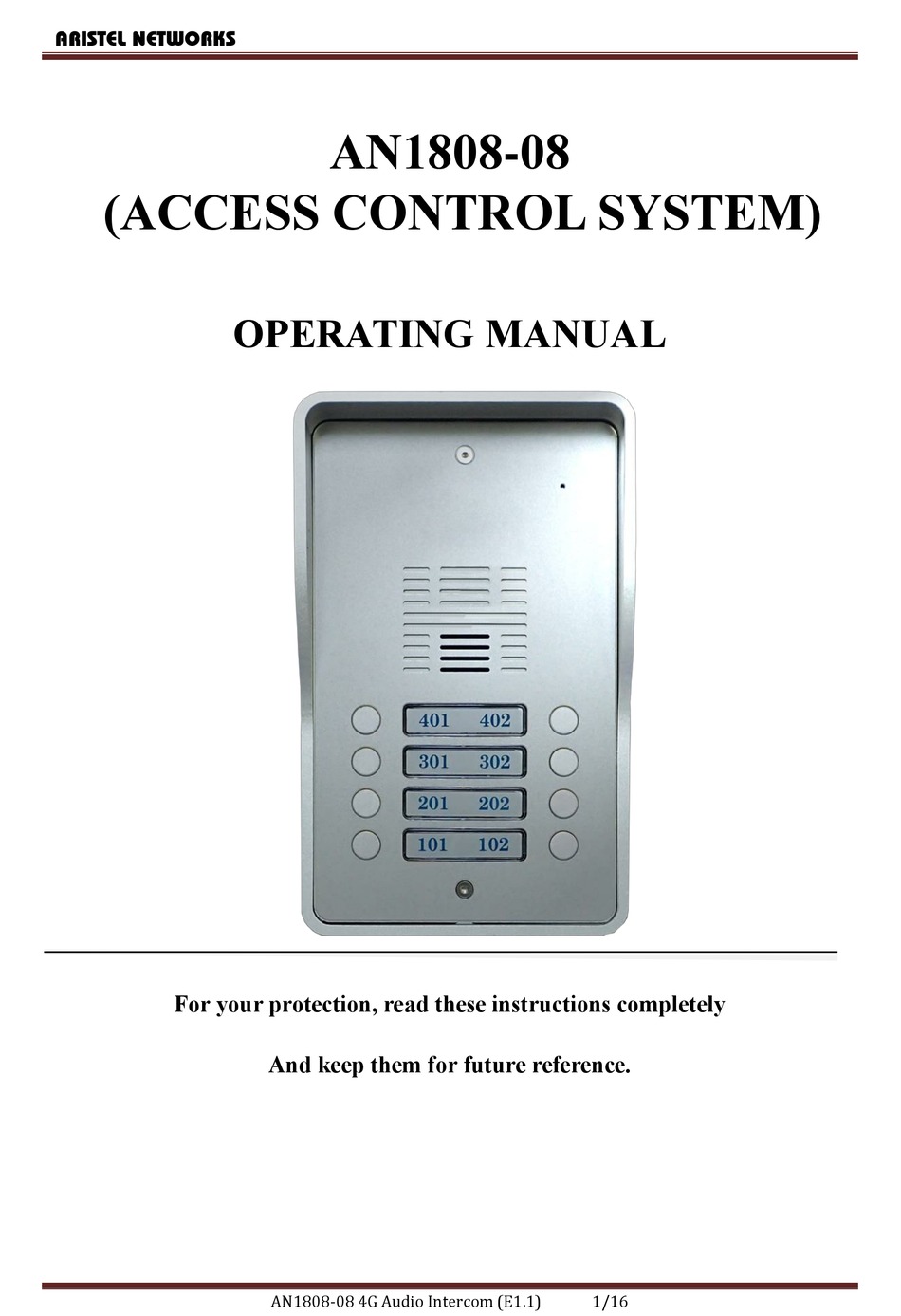

- Page 1 ARISTEL NETWORKS AN1808-08 (ACCESS CONTROL SYSTEM) OPERATING MANUAL For your protection, read these instructions completely And keep them for future reference. AN1808-08 4G Audio Intercom (E1.1) 1/16...
-
Page 2: Table Of Contents
Introduction ............................4 Parts List .............................. 4 Installation ............................5 Wiring Diagram ........................... 8 Using the AN1808-08 .......................... 9 Setting your call out numbers ................... 9 Setting your dial in numbers ..................... 9 App on iOS and Android ....................9 Enter System Menu .......................... -
Page 3: Important Safety Instructions
ARISTEL NETWORKS Thank you for purchasing AN1808-08 4G audio intercom. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problem or question should arise. Important Safety Instructions When using this AN1808-08 4G audio intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. -
Page 4: Introduction

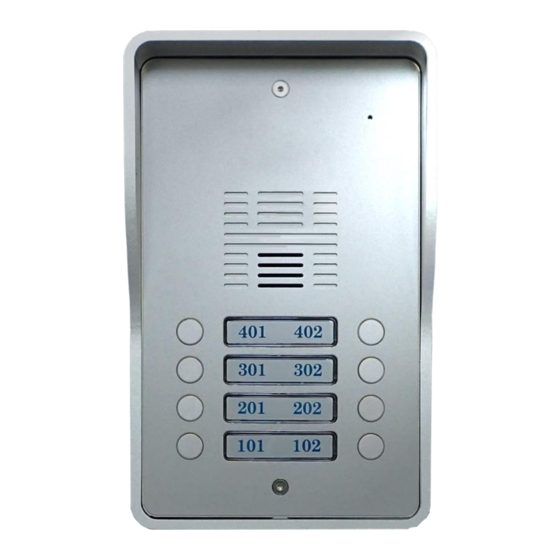

ARISTEL NETWORKS Introduction AN1808-08 4G audio intercom system is designed for multiple family complexes. It can dial up to 8 different families. When a visitor arrives at your property they will press call button on the intercom which will then connect to a phone number, landline or mobile (up to 3 numbers per... -
Page 5: Installation
ARISTEL NETWORKS Installation This 4G audio intercom is suitable for both flush mounting and surface mounting. AN1808-08 4G Audio Intercom (E1.1) 5/16... - Page 6 ARISTEL NETWORKS 1. SIM card installation (Fig 1) 1.1 Disconnect the 12V adaptor from the AN1808-08 1.2 Remove the rear plastic cover 1.3 Remove the SIM card cover from the bottom of the unit 1.4 Slide the SIM card holder towards the front of the unit 1.5 Lift up the holder...
- Page 7 2.1 According your door lock type to wire with door latch of connector. 3. Connecting the Antenna (Fig 3) 3.1 Plug on the antenna cord to the connector on the rear of the unit 3.2 Place antenna away from electrical/electronic systems (computers, microwave ovens, etc) AN1808-08 4G Audio Intercom (E1.1) 7/16...
-
Page 8: Wiring Diagram
4.2 The blue indicator of call button should be on and you will hear Du Du tone. 4.3 Fix the unit on the position before ready. 4.4 When the Du Du tone is disappeared then the Device is ready. Wiring Diagram AN1808-08 4G Audio Intercom (E1.1) 8/16... -
Page 9: Using The An1808-08
3.1 Please search 3G intercom on Apple store or Google Play 3.2 The App can help you to program the device easier. 3.3 You can use the App to unlock the door through call or SMS. AN1808-08 4G Audio Intercom (E1.1) 9/16... -
Page 10: Enter System Menu
To make changes on settings please refer to the command codes in page 12. To end program setting mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. AN1808-08 4G Audio Intercom (E1.1) 10/16... -
Page 11: Programming By Text Message
SMS format: (delete 2&3 phone numbers of a call button) *12*1234#1082*#1083*# User command code CORRECT SMS format: *12*1234#108105857235#10820865682554#10830862235644# SMS reply: 108105857235#10820865682554#10830862235644# OK User command code ERROR (user command error) SMS format: *12*1234#108105857235#1920865682554#10830862235644# SMS reply: 108105857235#1920865682554# Error AN1808-08 4G Audio Intercom (E1.1) 11/16... -
Page 12: Command Codes
( no number no restriction) None Del administrator phone number 74*# delete admin phone number X=0 (disable SMS reply) SMS reply notice of Relay status 894[X]# X=1 (enable SMS reply) Dial tone volume 898[X]# X=1~3 ( levels) AN1808-08 4G Audio Intercom (E1.1) 12/16... - Page 13 (when external power is active) active content= up to 100 characters (works for inside battery) Send SMS message Password=setting password *30*[ password ]#[content] IN1 trigger (when IN1 is triggered) content= up to 100 characters AN1808-08 4G Audio Intercom (E1.1) 13/16...
-
Page 14: How To Change The Name Plate
ARISTEL NETWORKS Reset 999# reset default None How To Change The Name Plate AN1808-08 4G Audio Intercom (E1.1) 14/16... -
Page 15: How To Reset The Hardware When You Forget Your Password
Q. There is no audio from the gate, but the person at the gate can hear ok. A. This can be due to low reception. -Check reception level by *20#. -Change SIM card if necessary to another network which may have better coverage. -Purchase a high gain antenna. AN1808-08 4G Audio Intercom (E1.1) 15/16... -
Page 16: Specification
Length of antenna 3 meters cable Power supply 12~24V AC/ DC Design and material Vandal resistant / die cast aluminum Humidity Less than 80% RH Operating Temperature -20℃ to 50℃ Operating Current Maximum 250mA, Typically 55mA AN1808-08 4G Audio Intercom (E1.1) 16/16...
