3. Insert the MOD4 connector into the socket on the underside of the overlay.

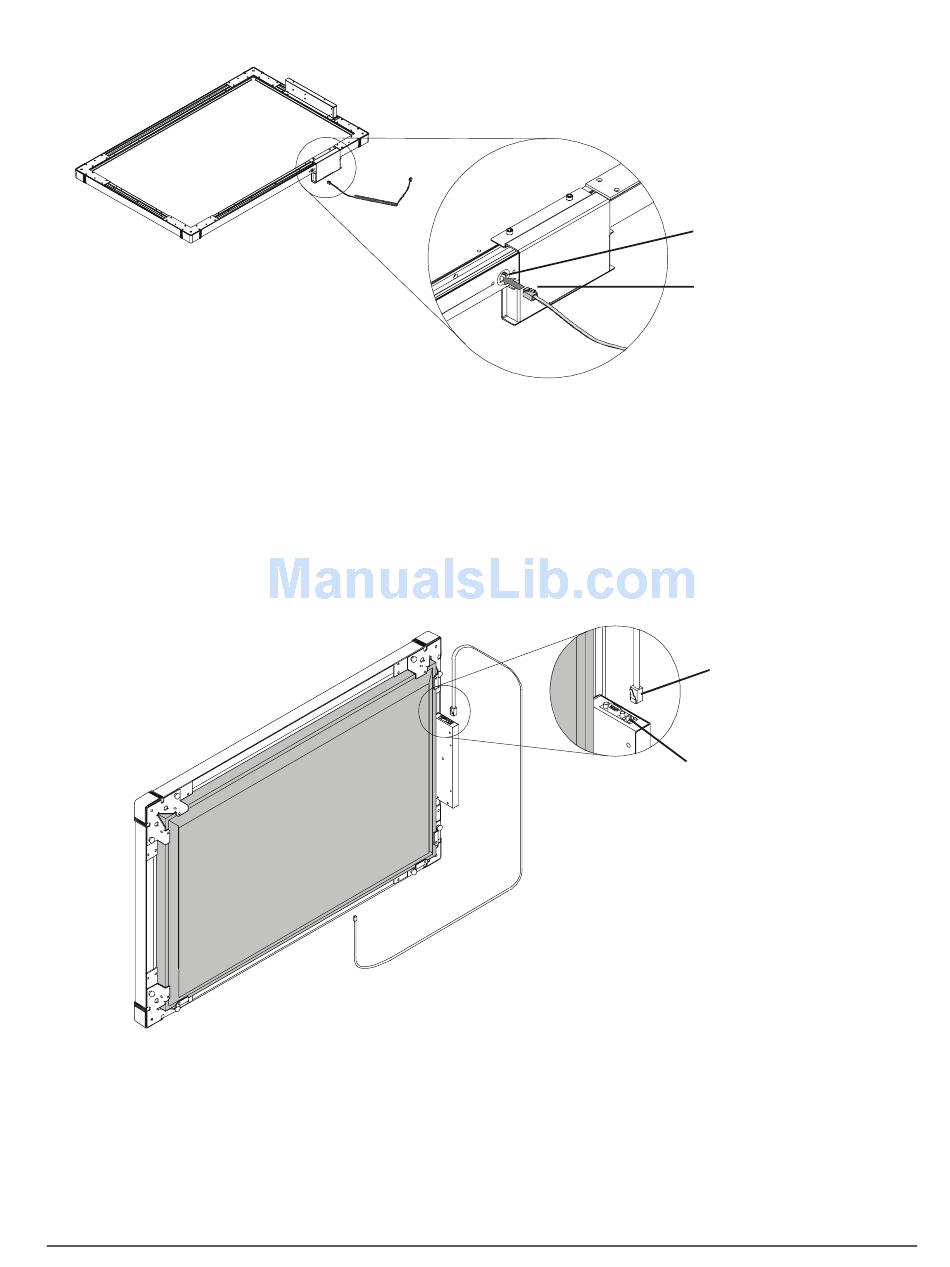

Inserting the MOD4 Connector into the Overlay Socket
4. Adjust the icon strips according to the instructions found on pages 5–6.
5. Attach the overlay to the plasma display according to the instructions found on pages 10–
13.
6. Route the MOD4 cable along the bottom and then the right edge of the overlay to the top of
the controller. Insert the other MOD4 connector end into the top of the controller (in the
socket closest to you).
Inserting the MOD4 Cable into the Top of the Controller
SBPD Installation Guide
MOD4 Socket
on Overlay
MOD4 Connector
MOD4 Connector
MOD4 Socket
on Controller
27
