3. Thread the free end of the MOD4 cable through the cable opening in the middle of the Pen
Tray bracket.
Cable Opening
MOD4 Cable

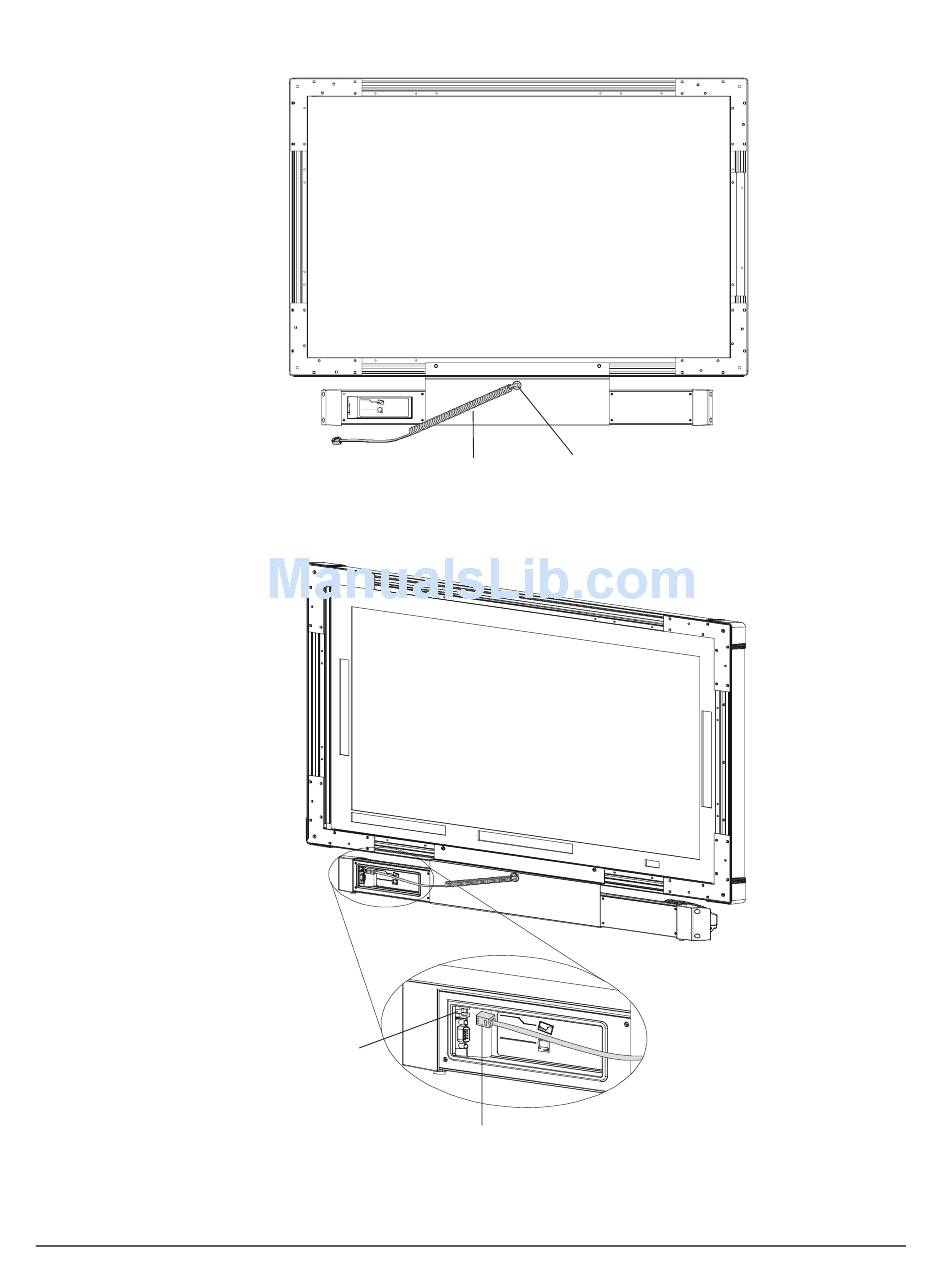

Threading the MOD4 Cable through the Pen Tray Bracket
4. Pull the MOD4 cable over to the Pen Tray controller and insert it into the MOD4 connector.
MOD4 Connector
MOD4 Cable
Connecting the MOD4 Cable to the Pen Tray
SBPD Installation Guide
8
