When you receive the SBPD, the Display Control Strip will be facing frontward, but the Custom
Strip and Tool Strip will be facing backward. In order to use the Custom Strip or Tool Strip,
you'll need to flip the strip so it faces frontward. If you want to change the way an icon strip
faces, you'll need to do it before you attach the overlay to the plasma display because
afterwards the icon strips are not accessible.

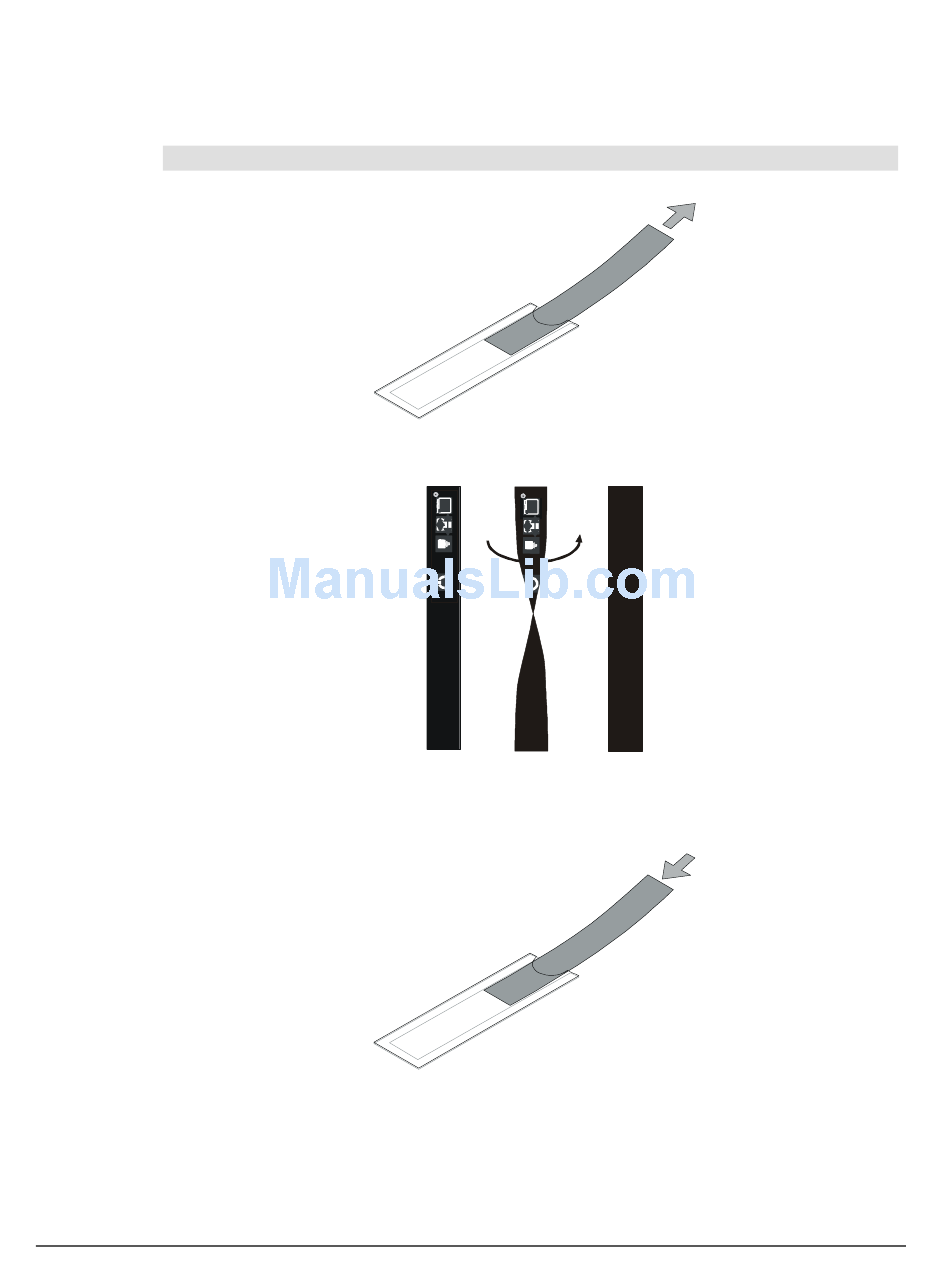

To flip an icon strip:
1. Pull the icon strip out of its plastic pocket.
2. Turn the icon strip over. If you don't want to use the strip, position it to face backward. If
you do want to use the strip, position if to face frontward.
3. Return the icon strip to the plastic pocket from which it was removed. If you plan to use the
Custom Strip, make sure you draw icons on the strip before reinserting it.
6
Facing Frontward
SBPD Installation Guide
Facing Backward
