4. OPERATING ADJUSTMENTS

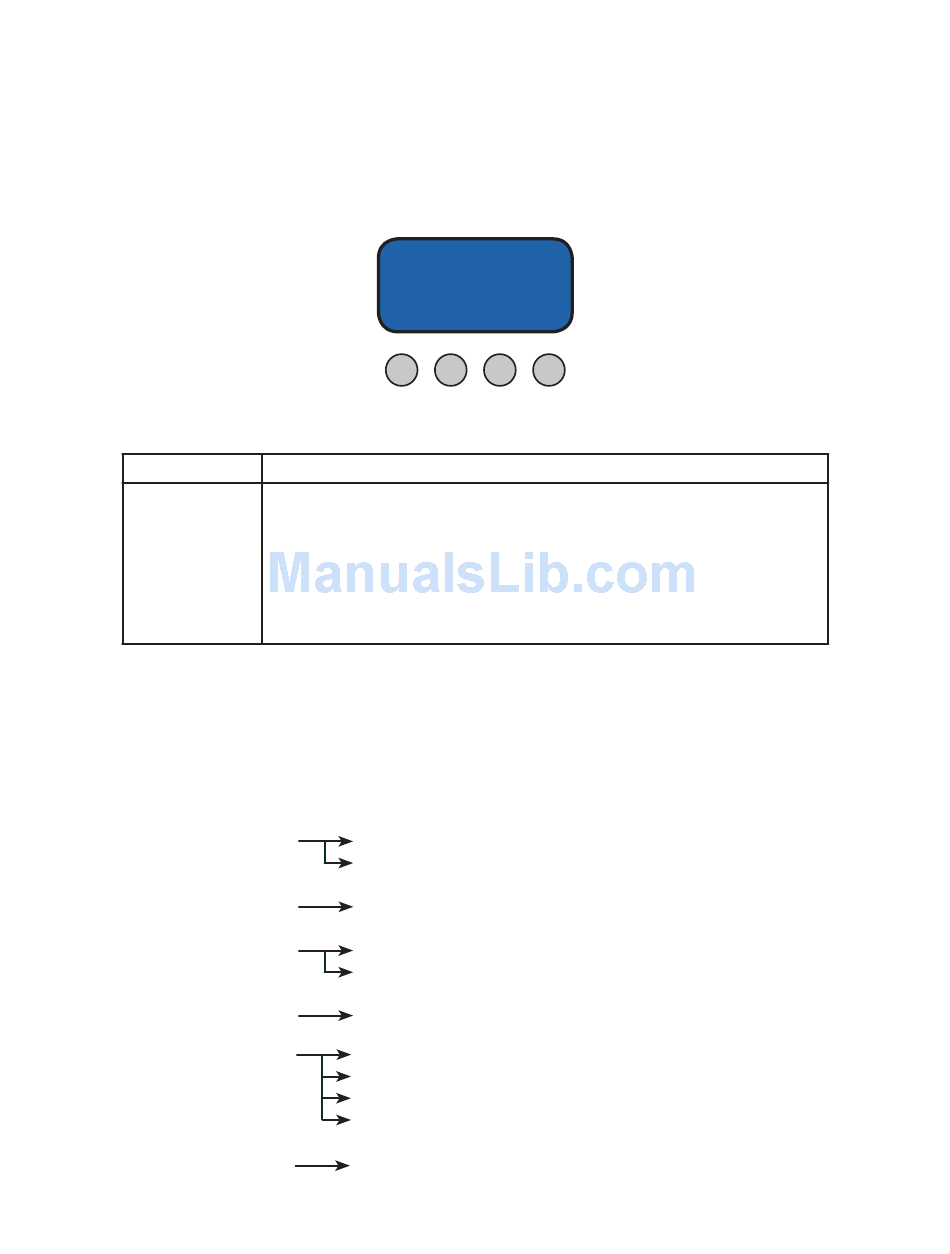

The Control Panel

All the goodies and different modes possible with the BlockHead™ are accessed by using
the control panel on the front of the fi xture. There are 4 control buttons below the LCD
display which allow you to navigate through the various control panel menus.
Button Function
<MODE> Used to access the menu or to return to a previous menu option.
<ENTER> Used to select and store the current menu or option within a menu.
<UP> Scrolls through menu options in ascending order.
<DOWN> Scrolls through menu options in descending order.
To navigate through the LCD control panel main menu, use the <MODE> button to scroll
through the various top level menu options. Then to scroll through sub-menu options, use
the <UP/DOWN> buttons. Push the <ENTER> button to save any changes made.

Control Panel Menu Structure

Set DMX Address
Set Run AUTO XY
Set Run AUTO LED
Set Run SOUND
Set Run MANUAL
System Reset
BlockHead™ User Manual Rev. B
Address
001
MODE ENTER UP DOWN
001-512
Sets the DMX address 001-512 <MODE>
16/20/116
Sets DMX Channel Mode to 16/20/116
P [01-10]
Auto X/Y movement programs 1-10
P [01-12]
Auto pixel program 1-12 <ENTER>
SP [01-12]
Auto program speed 1-10 (slow <--> fast)
P [01-10]
Sound active programs 1-10
R [000-255] Red Intensity Level (0-255)
G [000-255]
Green Intensity Level (0-255)
B [000-255]
Blue Intensity Level (0-255)
W [000-255]
White Intensity Level (0-255)
<ENTER> To reset the fi xture motors
