gascraft RG18 Installation Instructions

IMPORTANT – PLEASE READ ALL INSTRUCTIONS BEFORE USING BARBEQUE

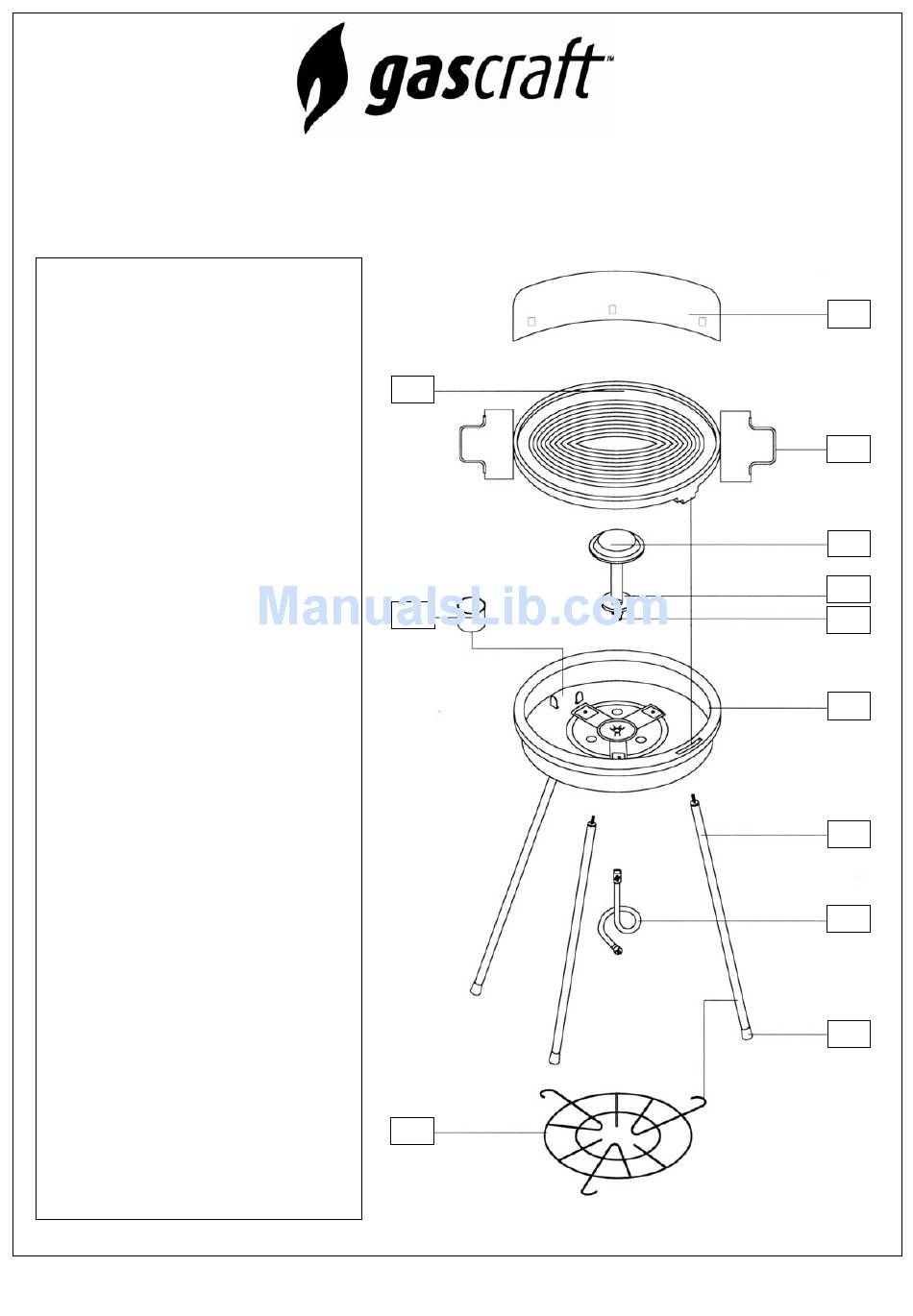

ASSEMBLY DIAGRAM
ITEM DESCRIPTION
1. Windshield
2. BBQ Plate
3. BBQ Plate Wire Handle
4. Burner
5. Grease Cup
6. Washer
7. Male Fitting
8. Bowl
9. Leg
10. Hose
11. Plastic Leg Caps
12. Wire Base
_______________________________

ASSEMBLY INSTRUCTIONS

1. Attach leg caps (11) to bottom of
legs (9) and screw legs into the
bottom of the bowl (8).
2. Locate wire base (12) onto legs.
3. Place grease cup (5) inside bowl
between support lugs.
4. Unscrew the male fitting (7) and
washer (6) from burner (4). Place
washer in the centre of the inside
bowl. Feed the male fitting through
the centre hole in the bowl from
underneath. Screw the burner onto
the male fitting tightly. Connect hose
(10) onto male fitting. Note: There
may still be some play after the
burner is attached. This is normal. If
the burner is very loose, make sure
the hex nut on the male fitting is
properly positioned within the guides
on the underside of the bowl.
5. Place BBQ plate (2) on top of bowl
and position into place.
6. Locate windshield (1) into position.
Ensure windshield sits inside of the
three tabs on body completely.
18" Round Gas Barbecue
QTY.
(1x)
2
(1x)
(2x)
(1x)
(1x)
(1x)
(1x)
(1x)
(3x)
(1x)
(3x)
(1x)
5
12
1
3
4
6
7
8
9
10
11
