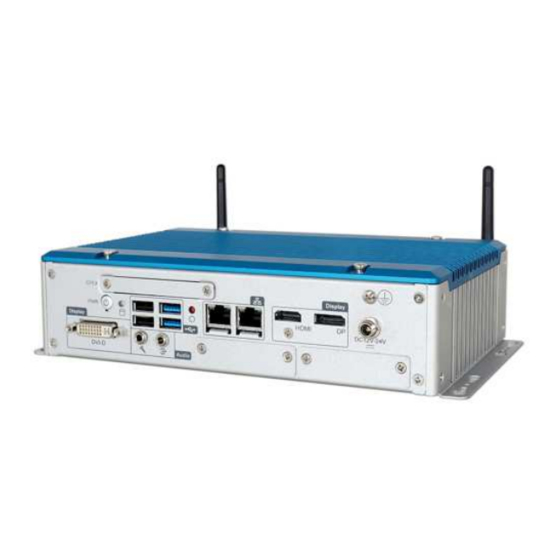

Portwell WEBS-5481 User Manual

Fan-less embedded system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

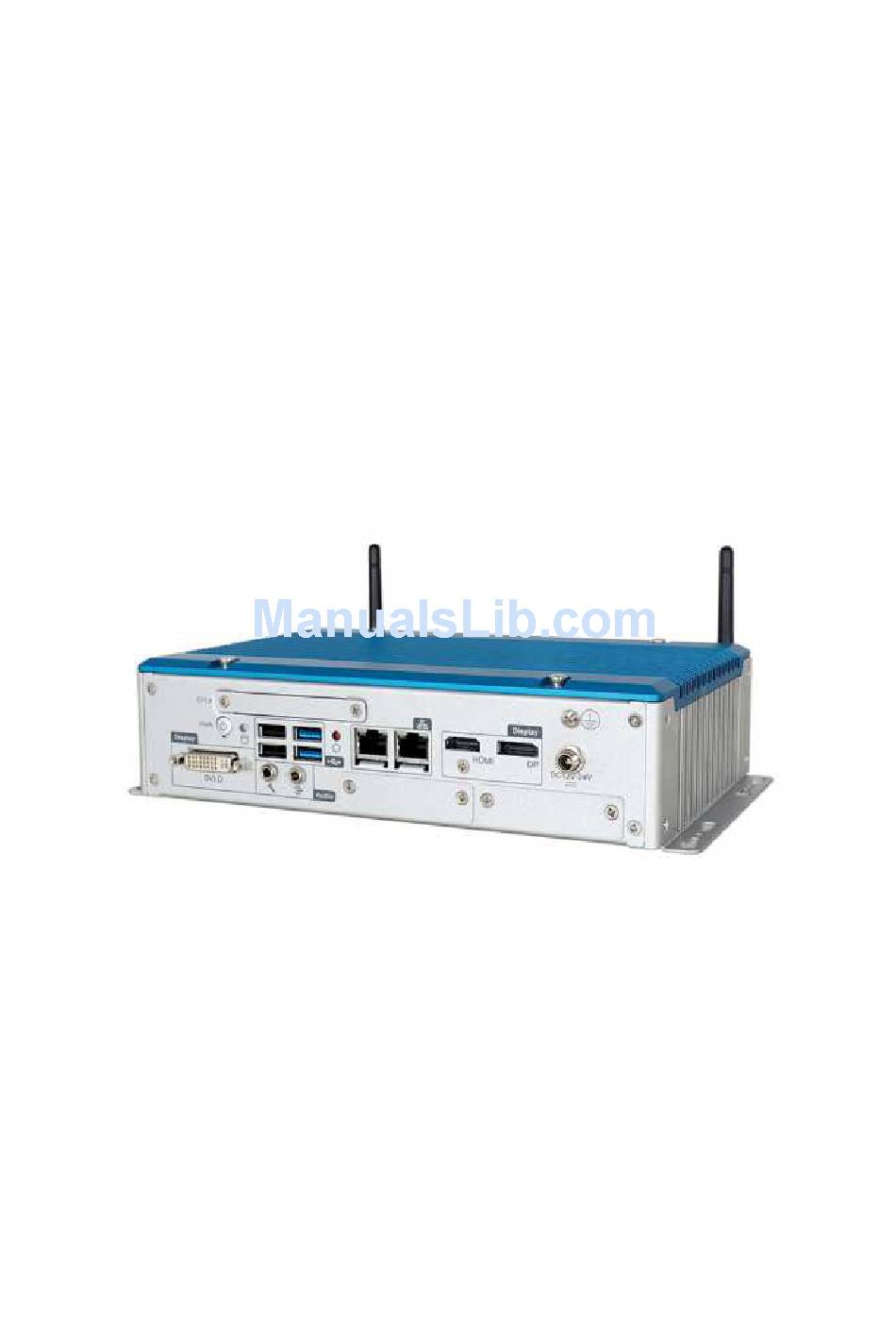

WEBS-5481
Fan-less Embedded System
User's Manual
Version 1.0
Copyright © Portwell, Inc., 2015. All rights reserved.
All other brand names are registered trademarks of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WEBS-5481 and is the answer not in the manual?

Questions and answers

Related Manuals for Portwell WEBS-5481

Summary of Contents for Portwell WEBS-5481

  • Page 1 WEBS-5481 Fan-less Embedded System User's Manual Version 1.0 Copyright © Portwell, Inc., 2015. All rights reserved. All other brand names are registered trademarks of their respective owners.

  • Page 2: Table Of Contents

    Preface Table of Contents How to Use This Manual Chapter 1 System Overview ....................... 1-1 1.1 Introduction ....................... 1-1 1.2 Check List ......................1-2 1.3 Product Specification ..................1-2 1.4 Mechanical Dimension ..................1-3 Chapter 2 System Installation ....................2-1 2.1 HDD Installation ....................

  • Page 3: How To Use This Manual

    Preface How to Use This Manual The manual describes how to configure your WEBS-5481 system to meet various operating requirements. It is divided into four chapters, with each chapter addressing a basic concept and operation of Fan-less Embedded System. Chapter 1: System Overview. Present what you have in the box and give you an overview of the product specifications and basic system architecture for this fan-less embedded system.

  • Page 4: Chapter 1 System Overview

    Portwell, a world-leading innovator in the industrial PC (IPC) industry and a Premier Member of the Intel® Internet of Things (IoT) Solutions Alliance, announces WEBS-5481, a high performance and low power intelligent Box PC. Powered by the 4th generation Intel® Core™ ULT (ultra low TDP) SoC (system on chip) processor...

  • Page 5: Check List

    Box PC to the automotive industry, for example. Last but not least, with wall and panel mounting design, the WEBS-5481 provides a slim and small footprint Box PC weighing only 2 Kg that can fit anywhere easily, no matter if it’s in the office or factory.

  • Page 6: Mechanical Dimension

    50G, 11 msec, IEC 60068-2-27 Mechanical Dimension (WxDxH) 253 x 160 x 60 mm; 9.2” x 6.2” x 4” Weight 2 kg Mounting Wall Mount 1.4 Mechanical Dimension Front view of the WEBS-5481 system Rear view of the WEBS-5481 system WEBS-5481 User’s Manual...
  • Page 7 System Overview Top view of the WEBS-5481 system Side view of the WEBS-5481 system WEBS-5481 User’s Manual...

  • Page 8: Chapter 2 System Installation

    Step 4. Install the HDD onto cover Step 5. Plug the SATA and power cable Step 6. Screw the HDD cover back to to connect the M/B and HDD the system and finish installation *Note: Glue it if needed WEBS-5481 User’s Manual...

  • Page 9: Cfex Installation

    System Installation 2.2 CFEX Installation CFEX is a new Compact Flash (CF) technology initiated by Portwell and adapting legacy CF type one with advanced pin definitions. This helps overcome reliability issues with standard commercial memory. CFEX also supports SATA 3.0, SPI and other extensions, and achieves a read speed of 100 to 120Mbyte/s and write speed of 45 to 75Mbyte/s.
  • Page 10 Step 7. Screw the tray of graphic Step 8. Finish installation module properly *Note: Drivers should be installed properly to run the feature WEBS-5481 User’s Manual...

  • Page 11: I/O Interfaces

    Signal Description PIN No. Signal Description EC_GPI0 GPO0 (Voltage from JP6) EC_GPI1 GPO1 (Voltage from JP6) EC_GPI2 GPO2 (Voltage from JP6) EC_GPI3 GPO3 (Voltage from JP6) VCC5 GPIO Output Voltage Function 1-2 Short 3.3V ★ Default 2-3 Short WEBS-5481 User’s Manual...

  • Page 12: Rear View

    TXD#/422R+ DTR#/422R- DSR# RTS# CTS# 2.4.2 Rear View DC in: (Wide range DC source support, 12~24V) Using the provided DC source to connect to the system Power Button: Press the power button to turn ON/OFF the system WEBS-5481 User’s Manual...
  • Page 13 Connectors for MIC-In and Line-Out CFEX: CFEX is a new Compact Flash (CF) technology initiated by Portwell and adapting legacy CF type one with advanced pin definitions. This helps overcome reliability issues with standard commercial memory. CFEX also supports SATA 3.0, SPI and other extensions, and achieves a read speed of 100 to 120Mbyte/s and write speed of 45 to 75Mbyte/s.

  • Page 14: Getting Started

    It is easy to get the system started. Step 1. Make sure the power supply Step 2. Press the power button to turn (12~24V) is connected properly on the system *Note: Power LED shines BLUE when system is “ON”; ORANGE when “OFF” WEBS-5481 User’s Manual...

  • Page 15: Chapter 3 Bios Setup Information

    Chapter 3 BIOS Setup Information WEBS-5481 system adopts PEB-5731 mother board. PEB-5731-W uses AMI BIOS structure stored in Flash ROM. These BIOS has a built-in Setup program that allows users to modify the basic system configuration easily. This type of information is stored in CMOS RAM so that it is retained during power-off periods.

  • Page 16: Main

    System Date The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Time The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. Access Level WEBS-5481 User’s Manual...

  • Page 17: System Setup Utility

    Configure boot device priority settings. Security Configure user authentication requirements. Save changes and exit the system setup utility, or Save & Exit restore default settings. 3.4 Configuration Use this menu to set up the items of special enhanced features. WEBS-5481 User’s Manual...

  • Page 18: Cpu Configuration

    CPU C states CPU C states -Enabled ★ Default -Disabled Enhanced C1 state Enhanced C1 state -Enabled ★ Default -Disabled CPU C3 report CPU C3 report -Enabled ★ Default -Disabled CPU C6 report CPU C6 report -Enabled ★ Default WEBS-5481 User’s Manual...
  • Page 19 It is not necessary to make any change just take the default value. BIOS Item Usage Item-Specific Help -Disabled High Precision Timer -Enabled★ Default -Disabled Azalia -Enabled★ Default -Disabled ★ Default Enabled/Disabled VT-d VT-d function on MCH -Enabled -LPC Bus Port 80h Redirection -PCIE Bus WEBS-5481 User’s Manual...
  • Page 20 BIOS Setup Information AMT Configuration BIOS Item Usage Item-Specific Help -Disabled Disables/Enabled iAMT Intel AMT -Enabled ★ Default function -Disabled ★ Default Un-Configure ME -Enabled -Disabled ★ Default Disable ME -Enabled WEBS-5481 User’s Manual...

  • Page 21: Memory Configuration

    BIOS Setup Information Memory Configuration WEBS-5481 User’s Manual...
  • Page 22 Enable/Disable Intel Intel LAN I218 Controller -Enabled ★ Default LAN I218 -Disabled ★ Default Wake on LAN -Enabled -Disabled Enable/Disable Intel Intel LAN I210 Controller -Enabled ★ Default LAN I210 -Disabled ★ Default Wake on LAN -Enabled WEBS-5481 User’s Manual...
  • Page 23 -256MB ★ Default Aperture Size Select the Aperture Size -512MB -32M -64M -96M Select DVMT 5.0 -128M Pre-Allocated (Fixed) -160M DVMT Pre-Allocated Graphics Memory size -192M used by the internal -224M Graphics Device -256M ★ Default -288M WEBS-5481 User’s Manual...
  • Page 24 Internal -MAX Graphics Device -VBIOS Default -HDMI Primary IGFX Boot -DVI ★ Default Display -VBIOS Default -HDMI ★ Default Secondary IGFX Boot Display -DVI -1024x768 ★ Default -1280x1024 DVI Display Type -1360x768 -1920x1200 WEBS-5481 User’s Manual 3-10...
  • Page 25 -192 PCI Bus Clocks -224 PCI Bus Clocks -248 PCI Bus Clocks -Auto -128 Bytes -256 Bytes Maximum Payload -512 Bytes -1024 Bytes -2048 Bytes -4096 Bytes -Auto -128 Bytes Maximum Read Request -256 Bytes -512 Bytes -1024 Bytes WEBS-5481 User’s Manual 3-11...
  • Page 26 BIOS Setup Information -2048 Bytes -4096 Bytes PCH PCI Express Configuration It is not necessary to make any change just take the default value. WEBS-5481 User’s Manual 3-12...
  • Page 27 Control PCI Express root -Enabled ★ Default 1/2/4/6 port -Disabled ★ Default -L0S Control PCIe Active State ASPM Power Management setting -L0S L1 -Auto -Auto ★ Default Select PCIe Speed to Gen1 PCIe Speed -Gen1 or Gen2 -Gen2 WEBS-5481 User’s Manual 3-13...
  • Page 28 SATA Controller Speed -Gen2 -Gen3 ★ Default -Disabled Port 0~3 -Enabled ★ Default -Disabled ★ Default Hot Plug -Enabled -Disabled ★ Default External SATA -Enabled -Hard Disk Drive -Solid State Drive ★ SATA Device Type Default WEBS-5481 User’s Manual 3-14...
  • Page 29 -Enabled ★ Default Legacy USB support USB devices are connected. -Disabled DISABLE option will keep USB devices available only for EFI applications. -Smart Auto ★ Default -Auto XHCI Mode -Enabled -Disabled Manual -Enabled ★ Default XHCI Hand-off -Disabled WEBS-5481 User’s Manual 3-15...
  • Page 30 -Disabled★ Default -Enabled ★ Default Mass Storage Driver Support -Disabled PCH USB Configuration -Disabled ★ Default Control each of the USB -USB Ports per-Port 0~7 ports disabling -Enabled Disable PCH USB Configuration USB Ports per-Port 0~7 WEBS-5481 User’s Manual 3-16...
  • Page 31 -Last State Enable or disable System wake on alarm event. -Disabled ★ Default Wake system with Fixed When enabled, System Time -Enabled will wake hr:min:sec specified -Disabled ★ Default Wake on Ring -Enabled WEBS-5481 User’s Manual 3-17...
  • Page 32 BIOS Setup Information TPM Configuration BIOS Item Usage Item-Specific Help -Disabled ★ Default Enabled/Disabled TPM Security Device Support Function -Enabled Super IO Configuration Enable/Disable Watch Dog Timer WEBS-5481 User’s Manual 3-18...
  • Page 33 -Disable ★ Default WDT Controller -Enabled - Second ★ Default Timer Unit - Minute 20 ★ Default Timer value -Disable Serial Port 1~6 Setting Serial Port 1~6 -Enable ★ Default -RS-232 RS-232/422/485 Control -RS-422 Option -RS-485 WEBS-5481 User’s Manual 3-19...
  • Page 34 Provide on board sensor reading information. BIOS Item Usage Item-Specific Help -Disable ★ Default CPU Smart Fan Control -Enable Smart Fan Start Disable / Enable Smart -50 ★ Default Temperature Fan function Smart Fan Full Speed -50 ★ Default Temperature WEBS-5481 User’s Manual 3-20...
  • Page 35 BIOS Setup Information Serial Port Console Configuration Configure console redirection on serial port. BIOS Item Usage Item-Specific Help Control Console -Disabled ★ Default Serial Port 1 Console Redirection Redirection -Enabled enable/disable -Disabled ★ Default Console Redirection -Enabled WEBS-5481 User’s Manual 3-21...

  • Page 36: Boot

    POST. When set to [Force BIOS], the display mode used by AMI BIOS is used. Select [Keep Current] if you want to use the display mode of optional ROM. Choices: Force BIOS, Keep Current. WEBS-5481 User’s Manual 3-22...
  • Page 37 Choices: Disabled, Enabled. Summary Screen Choices: Disabled, Enabled. Fast Boot Choices: Disabled link, Enabled. Boot mode Select Choices: LEGACY, UEFI. Boot Option #1 ~#7 Sets the system boot order. Choices: Built-in EFI Shell, other bootable devices, Disabled. WEBS-5481 User’s Manual 3-23...

  • Page 38: Security

    BIOS Setup Information 3.6 Security Set or clear the Supervisor account’s password. Administrator Password Set Setup Administrator Password User Password Set User password WEBS-5481 User’s Manual 3-24...

  • Page 39: Exit

    Finally resets the system automatically. Save Changes and Exit Exit system setup after saving the changes Discard Changes and Reset Reset the system without saving the changes. Restore Defaults Restore/Load Default Values for all the setup options. WEBS-5481 User’s Manual 3-25...

  • Page 40: Chapter 4 Important Instructions

    4.2 Exclusion of Accident Liability Obligation Portwell, Inc. shall be exempt from the statutory accident liability obligation if users fail to abide by the safety instructions. 4.3 Liability Limitations / Exemption from the Warranty Obligation In the event of damage to the system unit caused by failure to abide by the hints in this manual and on the unit (especially the safety instructions), Portwell, Inc.
