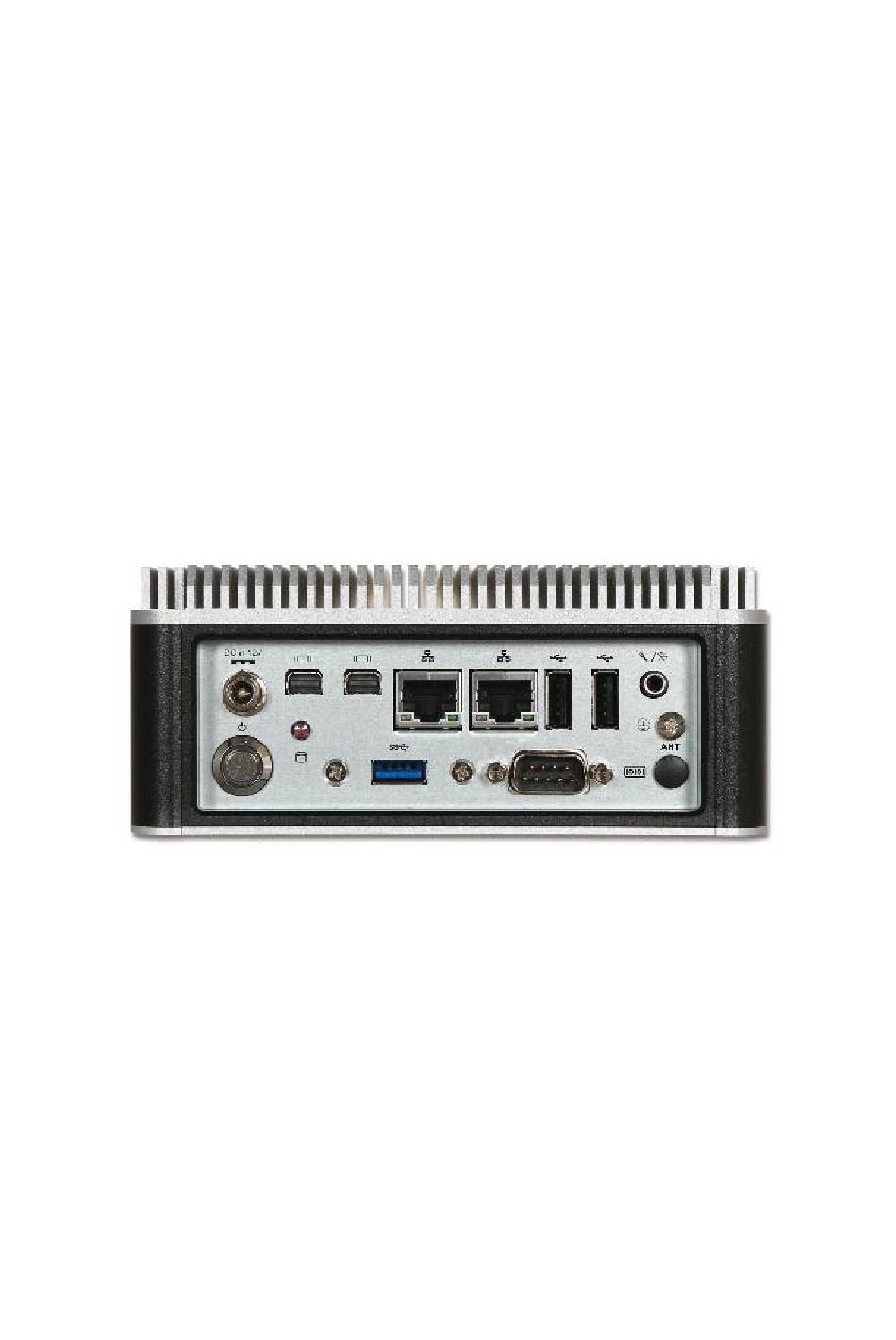

WEBS-21A0
Fan-less Embedded System
User's Manual
Version 1.0
Copyright © Portwell, Inc., 2017. All rights reserved.
All other brand names are registered trademarks of their respective owners.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WEBS-21A0 and is the answer not in the manual?

Questions and answers

Related Manuals for Portwell WEBS-21A0

Summary of Contents for Portwell WEBS-21A0

  • Page 1 WEBS-21A0 Fan-less Embedded System User's Manual Version 1.0 Copyright © Portwell, Inc., 2017. All rights reserved. All other brand names are registered trademarks of their respective owners.

  • Page 2: Table Of Contents

    Preface Table of Contents How to Use This Manual Chapter 1 System Overview ....................... 1-1 1.1 Introduction ....................... 1-1 1.2 Check List ......................1-1 1.3 Product Specification ..................1-2 1.4 Mechanical Dimension ..................1-3 Chapter 2 System Installation ....................2-1 2.1 HDD Installation ....................

  • Page 3: How To Use This Manual

    Preface How to Use This Manual The manual describes how to configure WEBS-2190 system to meet various operating requirements. It is divided into five chapters, with each chapter addressing a basic concept and operation of Fan-less Embedded System. Chapter 1: System Overview. Present what may have in the box and give an overview of the product specifications and basic system architecture for this fan-less embedded system.

  • Page 4: Chapter 1 System Overview

    RS-232/422/485 selected by BIOS; one audio combo jack to support Line-out and Mic-in; and multiple storage with 2.5” HDD/SSD, mSATA device. In addition, the compact 150mm x 150mm x 63mm box, WEBS-21A0, integrates a half-size mini PCIe socket interface to support WIFI, Bluetooth, 3G functions, etc, making it an ideal solution as an IoT gateway.

  • Page 5: Product Specification

    System Overview If any of these items is damaged or missing, please contact your vendor and keep all packing materials for future replacement and maintenance. 1.3 Product Specification System NANO-6050 System Chipset Intel Broadwell-U SoC ® Intel Core i5-5350U (15W) in FCBGA1168 package ®...

  • Page 6: Mechanical Dimension

    System Overview 1.4 Mechanical Dimension Front view of the WEBS-21A0 system (standard) Front view of the WEBS-21A0 system (with optional kit: addition 2x USB 3.0) Rear view of the WEBS-21A0 system Side view of the WEBS-21A0 system WEB-21A0 User’s Manual...
  • Page 7 System Overview Top view of the WEBS-21A0 system WEB-21A0 User’s Manual...

  • Page 8: Chapter 2 System Installation

    System Installation Chapter 2 System Installation This chapter provides you with instructions to set up your system. Definitions and locations of all the interfaces are described so that you can easily configure your system. For more detailed PIN assignment and jumper setting, please refer to user’s manual of NANO-6050.

  • Page 9: Half-Size Mini-Pcie Device Installation

    System Installation 2.2 Half-size Mini-PCIe Device Installation It’s easy to install and maintenance the 1x Half-size Mini-PCIe device by just open the back cover. Step 1. Loosen the 4 screws of the back Step 2. Take out the back cover cover Step Assemble...

  • Page 10: Msata Device Installation

    System Installation 2.3 mSATA Device Installation It’s easy to install and maintenance the 1x mSATA by just open the back cover. Step 1. Loosen the 4 screws of the back Step 2. Take out the back cover cover Step 3. Assemble the mSATA card and Step 4.

  • Page 11: Din Rail Mounting Device Installation

    System Installation 2.4 DIN Rail Mounting Device Installation It’s easy to install and maintenance the Din Rail mounting device by just open the back cover. Step 1. Loosen the 4 screws of the back Step 2. Take out the back cover cover Step 3.

  • Page 12: At Mode Setting

    System Installation 2.5 AT mode setting AT mode: Once the power supply plug in, the system starts automatically, don’t need press the power button. SW1: AT Mode or ATX Mode Selection Function 1-4 ON; 2-3 ON ATX Mode (default) 1-4 ON; 2-3 OFF ATX Mode 1-4 OFF;...

  • Page 13: I/O Interfaces

    System Installation 2.7 I/O Interfaces 2.7.1 Front View (Standard) 2.7.2 Front View (Optional Kit: Additional 2x USB 3.0) 2.7.3 Rear View DC in: (12V) Using the provided DC source to connect to the system WEB-21A0 User’s Manual...
  • Page 14 System Installation Power Button: Press the power button to turn ON/OFF the system HDD LED: Shows real-time read and write activity of your HDD/SSD as a small blinking indicator Mini DP: Mini DP (Display Port) display output LAN: Two Gigabit Ethernet (10/100/1000 Mbits/sec) LAN ports by using Intel I218AT Ethernet Controller USB 2.0: Two USB 2.0 (Universal Serial Bus) ports...

  • Page 15: Chapter 3 Bios Setup Information

    Chapter 3 BIOS Setup Information WEBS-21A0 system adopts NANO-6050 mother board. The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings.

  • Page 16: Main

    BIOS Setup Information 3.2 Main Use this menu for basic system configurations, such as time, date etc. Feature Description Options The date format is <Day>, <Month><Date><Year>. Use [＋] or System Date [－] to configure system Date. The time format is <Hour><Minute><Second>. Use [＋] or System Time [－] to configure system Time.

  • Page 17: Configuration

    BIOS Setup Information 3.3 Configuration Use this menu to set up the items of special enhanced features. WEB-21A0 User’s Manual...
  • Page 18 BIOS Setup Information CPU Configuration CPU Configuration Parameters Feature Description Options Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for Disabled, Hyper-Threading other OS (OS not optimized for Hyper-Threading ★Enabled Technology). When Disabled only one thread per enabled core is enabled.
  • Page 19 BIOS Setup Information ★Disabled, CPU C states Enable or disable CPU C state (Enabled) Enabled Disabled, Enhanced Enhanced C1 state ★Enabled state Disabled, CPU C3 Report Enable/ Disable CPU C3 report to OS ★Enabled Disabled, CPU C6 Report Enable/ Disable CPU C6 report to OS ★Enabled ★Short, C6 Latency...
  • Page 20 BIOS Setup Information Chipset Configuration Configure Chipset feature Feature Description Options Disabled, VT-d Check to enable VT-d function on MCH ★Enabled Enabled, Above 4GB MMIO Enabled/Disabled above Memory ★Disabled BIOS assignment MappedIO BIOS assignment. Control Detection of the Azalia device. ★Enabled, Azalia Disabled = Azalia will be unconditionally disabled...
  • Page 21 BIOS Setup Information AMT Configuration Configure Active Management Technology Parameters Feature Description Options Enable/Disable Intel® Active Management Technology BIOS Extension. ★Disabled, Intel AMT Note: iAMT H/W is always enabled. (Enable) This option just controls the BIOS extension execution. Enabled If enabled, this requires additional firmware in the SPI device ★Disabled, Un-Configure...
  • Page 22 BIOS Setup Information LAN Configuration Configuration On Board LAN device Feature Description Options ★Enabled, PCH LAN Controller Enable or disable onboard NIC. Disabled Enable or disable integrated LAN to wake the Enabled, Wake on LAN system. (The Wake On LAN cannot be ★Disabled disabled if ME is on at Sx state.) Launch Legacy PXE Rom.
  • Page 23 BIOS Setup Information Graphics Configuration Configuration graphic settings Feature Description Options ★Auto, Internal Keep IGD enabled based on the setup Disabled, Graphics options. Enabled ★32M, 64M, 96M, 128M,160M, 192M, Select DVMT Pre-Allocated (Fixed) DVMT 224M, 256M, 288M, Graphics Memory size used by the Internal Pre-Allocated 320M, 352M, 384M, Graphics Device.
  • Page 24 BIOS Setup Information PTN3460 Configuration PTN3460 LVDS help Feature Description Options 640x480, 800x480, 800x600, 1024x768, 1280x800, Select Panel Profile for current Panel Profile ★1280x1024, 1366x768, 1440x900, 1920x1080 ★VESA 24 bpp, JEIDA 24 bpp, Color depth and Select color depth and data data format format.
  • Page 25 BIOS Setup Information PCI/PCIE Configuration PCI, PCI-X and PCI Express Settings. Feature Description Options Disabled, Express Clock Enable or disable PCI Express Clock Gating ★Enabled Gating for each root port. The control of Active State Power Disabled, Link ASPM Management on both NB side and SB side ★Enabled Control of the DMI Link.
  • Page 26 BIOS Setup Information Mini PCI Express Root Port Mini PCI Express Root Port Settings Feature Description Options Disabled, PCI Express Root Control the PCI Express Root Port. ★Enabled Port ★Disabled, L0s, PCI Express Active State Power Management ASPM settings. L1, L0sL1, Auto ★Auto, Gen 1, PCIe Speed Select PCI Express port speed.
  • Page 27 BIOS Setup Information SATA Configuration SATA Device Options Settings Feature Description Options ★Enabled, Disabled SATA Controller(s) Enable or Disable SATA Device. SATA Mode Determines SATA controller(s) ★AHCI Selection operate. ★Default, SATA Controller Indicates the maximum speed the SATA Gen1, Speed controller can support.
  • Page 28 BIOS Setup Information ★Hard Disk Drive, Identify the SATA port is connected to SATA Device Type Solid State Drive or Hard Disk Drive. Solid State Drive USB configuration USB Configuration Parameters. Feature Description Options Enables Legacy USB support. ★Enabled, Legacy AUTO option disables legacy support if no USB devices Disabled, Support...
  • Page 29 BIOS Setup Information PCH USB Configuration PCH USB Configuration Feature Description Options Precondition work on USB host controller Disabled, ★Enabled USB Precondition and root ports for faster enumeration. ★Smart Auto, Auto, XHCI Mode Mode of operation of xHCI controller. Enabled, Disabled ★Enabled, Disabled BTCG Enabling/disabling trunk clock gating.
  • Page 30 BIOS Setup Information Power Control Configuration System Power Control Configuration Parameters. Feature Description Options Enables or Disables System ability to Hibernate Disabled, Enable Hibernation (OS/S4 Sleep State). This option may be not ★Enabled effective with some OS. Suspend Disabled, Select the highest ACPI sleep state the system ACPI Sleep State ★S3(Suspend will enter when the SUSPEND button is pressed.
  • Page 31 BIOS Setup Information EC Configuration System EC Chip Parameter Feature Description Options Disabled, ★Enabled Serial Port 1 Enable or Disable Serial Port (COM) ★RS232, RS485 HALF Set Current UART MODE RS232, RS485, UART Mode DUFLEX, RS485/422 RS485/RS422 FULL DUFLEX Watch Dog Timer ★Disabled, Enabled Enable/Disable Watch Dog Timer (Enabled)
  • Page 32 BIOS Setup Information H/W Monitor Monitor hardware status WEB-21A0 User’s Manual 3-18...
  • Page 33 BIOS Setup Information Serial Port Console Redirection Serial Port Console Redirection Feature Description Options Console Redirection ★Disabled, Enabled Console Redirection Enable or Disable. (Enable) WEB-21A0 User’s Manual 3-19...
  • Page 34 BIOS Setup Information Console Redirection Settings The settings specify how the host computer and remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Feature Description Options Emulation: ANSI: VT100, Extended ASCII char set. VT100: ASCII char set. VT100+: ★VT100+, Terminal Type Extends VT100 to support color, function keys, etc.
  • Page 35 BIOS Setup Information Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is ★1,2 Stop Bits 1 stop bit. Communication with slow devices may require more than 1 stop bit. Flow control can prevent data loss from buffer overflow.

  • Page 36: Security

    BIOS Setup Information 3.4 Security This section lets you set security passwords to control access to the system at boot time and/or when entering the BIOS setup program. Feature Description Options [Setup] check password when enter setup ★Setup screen. Password Check Mode [Power on] check password on every time Power On system power on.

  • Page 37: Boot

    BIOS Setup Information 3.5 Boot Use this menu to specify the priority of boot devices. Feature Description Options Number of seconds to wait for setup Setup Prompt ★1 activation key. 65535(0xFFFF) means Timeout indefinite waiting. BootupNumLock ★On, off Select the Keyboard NumLock state State UPON REQUEST –...
  • Page 38 BIOS Setup Information Enables or disables boot with initialization ★Disable Fast Boot of a minimal set of devices required to Link, (Enabled) launch active boot option. Has no effect for Enabled BBS boot options. Last Boot Only, SATA Support ★All State Devices If Auto, only install Legacy OpRom with Legacy OS and logo would NOT be shown Auto, ★EFI Driver...
  • Page 39 BIOS Setup Information Hard Drive BBS Priorities Set the order of the legacy devices in this group Feature Description Options Boot Option #1 Sets the system boot order Boot Option #2 Sets the system boot order WEB-21A0 User’s Manual 3-25...

  • Page 40: Exit

    BIOS Setup Information 3.6 Exit This menu allows you to load the BIOS default values or factory default settings into the BIOS and exit the BIOS setup utility with or without changes. Feature Description Options Save Changes and Reset Reset the system after saving the changes Discard Changes Reset system without saving any changes.

  • Page 41: Chapter 4 Important Instructions

    4.2 Exclusion of Accident Liability Obligation Portwell, Inc. shall be exempt from the statutory accident liability obligation if users fail to abide by the safety instructions. 4.3 Liability Limitations / Exemption from the Warranty Obligation In the event of damage to the system unit caused by failure to abide by the hints in this manual and on the unit (especially the safety instructions), Portwell, Inc.

  • Page 42: Chapter 5 Frequent Asked Questions

    Type in your User name and password and log in the download center. Select “Search download” and type the keyword “WEBS-21A0”. Find the “BIOS “page and download the ROM file and flash utility. Unzip file to bootable USB flash drive which can boot to dos mode. Then execute “update.bat”.
  • Page 43 Important Instructions Reboot the system and getting into [DOS]. Please follow the below instruction to update BIOS. “cd update” to access the root folder Key-in”update” this command to run updating procedure. WEB-21B0 User’s Manual...
  • Page 44 Important Instructions Update procedure Complete WEB-21B0 User’s Manual...
  • Page 45 “Save Changes and Reset” to finish all BIOS update processes. Q3: How to install Windows 7 in WEBS-21A0? Answer: Windows 7 installation media does not include native driver support for USB 3.0, so during installation, when you get to the screen to select your preferred language, a keyboard or mouse connected to a USB 3.0 port does not respond.
