- Page 1 WEBS-21D0 Fan-less Embedded System User's Manual Version 1.0 Copyright © Portwell, Inc., 2020. All rights reserved. All other brand names are registered trademarks of their respective owners...
-
Page 2: Table Of Contents
Preface Table of Contents How to Use This Manual Chapter 1 System Overview ....................... 1-1 1.1 Introduction ....................... 1-1 1.2 Check List ......................1-1 1.3 Product Specification ..................1-2 1.4 Mechanical Dimension ..................1-3 Chapter 2 System Installation ....................2-1 2.1 HDD Installation .................... -
Page 3: How To Use This Manual
Preface How to Use This Manual The manual describes how to configure WEBS-21D0 system to meet various operating requirements. It is divided into five chapters, with each chapter addressing a basic concept and operation of the Fan-less Embedded System. Chapter 1: System Overview. Present what may have in the box and give a whole picture of the product specifications and basic system architecture for this fan-less embedded system. -
Page 4: Chapter 1 System Overview

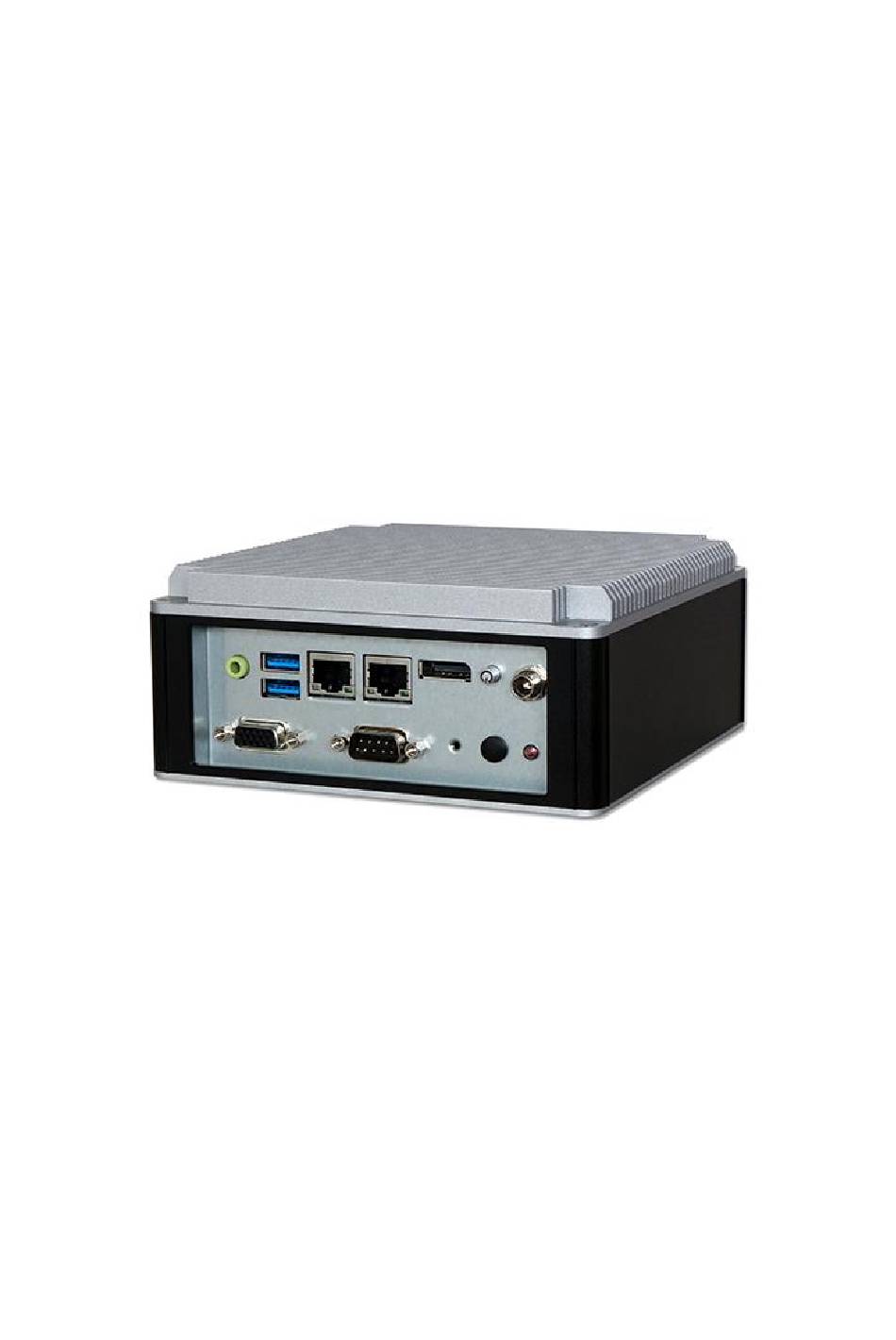

System Overview Chapter 1 System Overview Introduction Portwell Inc., a world-leading innovator in the Industrial PC (IPC) market and a Associate Member of the Intel Internet of Things (IoT) Solutions Alliance, ® announced WEBS-21D0, a fan-less embedded system. Builds on Intel Apollo Lake ®... -
Page 5: Product Specification
System Overview 1.3 Product Specification System NANO-6062 System Chipset Intel Apollo Lake SoC ® -Intel Atom x7-E3950, 1.6GHz, 2M L2 Cache, up to ® ® 2.0GHz, 12W TDP (4C/4T) -Intel Atom x5-E3940, 1.6GHz, 2M L2 Cache, up to ® ® 1.8GHz, 9.5W TDP (4C/4T) BIOS AMI UEFI BIOS... -
Page 6: Mechanical Dimension
System Overview 1.4 Mechanical Dimension Side view of WEBS-21D0 system Rear view of WEBS-21D0 system Front view of WEBS-21D0 system Front view of WEBS-21D0 system with USB 3.0 kit (optional) WEB-21D0 User’s Manual... - Page 7 System Overview Top view of WEBS-21D0 system Top View of WEBS-21D0 system with Wall Mounting kit (optional) Front View of WEBS-21D0 system with DIN-rail Mounting kit (optional) WEB-21D0 User’s Manual...
- Page 8 System Overview Bottom View of WEBS-21D0 system with VESA Mounting kit (optional) Top View of WEBS-21D0 system with VESA Mounting kit (optional) WEB-21D0 User’s Manual...
-
Page 9: Chapter 2 System Installation
System Installation Chapter 2 System Installation This chapter presents instructions to set up your system. To define and point out all of the interfaces locations described; so that, it’s easy to configure your system with whole picture. For more detailed PIN assignment and jumper setting, please refer to user’s manual of NANO-6062. -
Page 10: I/O Interfaces
System Installation Step 7. Reinstall the back cover Step 8. Tighten up the screws 2.2 I/O Interfaces 2.2.1 Front View 2.2.2 Rear View Power Button: Press the power button to turn ON/OFF the system HDD LED: Shows real-time read and write activity of your HDD/SSD as a small blinking indicator DC in: (12~24V) Using the provided DC source to connect to the system... -
Page 11: Getting Started
System Installation Antenna Hole (Optional): Antenna holes for WiFi or 3G/GPS module DP (Display Port) display output LAN: Two Gigabit Ethernet (10/100/1000 Mbits/sec) LAN ports by using Intel 210IT Ethernet Controller USB3.0 Two USB 3.0 (Universal Serial Bus) ports Audio: Connectors for Line-Out VGA: VGA –... -
Page 12: Chapter 3 Bios Setup Information
BIOS Setup Information Chapter 3 BIOS Setup Information WEBS-21D0 adopts NANO-6062 motherboard. NANO-6062 is equipped with the AMI BIOS stored in Flash ROM. Please refer to following sections for further detail description of BIOS setting. 3.1 Entering Setup – Launch System Setup Power on the computer and the system will start POST (Power on Self Test) process. -
Page 13: Main
BIOS Setup Information 3.2 Main Use this menu for basic system configurations, such as time, date etc. Feature Description Options The date format is <Day>, <Month> <Date> <Year>. Use [＋] System Date or [－] to configure system Date. The time format is <Hour> <Minute> <Second>. Use [＋] or System Time [－] to configure system Time. -
Page 14: Configuration
BIOS Setup Information 3.3 Configuration Use this menu to set up the items of special enhanced features. CPU Configuration CPU Configuration Parameters Feature Description Options Active Processor Number of cores to enable in each processor ★Disabled, Enabled Cores package. Active Processor Cores [Enabled] ★Enabled Core 0 ★Enabled, Disabled... - Page 15 BIOS Setup Information ★Enabled, Disabled Core 3 Intel When enabled, a VMM can utilize the ★Enabled, Disabled Virtualization additional hardware capabilities provided by Technology Vanderpool Technology. ★Enabled, Disabled VT-d Enable/Disable CPU VT-d. ★Enabled, Disabled EIST Enable/Disable Intel SpeedStep. EIST [Enabled] ★Enabled, Disabled Turbo Mode Turbo Mode.
- Page 16 BIOS Setup Information LAN Configuration Configuration on Board LAN device Feature Description Options ★Enabled, Disabled PCIe LAN1 Control Control the PCIe Port 3 LAN function ★Enabled, Disabled PCIe LAN2 Control Control the PCIe Port 4 LAN function ★Disabled, Enable, Wake on LAN Enable or disable the Wake on LAN.
- Page 17 BIOS Setup Information Feature Description Options ★Disabled, Enable Network Stack Enable/disable UEFI Network Stack Network Stack [Enable] Enable Ipv4 PXE Boot Support. If disabled ★Disabled, Enabled Ipv4 PXE Support Ipv4 PXE Boot Option will not be created. Enable Ipv4 HTTP Boot Support. If disabled ★Disabled, Enabled Ipv4 HTTP Support Ipv4 HTTP Boot Option will not be created.
- Page 18 BIOS Setup Information IGD Output Display control – CSM (Boot item CSM Support [Enabled]) Select the Video Device which will be activated during POST. This has no effect if external graphics ★ Auto, VGA, LVDS, Primary IGFX present. Secondary boot display selection will Boot Display appear based on your selection.
- Page 19 BIOS Setup Information PCI/PCIE Configuration PCI, PCI-X, PCE Express Settings Feature Description Options ★mSATA, Mini-PCIe Mini-PCIe & mSATA Switch PCIe Port5 is assigned to M.2 Feature Description Options Control the PCI Express Root Port. AUTO: To disable unused root port automatically for PCI Express Root ★Enable, Disable the most optimum power savings.
- Page 20 BIOS Setup Information settings L0sL1,Auto ★Disable, Enable Hot Plug PCI Express Hot Plug Enable/Disable ★Auto, Gen1, Gen2 PCIe Speed Configure PCIe Speed When the Link is operating at 5.0 GT/s speed, PCIe Selectable ★Enabled, Disabled this bit selects the level of de-emphasis for an De-emphasis Upstream component.
- Page 21 BIOS Setup Information SATA Configuration SATA Device Options Settings Feature Description Options Enable or disable the chipset SATA Controller. The Chipset controller supports ★Enable, Disable SATA Controller the 2 black internal SATA ports (up to 3Gb/s supported per port) ★Auto, Gen1, Gen2, SATA Speed Select SATA interface speed.
- Page 22 BIOS Setup Information USB Configuration USB Configuration Parameters. Feature Description Options SoC USB Configuration Selectively Enable/Disable the corresponding USB Port Disable ★Disable, Enable USB port from reporting a Device Connection Override to the controller. USB Port Disable Override [Enable] Enable/Disable USB port. Once disabled, any ★Enable, Disabled USB Port #0 USB devices plug into the connector will not...
- Page 23 BIOS Setup Information Enable/Disable USB port. Once disabled, any ★Enable, Disabled USB 3 Port #3 USB devices plug into the connector will not be detected by BIOS or OS. Common USB Configuration Enables Legacy USB Support. Auto option ★Enabled, Disabled, Legacy USB disable legacy Support if no USB devices are Support...
- Page 24 BIOS Setup Information Feature Description Options Enables or Disables System ability to Hibernate Enable ★Enabled, Disabled (OS/S4 Sleep State). This option may be not Hibernation effective with some OS. ★S3 (Suspend to ACPI Sleep Select the highest ACPI sleep state the system RAM), Suspend State will enter when the SUSPEND button is pressed.
- Page 25 BIOS Setup Information Feature Description Options Security Enables or Disables BIOS support for security ★Disabled, Enabled Device device. O.S. will not show Security Device. TCG EFI Support protocol and INT1A Interface will not be available. Super IO Configuration System Super IO Chip Parameters. Feature Description Options...
- Page 26 BIOS Setup Information H/W Monitor Configuration (Show only) Monitor hardware status Serial Port Console Redirection Serial Port Console Redirection Feature Description Options ★Disabled, Enabled Console Redirection Console Redirection Enable or Disable. WEB-21D0 User’s Manual 3-18...
- Page 27 BIOS Setup Information Console Redirection Settings (COM0) The settings specify how the host computer and the remote computer (which the user is using) will exchange data. Both Computers should have the same or compatible settings. Feature Description Options Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set.
- Page 28 BIOS Setup Information the data flow. Once the buffers are empty, a ‘start’ signal can be sent to re-start the flow. Hardware flow control uses two wires to send start/stop signals. VT-UTF8 Enable VT-UTF8 Combination Key Support for ★Enabled, Disabled Combo Key ANSI/VT100 terminals Support...
- Page 29 BIOS Setup Information NIC Configuration Specifies the port speed used for the selected boot protocol. Feature Description Options ★Auto Negotiated, Specifies the port speed used for the selected 10 Mbps Half, 10 Link Speed boot protocol. Mbps Full, 100 Mbps Half, 100 Mbps Full Enables the server to be powered on using an ★Disabled, Enabled...
- Page 30 BIOS Setup Information NIC Configuration Specifies the port speed used for the selected boot protocol. Feature Description Options ★ Auto Negotiated, Specifies the port speed used for the selected 10 Mbps Half, 10 Link Speed boot protocol. Mbps Full, 100 Mbps Half, 100 Mbps Full Enables the server to be powered on using an ★Disabled, Enabled...
-
Page 31: Security
BIOS Setup Information 3.4 Security This section lets you set security passwords to control access to the system at boot time and/or when entering the BIOS setup program. Feature Description Options [Setup] check password when enter ★Setup, Power setup screen. [Power check Password Check Mode... -
Page 32: Boot
BIOS Setup Information 3.5 Boot Use this menu to specify the priority of boot devices. Feature Description Options Number of seconds to wait for setup ★2, 1-65535 Setup Prompt Timeout activation key. 65535 (0Xffff) means indefinite waiting. ★On, Off Bootup NumLock State Select the keyboard NumLock state Post Report Support Enabled/Disabled ★Disabled, Enabled Post Report Summary Screen Support... -
Page 33: Save & Exit
BIOS Setup Information ★CD/DVD, USB Boot Option #3 Sets the system boot order Device, Hard Disk, Network, Disabled ★Network, CD/DVD, USB Device, Hard Boot Option #4 Sets the system boot order Disk, Disabled 3.6 Save & Exit Feature Description Options Reset the system after saving the Save Changes and Reset changes. -
Page 34: Chapter 4 Important Instructions
4.2 Exclusion of Accident Liability Obligation Portwell, Inc. shall be exempt from the statutory accident liability obligation if users fail to abide by the safety instructions. 4.3 Liability Limitations / Exemption from the Warranty Obligation In the event of damage to the system unit caused by failure to abide by the hints in this manual and on the unit (especially the safety instructions), Portwell, Inc. -
Page 35: Chapter 5 Frequent Asked Questions
2-3 Short Clear CMOS Contents Question 2: How to update the BIOS file? Answer: 1. Please visit web site of Portwell download center as below hyperlink http://www.portwell.com.tw/support/download_center.php Registering an account in advance is a must. (The E-Mail box should be an existing Company email address that you check regularly.) - Page 36 Important Instructions Question 3 : How to set up different interface( mSATA or mini-PCIe) of Wi-Fi from BIOS file? Answer: BIOS default is mSATA. if Wi-Fi interface is mini-PCIe, please switch default setting from mSATA to mini-PCIe in PCI/PCIE configuration item. WEB-21D0 User’s Manual...
