6. SERVICE INFORMATION
6-2. DISASSEMBLY INFORMATION
Item
BASKET- 1. OUTER TUB COVER is fitted to BODY B with snap locks.
To remove OUTER TUB COVER, hold it tightly from
SPINNING
center and PULL upwards.
Snap locks will disengage from the BODY B.
(Fig. 1)
2. Untighten a nut assembled to the BRAKE WHEEL, and turn
a bolt to counterclockwise and removeit.(Fig. 2)
(Used tool boxdriver)
3. Lift the SPIN BASKET to upward and remove it,
from BRAKE WHEEL. (Fig 3 )
CAUTION: Beware not to loose the W ATER-CUTTER
Besure to followings after replacing the SPIN BASKET.
Screw properly theboltwhich holds BRAKE WHEEL to
SPIN BASKET,otherwise, too high fastening may cause
breaking the bolt.
After screw the bolt,youmust tighten the nut
for secure fixing.
UNPLUG POWER
How to Disassemble and Assemble
because it will slide out from SHAFT-Bwhen
BASKET-SPINNING is removed.
WARNING
Unplug the power cord for the
work unnecessary to power on like
disassembling. Do not hold the
plug by a wet hand
Failing to unplug may cause an
electric shock.
15

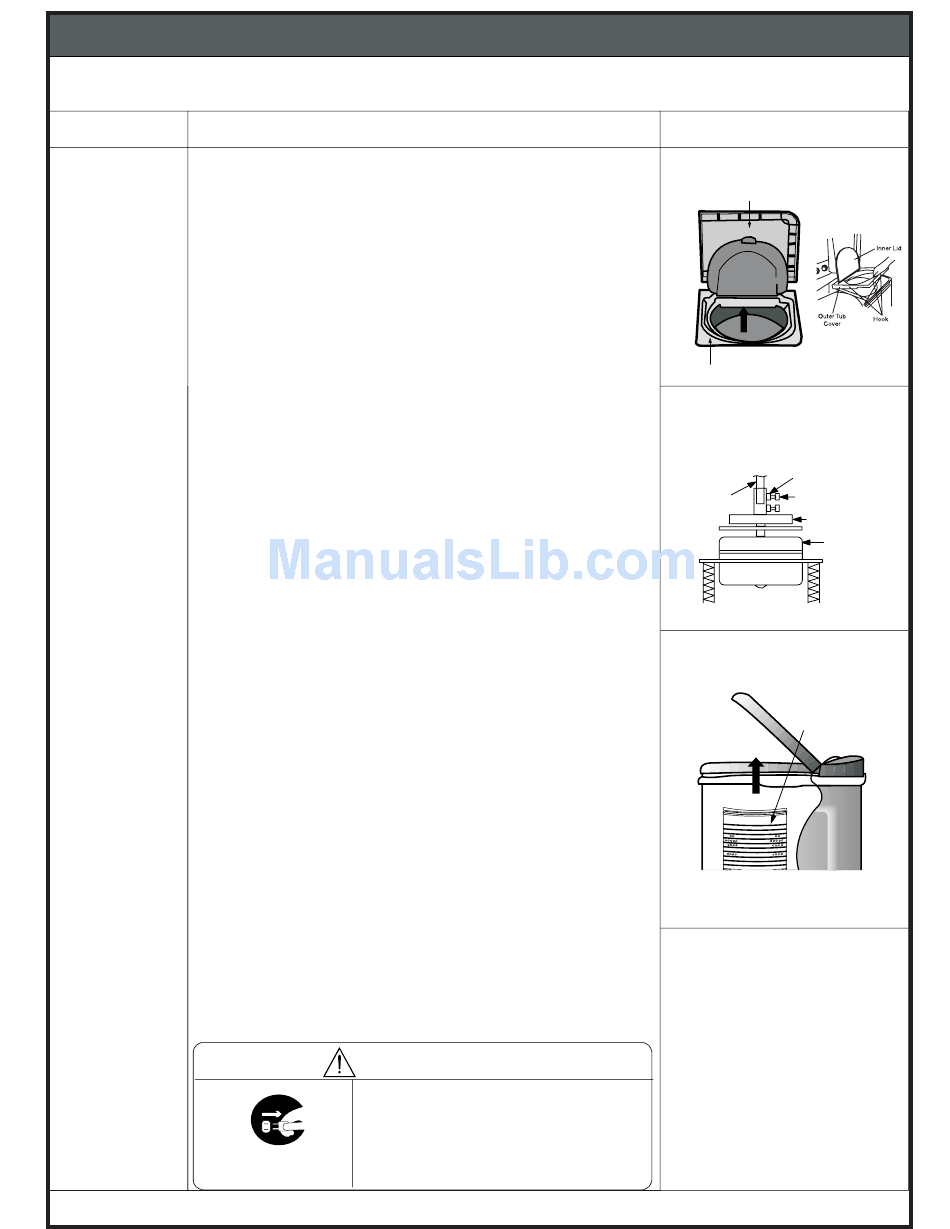

Drawings
(Fig 1)
SPIN LID
OUTER TUB COVER
(Fig 2)
NUT
SPIN TUB
BOLT
INSERT
BRAKE WHEEL
SPIN
MOTOR
(Fig. 3)
SPIN
TUB
PULL
