entrapment protection

Install photocells to help protect against entrapment during the OPENING cycle of the gate (secondary entrapment protection).
Install photocells to help protect vehicles during the CLOSING cycle of the gate.
Install sensing edge to help protect vehicles from a moving gate. See pages 17 & 25 for wiring instructions.

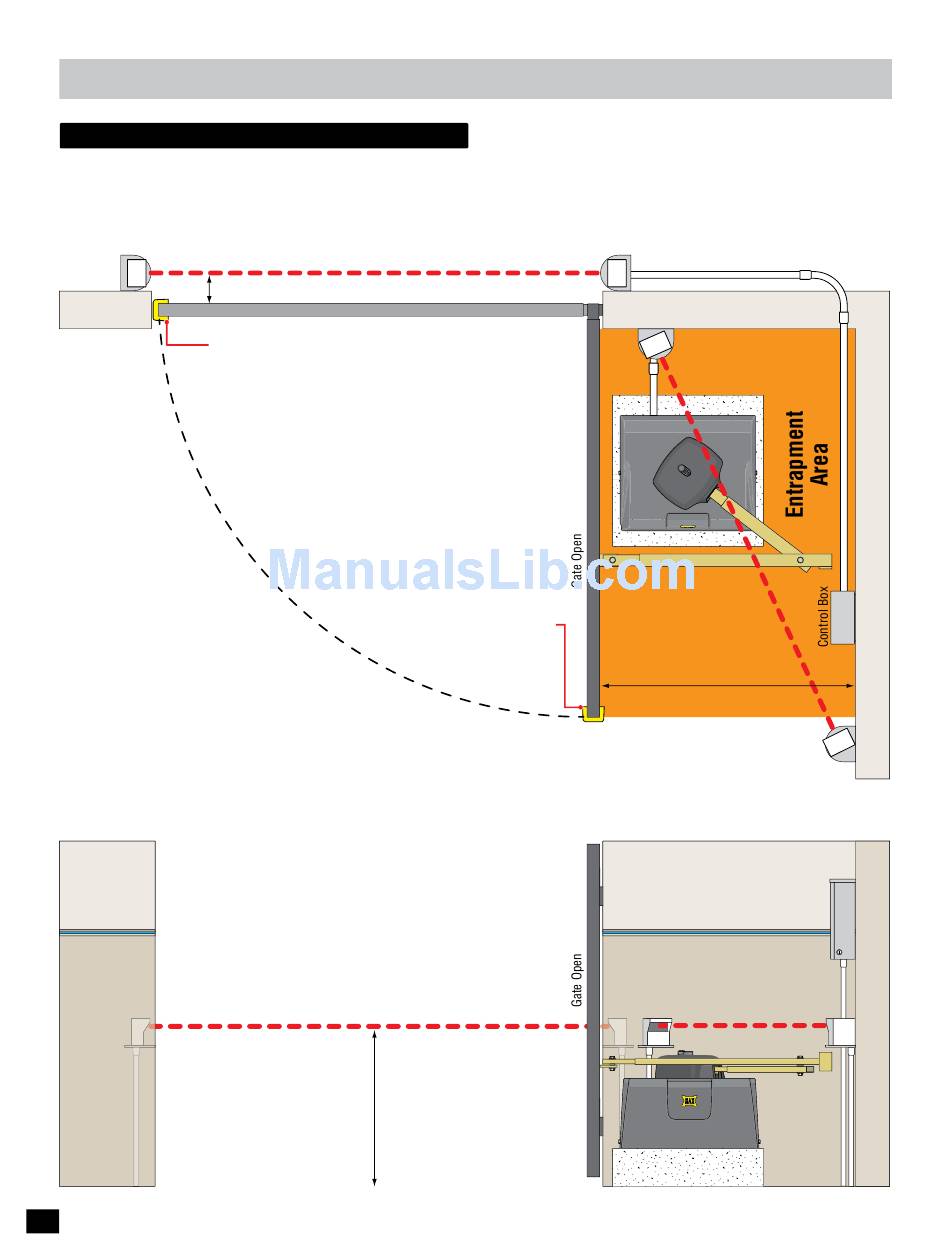

Top View
Photocell (CLOSING Cycle)
Beam: 5" or LESS from CLOSED gate.
SENSING EDGE
Mount on end of gate.
Dual Gate Operators NOTE: Run
EACH OPENING Cycle Photocells
conduit to each corresponding
GATE OPERATOR. See page 9.
Side View
CLOSING Cycle NOTE: Additional CLOSING Cycle Photocells
can be installed anywhere needed. Run all additional CLOSING
Cycle photocell's conduit to the CONTROL BOX.
Photocell (CLOSING Cycle)
14
installation
Outside Property
Gate Closed
Inside Property
SENSING EDGE
GATE OPERATOR.
OPENING Cycle NOTE: Additional OPENING Cycle Photocells
OPENING Cycle photocell's conduit to the GATE OPERATOR.
Beam Height:
21" Normal
27.5" Max.
Run CLOSING Cycle conduit to CONTROL BOX.
Conduit
If this dimension is less
Run wire to
than 16", then secondary
entrapment protection is
REQUIRED in this area.
can be installed anywhere needed. Run all additional
Illustrations not to scale
Run OPENING Cycle
photocell conduit to
GATE OPERATOR.
Photocell
(OPENING Cycle)
Control Box
Photocell (OPENING Cycle)
Install just above gate operator.
