Gate Operator System Overview continued
MAX BC-7 Battery Module
2
1
MAX MC-100 Motor Controller
MC-100
ERD
JOG JOG
Sensitivity
Motor Controller A
LEFT RIGHT
D
MOTOR OVERLOAD
ERD Max
E
B
Min Sensitivity
C
Optional Electronic
Open/Close
Key Switch,
See page 22.
GND
Photocell (N.O.)
OPENING Cycle
Entrapment
Photocells
ONLY.
24V
Power.
To Matrix 1
24V
RS-485
ALARM
www.max.us.com
Wiring operator
C - 7
X B l e
d u
M A M o
r y
t t e
B a
6
4
I N
r y
t t e
B a o r
E r r
S T
T E
r y
g e 7
t t e
l t a
B a
c e
V o
p l a
r y
F R e r y
t t e
t t e
B a 1 / 2 F B a
/ O F
O N
r y
5
E t t e
B a
3
G I K
Matrix UL
Edge 1
On Line Entrap
F
Power
Limit SW Edge 2 Photo
M
INPUTS
On Line Cell
H J L
Edge 1
(N.O.)
GND
Edge 2
(N.O.)
GND
Sensing Edges
LIMIT BATTERY MOTOR POWER IN MOTOR
SWITCH PACK INPUTS

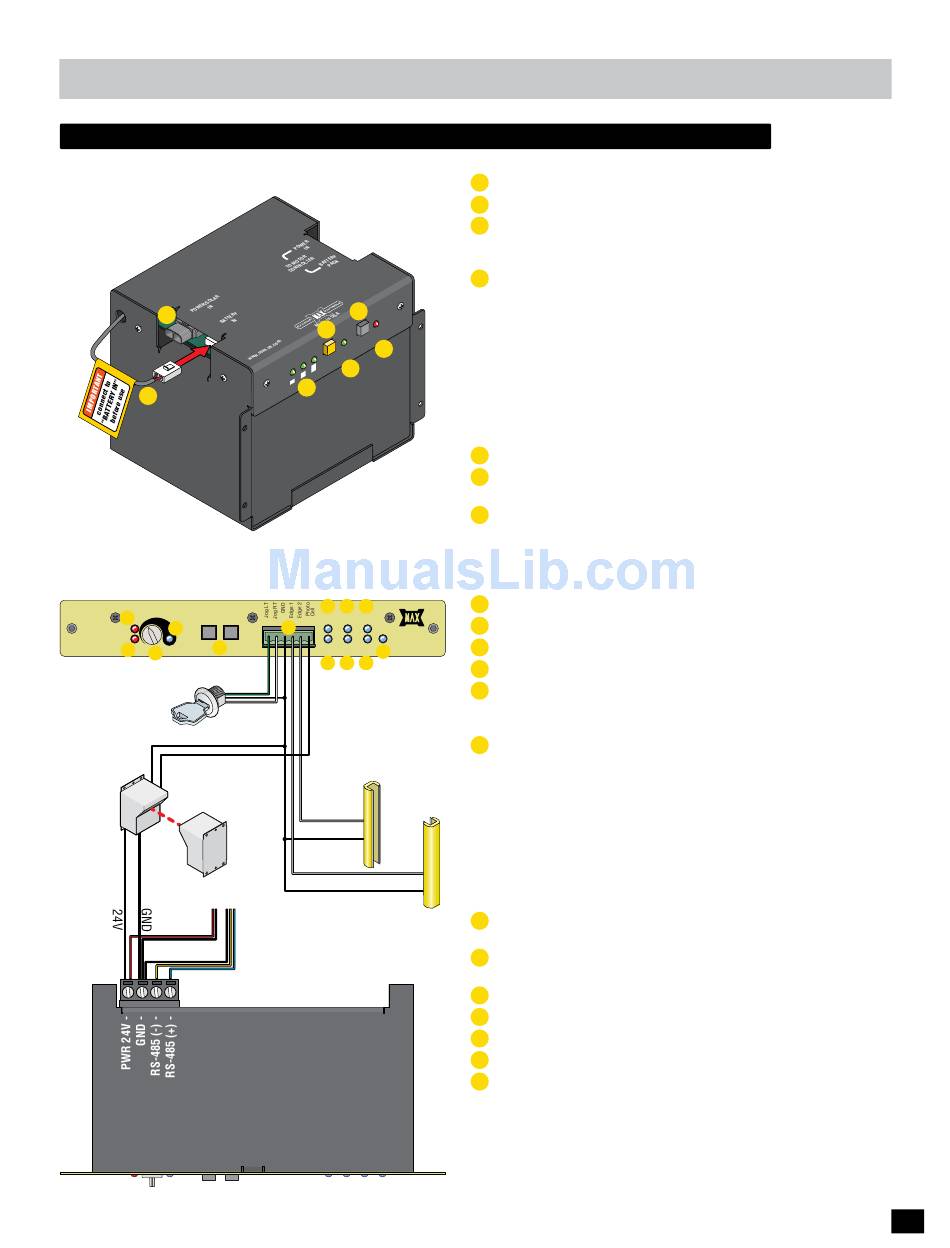

1 BATTERY Plug: MUST be plugged into BATTERY IN port Before use.
2 POWER/SOLAR IN Port: MAX PS-24 Power Supply connection.
3 Battery Voltage LEDs: Show amount of battery power available.
LEDs are always ON when using AC power. Test battery button must be
pressed to show battery power when using battery power ONLY.
4 ON/OFF Battery Button:
IMPORTANT: Battery power automatically turns ON when MAX PS-24 Power
Supply AC POWER Switch is turned ON.
To turn OFF ALL POWER to operator:
1. Turn OFF AC POWER Switch on MAX PS-24 Power Supply.
Battery power remains ON.
2. WAIT for 15 seconds.
3. Press and HOLD (approx. 5 seconds) the YELLOW ON/OFF BATTERY
button until MAX BC-7 LEDs turn ON, then release button.
LEDs will turn OFF.
5 Replace Battery LED: Replace battery when lit.
6
TEST Battery Button: Press to show amount of battery power available when
using battery power ONLY (Battery voltage LEDs will light respectively).
7 Battery IN Error LED: Lights when there is a battery connection problem.
Make sure battery plug #1 is plugged into BATTERY IN port or there is no
damaged or loose wires.
A
MOTOR OVERLOAD LED: Excessive current being drawn by motor when lit.
B
ERD LED: ERD sensor has been activated when lit.
C
ERD Sensitivity Knob: 16 selectable sensitivity settings of ERD sensor.
D
ERD Sensitivity LED: MAX sensitivity reached when lit.
E
Jog LEFT/RIGHT Buttons:
Push and HOLD buttons accordingly to move the gate (release the button to
stop gate). WARNING: Avoid moving arm while using Jog buttons.
F INPUTS:
Jog LT/RT: Connects to optional key switch on Control Box.
GND: Low Voltage Common connection.
Edge 1: Connects to a Sensing Edge. Multiple sensing edges can be
connected.
Edge 2: Connects to a second Sensing Edge. Multiple sensing edges can be
connected.
PHOTOCELL: Connects to a UL 325 Standard OPENING Cycle photocell
ONLY. Multiple OPENING Cycle photocells can be connected.
G Matrix On Line LED: Gate operator is successfully communicating with
Matrix 1 when lit.
H
Limit SW On Line LED: Limit Switch Box is successfully communicating
with MC-100 Motor Controller when lit.
I Edge 1 LED: Reversing Edge 1 input has been activated when lit.
J Edge 2 LED: Reversing Edge 2 input has been activated when lit.
K UL Entrap LED: Edge1/Edge2/Photocell input has been activated when lit.
L Photocell LED: Photocell input has been activated when lit.
M Power LED: Low voltage power is connected when lit.
DUAL GATE OPERATORS NOTE: Connect EACH photocell/reverse
edge to the corresponding gate operator. See page 9.
