Entrapment Protection Wiring - Maximum Controls MAX 1200FS PRO Installation Manual

Fail safe slide gate opener
Hide thumbs Also See for MAX 1200FS PRO:
Table of Contents

Advertisement

GND

entrapment protection wiring

LEFT
RIGHT
NO
MAG
LOCK
COM
NC
MAGLOCK
DELAY
OPEN ONLY
NC
PHOTO CLS
NC
OFF
2.5 sec
OPEN/CLS
NC
1.5 sec
12VDC OUT
GND
OPEN ONLY
10K
UL
ENTRAP
CLS ONLY
10K
OPEN/CLS
10K
12VDC OUT
GND

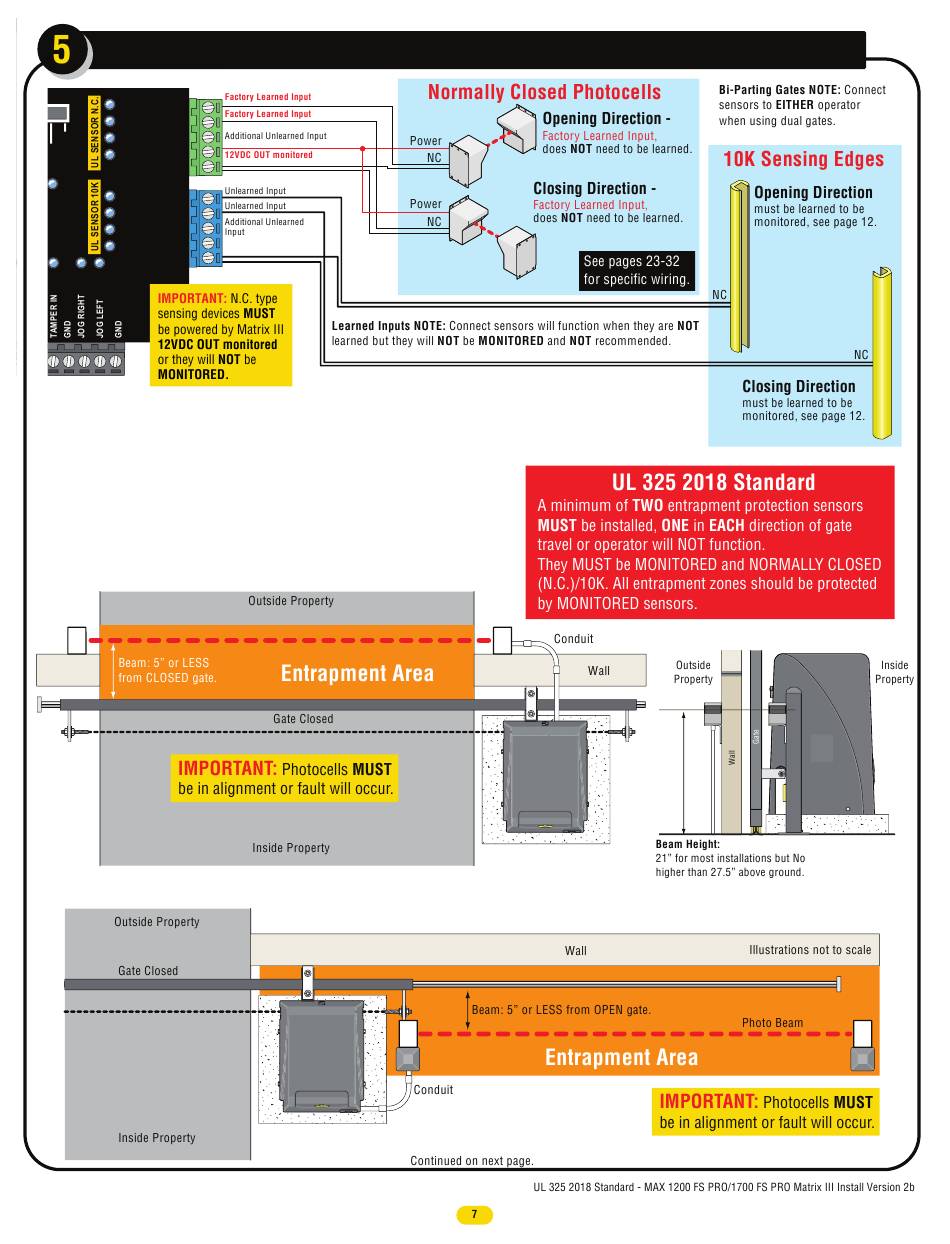

Entrapment Protection Device Options and Locations:
CLOSING Direction Photocell
OPENING Direction Photocell
