- Page 1 Instruction Manual 1T-VS-658 Video/PC/HD/HDMI Scaler with Stereo Audio...
-
Page 2: Table Of Contents
Table of Contents Introduction Specifications Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 3: Introduction

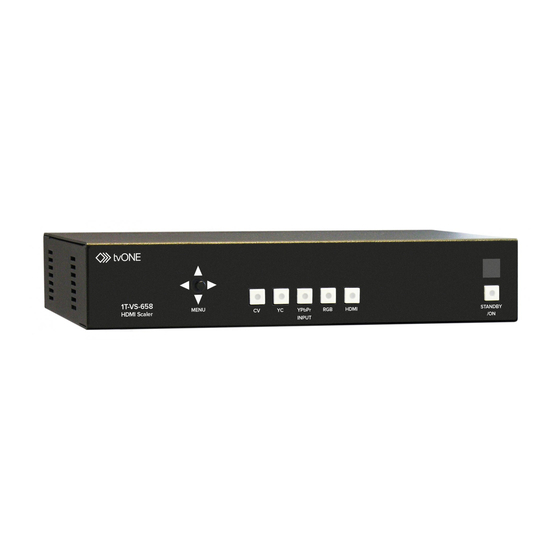

INTRODUCTION Thanks for purchasing this 1T-VS-658 HDMI Scaler with Stereo Audio from tvONE. The 1T- VS-658 Video Scaler is a professional Up and Cross Converter with an HDMI output. Fully scaleable video inputs include HDMI, DVI (via DVI-to-HDMI adapter), analog RGB via an HD-15, Analog YPbPr or 480i/576i YUV Component via three RCA, YC (S-Video) and Composite Video. -
Page 4: Specifications
SPECIFICATIONS Video Inputs HDMI (DVI Compatible) 1x via HDMI Connector Analog RGBHV 1x via HD-15 Connector Analog Component (YPbPr/YUV) 1x via 3x RCA Connectors YC (S-Video) 1x NTSC or PAL via 4-pin Mini Din Composite Video 1x NTSC or PAL via RCA Connector Audio Inputs Digital Audio (S/PDIF) 1x via RCA Connector... - Page 5 Supported Input Formats and Resolutions The 1T-VS-658 accepts HDMI, DVI, Analog PC, Analog Component, Composite and YC (S- Video) inputs via separate connectors. The resolutions and formats processed for these inputs are as follows: Resolution V. Rate/Hz Scan Format Connector...
-
Page 6: Package Contents
Referring to the drawings below, connect the proper cables and then connect the AC power adaptor. Front Panel Controls: The front panel has controls to manually control the 1T-VS-658 HDMI Scaler. Above the word “MENU” you’ll find a joystick/switch control that allows access to and adjustment of various operational items. - Page 7 LED above the switch lights which indicates that power has been applied to the 1T-VS- 658. Note: To realize maximum quality and performance, use only the highest quality cables with the 1T-VS-658. Low quality cables will cause degradation of the signal quality and limit the distance between both the source and destination...
-
Page 8: Operating The Unit
OPERATING THE UNIT The 1T-VS-658 can be operated from either the front panel controls or via the included Infrared Remote Control. Since Infrared is the control method used most often by the majority of users, please take the time to familiarize yourself with the location and function of the various control buttons on the Controller. - Page 9 OSD mode. 5.1.2 Menu Structure The main structure is as follows. The 1T-VS-658 OSD (On Screen Display) Menu structure is a two tier display. You first select the high level portion of the menu (Video, Color, Output, OSD Characteristics, Audio, Information or Exit) and then, with the exception of the Exit function;...
- Page 10 OSD Menu Notes: Note 1: The Output sub-menu allows you to specify the resolution you want the 1T-VS-658 to produce. Keep in mind that setting the resolution can cause an apparent malfunction if you select a resolution that your display device cannot reproduce.
- Page 11 (A) Set Commands Command Code Response Description S POWER 0 > POWER OFF POWER OFF S POWER 1 > POWER ON POWER ON S SOURCE 0 > SOURCE CV CV INPUT S SOURCE 1 > SOURCE SV SV INPUT S SOURCE 2 >...
- Page 12 S BRIGHTNESS 0-100 > BRIGHTNESS [VALUE] BRIGHTNESS 0-100 ADJUST [45] S HUE 0-100 > HUE [VALUE] HUE 0-100 ADJUST [50] S SATURATION 0-100 > SATURATION [VALUE] SATURATION 0-100 ADJUST [60] S SHARPNESS 0-100 > SHARPNESS [VALUE] SHARPNESS 0-100 ADJUST [32] 0:OFF ;...
-
Page 13: Troubleshooting
If the signal is present under those conditions, make certain that the power is present to the 1T-VS-658. If it is, check all cables for damage. Cables should be undamaged, as short as possible and should be premium quality. -
Page 14: Limited Warranty
LIMITED WARRANTY tvONE warrants the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a fixed term from the date of purchase. The warranty term for specific product lines is defined below. 1. -
Page 15: Regulatory Compliance
REGULATORY COMPLIANCE The 1T-VS-658 Scaler has been tested for compliance with the appropriate FCC and CE rules and regulations. The power adaptor/supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, regulations and/or guidelines. This product is RoHS compliant.
