Summary of Contents for TV One 1T-VS-624

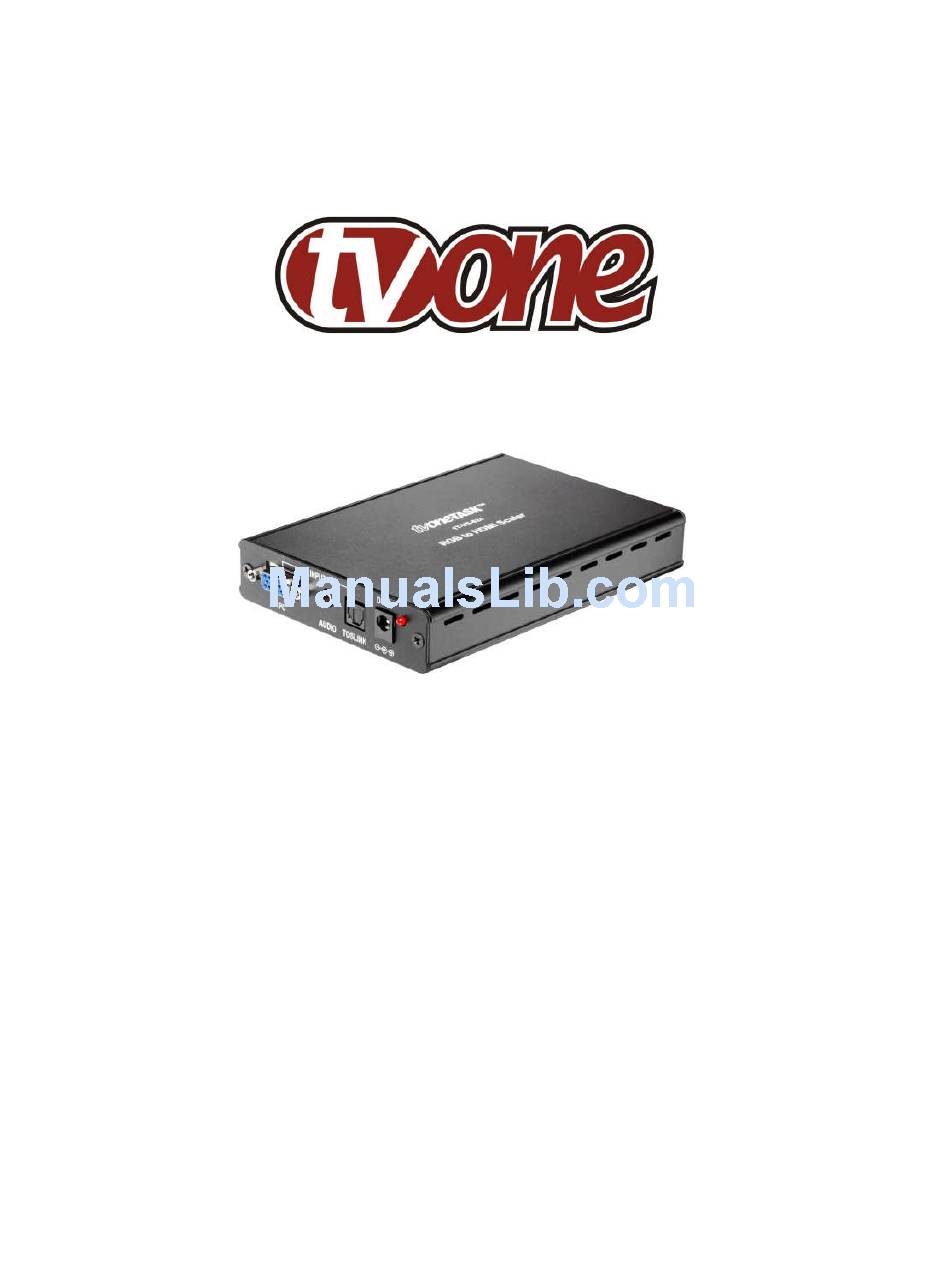

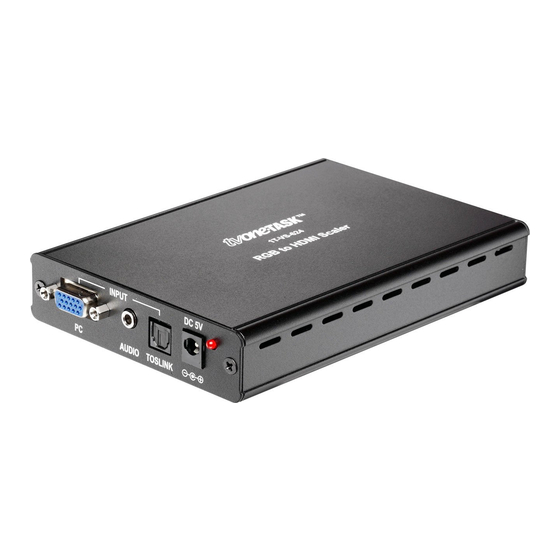

- Page 1 Instruction Manual 1T-VS-624 RGB to HDMI Scaler...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
HDMI signal, is separately available as Toslink and Analog Stereo outputs providing maximum flexibility for systems integration. Our professional video conversion products have been serving the industry for over twenty years. TV One offers a full line of high quality Seamless Switchers, Video Scalers, Up/Down/Cross Converters, Analog-Digital... -
Page 5: Specifications
SPECIFICATIONS Video Input/Output PC RGB Video Input 1x via HD-15 Connector HDMI V1.2 Output 1x via Type A Connector Video Performance Standards Compliance HDMI v1.2, HDCP 1.1, DVI 1.0 PC/RGB Input Resolutions VGA to WUXGA@60Hz Analog HDTV Input Resolutions YPbPr to 1080p HDMI Output Resolutions Version 1.2 to 1080p or WUXGA@60Hz Contrast, Brightness, Hue, Sharpness,... - Page 6 (1) The 1T-VS-624 automatically detects the Input resolution. If the input is YUV however, you must use an adapter to access the HD-15 connector. Once the adapter is in place, the 1T-VS-624 will sense that a YUV signal is on the input and detect it’s resolution.
-
Page 7: Checking Package Contents
624 and the display. Plug in the provided AC adapter, first to the 1T-VS-624 and then to an active AC power source. Lastly, turn on the PC source and HDMI display device. (The 1T-VS-624 has no power switch and will begin to function as soon as it has the AC adapter connected to it.) - Page 8 parameters have only one associated adjustment -- e.g. BRIGHTNESS -- whereas others may have several: e.g. OUTPUT.) When you have reached the parameter you wish to adjust, press the Menu button again to select that item. If there is only one item in the second tier associated with the parameter, you can use the + and –...
-
Page 9: Troubleshooting
After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions before contacting TV One. Should the dealer’s technical personnel be unable to assist you, contact TV One via our support website: http://tvone.crmdesk.com. Create a technical support request on the site and our support team will respond within a short period of time. -
Page 10: Regulatory Compliance
TV One assumes no liability to distributors, resellers or end-users or any third parties for any loss of use, revenue or profit. - Page 11 Tel +44 (0)1843 873311 Fax 859-282-8225 Fax +44 (0)1843 873312 sales@tvone.com sales.europe@tvone.com www.tvone.com www.tvone.eu TV One Latin America TV One Mercosur 6991 NW 82 Avenue #8 Av. Diaz Velez 3965 #PB Miami, FL 33166 (1200) Capital Federal Buenos Aires, Argentina...
