Instruction Manual
Advertisement
Related Manuals for TV One 1T-AVPC-HDMI

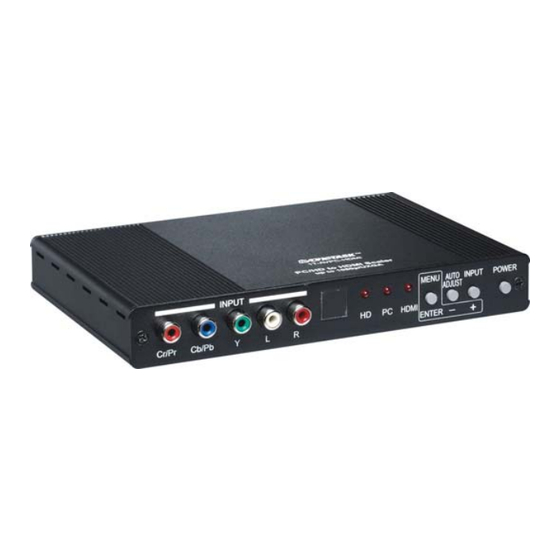

Summary of Contents for TV One 1T-AVPC-HDMI

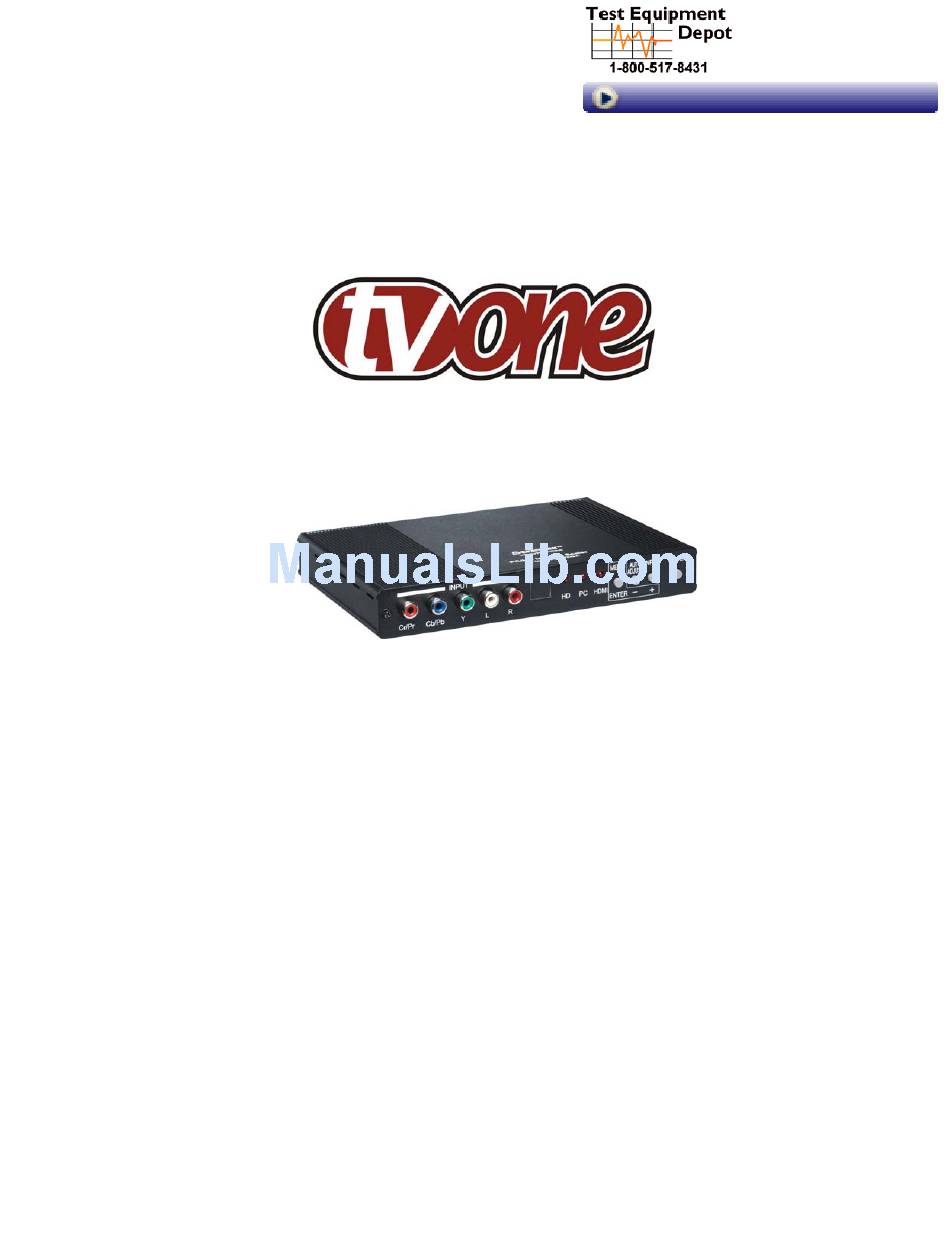

- Page 1 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Instruction Manual 1T-AVPC-HDMI HDMI Video Scaler...
-
Page 2: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 FAX 781.665.0780 - TestEquipmentDepot.com... -
Page 3: Introduction
PC and HD inputs to the industry standard HDMI format providing output resolutions up to 1080p. Our professional video conversion products have been serving the industry for over twenty years. TV One offers a full line of high quality Seamless Switchers, Video Scalers, Up/Down/Cross Converters, Analog-Digital... -
Page 4: Specifications
SPECIFICATIONS Video Inputs HDMI 1x via HDMI Connector Analog RGBHV 1x via HD-15 Connector Analog Component (YPbPr/YUV) 1x via 3x RCA Connectors Video Output HDMI (RGBHV) 1x via HDMI Connector Formats Supported Input RGBHV, YPbPr, YUV Output RGBHV DVI-D Support Via HDMI Connectors Maximum I/O Resolution WUXGA@60Hz and 1080p... - Page 5 WSXGA 1680x1050 60 Progressive WUXGA 1920x1200 60 Progressive 2.2 Supported Output Formats and Resolutions The 1T-AVPC-HDMI can provide a large number of output resolutions in the RGBHV format as shown in the following table: Resolution V. Rate/Hz Scan Format /Connector...
-
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model, Serial Number and Invoice available for reference when you call. - Page 7 You can either connect a HDMI cable directly to an HDMI capable destination device or you can utilize an HDMI to DVI adapter cable if you wish to feed the 1T-AVPC-HDMI’s output to a DVI capable device. Since you can specify the output resolution, you’ll need to know the highest resolution your destination device is capable of handling and set the 1T-AVPC-HDMI’s output resolution accordingly.
-
Page 8: Operating The Unit
OPERATING THE UNIT The 1T-AVPC-HDMI can be operated from either the front panel controls or via the included Infrared Remote Control. Since Infrared is the control method used most often by the majority of users, please take the time to familiarize yourself with the location and function of the various control buttons on the Controller. - Page 9 5.1.1 Menu Navigation: Pressing the “Menu” button will display the OSD menu. If you are using the front panel control method, you select the desired function by using the “+” and “-“ keys to navigate to the desired function and press the Menu/Enter button again to make the selection. Next, use the “+”...
-
Page 10: Troubleshooting
If the signal is present under those conditions, make certain that the power is present to the 1T-AVPC-HDMI. If it is, check all cables for damage. Cables should be undamaged, as short as possible and should be premium quality. -
Page 11: Limited Warranty
TV One assumes no liability to distributors, resellers or end-users or any third parties for any loss of use, revenue or profit. TV One makes no other representation of warranty as to fitness for the purpose or merchantability or otherwise in respect of any of the products sold.
