Summary of Contents for TV One 1T-VS-658

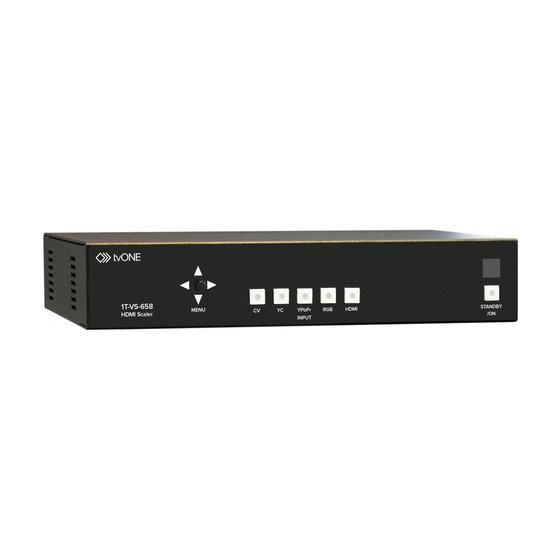

- Page 1 Instruction Manual 1T-VS-658 VIDEO/PC/HD/HDMI Scaler with Stereo Audio...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contacts... -
Page 4: Introduction
Routing Switchers, Signal Distribution Amplifiers and Cat.5 Transmission Systems. Liability Statement Every effort has been made to ensure that this product is free of errors. TV One cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. -
Page 5: Specifications
SPECIFICATIONS Video Inputs HDMI (DVI Compatible) 1x via HDMI Connector Analog RGBHV 1x via HD-15 Connector Analog Component (YPbPr/YUV) 1x via 3x RCA Connectors YC (S-Video) 1x NTSC or PAL via 4-pin Mini Din Composite Video 1x NTSC or PAL via RCA Connector Audio Inputs Digital Audio (S/PDIF) 1x via RCA Connector... - Page 6 WSXGA 1680x1050 Progressive RGBHV HD15,HDMI WUXGA 1920x1200 Progressive RGBHV HD15,HDMI 2.2 Supported Output Formats and Resolutions The 1T-VS-658 supports a large number of output resolutions as shown below: Resolution V. Rate/Hz Scan Format Connector 480i 720x480 Interlaced YUV NTSC HDMI...
-
Page 7: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. - Page 8 HDMI Video Input HDMI Video Output Connect the furnished AC Adaptor to the 1T-VS-658. (Use only the furnished adaptor to avoid the possibility of equipment damage due to over-voltage or under-current from generic AC Adapters). Next, connect the appropriate cables to the Input(s) and Output and turn on the source and destination devices.
-
Page 9: Operating The Unit
OPERATING THE UNIT The 1T-VS-658 can be operated from either the front panel controls or via the included Infrared Remote Control. Since Infrared is the control method used most often by the majority of users, please take the time to familiarize yourself with the location and function of the various control buttons on the Controller. - Page 10 OSD mode. 5.1.2 Menu Structure The main structure is as follows. The 1T-VS-658 OSD (On Screen Display) Menu structure is a two tier display. You first select the high level portion of the menu (Video, Color, Output, OSD Characteristics, Audio, Information or Exit) and then, with the exception of the Exit function;...
- Page 11 Note 4: Since Video and Audio Lip Sync can be lost in Digital Television, the 1T-VS-658 provides a secondary menu item called “Delay” under the Audio high level menu selection where audio delay can be introduced to restore lip sync.
-
Page 12: Pins Definition Of Modem Cable
5.2 RS-232 Protocol * The connection between 1T-VS-658 and controller with RS-232 modem cable. Pins definition of modem cable * RS-232 Transmission Format: Scaler Unit Control Unit Baud Rate: 19200bps Data Bit: 8 bits Definition Definition Parity: None Stop Bit: 1bit... - Page 13 S OUTPUT 11 > OUTPUT 576I 576I 60HZ RESOLUTION OUTPUT S OUTPUT 12 > OUTPUT 576P 576P 60HZ RESOLUTION OUTPUT S OUTPUT 13 > OUTPUT 720P 720P 50HZ RESOLUTION OUTPUT S OUTPUT 14 > OUTPUT 1080I50 1080I 50HZ RESOLUTION OUTPUT S OUTPUT 15 >...
-
Page 14: Troubleshooting
If the signal is present under those conditions, make certain that the power is present to the 1T-VS-658. If it is, check all cables for damage. Cables should be undamaged, as short as possible and should be... -
Page 15: Limited Warranty
Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This warranty does not apply... -
Page 16: Regulatory Compliance
REGULATORY COMPLIANCE The 1T-VS-658 has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This Product and Power Adapter is RoHS Compliant.
