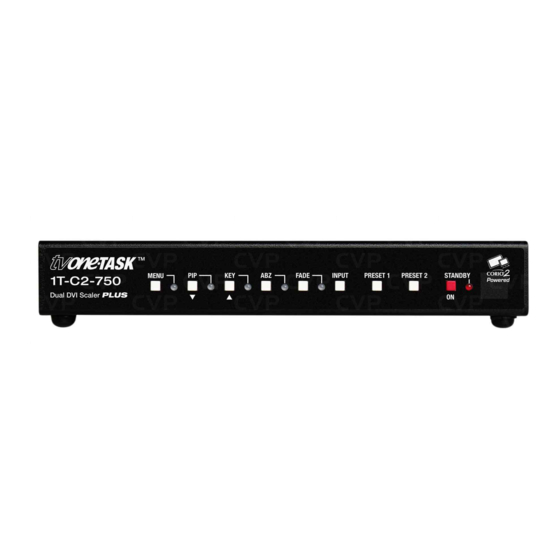

TV One 1T-C2-750 Operation Manual

Dual dvi scaler plus
Hide thumbs Also See for 1T-C2-750:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual
1T-C2-750
Dual DVI Scaler PLUS
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1T-C2-750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TV One 1T-C2-750

Summary of Contents for TV One 1T-C2-750

  • Page 1 1T-C2-750 Dual DVI Scaler PLUS Operation Manual...
  • Page 2 1T-C2-750 O PERATION ANUAL...

  • Page 3: Table Of Contents

    1T-C2-750 O PERATION ANUAL Table of Contents DISCLAIMER ....................1 Regulatory Agency Acceptance................1 FCC Statement ....................1 Manual Version Information................. 2 Manual Copyright Notice ..................2 IMPORTANT SAFETY INSTRUCTION............3 DEVICE SUMMARY ................... 13 Device Capabilities.................... 13 Device Features ....................
  • Page 4 1T-C2-750 O PERATION ANUAL Items Associated with the Adjust keyers group..........33 Items Associated with the Adjust sources group..........34 8.7.1 Menu items common to all inputs ..............35 8.7.2 DVI Source Menu Items ..................37 8.7.3 RGB Source Menu Items................... 38 8.7.4 CV &...
  • Page 5 1T-C2-750 O PERATION ANUAL 12.9 The picture on the video display is black and white........... 68 12.10 The picture on the video display is green............68 12.11 The RGB input is selected but the image is rolling or pink......... 69 12.12 The video signal from my DVD player does not appear to work......

  • Page 6: Disclaimer

    1T-C2-750 O PERATION ANUAL DISCLAIMER This product is intended for professional and/or home use. This product is not intended for use in a medical environment and does not have the required certifications for such use. Similarly, use aboard any aircraft or spacecraft while in...

  • Page 7: Manual Version Information

    Release Date: January, 2009 Manual Copyright Notice This Operation Manual is the intellectual property of TV One, ©2006, 2007, 2008, 2009. No portion of this manual may be copied or reproduced in any manner or by any means, including, but not limited to electronic and electro-mechanical, without...

  • Page 8: Important Safety Instruction

    1T-C2-750 O PERATION ANUAL IMPORTANT SAFETY INSTRUCTION To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit.
  • Page 9 1T-C2-750 O PERATION ANUAL 2.5 Ventilation Slots and openings in the sides of the unit are provided for ventilation. To ensure reliable operation, avoid obstruction of these openings and ensure the unit is installed in a well-ventilated area. 2.6 Intellectual property Some IC chips in this product include confidential and/or trade secret property.
  • Page 10 1T-C2-750 O PERATION ANUAL 2 IMPORTANT: CONSIGNES DE SECURITE Afin de tirer le meilleur de ce produit, merci de lire attentivement ce manuel. Gardez-le dans un endroit sûr pour pouvoir le consulter à nouveau. Afin de réduire le risque de choc électrique, ne retirez pas l’unité de sa protection.
  • Page 11 1T-C2-750 O PERATION ANUAL L’installation de cette unité doit se faire dans un endroit frais et sec, éloigné de sources excessives de chaleur, de vibrations, de poussière, d’humidité et de froid. 2.5 Aération Les rainures et les ouvertures sur les cotés de l’unité servent à l’aérer. Pour permettre une utilisation sûre, évitez d’obstruer ces ouvertures et assurez-vous que...

  • Page 12: Instrucciones Importantes De Seguridad

    1T-C2-750 O PERATION ANUAL 2 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para sacar el mejor provecho de este producto, léase este manual con detenimiento. Guárdelo en un lugar seguro para poder hacerle referencia en el futuro. Para reducir el riesgo de calambre, no quite la cubierta del aparato.
  • Page 13 1T-C2-750 O PERATION ANUAL 2.4 Ubicación Este aparato se debe instalar en un lugar seco y fresco, lejos de fuentes de calor excesivas, la vibración, el polvo, la humedad y el frío. 2.5 Ventilación El aparato viene provisto de ranuras y agujeros en los lados para la ventilación.
  • Page 14 1T-C2-750 O PERATION ANUAL 2 WICHTIGE SICHERHEITSVORSCHRIFTEN Lesen Sie diese Bedienungsanleitung bitte sorgfältig, um Ihr Produkt optimal nützen zu können, und bewahren Sie sie zum späteren Nachschlagen an einem sicheren Ort auf. Entfernen Sie bitte keinesfalls die Abdeckung, um der Gefahr eines Stromschlags vorzubeugen.
  • Page 15 1T-C2-750 O PERATION ANUAL 2.3 Aufstellung Das Gerät sollte an einem kühlen, trockenen Ort aufgestellt werden, fern von übermäßiger Wärme, Vibrationen, Staub, Feuchtigkeit und Kälte. 2.5 Belüftung Seitliche Schlitze und Öffnungen sorgen für die Belüftung des Geräts. Um die ordnungsgemäße Belüftung zu gewährleisten, dürfen diese Öffnungen nicht verdeckt werden.
  • Page 16 1T-C2-750 O PERATION ANUAL 2 BELANGRIJKE VEILIGHEIDSINSTRUCTIES Lees deze handleiding zorgvuldig door om het beste uit uw product te halen. Bewaar het op een veilige plek voor raadpleging in de toekomst. Haal nooit het omhulsel van de eenheid af, dit om de kans op een elektrische schok te verminderen.
  • Page 17 1T-C2-750 O PERATION ANUAL 2.4 Plaatsing Deze eenheid moet geïnstalleerd worden op een koele droge plaats, uit de buurt van bronnen van extreme hitte, vibraties, stof, vocht en kou. 2.5 Ventilatie De sleuven en openingen aan de zijkant van de eenheid zijn voor ventilatie. Zorg er voor dat de eenheid op een goed geventileerde plek geïnstalleerd wordt zodat deze...

  • Page 18: Device Summary

    1T-C2-750 O PERATION ANUAL DEVICE SUMMARY Device Capabilities ® The 1T-C2-750 unit uses the proprietary CORIO 2 Engine to perform its functions, ® ® being the second generation of the successful CORIO products. The CORIO technology is a powerful toolset for any application requiring high quality video signal conversion or image manipulation.
  • Page 19 1T-C2-750 O PERATION ANUAL ® heart of the image processing hardware – the CORIO 2 scaling engine. See http://www.tvone.com/support for more detail.

  • Page 20: Product Images

    1T-C2-750 O PERATION ANUAL PRODUCT IMAGES The 1T-C2-750 product will look like the unit shown below.

  • Page 21: Front Panel Controls

    1T-C2-750 O PERATION ANUAL FRONT PANEL CONTROLS The range of buttons on the front of the unit provides the user with quick access for selecting a variety of features. In addition, the MENU button, button, and  button set on the front panel provide the user with a way of navigating the on-screen- display (OSD) menu system.

  • Page 22: Locking Front Panel Buttons & Ir Remote Control

    Please note that these changes will have no immediate effect if the unit is locked to one of the DVI-I sources – as that source will define the output resolution. Button combination 1T-C2-750 Output type MENU & PIP 720x480@59.94Hz...

  • Page 23: Video Inputs, Outputs And Scalers

    1T-C2-750 O PERATION ANUAL VIDEO INPUTS, OUTPUTS AND SCALERS The 1T-C2-750 unit has two identical DVI-I inputs and one DVI-I output. DVI-I inputs Each input can accept: Digital DVI-D (maximum 1920x1200@60Hz / 1080p60) Analog RGBHV Analog RGsB (sync on green)

  • Page 24: Preset 1 Default Setup

    1T-C2-750 O PERATION ANUAL DVI-I1 Scaler & Keyer A Mixer Window A DVI-I2 Scaler & Keyer B Window B Lock Keyer Z Cross-point source Z As the diagram shows, the 2 DVI-I inputs are available for use by either of the scalers, or as a ‘lock source’...

  • Page 25: Preset 2 Default Setup

    1T-C2-750 O PERATION ANUAL 6.3.2 Preset 2 default setup This setup is an offset dual-PIP with no lock source (background) or keying, and with both windows set to a size of 50%. Output is 1280x1024@60Hz. Window A DVI-I1 Window B...

  • Page 26: Infra-Red Remote Control

    1T-C2-750 O PERATION ANUAL INFRA-RED REMOTE CONTROL Your unit is compatible with an optional infra-red remote control as shown below: Resets back to power-on defaults Stores current Selects input: settings 1/2/3=RGB/CV/YC Enables Keyer Enables Lock & Mix mode Fades in/out...

  • Page 27: Menu Layout And Settings Adjustment

    1T-C2-750 O PERATION ANUAL MENU LAYOUT AND SETTINGS ADJUSTMENT From here on, we’ll be looking at the menu structure employed in the series and, more importantly, the individual menu items that allow you to take advantage of the power of the unit.

  • Page 28: Group Names And Descriptions

    1T-C2-750 O PERATION ANUAL CORIO2 TV One The first is the ‘welcome’ display shown above indicating the model of the unit. www.tvone.com SW: 65. PT: 12, BT: 13 Moving to the next menu item displays the firmware information screen (the numbers on your unit will be different to those shown).

  • Page 29: Items Associated With The Adjust Outputs Group

    1T-C2-750 O PERATION ANUAL in ‘Adjust system’ or the special buttons on your unit.. Adjust preset [1] Load Store Erase Once you have set your unit up in the way you want it to be, simply select the Preset number you want to store the setup detail into, and select the ‘Store’ item.
  • Page 30 1T-C2-750 O PERATION ANUAL In both Genlock and Lock & Mix modes the source selected for the lock input determines the resolution of the Output image. The output resolution for the entire image can be no different than the resolution of the lock source. All synchronization signals are re-generated within the unit so they may look slightly different when compared on an oscilloscope to the original source.
  • Page 31 1T-C2-750 O PERATION ANUAL Please also see the HDCP menu item in ‘Adjust sources’, as this controls availability of HDCP at the DVI input. The status message given in brackets has the following meaning: Status Description Effect message Unavailable The device attached is not As the DVI output cannot be HDCP encrypted, then capable of support ing HDCP.

  • Page 32: Items Associated With The Adjust Windows Group

    1T-C2-750 O PERATION ANUAL may have a high jitter. However, this is not always compatible with a CV/YC output where the colour sub-carrier should not be de-jittered and needs to follow a Lock source’s input – hence it should be turned Off it the CV/YC outputs are going to be used.
  • Page 33 1T-C2-750 O PERATION ANUAL NTSC / 60Hz Source [ YC1] The source display screen allows the input source for the currently selected window to be changed. The top line of the display shows the detected characteristics of the signal. Valid Input sources match those available on the front of the unit.
  • Page 34 1T-C2-750 O PERATION ANUAL Adjust windows H/V out shift [ 0] [ 0] This positions the selected Window horizontally and vertically on the monitor. This should only be used for ‘fine tuning’ and should not normally require adjustment – use the Shrink H/V adjustment when your image is less than 100% Shrink value.
  • Page 35 1T-C2-750 O PERATION ANUAL When ‘Off’, the unit will use frame-repetition when converting 50Hz to 60Hz (i.e. it has to duplicate every 5th frame), or frame-dropping when converting 60Hz to 50Hz (i.e. it has to drop every 6 frame). When ‘On’, smooth blending is applied so that frames are not lost, but blended together at the appropriate times.

  • Page 36: Extended Scaling Controls

    1T-C2-750 O PERATION ANUAL Adjust Windows Layer priority abABZ [ 3] This adjustment selects the order of the window layers. Layers are shown for ‘a’ and ‘b’ logo screens, Window ‘A’, Window ‘B’ and ‘Z’ is the Lock Source. The default condition is shown.

  • Page 37: Aspect Adjust' = 'Pixel

    1T-C2-750 O PERATION ANUAL Most resolutions are 4:3 ratio, thus the third number will be 1.333 (4 divided by 3). Another common aspect ratio is 16:9 (16 divided by 9 = 1.777). PAL and NTSC inputs are physically 4:3 on your video monitor, but their actual pixel/line ratios are different and so will not display as 1.333.

  • Page 38: Items Associated With The Adjust Keyers Group

    1T-C2-750 O PERATION ANUAL The scaler will then ensure that the whole of the source (of size 750 by 400) is scaled to the required output (of size 250 x 300). Items Associated with the Adjust keyers group Please note that not all units have this sub-menu – it is only present on units with overlaying abilities.

  • Page 39: Items Associated With The Adjust Sources Group

    1T-C2-750 O PERATION ANUAL You will see that the Swap between foreground and background has no effect on the output resolution as this is always set by the Lock source. Adjust keyers Y Key min/max [ 0] [ 32] The Min/Max parameters are used to select what range of Y (luminance/grey-scale) values are made transparent within the selected window/lock source.

  • Page 40: Menu Items Common To All Inputs

    1T-C2-750 O PERATION ANUAL It is recommended that you Store your settings once you’re happy with them in readiness for future use. Source: RGB1 Source to adj [RGB1] This menu item selects the input connection for which you want to make adjustments to.
  • Page 41 1T-C2-750 O PERATION ANUAL audio source, etc. However, there is nothing to prevent all Audio input values being set to the same value, for ‘audio breakaway’. Source: RGB1 Audio Vol [ 1] Bal [ 0] This menu item adjusts the audio volume and balance for the selected audio channel.

  • Page 42: Dvi Source Menu Items

    1T-C2-750 O PERATION ANUAL Auto Automatically selects Film 3:2 or Medium Range Motion Compensation (M. Comp Med.) depending on whether Film Mode is detected or not. For 1080i sources, a special de- interlacing mode is selected to eliminate combing effects.

  • Page 43: Rgb Source Menu Items

    1T-C2-750 O PERATION ANUAL 8.7.3 RGB Source Menu Items Source: RGB1 Autoset status [Inactive] Once the Autoset sense setting has been made, this menu item is accessed and activated. The Autoset sense utility will then correct the pixel phase and then position the Top Left portion of the image and the Bottom Right portion of the image.

  • Page 44: Cv & Yc Source Menu Items

    1T-C2-750 O PERATION ANUAL 8.7.4 CV & YC Source Menu Items Of the above Source Menu items, the Autoset sense and Autoset status functions, RGB type and Pixel phase are specific to RGB signals only. The rest of the Source menu items function with RGB, CV or YC type signals.

  • Page 45: Items Associated With The Adjust Borders Group

    1T-C2-750 O PERATION ANUAL This item is only available for units supporting Still Image Stores (SIS) or Testcards (TC) – which are the same thing, but may be named differently depending on your unit. Used to select the image from memory to use as a source for the SIS / TC source currently selected.

  • Page 46: Items Associated With The Adjust Transitions Group

    1T-C2-750 O PERATION ANUAL Adjust borders Brdr opacity % [100] This parameter controls how visible the border is to the viewer. A setting of 0 renders the border invisible (transparent) whereas a setting of 100 makes the Logo fully visible. (In-between settings can give the Border a transparent appearance.) Items associated with the Adjust transitions group Please note that not all units have this sub-menu –...

  • Page 47: Items Associated With The Adjust Resolutions Group

    1T-C2-750 O PERATION ANUAL Wipe Size sets the ‘granularity’ of the ‘Wipe’ effect and so is only shown when ‘Wipe’ is the transition type. The smaller the number, the more elements there are to the wipe. To clarify by example, if you select the Diamond wipe effect and set a small number into the Wipe Size parameter, you will have a large number of Diamonds present in the transition.
  • Page 48 1T-C2-750 O PERATION ANUAL Typically, the image number currently being used for input or output would be already be selected otherwise immediate feedback to your changes will not be available via your monitor. 800 x 600 60 Hz Interlaced [ Off] This adjustment specifies whether the image is interlaced or progressive scan.
  • Page 49 1T-C2-750 O PERATION ANUAL 800 x 600 60 Hz H/V active [ 800] x 600 A video frame includes both the active area, the portion of the image normally containing useful visual information, and a resolution value for a given display standard which only expresses the number of pixels visible in an image.

  • Page 50: Items Associated With The System Group

    1T-C2-750 O PERATION ANUAL 800 x 600 60 Hz Sync polarity [+H+V] Sync can be either negative polarity or positive polarity. To further complicate things, it is possible that you may want to make the Horizontal Sync polarity different from the Vertical Polarity. This control allows you to make that change.
  • Page 51 1T-C2-750 O PERATION ANUAL System TAC# 27-AA-1C-93-F8-33 The TAC number is a unique identifier for the unit and is for use with the PPF value below. System PPF# 1A-67-2B-9D-50-4F The PPF number is for units that support the ‘Pay Per Feature’ system. Extra features in the unit (such as Mix and Key) may be activated using this menu tiem by entering in the correct numbers and re-starting the unit.
  • Page 52 1T-C2-750 O PERATION ANUAL System LED brightness % [ 90] This parameter is available on certain units and controls how bright the LEDs on the front panel appear. System RS232 baud rate [57600] This menu item allows the adjustment of the serial baud rate used for RS-232 communications.
  • Page 53 1T-C2-750 O PERATION ANUAL System Power cycles Power Cycles refers to how many times the unit has been powered since it left the factory. This is an informational screen. No action is taken regardless of the value shown here, however some users have an equipment cleaning or specification audit procedure and this information may be useful to those users.

  • Page 54: Rs232 Port

    1T-C2-750 O PERATION ANUAL RS232 PORT Connection Your unit is fitted with a standard ‘D9’ plug or socket allowing it to be controlled from a computer or other type of terminal or console with a similar interface. Most computers fitted with an RS232 port, known as a ‘COM’ port, will have a ‘D9’ plug on them.
  • Page 55 1T-C2-750 O PERATION ANUAL...

  • Page 56: Rs232 / Ip Control Specification

    1T-C2-750 O PERATION ANUAL RS232 / IP CONTROL SPECIFICATION PLEASE NOTE: Not all units support RS232 and/or IP (Ethernet) communications – check to see if this feature is present on your unit. This section outlines how to control a unit via an RS232 or Ethernet link (if fitted to your unit), using ASCII-based commands.

  • Page 57: Packet Format

    1T-C2-750 O PERATION ANUAL The ACK flag will be returned as 0 if the command is invalid for some reason – for example a bad FUNCTION, WINDOW, OUTPUT or PAYLOAD value. An ACK=0 message will be otherwise identical to the one you sent, so you know exactly which message has the error.
  • Page 58 1T-C2-750 O PERATION ANUAL returned means message was okay. ACK=0 returned means an error was present in the message. Bit 5 = 0 Reserved for future use. Bit 4 = 0 Reserved for future use. Bit 3 = 0 Reserved for future use.

  • Page 59: Function List

    1T-C2-750 O PERATION ANUAL ASCII-hex byte that is the (check) sum of all previous bytes (excluding the SOP 'F' character). E.g. The command F0400410082000001C8 has the checksum of 04+00+41+00+82+00+00+01=C8, so the complete command to send is F0400410082000001C8. A short-cut for debugging allows the checksum to be replaced by 2 question marks, so in the previous example you could send F0400410082000001?? Instead.
  • Page 60 1T-C2-750 O PERATION ANUAL Adjust outputs Output enable 0=Blanked, 1=Active Lock source (connector) 0x10 to 0x1F = RGB1 to RGB16 0x30 to 0x3F = CV1 to CV16 0x40 to 0x4F = YC1 to YC16 0x50 to 0x5F = SDI1 to SDI16...
  • Page 61 1T-C2-750 O PERATION ANUAL 6 = >16:9 Letterbox centre 7 = 14:9 Full format 8 = 16:9 Full format Take 0->1 = Perform a Preview -> Program transition Audio amp. Volume -16 to 15 AES/SDI Chan. 1 source 0x00 to 0x07 = SDI1-1 to SD1-8 0x08 to 0x0F = SDI2-1 to SDI2=8 AES/SDI Chan.
  • Page 62 1T-C2-750 O PERATION ANUAL Out (top-left H) Out (top-left V) Out (H size) Out (V size) Aspect change 0..2 = Normal, Letterbox, Pillarbox Aspect adjust 0..1 = Simple, Advanced Flicker reduction 0..3 = Off, Low, Med, High Image smoothing 0..2 = Off, Med, High Image flip 0..3 = Off, Horiz., Vertical, H &...
  • Page 63 1T-C2-750 O PERATION ANUAL Logos (on certain models only) Logo enable 0..1 = Off, On Logo number 0..9 Logo selection H/V out shift (H) 0..100 % H/V out shift (V) 0..100 % Max fade level 0..100% Layer priority 0..5 Borders (on certain models only) Border enable 0..1 = Off, On...
  • Page 64 1T-C2-750 O PERATION ANUAL RGB contr. (red) 10..1F 0C5 75..150 RGB contr. (green) 10..1F 0C6 75..150 RGB contr. (blue) 10..1F 0C7 75..150 YUV setup level 10..1F 23E 0=0 IRE, 1=7.5 IRE De-int. 10..FF 0B8 0..5 = Normal, Auto, Film 3:2, M.comp.low, M.comp.med., M.comp.high...
  • Page 65 1T-C2-750 O PERATION ANUAL Audio delay 0..999 = delay in ms (restricted depending on Sample frequency) Adjust resolutions Note: You MUST set the 'Image to adjust' value to the correct value first, and only then change the other values - otherwise you may be adjusting the wrong entry. The...

  • Page 66: Examples

    1T-C2-750 O PERATION ANUAL RS232 Baud rate 0..6 = 9600, 19200, 28800, 33600, 38400, 57600, 115200 TAC number 0 Read only TAC number 1 Read only TAC number 2 Read only TAC number 3 Read only TAC number 4 Read only...

  • Page 67: Reading And Writing Macros

    1T-C2-750 O PERATION ANUAL 000064 84 CR 000064 C4 CR 10.5 Reading and writing macros Depending on the unit connected there can be up to 7 macros stored in the unit. These macros can be programmed to perform a specific task, for example enable PIP mode, Position pip window at H=0, V=0, Zoom in to 120%.

  • Page 68: 10.5.2 Writing To A Macro

    1T-C2-750 O PERATION ANUAL Read the Data for the second item in the preset / Payload is the data for the function – 100% macro B9 CR 000064 5D CR The above example shows the read for all the items within macro 0. The first command reads the number of items available in the macro and resets the read address.
  • Page 69 1T-C2-750 O PERATION ANUAL Run macro 7 000000 39 3E 0000 00 7E CR...

  • Page 70: Common Operations

    1T-C2-750 O PERATION ANUAL COMMON OPERATIONS This section provides step by step instructions for some common operations. 11.1 Operation of the Keyer Some units come equipped with a very powerful Luminance and Chrominance Keyer. The Keyer can take some time to master and below is a breakdown and series of simple steps to help you master the Keyer’s operation...
  • Page 71 1T-C2-750 O PERATION ANUAL to decrease the ‘min’ values and increase the ‘max’ values to broaden the range of colors keyed out. At this point, only the key color should remain transparent.

  • Page 72: Troubleshooting And Technical Support

    1T-C2-750 O PERATION ANUAL TROUBLESHOOTING AND TECHNICAL SUPPORT If problems are experienced, please read through the symptom topics below in order to resolve the problem. After doing so, if you still need to, contact Technical Support at http://www.tvone.com/support. Please have the following details of...

  • Page 73: There Is Excessive Flicker On The Output

    1T-C2-750 O PERATION ANUAL 12.4 There is excessive flicker on the Output. Try using a different Flicker reduction mode. Turning the contrast down and the brightness up on the output device can have a large effect on flicker. Or try adjusting the brightness and contrast of the source input by selecting the Input adjust menu.

  • Page 74: The Rgb Input Is Selected But The Image Is Rolling Or Pink

    1T-C2-750 O PERATION ANUAL 12.11 The RGB input is selected but the image is rolling or pink. Check the Adjust sources menu and confirm that the input type and sync method is set correctly. (Having YUV input selected, instead of RGBHV often causes this problem).

  • Page 75: Return Procedure

    13.2 To return a unit for repair First contact TV One using the http://www.tvone.com/support website. Support personnel will determine whether a return to the factory is the appropriate solution. If that’s the case, a Return Authorization Number will be issued. You should...
  • Page 76 1T-C2-750 O PERATION ANUAL Please clearly state the return number on the outside packaging and on any accompanying documentation. This will greatly speed up processing. IMPORTANT: DO NOT return a unit for warranty repair without first obtaining a Return Authorization Number. No action will be taken on a unit returned in...

  • Page 77: Warranty Policy

    Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This...

  • Page 78: Connector Pinouts

    1T-C2-750 O PERATION ANUAL CONNECTOR PINOUTS 15.1 DVI-I connector PIN# SIGNAL PIN# SIGNAL T.M.D.S DATA 2- HOT PLUG DETECT T.M.D.S DATA 2+ T.M.D.S DATA 0- T.M.D.S DATA 2/4 SHIELD T.M.D.S DATA 0+ Not used T.M.D.S DATA 0/5 SHIELD Not used...

  • Page 79: Specifications

    1T-C2-750 O PERATION ANUAL SPECIFICATIONS See product front and rear diagrams for details of product I/O. Not all units in the C2-2000 series have all the inputs and outputs listed here. 16.1 DVI-I Input DVI-D (on DVI-I connector) supporting up to 162MHz (1920x1200@60Hz &...

  • Page 80: Warranty

    1T-C2-750 O PERATION ANUAL Conversion technology: proprietary Color resolution: 24-bit (16.8 Million Colors) Sampling rate: 162MHz maximum Digital sampling: 24-bit, 4:4:4 format Firmware memory: flash, upgradeable via RS-232 16.5 Warranty See warranty policy for further details.. 16.6 Regulatory Compliance Main unit conforms to FCC, CE, RoHS 16.7...

  • Page 81: Contact Information

    PERATION ANUAL CONTACT INFORMATION Should you have and questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 2791 Circleport Drive...
