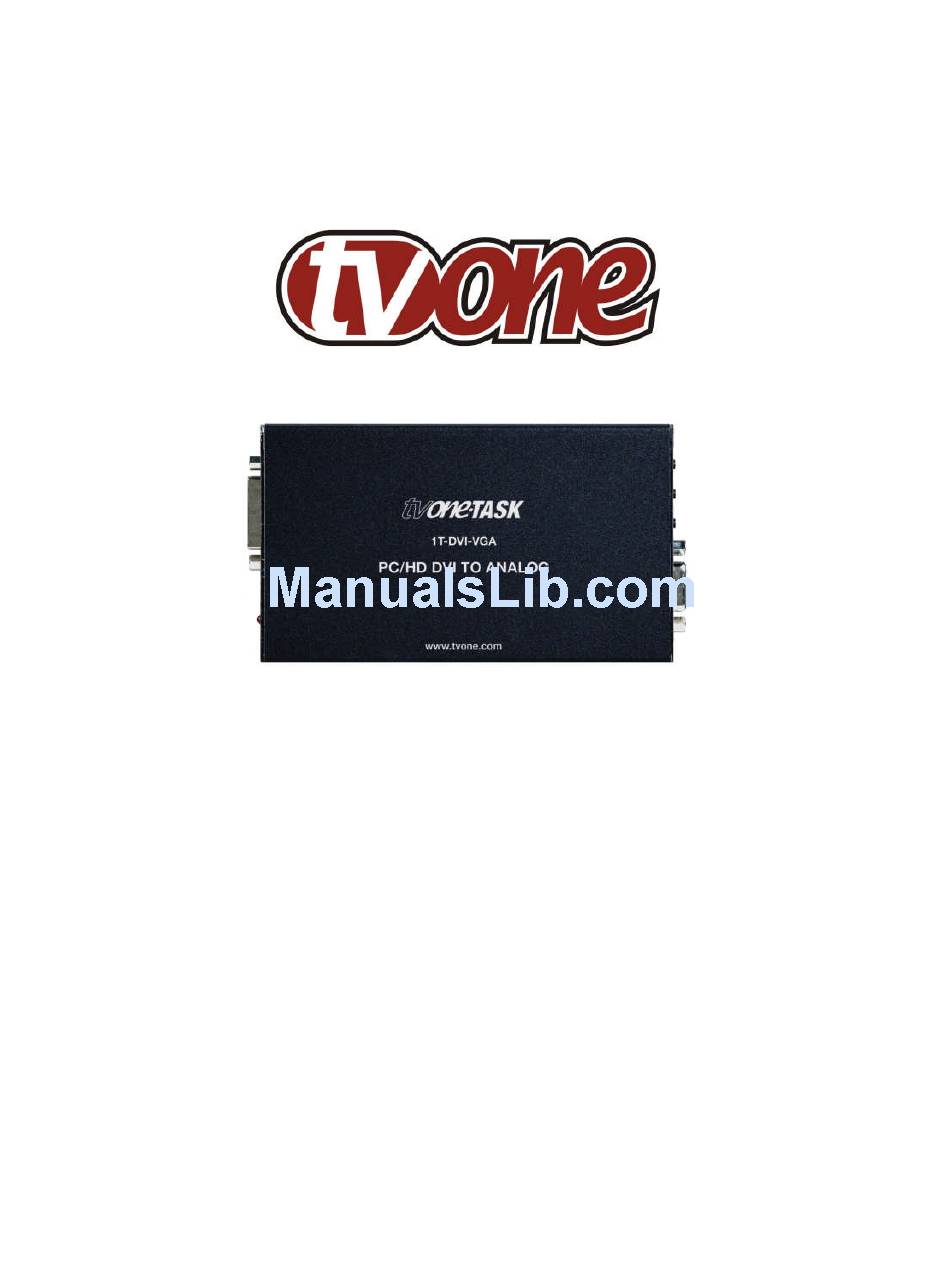

- Page 1 Instruction Manual 1T-DVI-VGA DVI to VGA Scaler...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
Thanks for purchasing this DVI to VGA Scaler from TV One. The 1T-DVI-VGA is designed to convert DVI signals to analog . Our professional video conversion products have been serving the industry for over twenty years. TV One offers a full line of high quality Seamless Switchers, Video Scalers, Up/Down/Cross Converters, Analog-Digital... -
Page 5: Specifications
Using Native Resolution – It is always best to set the output resolution of the scaler to the native resolution and refresh rate of the display device. This allows our scaler to do most of the work, which usually results in a superior picture. Distance between the Video Scaler and the display device –... - Page 6 2.1 Supported Input Formats and Resolutions The 1T-DVI-VGA accepts a wide variety of input resolutions and formats as detailed in the following table: Resolutions Vert Rate Format Scan Type 640x480 60,72,75,85 Hz RGBHV Progressive SVGA 800x600 60,72,75,85 Hz RGBHV Progressive...
-
Page 7: Checking Package Contents
Connecting the Input The 1T-DVI-VGA can accept both PC and HDTV inputs in the DVI format. The 1T-DVI- VGA will automatically detect the mode and resolution of the PC/HDTV input. Connecting the Output The 1T-DVI-VGA Video Scaler can output a wide variety of Analog RGBHV resolutions. -
Page 8: Operating The Unit
Connecting Power to the Unit The Video Scaler is shipped with an In-Plug Power Adapter to convert 100~240VAC @50-60Hz to 5VDC. Connect the DC Output Cord from the Power Adapter to the back of the unit and then plug the Power Adapter into an AC Receptacle. When the unit’s front panel Power Switch is turned On, the Power LED indicator will illuminate. - Page 9 5.1.3 Output Modes Per the Table in Section 2.2. 5.1.4 Output Adjustments When in DVI-D Mode: Picture Adjust - When the Picture Adjust Menu is selected, the following adjust parameters will appear on the OSD: Contrast Bright Color Reset Exit Use the + and –...
-
Page 10: Troubleshooting
LIMITED WARRANTY TV One warrants the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a fixed term from the date of purchase. -
Page 11: 8.0 Regulatory Compliance
TV One assumes no liability to distributors, resellers or end-users or any third parties for any loss of use, revenue or profit. - Page 12 Tel +44 (0)1843 873311 Fax 859-282-8225 Fax +44 (0)1843 873312 sales@tvone.com sales.europe@tvone.com www.tvone.com www.tvone.eu TV One Latin America TV One Mercosur 6991 NW 82 Avenue #8 Av. Diaz Velez 3965 #PB Miami, FL 33166 (1200) Capital Federal Buenos Aires, Argentina...
