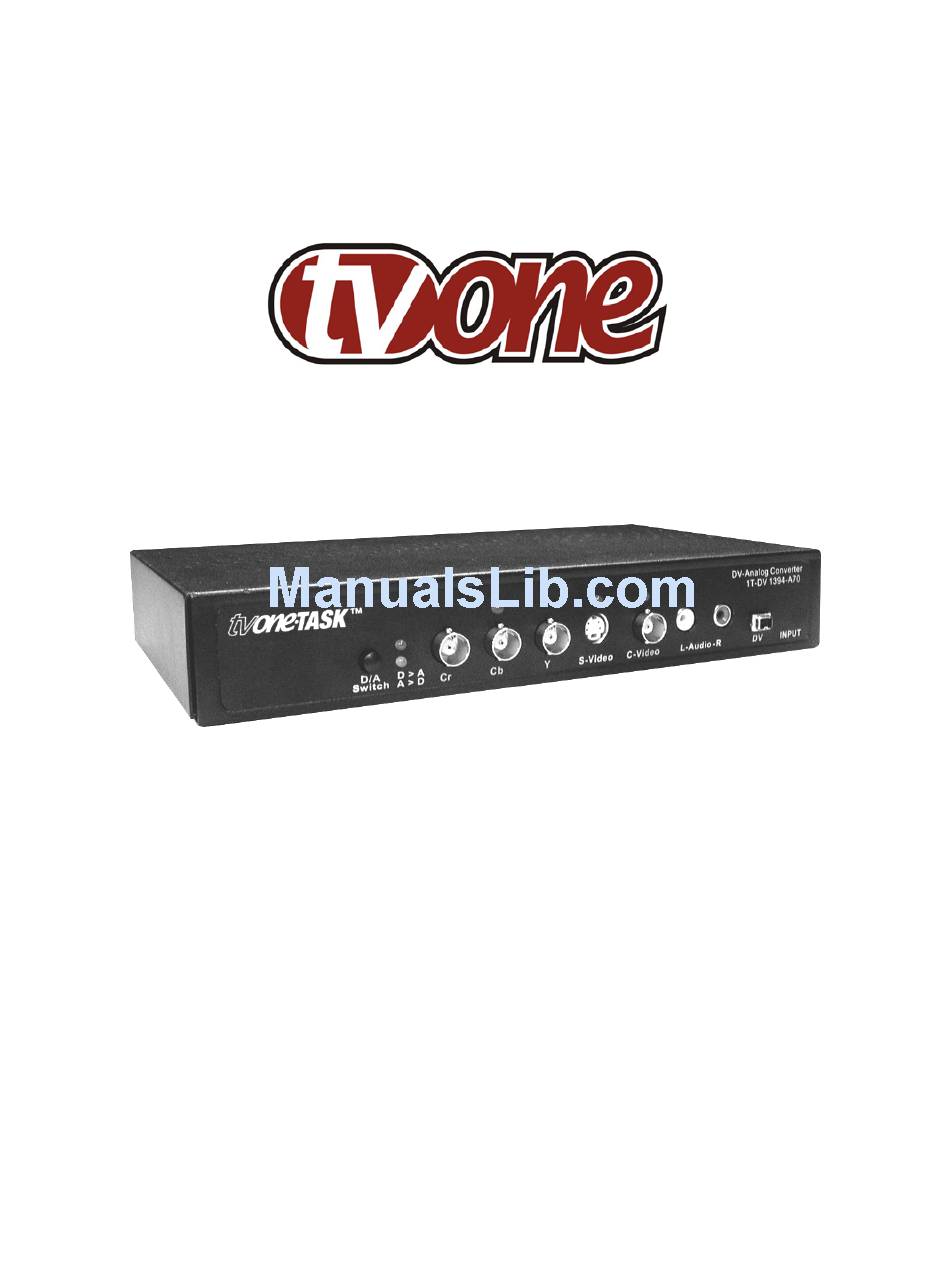

- Page 1 Instruction Manual 1T-DV1394-A70 DV-Analog Converter...
-
Page 3: Table Of Contents
Table Of Contents Introduction Specifications Package Contents Connecting the Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
Multimedia Cables round out the product offerings. Liability Statement Every effort has been made to ensure that this product is free of errors. TV One cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. -
Page 5: Specifications
FEATURES The DV-1394-A70 Analog to DV Converter has many features that enable it to perform in a superior manner. Among those features you will find: • Bi-directional Conversion of DV to/from Analog • I/O: Composite, S-Video, YCbCr, DV, Stereo • Audio Support 48Khz and 32Khz •... - Page 6 2.2 Specific Information Video Inputs/Outputs Composite Video via BNC Connectors S-Video via 4-Pin Mini-DIN Connectors YCbCr Component via 3 BNC Connectors IEEE-1394 DV via 4 or 6 Pin or DV Connector Impedance 75Ω Television Standards NTSC and PAL Audio Inputs/Outputs Unbalanced Stereo via 2 RCA Connectors (R/L) Digital (Within DV)
-
Page 7: Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. -
Page 8: Operating The Unit
OPERATING THE UNIT Once you have connected the DV-1394-A70 as described above, you must be certain that the inputs are being fed appropriate signals and are not suffering from signal loss due to cabling problems or problems with the source device. If your connections are all proper, press the power button on the front of the DV-1394- A70. - Page 9 5.2 DIP Switch Settings On the rear on the unit, you’ll find four active DIP Switches. The selections are: SW1: OFF = Auto-Detect Off, Default NTSC, ON = Auto-Detect NTSC or PAL SW2 + SW3: PC Operating System Setting DV Camcorder WIN 2K/WIN XP WIN 98/WIN ME SW4: = Off 7.5 IRE, On = 0 IRE Setup (NTSC Only)
- Page 10 Note: The DV-1394-A70 and the camcorder can be detected only when they are powered on. If powered down, system will delete them automatically.
-
Page 11: Troubleshooting
After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions before contacting TV One. Should the dealer’s technical personnel be unable to assist you, contact TV One via our parent company’s support website: http://tvone.crmdesk.com. Create a technical support request on the site... -
Page 12: Limited Warranty
Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This warranty does not apply... -
Page 13: Regulatory Compliance
The Power Adaptor/Supply has been tested for compliance with: UL, CSA and CE standards. CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 1350 Jamike Drive... - Page 14 NOTES...
- Page 16 Tel +44 (0)1843 873311 Fax 859-282-8225 Fax +44 (0)1843 873312 sales@tvone.com sales.europe@tvone.com www.tvone.com www.tvone.co.uk TV One Latin America TV One Mercosur 2790 NW 79 Ave Honduras 5849, 2 Floor, Office C Miami, FL 33122 (C1414BNI) Capital Federal Buenos Aires, Argentina...
