1T-C2-750
&
1T-C2-760
DVI Scaler
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1T-C2-750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TV One 1T-C2-750

Summary of Contents for TV One 1T-C2-750

  • Page 1 1T-C2-750 & 1T-C2-760 DVI Scaler Operation Manual...
  • Page 2 1T-C2-750 & 1T-C2-760 O PERATION ANUAL...

  • Page 3: Table Of Contents

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Table of Contents DISCLAIMER ....................1 Regulatory Agency Acceptance................1 FCC Statement ....................1 Manual Version Information................. 2 Manual Copyright Notice ..................2 IMPORTANT SAFETY INSTRUCTIONS ............3 DEVICE SUMMARY ..................13 Device Capabilities.................... 13 Device Features ....................13 PRODUCT IMAGES ..............
  • Page 4 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 8.4.3 ‘Aspect adjust’ = ‘Pixel’..................34 Items Associated with the Adjust keyers group..........35 Items Associated with the Adjust sources group..........36 8.6.1 Menu items common to all inputs ..............37 8.6.2 DVI Source Menu Items ..................40 8.6.3 RGB Source Menu Items...................
  • Page 5 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 11.6 Some colors appear to be incorrect on the CV/YC output........79 11.7 How can I reduce color smearing on CV connections?........79 11.8 I can no longer adjust the Output image resolution..........79 11.9...

  • Page 6: Disclaimer

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL DISCLAIMER This product is intended for professional and/or home use. This product is not intended for use in a medical environment and does not have the required certifications for such use. Similarly, use aboard any aircraft or spacecraft while in...

  • Page 7: Manual Version Information

    Release Date: November, 2010 Manual Copyright Notice This Operation Manual is the intellectual property of TV One, ©2006, 2007, 2008, 2009, 2010. No portion of this manual may be copied or reproduced in any manner or by any means, including, but not limited to electronic and electro-mechanical,...

  • Page 8: Important Safety Instructions

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL IMPORTANT SAFETY INSTRUCTIONS To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference. To reduce the risk of electric shock, do not remove the cover from the unit.
  • Page 9 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 2.5 Ventilation Slots and openings in the sides of the unit are provided for ventilation. To ensure reliable operation, avoid obstruction of these openings and ensure the unit is installed in a well-ventilated area.
  • Page 10 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 2.0 IMPORTANT: CONSIGNES DE SECURITE Afin de tirer le meilleur de ce produit, merci de lire attentivement ce manuel. Gardez-le dans un endroit sûr pour pouvoir le consulter à nouveau. Afin de réduire le risque de choc électrique, ne retirez pas l’unité de sa protection.
  • Page 11 1T-C2-750 & 1T-C2-760 O PERATION ANUAL L’installation de cette unité doit se faire dans un endroit frais et sec, éloigné de sources excessives de chaleur, de vibrations, de poussière, d’humidité et de froid. 2.5 Aération Les rainures et les ouvertures sur les cotés de l’unité servent à l’aérer. Pour permettre une utilisation sûre, évitez d’obstruer ces ouvertures et assurez-vous que...
  • Page 12 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 2.0 INSTRUCCIONES IMPORTANTES DE SEGURIDAD Para sacar el mejor provecho de este producto, léase este manual con detenimiento. Guárdelo en un lugar seguro para poder hacerle referencia en el futuro. Para reducir el riesgo de calambre, no quite la cubierta del aparato.
  • Page 13 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 2.4 Ubicación Este aparato se debe instalar en un lugar seco y fresco, lejos de fuentes de calor excesivas, la vibración, el polvo, la humedad y el frío. 2.5 Ventilación El aparato viene provisto de ranuras y agujeros en los lados para la ventilación.
  • Page 14 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 2.0 WICHTIGE SICHERHEITSVORSCHRIFTEN Lesen Sie diese Bedienungsanleitung bitte sorgfältig, um Ihr Produkt optimal nützen zu können, und bewahren Sie sie zum späteren Nachschlagen an einem sicheren Ort auf. Entfernen Sie bitte keinesfalls die Abdeckung, um der Gefahr eines Stromschlags vorzubeugen.
  • Page 15 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 2.3 Aufstellung Das Gerät sollte an einem kühlen, trockenen Ort aufgestellt werden, fern von übermäßiger Wärme, Vibrationen, Staub, Feuchtigkeit und Kälte. 2.5 Belüftung Seitliche Schlitze und Öffnungen sorgen für die Belüftung des Geräts. Um die ordnungsgemäße Belüftung zu gewährleisten, dürfen diese Öffnungen nicht...
  • Page 16 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 2.0 BELANGRIJKE VEILIGHEIDSINSTRUCTIES Lees deze handleiding zorgvuldig door om het beste uit uw product te halen. Bewaar het op een veilige plek voor raadpleging in de toekomst. Haal nooit het omhulsel van de eenheid af, dit om de kans op een elektrische schok te verminderen.
  • Page 17 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 2.4 Plaatsing Deze eenheid moet geïnstalleerd worden op een koele droge plaats, uit de buurt van bronnen van extreme hitte, vibraties, stof, vocht en kou. 2.5 Ventilatie De sleuven en openingen aan de zijkant van de eenheid zijn voor ventilatie. Zorg er voor dat de eenheid op een goed geventileerde plek geïnstalleerd wordt zodat deze...

  • Page 18: Device Summary

    2 technology is a powerful toolset for any application requiring high quality video signal conversion or image manipulation. The 1T-C2-750 unit features dual video processing and scaling engines, along with video mixing, keying and fader capabilities. These functions offer flexibility for supporting dual picture-in-picture with a wide range of inputs and outputs over DVI and RGBHV, RGsB, RGBS and YPbPr resolutions.
  • Page 19 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Upgradeability All 1T-C2 units benefit from firmware upgradeability, thus reducing product obsolescence by allowing the installation of the latest version of firmware. This not only applies to the software used to control the unit, but also to the range of resolutions stored inside the unit, the addition of new features, and upgrades to the ®...

  • Page 20: Product Images

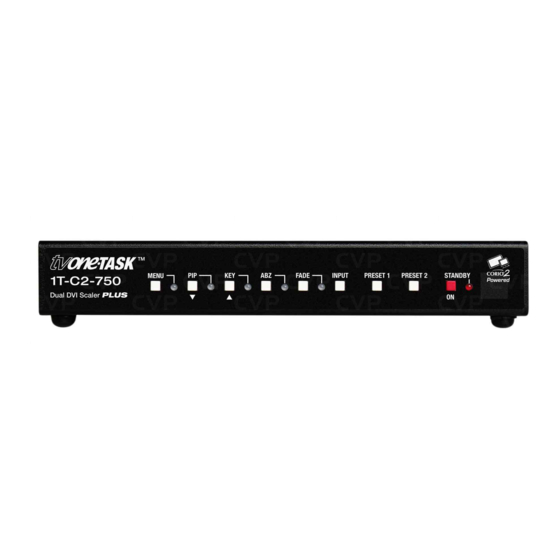

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL PRODUCT IMAGES 1T-C2-750 unit 1T-C2-760 unit...

  • Page 21: Front Panel Controls

    (OSD) menu system. The RS232 interface and infra-red remote control also provide further ways of controlling your unit, which are detailed in a later section. Both the 1T-C2-750 and 1T-C2-760 units have similar front panel controls: Button controls Button...

  • Page 22: Menu And Buttons

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL MENU and buttons The on-screen display (OSD) is controlled from the front panel by using these buttons. MENU will activate the OSD, whilst the and arrowed keys will allow different menu items to be selected and adjusted – this is detailed in a later section.

  • Page 23: Switching Between Different Resolutions Using The Front Panel

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL All stored settings except resolutions are lost when the unit is reset. A Firmware update is the only way to perform a complete factory reset (including resolution data). 5.4.4 Switching between different resolutions using the front panel Your unit will default to outputting 1280x1024@60Hz after a Factory Reset.

  • Page 24: Video Inputs, Outputs And Scalers

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL VIDEO INPUTS, OUTPUTS AND SCALERS The 1T-C2-750 and 1T-C2-760 units both have two identical DVI-I inputs and one DVI-I output. DVI-I inputs Each input can accept: Digital DVI-D (maximum 1920x1200@60Hz / 1080p60) (1T-C2-760 also supports 2880x900@60Hz)

  • Page 25: C2-760 Block Diagram

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL DVI-I1 Scaler & Keyer A Mixer Window A DVI-I2 Scaler & Keyer B Window B Lock Keyer Z Cross-point source Z As the diagram shows, the 2 DVI-I inputs are available for use by either of the scalers, or as a ‘lock source’...
  • Page 26 1T-C2-750 & 1T-C2-760 O PERATION ANUAL As the diagram shows, the 2 DVI-I inputs are available for use by the scaler, or as a ‘lock source’ (also known as window Z or background) – where the output is synchronized to an input (see Adjust outputs).

  • Page 27: Infra-Red Remote Control

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL INFRA-RED REMOTE CONTROL Your unit is compatible with an optional infra-red remote control as shown below: Resets back to power-on defaults Stores current Selects input: settings 1/2/3=RGB/CV/YC Enables Keyer Enables Lock & Mix mode...

  • Page 28: Menu Layout And Settings Adjustment

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL MENU LAYOUT AND SETTINGS ADJUSTMENT From here on, we’ll be looking at the menu structure employed in the series and, more importantly, the individual menu items that allow you to take advantage of the power of the unit.

  • Page 29: Group Names And Descriptions

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL CORIO2 TV One The first is the ‘welcome’ display shown above indicating the model of the unit. www.tvone.com SW: 65. PT: 12, BT: 13 Moving to the next menu item displays the firmware information screen (the numbers on your unit will be different to those shown).

  • Page 30: Items Associated With The Adjust Outputs Group

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Presets only store and recall values in the Adjust outputs, Adjust windows, Adjust keyers, Adjust borders and Adjust logos menus (where your unit supports these). To store values present in the ‘Adjust sources’ menu, use the ‘Push to Store’ menu item found in ‘Adjust system’...
  • Page 31 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Lock & Mix The output video will be locked to the selected source, the syncs will be locked (but with an additional internal video processing delay) and the background for the output will be that of the Lock source (unless foreground and background are swapped).
  • Page 32 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 1024 x 768 60Hz HDCP (Active) HDCP is handled only on certain units with DVI outputs, so this menu may not appear on your own unit. HDCP is a ‘High-bandwidth Digital Content Protection’ system, which can ensure that a high definition video signal cannot be received by units not equipped with a HDCP receiver.
  • Page 33 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Adjust outputs Anlog= [RGBHV] Dig= RGBHV This menu may appear as either of the above – depending on whether the analog and digital outputs are controlled separately. This menu item allows you to select the type of signal output your unit will provide.

  • Page 34: Items Associated With The Adjust Windows Group

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Adjust outputs Audio emb. [On] [DVI-U1] For certain units with HDMI and/or SDI-compatible inputs and outputs, the audio can be de-embedded from the video signal and sent to a compatible output. ‘On’ enables this to happen, and allows the audio source to be selected. ‘WinA’...
  • Page 35 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Changing this option, sets the amount of picture magnification you wish to use for the window Source. You are provided with the options to zoom the image from 100% to 1000% (10x zoom). Adjust windows...
  • Page 36 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Adjust windows H/V position % [100] [ 50] This menu option determines the position of the shrunken image on the monitor screen. This will move an image that is less than the full screen size left/right or up/down within the monitor’s available screen space.
  • Page 37 1T-C2-750 & 1T-C2-760 O PERATION ANUAL High Highest amount of flicker reduction. Will cause loss of vertical detail in some images. Adjust windows Image smoothing [Auto] Image smoothing reduces the jagged-edges sometimes seen within an output image by softening it. It typically improves the quality of a scaled image greatly.

  • Page 38: Extended Scaling Controls

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Color is not shown as its layer position can not be altered – it will always be the background. 8.4.1 Extended scaling controls The ‘Aspect adjust’ parameter is used to change the way that scaling of windows is controlled.

  • Page 39: Aspect Adjust' = 'Pixel

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL This item allows the setting of different Horizontal and Vertical ‘shrink’ sizes. The third number (1.333 in the example) is the Aspect Ratio resulting from the adjustments, which is automatically calculated for you based on the output resolution (the actual pixels &...

  • Page 40: Items Associated With The Adjust Keyers Group

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Items Associated with the Adjust keyers group Please note that not all units have this sub-menu – it is only present on units with overlaying abilities. Towards the end of this manual you will find a section titled ‘COMMON OPERATIONS’...

  • Page 41: Items Associated With The Adjust Sources Group

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Adjust keyers Y Key min/max [ 0] [ 32] The Min/Max parameters are used to select what range of Y (luminance/grey-scale) values are made transparent within the selected window/lock source. In order to key out part of an image, start with the max value and increase it until the required lighter parts within the window/lock source disappear.

  • Page 42: Menu Items Common To All Inputs

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Source: RGB1 Source to adj [RGB1] This menu item selects the input connection for which you want to make adjustments to. As in the image above, changes will only be made to the source connected to RGB1.
  • Page 43 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Source: RGB1 BR size adj. 0] [ 0] This menu item allows manual positioning of the Bottom and Right portion of the image. These settings are often used to correct the position of a PC signal on an input, or to eliminate any undesired noise at the top or bottom of a PAL or NTSC video source.
  • Page 44 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Option Description Show Shows all picture break-up and instabilities. Freeze Freezes the latest frame – un-freezes as soon as the source becomes stable again. Blue (default) Turns the window blue, to represent source loss.

  • Page 45: Dvi Source Menu Items

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Source : RGB1 Noise reduction [Off] This menu item allows the user to specify whether the source has noise reduction applied to it. This is performed by averaging the video signal over a number of fields –...
  • Page 46 1T-C2-750 & 1T-C2-760 O PERATION ANUAL case of your unit, it tells the graphic card what resolutions are compatible with it – by emulating a display. The above menu lets the user select which of 8 EDID data blocks are ‘shown’ to a PC or other DVI/HDMI source.

  • Page 47: Rgb Source Menu Items

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL 5. Store your unit’s settings (see earlier in this manual on how to do this). 6. Re-boot (turn off and on again) the CORIO2 unit to ensure that the graphic card uses this new EDID data (you may need to re-boot your computer as well).

  • Page 48: Cv & Yc Source Menu Items

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL selection of break-out BNC connectors to be used instead of the normal connector (signified by B- in front of the signal type). Source: RGB1 RGB contr. [100] [100] [100] This menu item lets you adjust the individual RGB or YUV/YPbPr signals, in case one component is at a different contrast to other, or if they all need to be boosted or lowered.

  • Page 49: Still Image Store / Testcard Source Menu Items

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Fortunately, your unit provides a way for you to make the two signals occur at the same time on the selected image. The adjustment range provides both positive and negative levels of delay with 0 being the default.

  • Page 50: Items Associated With The Adjust Transitions Group

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Adjust borders Brdr Y/U/V [16] [128] [128] The color of the border can be changed to any color by adjusting the Y, U and V parameters. Y is the luminance, with U and V altering the blue and red content respectively.

  • Page 51: Items Associated With The Adjust Resolutions Group

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Adjust transitions Wipe size [100] Wipe Size sets the ‘granularity’ of the ‘Wipe’ effect and so is only shown when ‘Wipe’ is the transition type. The smaller the number, the more elements there are to the wipe.
  • Page 52 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 800 x 600 60 Hz Image to adjust [ 17] Change the value to select resolution you want to alter. Typically, the image number currently being used for input or output would be already be selected otherwise immediate feedback to your changes will not be available via your monitor.
  • Page 53 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 800 x 600 60 Hz H/V active [ 800] x 600 A video frame includes both the active area, the portion of the image normally containing useful visual information, and a resolution value for a given display standard which only expresses the number of pixels visible in an image.

  • Page 54: Items Associated With The System Group

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL 800 x 600 60 Hz Sync polarity [+H+V] Sync can be either negative polarity or positive polarity. To further complicate things, it is possible that you may want to make the Horizontal Sync polarity different from the Vertical Polarity.
  • Page 55 1T-C2-750 & 1T-C2-760 O PERATION ANUAL System TAC# 27-AA-1C-93-F8-33 The TAC number is a unique identifier for the unit and is for use with the PPF value below. System PPF# 1A-67-2B-9D-50-4F The PPF number is for units that support the ‘Pay Per Feature’ system. Extra features in the unit (such as Mix and Key) may be activated using this menu tiem by entering in the correct numbers and re-starting the unit.
  • Page 56 1T-C2-750 & 1T-C2-760 O PERATION ANUAL System LCD contrast [200] This parameter is available on certain units and allows the LCD contrast (viewing angle) to be altered. System LED brightness % [ 90] This parameter is available on certain units and controls how bright the LEDs on the front panel appear.
  • Page 57 1T-C2-750 & 1T-C2-760 O PERATION ANUAL System Resolutions This screen is an informational screen showing the total number of the defined resolutions in the resolution database. Future firmware releases may increase the total number of resolutions defined in the database.
  • Page 58 1T-C2-750 & 1T-C2-760 O PERATION ANUAL System Fan speed (rpm) 6000 Certain units have built-in fans to keep the unit cool. The fan speed is monitored and if it deviates from normal parameters too much, this will be taken as an indication of insufficient airflow over critical components and shutdown action will be taken.

  • Page 59: Serial Port

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL SERIAL PORT Connection Your unit is fitted with a standard ‘D9’ plug or socket allowing it to be controlled from a computer or other type of terminal or console with a similar interface. Most computers fitted with an RS232 port, known as a ‘COM’...
  • Page 60 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Note: Any command you send to the unit will be replied to either with an error code or with the actual changed value. This may be different to the one you sent; for example, if trying to set a value too high or too low.

  • Page 61: Serial / Ip Control Specification

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL SERIAL / IP CONTROL SPECIFICATION PLEASE NOTE: Not all units support Serial and/or IP (Ethernet) communications – check to see if this feature is present on your unit. This section outlines how to control a unit via a Serial or Ethernet link (if fitted to your unit), using ASCII-based commands.

  • Page 62: Packet Format

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL The ACK flag will be returned as 0 if the command is invalid for some reason – for example a bad FUNCTION, WINDOW, OUTPUT or PAYLOAD value. An ACK=0 message will be otherwise identical to the one you sent, so you know exactly which message has the error.
  • Page 63 1T-C2-750 & 1T-C2-760 O PERATION ANUAL returned means message was okay. ACK=0 returned means an error was present in the message. Bit 5 = 0 Reserved for future use. Bit 4 = 0 Reserved for future use. Bit 3 = 0 Reserved for future use.

  • Page 64: Function List

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL ASCII-hex byte that is the (check) sum of all previous bytes (excluding the SOP 'F' character). E.g. The command F0400410082000001C8 has the checksum of 04+00+41+00+82+00+00+01=C8, so the complete command to send is F0400410082000001C8. A short-cut for debugging allows the checksum to be replaced by 2 question marks, so in the previous example you could send F0400410082000001?? Instead.
  • Page 65 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Adjust outputs Output enable 0=Blanked, 1=Active Lock source (connector) 0x10 to 0x1F = RGB1 to RGB16 0x30 to 0x3F = CV1 to CV16 0x40 to 0x4F = YC1 to YC16 0x50 to 0x5F = SDI1 to SDI16...
  • Page 66 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 4 = 16:9 Letterbox centre 5 = 16:9 Letterbox top 6 = >16:9 Letterbox centre 7 = 14:9 Full format 8 = 16:9 Full format Take 0->1 = Perform a Preview -> Program transition Audio amp.
  • Page 67 1T-C2-750 & 1T-C2-760 O PERATION ANUAL In (top-left H) In (top-left V) In (H size) In (V size) Out (top-left H) Out (top-left V) Out (H size) Out (V size) Aspect change 0..2 = Normal, Letterbox, Pillarbox Aspect adjust 0..1 = Simple, Advanced Flicker reduction 0..3 = Off, Low, Med, High...
  • Page 68 1T-C2-750 & 1T-C2-760 O PERATION ANUAL E.blnd size H 0.. limited by H width E.blnd size V 0.. limited by V height E.blnd gamma H 1..150 1=0.01, 150=1.50 E.blnd gamma V 1..150 1=0.01, 150=1.50 E.blnd comp cent 0..99 E.blnd comp side 0..99...
  • Page 69 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Label H. Size 10..5F 249 0..8 Label V. Size 10..5F 24A 0..8 Label H. Position 10..5F 24D 0..3 (Off / Left / Center / Right) Label V. Position 10..5F 24E 0..3 (Off / Top / Middle / Bottom) Label char.
  • Page 70 1T-C2-750 & 1T-C2-760 O PERATION ANUAL M.comp.med., M.comp.high, Frame/bob (Film mode detected) 10..FF 0E3 0..1 = Not detected, Detected Diagonal interpolation 10..FF 22B 0..1 = Off, On Noise reduction 10..5F 23F 0..1 = Off, On Bright 30..5F 0BB 0..180 Contrast 30..5F 0BC...
  • Page 71 1T-C2-750 & 1T-C2-760 O PERATION ANUAL 1 = Normal 2 = Presets Tally input number 1 to 8 Tally preset to load 1 to 50 Adjust resolutions Note: You MUST set the 'Image to adjust' value to the correct value first, and only then change the other values - otherwise you may be adjusting the wrong entry.

  • Page 72: Examples

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Number of logos Read only Board temp. (deg.C) Read only Air temp. (deg.C) Read only Regulators temp.(deg.C) Read only PLD temp. (deg.C) Read only Fan speed (rpm) Read only Led brightness 0..100 LCD backlight 0..1 = Off, On...

  • Page 73: Reading And Writing Macros

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL SOP CMD CHA WIN OUT FUN PAY CS EOP SOP CMD CHA WIN OUT FUN PAY CS EOP Set output 1 window B Source to RGB2 000011 D9 CR 000011 19 CR Set output 1 window A to Enable advanced aspect...

  • Page 74: Reading A Previously Stored Macro

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Menu text CHA FUNC Range of adjustment (decimal) (Hex) Macro Run macro 0..7 F1 0..1 = Run, Erase macro Number of items within 0..7 F4 Read Only macro Function to adjust 0..7 F2 0..4095 Value 0..7 F3...

  • Page 75: Run And Restore Macros

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL 000001 3A CR 000001 7A CR Write the function for first item in macro 3 = Zoom 000086 C1 CR 000011 01 CR Write data for the first item = 100 000064 9E CR...
  • Page 76 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Set to 720p 59.94Hz output 0000EB Set to 720p 60Hz output 0000EC Cycle presets (demo mode) 0100EE Select DVI-I1 as source 000200 Select DVI-I2 as source 000201 Select DVI-I3 as source 000202 Select DVI-I4 as source...
  • Page 77 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Run Macro 5 00021D Run Macro 6 000267 Run Macro 7 000268 Add to Macro 1 020119 Add to Macro 2 02011A Add to Macro 3 02011B Add to Macro 4 02011C Add to Macro 5...
  • Page 78 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Select CV1 as source for window A 00023F Select CV2 as source for window A 000240 Select CV3 as source for window A 000241 Select YC1 as source for window A 000242 Select YC2 as source for window A...
  • Page 79 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Select RGB2 as source 00027D Select YUV1 as source 000264 Logo 1A toggle on/off 000265 Logo 2B toggle on/off 000266 Window 1A toggle on/off 00026D Window 2B toggle on/off 00026E Go to Lock menu item...

  • Page 80: Reset Command

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Erase Preset 3 280193 Erase Preset 4 280194 Erase Preset 5 280195 Erase Preset 6 280196 Erase Preset 7 280197 Erase Preset 8 280198 Erase Preset 9 280199 Erase Preset 10 28019A Set output to BLACK...

  • Page 81: Common Operations

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL COMMON OPERATIONS This section provides step by step instructions for some common operations. 10.6 Operation of the Keyer Some units come equipped with a very powerful Luminance and Chrominance Keyer. The Keyer can take some time to master and below is a breakdown and series of simple steps to help you master the Keyer’s operation...
  • Page 82 1T-C2-750 & 1T-C2-760 O PERATION ANUAL to decrease the ‘min’ values and increase the ‘max’ values to broaden the range of colors keyed out. At this point, only the key color should remain transparent.

  • Page 83: Troubleshooting And Technical Support

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL TROUBLESHOOTING AND TECHNICAL SUPPORT If problems are experienced, please read through the symptom topics below in order to resolve the problem. After doing so, if you still need to, contact Technical Support at http://www.tvone.com/support. Please have the following details of...

  • Page 84: There Is Excessive Flicker On The Output

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL 11.4 There is excessive flicker on the Output. Try using a different Flicker reduction mode. Turning the contrast down and the brightness up on the output device can have a large effect on flicker. Or try adjusting the brightness and contrast of the source input by selecting the Input adjust menu.

  • Page 85: The Rgb Input Is Selected But The Image Is Rolling Or Pink

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL 11.11 The RGB input is selected but the image is rolling or pink. Check the Adjust sources menu and confirm that the input type and sync method is set correctly. (Having YUV input selected, instead of RGBHV often causes this problem).

  • Page 86: Return Procedure

    12.2 To return a unit for repair First contact TV One using the http://www.tvone.com/support website. Support personnel will determine whether a return to the factory is the appropriate solution. If that’s the case, a Return Authorization Number will be issued. You should...
  • Page 87 1T-C2-750 & 1T-C2-760 O PERATION ANUAL Please clearly state the return number on the outside packaging and on any accompanying documentation. This will greatly speed up processing. IMPORTANT: DO NOT return a unit for warranty repair without first obtaining a Return Authorization Number. No action will be taken on a unit returned in...

  • Page 88: Warranty Policy

    Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This...

  • Page 89: Connector Pinouts

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL CONNECTOR PINOUTS 14.1 DVI-I connector PIN# SIGNAL PIN# SIGNAL T.M.D.S DATA 2- HOT PLUG DETECT T.M.D.S DATA 2+ T.M.D.S DATA 0- T.M.D.S DATA 2/4 SHIELD T.M.D.S DATA 0+ Not used T.M.D.S DATA 0/5 SHIELD...

  • Page 90: Specifications

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL SPECIFICATIONS 15.1 DVI-I Input DVI-D (on DVI-I connector) supporting up to 162MHz (1920x1200@60Hz & 1080p/60). (1T-C2-760 also supports 2880x900@60Hz over DVI.) HDCP compliant repeater. EDID 1.3 data to communicate available resolutions. DVI-A (on DVI-I connector) supporting analog RGB/YPbPr supporting RGBHV,...

  • Page 91: Warranty

    1T-C2-750 & 1T-C2-760 O PERATION ANUAL Horizontal filtering: full digital Conversion technology: proprietary Color resolution: 24-bit (16.8 Million Colors) Sampling rate: 162MHz maximum Digital sampling: 24-bit, 4:4:4 format Firmware memory: flash, upgradeable via RS-232 1T-C2-760 also supports motion compensation & temporal interpolation 15.5...

  • Page 92: Contact Information

    PERATION ANUAL CONTACT INFORMATION Should you have and questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location shown below: TV One USA TV One Europe 2791 Circleport Drive...
