Summary of Contents for TV One 1T-FC-425

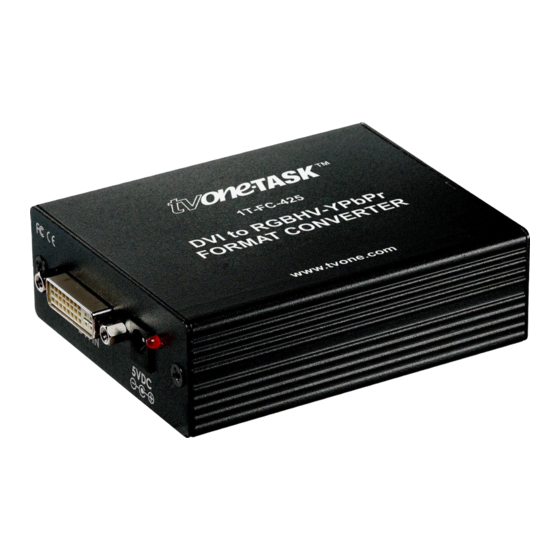

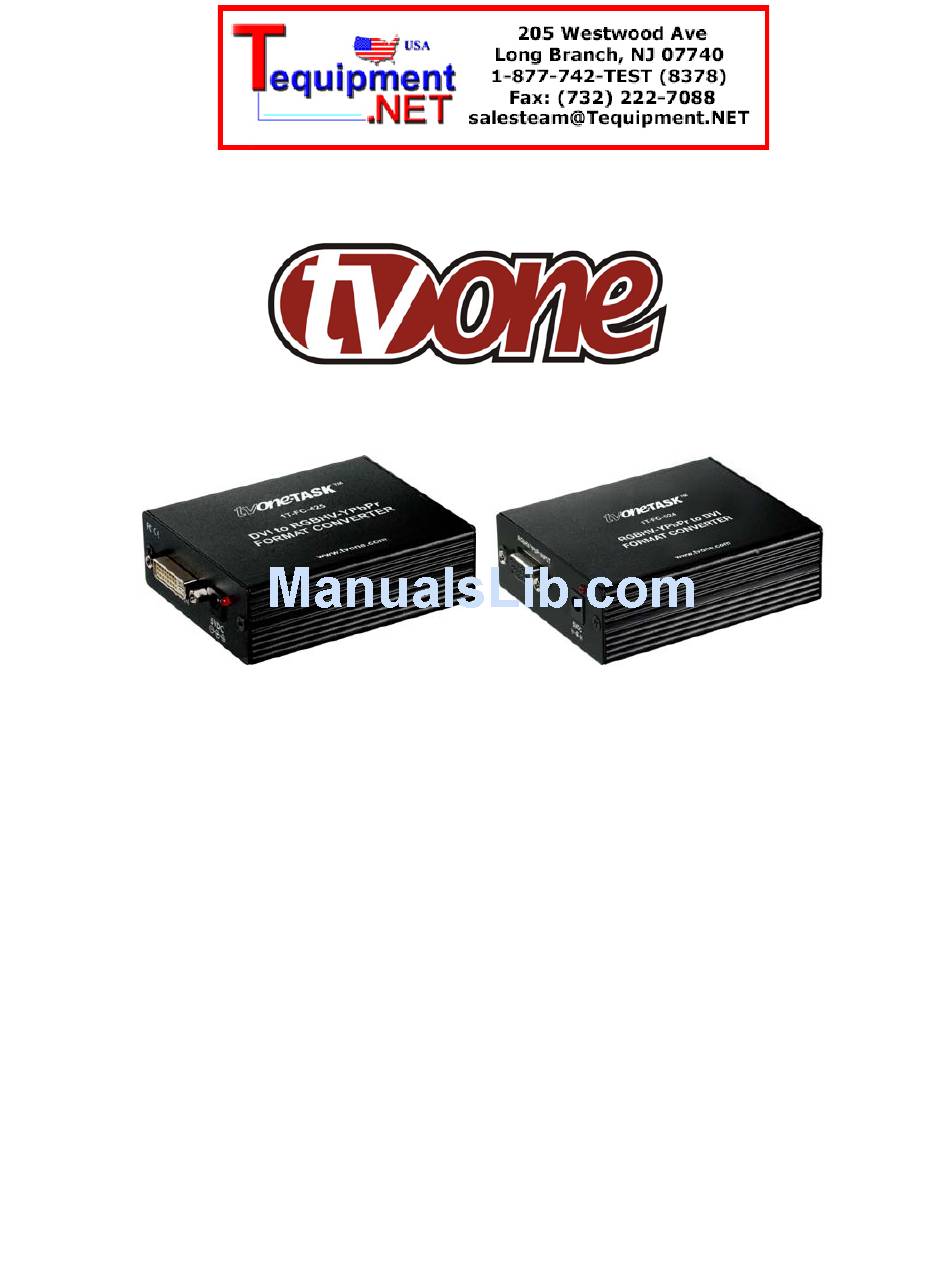

- Page 1 Instruction Manual 1T-FC-425 and 1T-FC-524 Format Converters...
-
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 4: Introduction
Both models are 5VDC powered and the Power Adapters are included. Locking DC Connectors are provided for security. Our professional video conversion products have been serving the industry for over twenty years. TV One offers a full line of high quality Seamless Switchers, Video Scalers, Up/Down/Cross Converters, Analog-Digital... -
Page 5: Specifications
Select when the input is RGBHV 1T-FC-524 Output Format Switch Analog Input Setting Output Signal YPbPr Bypass or RGB Digital YPbPr or RGB RGBHV Bypass or RGB Digital RGB Only 1T-FC-425 Output Format Switch Digital Input Setting Output Signal YPbPr YPbPr Analog YPbPr Analog RGBHV... -
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model and Serial Number and Invoice available for reference when you call. -
Page 7: Connecting The Hardware
Digital RGB output. Selecting analog RGBHV for the input and then selecting either Bypass or RGB results in a Digital RGB output. For the 1T-FC-425, there is only an Input selection to be made. Selecting a Digital YPbPr input will result on an analog YPbPr output. -
Page 8: Troubleshooting
Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. This warranty does not apply...
