Operation Manual
ParaBeam 410 & 210 DMX
®
ParaBeam 410 Center Mount
ParaBeam 410 Pole-Op
Part No. 3100064 Rev A
05-10-2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ParaBeam 410 DMX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kino Flo ParaBeam 410 DMX

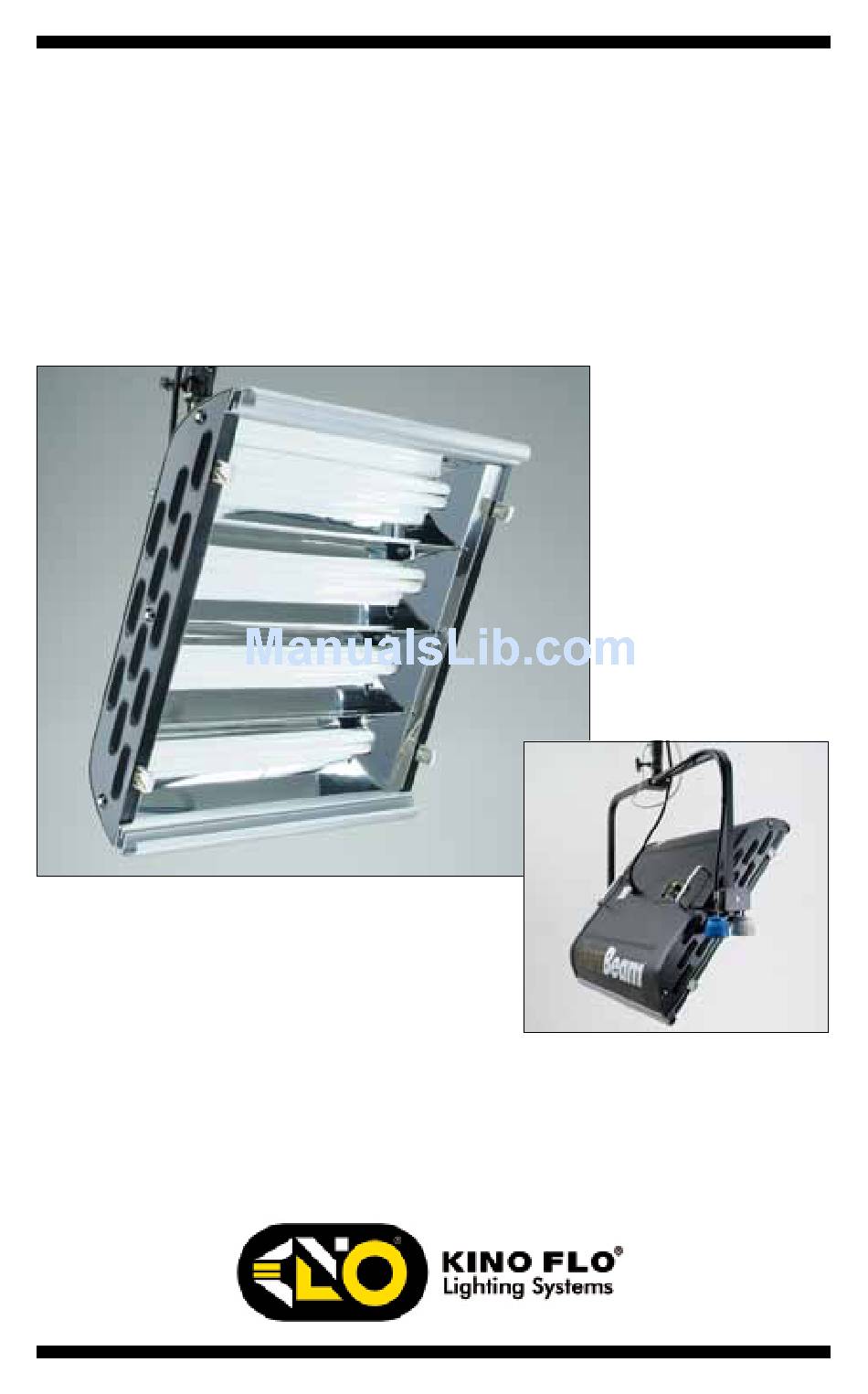

  • Page 1 Operation Manual ParaBeam 410 & 210 DMX ® ParaBeam 410 Center Mount ParaBeam 410 Pole-Op Part No. 3100064 Rev A 05-10-2012...
  • Page 2 ParaBeam Fixture Styles and Features ParaBeam Center Mount PAR-410-120 ParaBeam 410 DMX Center Mount, 120VAC PAR-410-230 ParaBeam 410 DMX Center Mount, 230VAC PAR-210-120 ParaBeam 210 DMX Center Mount, 120VAC PAR-210-230 ParaBeam 210 DMX Center Mount, 230VAC ParaBeam Yoke Mount PAR-410Y-120...
  • Page 3 Included w/ all ParaBeam Models GFR-P4 ParaBeam 410 Gel Frame (Included) GFR-P2 ParaBeam 210 Gel Frame (Included) LVR-P4-S ParaBeam 410 Silver Louver (Included) LVR-P2-S ParaBeam 210 Silver Louver (Included) True Match Lamps ® 55C-K32 55W Kino KF32 Compact 55C-K55 55W Kino KF55 Compact...
  • Page 4 ParaBeam Center Mount Kits KIT-P4-120 ParaBeam 410 DMX Center Kit, 120VAC KIT-P4-230 ParaBeam 410 DMX Center Kit, 230VAC Kit Contents 1 ParaBeam 410 DMX Center Mount 1 Lamp Case 1 Ship Case Dimensions Weight 29.5 x 11 x 29.5” 61 lb (75 x 28 x 75cm) (27.5kg)
  • Page 5 Inserting Lamps Open hinged reflector door. Insert lamp end first. Snap lamp pins into To release lamps, Close reflector door. lamp holder. press Red button and lift lamp out. Inserting Gel Frame Push tab down and forward Insert gel frame into to lock into open position.

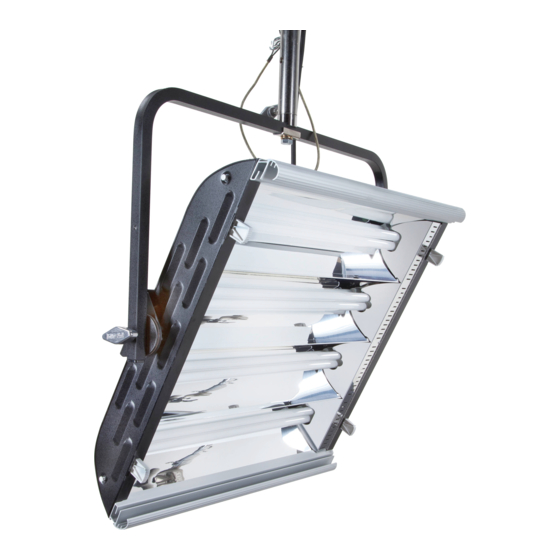

  • Page 6 ParaBeam Center Mount The ParaBeam 410 Center Mount includes a lollipop w/ Junior Pin (MTP-LM) and can hang from a grid by a Junior pipe hanger or mount onto a Junior stand. Note: Loop the safety chain through the handle on the ParaBeam 410. The ParaBeam 210 Center Mount includes a lollipop w/ Baby Receiver (MTP-LB) and can hang from a grid by a baby pipe hanger or mount onto a baby stand.
  • Page 7 Note: When looking at the back of the fixture, the Kino Flo logo should read: If the Logo is upside down, the fixture does not have the correct orientation.
  • Page 8 ParaBeam Yoke Mount The yoke has a ½” hole to accept industry standard mounting hardware. The ParaBeam 410 Yoke Mount can hang from a grid by a junior pipe hanger using a Junior Pin Assembly for Yoke (MTP-I80), sold separately. The ParaBeam 210 Yoke Mount can also hang from a grid by a junior pipe hanger using a Junior Pin Assembly for Yoke (MTP-I80) or a baby pipe hanger using a Baby Receiver Assembly for Yoke (MTP-I40), also sold separately.
  • Page 9 Pole Operation The Blue cup alters the Pan (left or right.) The White cup alters the Tilt (up or down.) Warning! Do not pull yoke to adjust tilt. Turn the white knob counter clockwise to angle the yoke 90°. Mounting Barndoors Side Doors First apply Side Doors by inserting the hinge bracket into the extruded edge.
  • Page 10: Fixture Operation

    60°F. Lamps will turn on at preset dimmer settings as long as the temperature is above 60°F or 15°C. ParaBeam 410 DMX Control Panel A) DMX-IN & DMX-OUT: DMX-In Receives DMX signals from dimmer board.
  • Page 11: Manual Operation

    Manual Operation The onboard dimmer knob can manually dim lamps. The MANUAL DIM LAMPS switch selects 4 lamp or 2 lamp operation. Select the 2 lamp setting to turn off the outer lamps. Note: All manual controls are disabled as soon as the DMX cable is applied.
  • Page 12 Auto Terminate Feature The ParaBeam 410 and 210 series have an “AUTO TERMINATE” feature. The last fixture that does not have an XLR cable attached to the DMX “Out” port will automatically terminate. Any theatrical lighting board with DMX512 protocol can be used to individually turn on/off lamps in a fixture.
  • Page 13: Troubleshooting

    Troubleshooting LAMPS FAIL TO LIGHT: • With the power switch in the ON position, the red light should be on. If it is not, voltage is not present. Check your power feed. Check the fuse on the fixture and replace if necessary (5 x 20mm, T3.15AH/250V, Time Delay Type). •...
  • Page 14: Accessories And Parts

    Accessories and Parts BRD-P4 ParaBeam 410 Barndoors (Set of 4) BRD-P2 ParaBeam 210 Barndoors (Set of 4) LVR-P490 ParaBeam 410 Louver, 90° LVR-P460 ParaBeam 410 Louver, 60° LVR-P445 ParaBeam 410 Louver, 45° LVR-P290-P ParaBeam 210 Louver/HP, 90° LVR-P260-P ParaBeam 210 Louver/HP, 60° LVR-P245 ParaBeam 210 Louver, 45°...
  • Page 15 MTP-LB Kino 41 Lollipop w/ Baby Receiver (16mm) MTP-LM Kino 81 Lollipop w/ Junior Pin (28mm) MTP-LMT Kino 81 Lollipop w/ Junior Pin Straight (28mm) (for Center Mount only) XLR-525 DMX Cable 5-Pin XLR, 25ft XLR-515 DMX Cable 5-Pin XLR, 15ft 7010004 ParaBeam 410 Yoke Assembly 7010005...
  • Page 16 True Match Lamps ® 55C-K32 55W Kino KF32 55C-K55 55W Kino KF55 Cases KAS-P41 KAS-CL6 Part Number Description Dimensions Weight Holds (Empty) KAS-P41 ParaBeam 410 29.5 x 11 x 29.5” 31 lb / ParaBeam 410 Center Ship Case (75 x 28 x 75cm) (14kg) KAS-P21 ParaBeam 210...
  • Page 17: Fixture Specifications

    Fixture Specifications Model: PAR-410 ParaBeam 410 DMX Center Mount Input Voltage: 120VAC or 230VAC 50/60Hz Output Frequency: 30kHz Amperage: 2.0A at 120VAC 1.1A at 230VAC Lamp Switching: 4/2 Dimming Range: 100%~5% Weight w/ lamps: 22.5 lbs /10.2kg ParaBeam 410 Dimensions: 24.5 x 24 x 8”...
  • Page 18 Model: PAR-210 ParaBeam 210 DMX Center Mount Input Voltage: 120VAC or 230VAC 50/60Hz Output Frequency: 30kHz Amperage: 1.1A at 120VAC 0.6A at 230VAC Lamp Switching: 2/off Dimming Range: 100%~5% Weight w/ lamps: 14.5 lbs /6.5kg ParaBeam 210 Dimensions: 24.5 x 13.5 x 7.5” Center Mount (62 x 34.5 x 19cm) Lamp type:...
  • Page 20 This product is made of recyclable materials and should be disposed of in accordance with governmental regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
