Summary of Contents for Kino Flo 4Bank

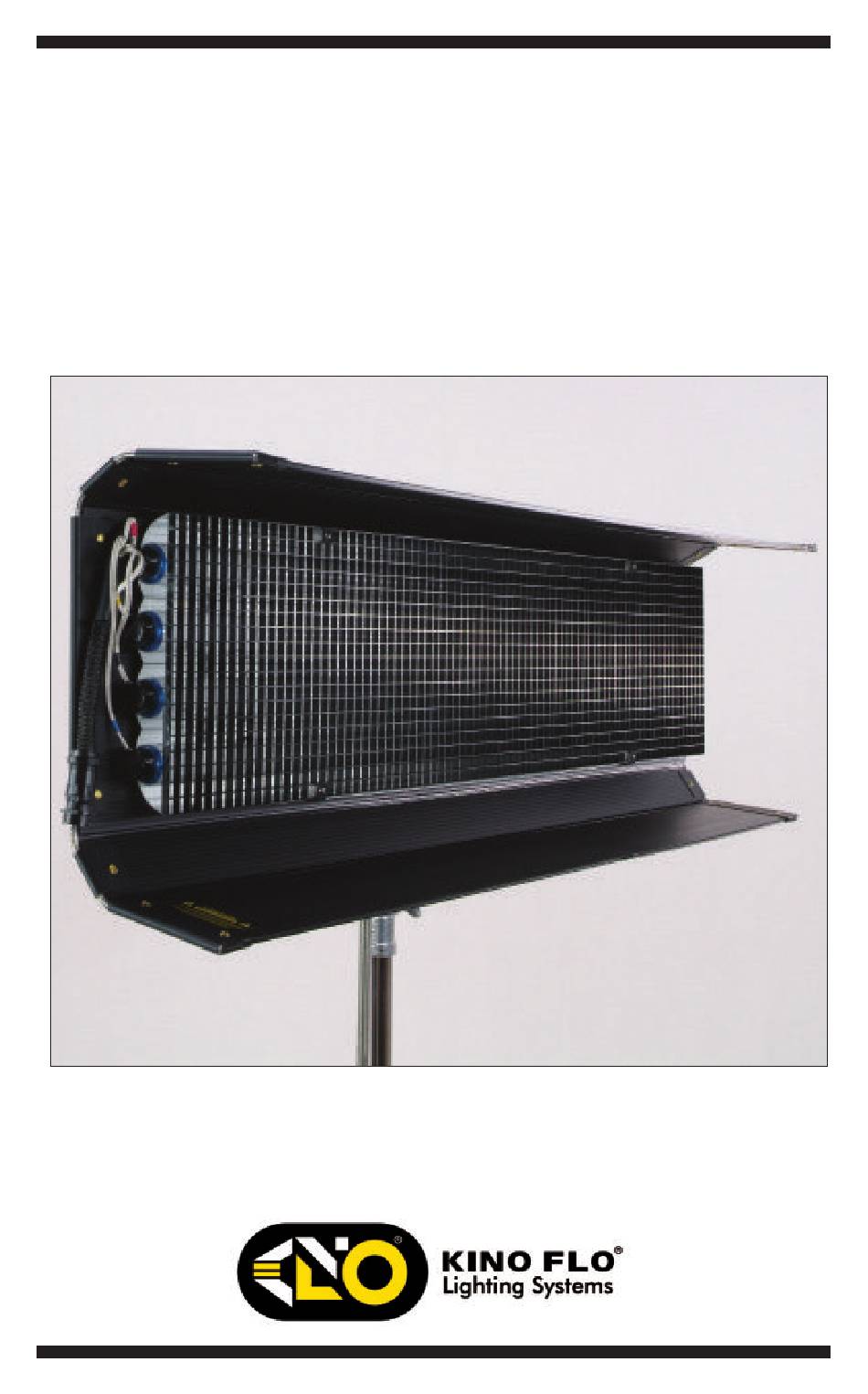

- Page 1 Operation Manual 4Bank, Double & Single Select Part No. 3100052 Rev A 9-12-2013...
- Page 2 Systems Double Single 4Bank Each System consists of: 1 Fixture 1 Mounting Plate 1 Extension Cable 1 Select Ballast ® True Match Lamps 488-K29-S 4ft Kino KF29 488-K32-S 4ft Kino KF32 488-K55-S 4ft Kino KF55 242-K29-S 2ft Kino KF29 242-K32-S...
- Page 3 56.5 x 13 x 21.5” 73.5 lb (143.5 x 33 x 55cm) (33.5kg) KIT-4804B-120 4ft 4Bank Kit, 120VAC (1-Unit) w/ Soft Case KIT-4804B-230 4ft 4Bank Kit, 230VAC (1-Unit) w/ Soft Case Kit Contents: 4ft 4Bank Kit 1 4ft 4Bank System...
- Page 4 35.5 x 13 x 22” 57.5 lb (90 x 33 x 56cm) (26kg) KIT-2804B-120 2ft 4Bank Kit, 120VAC (1-Unit) w/ Soft Case KIT-2804B-230 2ft 4Bank Kit, 230VAC (1-Unit) w/ Soft Case Kit Contents: 2ft 4Bank Kit 1 2ft 4Bank System...
- Page 5 Fixture Assembly The 4Bank, Double and Single fixtures are comprised of a removable Louver, Reflector and Lamp Harness. The Louver and Reflector are held in place with Velcro fasteners. The Lamp Harness is secured by means of a ¼ turn fastener and two clips.
- Page 6 Inserting Lamps Locking Lamp Connector: Depress both tabs on lamp connector and apply to lamp pins. Match the Harness color-codes at each end of the lamp. Push lamps into the fixture’s Lamp Holder Clips. Gelling the Fixture Restricting the airflow around the lamps can cause the lamps to operate hotter.
-
Page 7: Mounting The Fixture
Mounting the Fixture The standard mount (MTP-KL41) comes with a 3/8” Lollipop that clamps into a grip head. The ball and socket mount allows the fixture to be oriented in a broad range of angles. Align the center pin of the mounting plate to the center hole on the mating plate. - Page 8 25kHz. It is dead-quiet, instant-on and lightweight. Load Considerations Kino Flo ballasts are not power factor corrected. They will draw double the current on the neutral from what is being drawn on the two hot legs. On large installations, it may be necessary to double your neutral run so as not to exceed your cable capacity.
-
Page 9: Extension Cable
(3 x 25ft extensions) A Splitter can be used at the Ballast or on the end of an Extension Cable to split a 4Bank run into either four Singles or two Doubles. This allows for greater rigging flexibility. A Combiner can connect a number of smaller ballasts to a larger fixture. -
Page 10: System Components
2ft 4Bank Fixture CFX-2402 2ft Double Fixture CFX-2401 2ft Single Fixture MTP-KL41 Kino 41L Mount w/ 3/8” Pin (10mm) X16-25 4Bank Extension Cable, 25ft X09-25 Double Extension Cable, 25ft X04-25 Single Extension Cable, 25ft ® BAL-415-120 Select 4Bank, 120VAC BAL-415-230... -
Page 11: Accessories And Parts
Accessories and Parts DFS-4804 4ft 4Bank Flozier, Full DFS-4804-H 4ft 4Bank Flozier, Half DFS-4802 4ft Double Flozier, Full DFS-4802-H 4ft Double Flozier, Half DFS-D4 2ft 4Bank Flozier, Full DFS-D4-H 2ft 4Bank Flozier, Half DFS-D2 2ft Double Flozier, Full DFS-D2-H 2ft Double Flozier, Half... - Page 12 4ft Single Reflector REF-4801 2ft 4Bank Reflector REF-2404 2ft Double Reflector REF-2402 2ft Single Reflector REF-2401 X16-12 4Bank Extension Cable, 12ft X09-12 Double Extension Cable, 12ft X04-12 Single Extension Cable, 12ft X16-A4 4Bank to Single Splitter X16-A9 4Bank to Double Splitter...
- Page 13 Fixture Wire Repair Kit (Silver) EXP-LHC-T12 Lamp Holder Clips, T12 (24pk) EXP-M&T Adhesive Mounts & Releasable Ties (25pk) PRT-CR4 4Bank Connector Locking Ring (4pk) PRT-CR2 Double Connector Locking Ring (4pk) PRT-CR1 Single Connector Locking Ring (4pk) PRT-HLC Kino Locking Lamp Connector (1pk)
- Page 14 KAS-KFC BAG-201 Part Number Description Dimensions Weight Holds (Empty) BAG-201 2ft 4Bank Soft Case 28 x 7.5 x 20” 3.5 lb 2ft 4Bank System (1), (72.5 x 19 x 51cm) (2kg) Lamp Case BAG-401 4ft 4Bank Soft Case 55 x 8 x 19.5”...
-
Page 15: Fixture Specifications
Lamp w/ Harness Specifications Kino Flo Lamp w/ Harness Dimensions Lamp Type Length Width 4ft Med. Bi-Pin 48.5” 1.5” 2ft Med. Bi-Pin 24.5” 1.5” Fixture Specifications Kino Flo 4Bank Fixture Dimensions Fixture Style Length Width Depth Barndoor Weight w/ Width... - Page 16 Kino Flo Double Fixture Dimensions Fixture Style Length Width Depth Barndoor Weight w/ Width Lamps 4ft Double 52” 7.5” 3.5” 6” 7.7 lbs 2ft Double 27” 7.5” 3.5” 6” 4.7 lbs Kino Flo Single Fixture Dimensions Fixture Style Length Width...
- Page 17 Ballast Specifications BAL-415-120 Select 4Bank Ballast, 120VAC Input Voltage: 120VAC 50/60Hz Output Frequency: 25kHz Amperage: F75/5.0A, F40/3.5A Lamp Switching: 1~4 Output Switching: 4ft / 2ft 4Bank Ballast Size: 13 x 9.5 x 3” (33 x 24 x 7.6cm) Weight: 5.5lb (2.5kg)
- Page 18 BAL-105-S120 Select Single Ballast, 120VAC Input Voltage: 120VAC 50/60Hz Output Frequency: 25kHz Amperage: F75/1.3A, F40/0.9A, F30/0.7A Lamp Switching: 1/off Output Switching: 4ft / 2ft Single Ballast Size: 11 x 2.5 x 2.5” (28 x 6.5 x 6.5cm) Weight: 2lb (0.9kg) BAL-115-230 Select Single Ballast, 230VAC Input Voltage: 230VAC 50/60Hz...
- Page 20 This product is made of recyclable materials and should be disposed of in accordance with local and state regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
