  • Page 1 Quick Start Guide MIMIK 120 Part No. 3100133 02-01-2024...

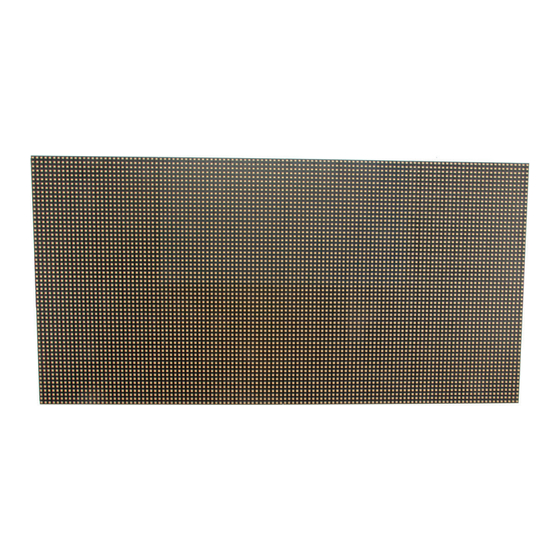

  • Page 2 MIMIK 120 LED Fixture The MIMIK 120 LED is a Video Lighting Tile that mirrors video content while doubling as a light source. It is driven by the Megapixel Helios processor (required). It uses a patented full spectrum solution to maintain the colorimetry of the incoming RGB video signal.
  • Page 3 MIMIK AC Power AC Power Input and pass through Powercon TRUE1 Maximum is 4 MIMIKs in one string on a 120V 15A circuit. IPPOWERKONEXT10FT Powercon True1, 10ft, 120VAC PWC-PC10/230 Powercon True1, 10ft, 230VAC PWC-PCJ3 Powercon True1 Jumper 3ft...
  • Page 4 MIMIK Data Ethernet IN / OUT RJ45 or Ethercon connectors Either port can be the input or the output. DAT-E3 Ethernet Data Jumper, 3ft DAT-E25E Ethernet Data Jumper, 25ft Operating Temperature / Humidity The MIMIK is designed to operate at temperatures and humidity from: -10°~45°C, 10~90%RH / 14°~113°F, 10~90%RH...
  • Page 5 Receiver Card: 2 x PX1 (Megapixel) Video Processor Required: Megapixel Helios Junior (4096x2160) = 8,847,360 pixels = ~240 MIMIK 120 4K (4096x2160) = 8,847,360 pixels = ~1,200 MIMIK 120 8K (8192x4320) = 35,389,440 pixels = ~2,000 MIMIK 120 Control Software: No software or drivers to install. Controlled through Megapixel Helios.
  • Page 6 Megapixel Helios HELIOS Software The Megapixel HELIOS video processor is controlled via a web browser. There is no software to install. Open your favorite web browser and enter the IP address shown on the front screen of the HELIOS. Multiple users can be logged in at the same time.
  • Page 7 The output of the HELIOS is its own IT network. The traffic is not routable over a standard IP network. It can only be routed with Megapixel’s Netgear switches which are only necessary for large pixel / tile counts. The HELIOS Jr does not support external Switches. You can connect 30 MIMIKs to each of the 8 one Gigabit copper ethernet outputs, for a total of 240 MIMIKs on one HELIOS Jr.
