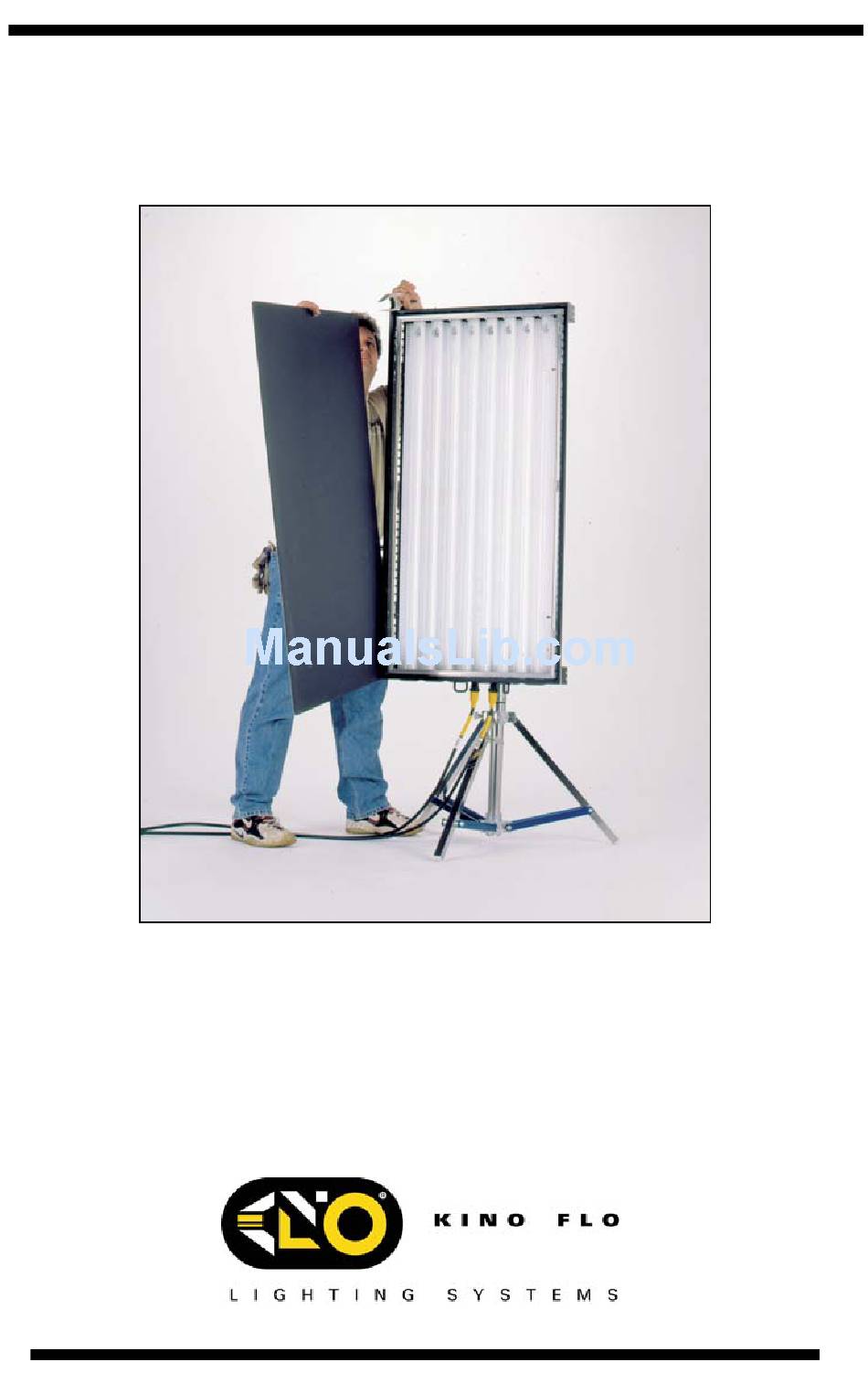

- Page 1 Operation Manual Flathead 80 System w/Foto-Flo Ballast...

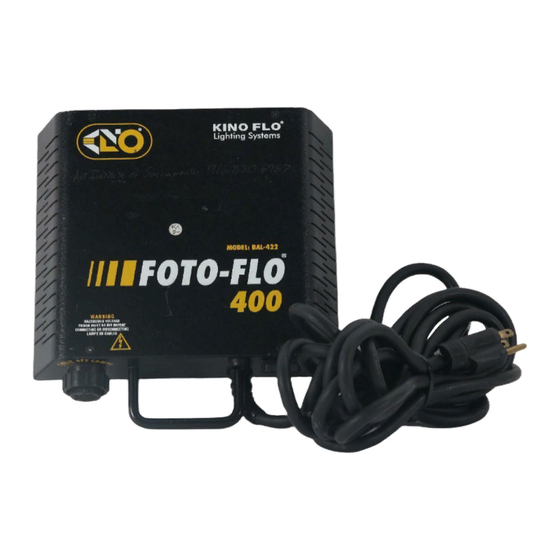

- Page 2 Flathead 80 System includes: CFX-4808 MTP-K81 Flathead Fixture Mounting plate X16-25 BAL-422-120 or 4Bank Extension, 25ft. BAL-422-230 Foto-Flo 400 Ballast...
- Page 3 Insert lamps into both lamp holders. Twist ¼ turn to make electrical contact. The gel frame is secured to the fixture by 4 spring-loaded pins. Align the pins of the gel frame with the oval receptacle holes on the edge of the fixture.
- Page 4 To remove reverse the procedure. The Flathead 80 is designed to operate on a Junior stand, hang from a Junior pipe hanger or mount directly to a set wall. Mount Plate Operation...
- Page 5 To loosen or tighten the Lollipop turn Lock Lever . The Lever can be adjusted so a 180 degree turn provides the necessary clamping strength. Reorienting the Lever allows for further tightening or loosening of the clamp. To reorient the Lock Lever, pull Lever away from mount.
- Page 6 Mounting To A Set Wall The Flathead 80 has screw points within the fixture to allow it to be fastened flat against a surface. Cardholder The Flathead 80 is equipped with unique cardholder corner brackets that allow foam core panels to be clipped in place.
- Page 7 To insert the cable, align the key ways on the extension cable with the circular receptacle on the ballast. Rotate the locking ring until it clicks into the lock position. Lamps can operate as far as 75 feet from the ballast.
- Page 8 Lamp Switching The Flathead 80 operates on two Foto-Flo 400 4 Bank Ballasts. The multi-pin connectors on the side of the fixture are numbered 1 and 2. Ballast 1 operates the four inner lamps, Ballast 2 operates the four outside lamps as illustrated below.
- Page 9 Part Weight Number Description Dimensions (Empty) Holds KAS-F80-1 Flathead 80 ship case (1) 54” x 10” x 28.5” 49lb Flathead 80 137cm x 25.4cm x 72.5cm 22.1 Kg System (1) KAS-F80-2 Flathead 80 ship case (2) 54” x 15” x 34.5”...
- Page 10 Dimensions Weight w/ Lamps Lamps Lamp Type 51” x 24” x 4” 26lb F40T12 129.5cm x 61cm x 10cm 11.7Kg Bal-422-120 Input Voltage: 120 VAC 50/60Hz Output Frequency: 25kHz Amperage: F40/4.8A Lamp switching: 4 / 2 / off Ballast size: 9.5” X 9” X 2.5” 24cm X 23cm X 6.5cm Weight: 4.3lb / 1.9Kg BAL-422-230...
- Page 11 This product is made of recyclable materials and should be disposed of in accordance with local and state regulations. Rev 10-05-2005 Part No. 3100032 Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
