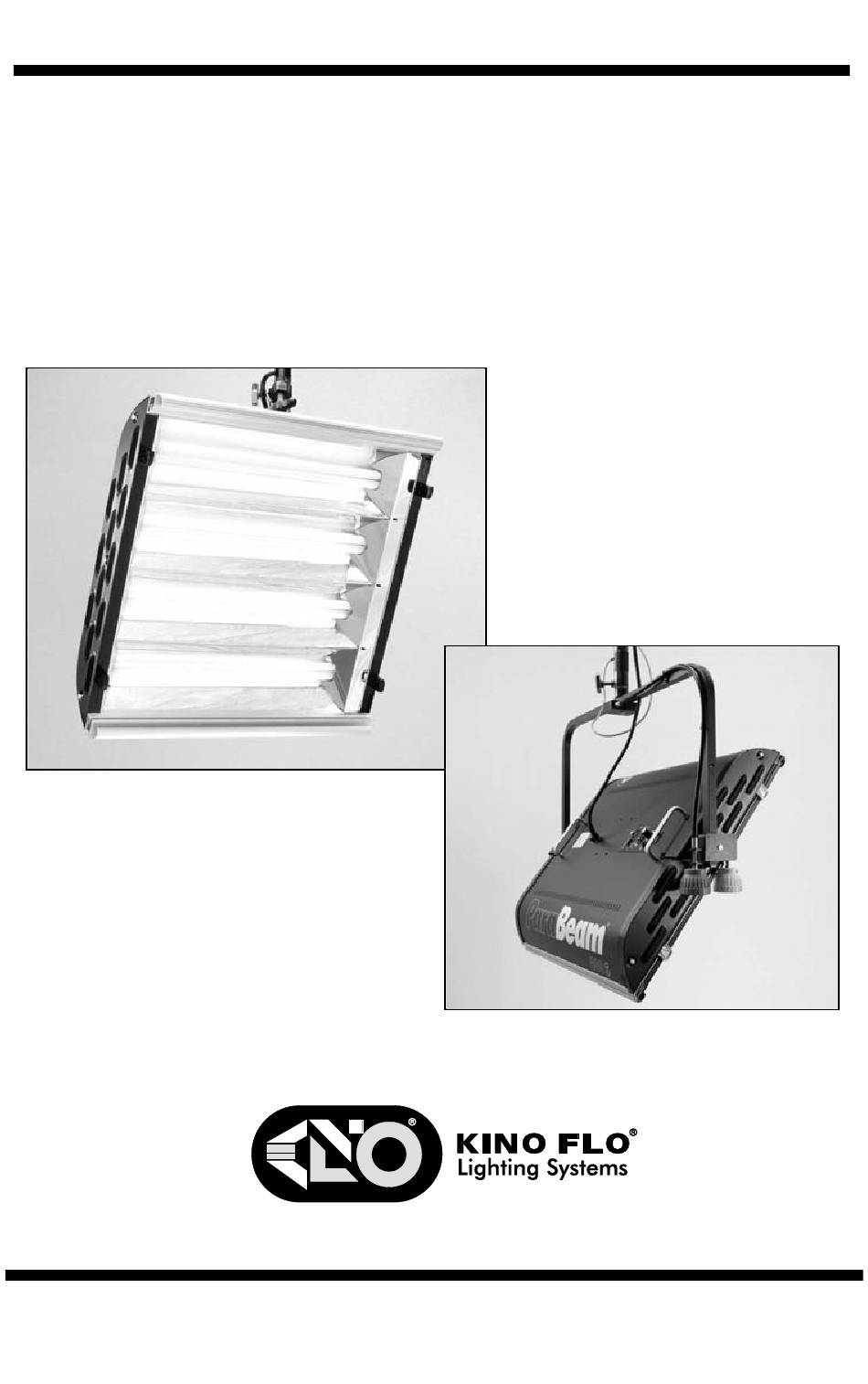

- Page 1 Operation Manual ParaBeam 400/200 Series ® ParaBeam 400 Center Mount ParaBeam 400 Pole-Op Part No. 3100026 Rev D 01-04-2010...
- Page 2 ParaBeam Fixture Styles and Features ParaBeam Center Mount PAR-400S-120 ParaBeam 400 Select DMX Center Mount, 120VAC PAR-400S-230 ParaBeam 400 Select DMX Center Mount, 230VAC PAR-200-120 ParaBeam 200 DMX Center Mount, 120VAC PAR-200-230 ParaBeam 200 DMX Center Mount, 230VAC ParaBeam Yoke Mount PAR-400Y-120 ParaBeam 400 Select DMX Yoke Mount, 120VAC PAR-400Y-230...
- Page 3 ParaBeam Pole-Op Mount PAR-400P-120 ParaBeam 400 Select DMX Pole-Op Mount, 120VAC PAR-400P-230 ParaBeam 400 Select DMX Pole-Op Mount, 230VAC PAR-200P-120 ParaBeam 200 DMX Pole-Op Mount, 120VAC PAR-200P-230 ParaBeam 200 DMX Pole-Op Mount, 230VAC Included w/ All ParaBeam Models GFR-P4 ParaBeam 400 Gel Frame (Included) GFR-P2 ParaBeam 200 Gel Frame (Included) LVR-P4-S...
- Page 4 ParaBeam Center Mount Kits KIT-P4-S120 ParaBeam 400 DMX Kit, 120VAC KIT-P4-S230 ParaBeam 400 DMX Kit, 230VAC Kit Contents: 1 ParaBeam 400 DMX Center Mount 1 Lamp Case 1 Ship Case Dimensions 30 x 12.5 x 30.5" 29.5 x 11 x 29.5" (76 x 32 x 77.5cm) (75 x 28 x 75cm) Weight...
- Page 5 Inserting Lamps Open hinged reflector Insert lamp end first. door. Snap lamp pins into Close reflector door. To release lamps, press Lamp holder. Red button and lift lamp out. Inserting Louvers, Diffusers or Gel Frame Push tab down and forward to lock into open position.
- Page 6 All 4 retaining tabs must be Silver Louver fits into extended to lock accessories front channel. in place. ParaBeam Center Mount The ParaBeam 400 Center Mount hangs from a grid by a Junior pipe hanger The ParaBeam 400 Center Mount can hang from a grid by a Junior pipe hanger or mounts on a Junior Stand.
- Page 7 A 180 degree turn is all that is required to loosen the mount for orientation. To adjust the tension on the lock lever, pull handle away from mount. This disengages the handle from the screw mechanism and allows the lever to be reoriented. You can also use a screwdriver to adjust the tension.
- Page 8 (lamp base higher than the lamp tip) will allow for better color temperature stability. Note: When looking at the back of the fixture the Kino Flo Logo should read: If the Logo is upside down, the fixture does not have the correct orientation.

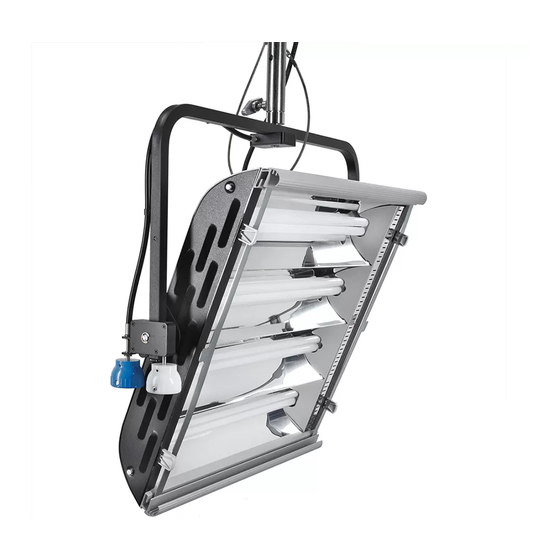

- Page 9 ParaBeam Yoke and Pole-Op Mount The Yoke has a ½” hole to accept industry standard mounting hardware. The ParaBeam 400 Yoke Mount can hang from a grid by a junior pipe hanger using a Junior Pin Assembly (MTP-I80) sold separately. The ParaBeam 200 Yoke Mount can also hang from a grid by a junior pipe hanger using a Junior Pin Yoke Assembly (MTP-I80) or a baby pipe...
- Page 10 Pole Operation Pole Operation The Blue cup alters the Pan (left or right.) (left or right). The White cup alters the Tilt (up or down.) (up or down). Mounting Barn Doors SIDE DOORS First apply Side Doors by inserting the hinge bracket into the extruded edge.
-
Page 11: Fixture Operation
Fixture Operation Warning! To Ensure Proper Operation ALWAYS TURN OFF THE FIXTURE BEFORE connecting or disconnecting lamps. After the lamps are properly installed, the Ballast can be turned on. Avoid operating in temperatures above 125°F (51°C) or below 60°F (15°C). In temperatures below 60°F or 15°C the ballast may take longer to strike. -
Page 12: Manual Operation
Manual Operation The on-board dimmer dial can manually dim lamps. The REMOTE DIM jack enables the use of a handheld remote control dimmer (Part # DIM-5, Hand Held Dimmer). The MANUAL DIM LAMPS switch selects 2 or 4 lamp operation. In the 2 setting the center two lamps are dimmed. - Page 13 Tip: Position 2 allows for a greater degree of control. The board operator can turn two lamps off (1 f-stop drop in exposure) without shifting the color temperature. The ParaBeam 200 operates on one address per fixture. Two lamps are dimmed on one dimmer channel.
-
Page 14: Troubleshooting
Trouble Shooting Trouble Shooting Trouble Shooting LAMPS FAIL TO LIGHT: LAMPS FAIL TO LIGHT: LAMPS FAIL TO LIGHT: With the power switch in the ON position, the red light should be on. If it is not, With the power switch in the ON position, the red light should be on. If it is not, With the power switch in the ON position, the red light should be on. - Page 15 Accessories Accessories Accessories Accessories BRD-P4… ParaBeam 400 Barndoors (set of 4) BRD-P4… ParaBeam 400 Barndoors (set of 4) BRD-P4… ParaBeam 400 Barndoors (set of 4) BRD-P4… ParaBeam 400 Barndoors (set of 4) BRD-P2… ParaBeam 200 Barndoors (set of 4) BRD-P2… ParaBeam 200 Barndoors (set of 4) BRD-P2…...
- Page 16 MTP-I80.… Junior Pin Yoke Assembly LVR-P445.… ParaBeam 400 Louver 45° LVR-P460…. ParaBeam 400 Louver 60° LVR-P490….. ParaBeam 400 Louver 90° LVR-P245.… ParaBeam 200 Louver 45° LVR-P260…. ParaBeam 200 Louver 60° LVR-P290….. ParaBeam 200 Louver 90° MTP-I40…..Baby Receiver Yoke Assembly 7010004…ParaBeam 400 Yoke Assembly 7010005…ParaBeam 200 Yoke Assembly LVR-P445.…...
-
Page 17: Fixture Specifications
Fixture Specifications PAR-400S ParaBeam 400 Select DMX Center Mount Power: 120VAC or 230VAC Amperage: 2 amps at 120VAC 1.1 amps at 230VAC Weight: with lamps and louver ParaBeam 400 Center ParaBeam 400S 24.2 lbs / 10.9kg Dimensions: 24.5 x 24 x 8” (62 x 61 x 20.5cm) (62 x 61 x 20.5cm) Lamp types: 55 watt compact fluorescent... - Page 18 PAR-400Y ParaBeam 400 Select DMX Yoke Power: 120VAC or 230VAC Amperage: 2 amps at 120VAC 1.1 amps at 230VAC ParaBeam 400 Yoke ParaBeam 400Y Weight: with lamps and louver 24.2 lbs / 10.9kg Dimensions: 29.5 x 26.8 x 6” (75 x 68 x 15.2cm) (75 x 68 x 15.2cm) Lamp types: 55 watt compact fluorescent lamps with 2G11 base...
- Page 19 PAR-400P ParaBeam 400 Select DMX Pole-Op Power: 120VAC or 230VAC Amperage: 2 amps at 120VAC ParaBeam 400 Pole-Op ParaBeam 400P 1.1 amps at 230VAC Weight: with lamps and louver 24.2 lbs / 10.9kg Dimensions: 30 x 26.3 x 6” (76.2 x 66.7 x 15.2cm) (76.2 x 66.7 x 15.2cm) Lamp types: 55 watt compact fluorescent lamps with 2G11 base...
- Page 20 This product is made of recyclable materials and should be disposed of in accordance with local and state regulations. Kino Flo, Inc. 2840 N. Hollywood Way, Burbank, CA 91505, USA Tel: 818 767-6528 website: www.kinoflo.com...
