Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
 Engine




1,660 mm
1,575 mm
:
:
4.8 kg
:
05 channels.
:
07 servos.
:
20 CC Gas.
65.35 in.
62.01 in.
10.56 Lbs.
Made in Vietnam.
ITEM CODE:BH100.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Harmon Rocket BH100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model Harmon Rocket BH100

Summary of Contents for Black Horse Model Harmon Rocket BH100

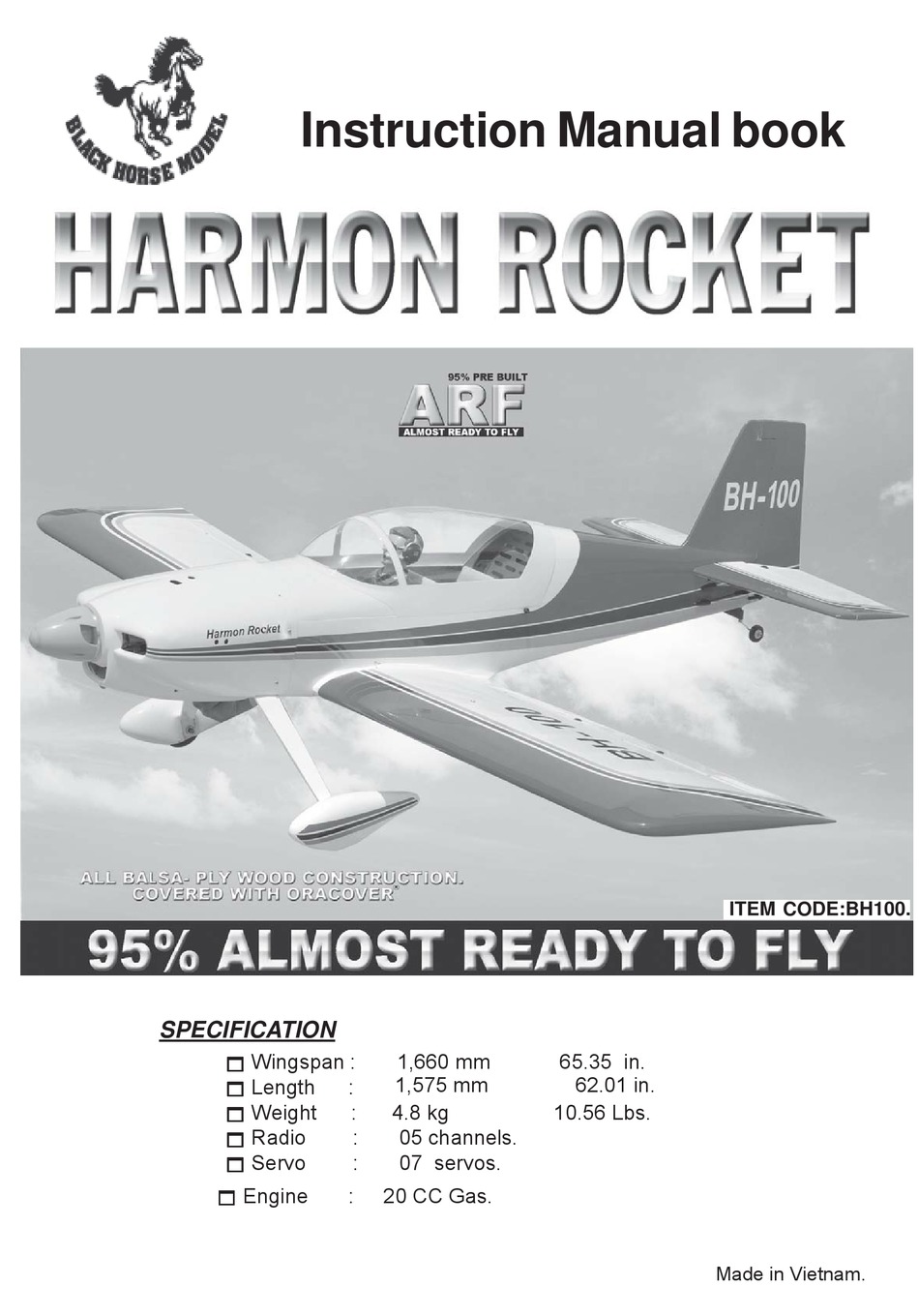

  • Page 1 Instruction Manual book ITEM CODE:BH100. SPECIFICATION      Wingspan : 1,660 mm 65.35 in. 1,575 mm 62.01 in.      Length      Weight 4.8 kg 10.56 Lbs.      Radio 05 channels.

  • Page 2: Parts List

    HARMON ROCKET Instruction Manual - Item code: BH100 This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your HARMON ROCKET. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    HARMON ROCKET Instruction Manual - Item code: BH100 Wing warp: Hold the panel twisted Caution: this model is not a toy! gently in the opposite If you are a beginner to this type of powered direction to the warp, and model, please ask an experienced model flyer apply warm air to remove for help and support.

  • Page 4: Installing The Aileron Servo

    HARMON ROCKET Instruction Manual - Item code: BH100 REPLACEMENT SMALL PARTS 1. Aluminium landing gear. 2. Wheels. 3. Wheel pants. 4. Tail gear set. 5. Spinner. Bottom side. 6. Plastic parts for rudder pushrod. 1. Using the thread as a guide and using ...

  • Page 5: Installing The Aileron Linkages

    HARMON ROCKET Instruction Manual - Item code: BH100 INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. Secure. 70 mm 2x8mm. Repeat the procedure for the other wing half. INSTALLING THE AILERON CONTROL HORN . Attach the clevis to the outer hole in the con- trol horn.
  • Page 6 HARMON ROCKET Instruction Manual - Item code: BH100 II. FLAP 1.INSTALLING THE FLAP SERVO Electric Control horn of the flap. 3.INSTALLING THE FLAP thread LINKAGES. Installing the aileron linkages as pictures below. 70 mm 2x10mm. 2x8mm. Secure. Secure. Flap 2.INSTALLING THE FLAP CONTROL HORN. 3 x 20 mm.

  • Page 7: Installing The Engine Mount

    HARMON ROCKET Instruction Manual - Item code: BH100 INSTALLING THE ENGINE MOUNT. Secure. See pictures below: Mount ply of wood . 3x12mm Secure. Drill 5mm hole. Secure. INSTALLING THE ENGINE- Secure. Left side.
  • Page 8 HARMON ROCKET Instruction Manual - Item code: BH100 FUEL TANK. Fuel pick- up tube Vent tube INSTALLING THE STOPPER ASSEMBLY  1) The stopper has been pre-assembled Fuel fill tube at the factory.  5) Test fit the stopper assembly into the ...
  • Page 9 HARMON ROCKET Instruction Manual - Item code: BH100 INSTALLING THE THROTTLE - CABLE. 1. Install one adjustable metal connector  through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the Secure.
  • Page 10 HARMON ROCKET Instruction Manual - Item code: BH100 MAIN GEAR INSTALATION. PARTS REQUIRED Throttle -  1) Assemble and mounting the wheel pant s cable as shown in the following pictures. Mark line. Left side.  2) Using the hardware provided, mount the main landing gear to the fuselage.
  • Page 11 HARMON ROCKET Instruction Manual - Item code: BH100 COWLING. Secure.  1. Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with the marks you made on the fuselage. Top side Secure. L a n d i n g gear.
  • Page 12 HARMON ROCKET Instruction Manual - Item code: BH100 Trim and Secure. 3 x 15mm Drill a hole 2mm diameter. Mark line. Mark line. Drill a hole 2mm diameter. Secure.
  • Page 13 HARMON ROCKET Instruction Manual - Item code: BH100 Mark line. Mark line. Mark line. 3 x 12mm Secure. Mark line. Machine screw. Drill a hole 2mm diameter. Left side.

  • Page 14: Installing The Spinner

    HARMON ROCKET Instruction Manual - Item code: BH100 Bottom side. Secure. INSTALLING THE ELEVATOR Front view SERVOS AND RUDDER SERVOS. 1. Install the rubber grommets and brass  collets into the elevator servo. Test fit the servo into the servo tray. 2.
  • Page 15 HARMON ROCKET Instruction Manual - Item code: BH100 Secure. Aluminium 9 mm 174 mm Secure. ELEVATOR CONTROL HORN AND ELEVATOR PUSHROD INSTALLATION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. 3 x 20 mm.

  • Page 16: Vertical Installation

    HARMON ROCKET Instruction Manual - Item code: BH100 Plastic parts of elevator pushrod. Elevator control horn 2 x8mm Secure Elevator pushrod Elevator pushrod C/A glue. Bottom side. VERTICAL INSTALLATION. 2 x 8mm Rudder servo install as same as method of elevator servo.

  • Page 17: Rudder Control Horn Installa- Tion

    HARMON ROCKET Instruction Manual - Item code: BH100 Top side. RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the way of aileron control horn. Please see pic- tures below. 3 x 25 mm. Control horn of Rudder . Aluminium Aluminium Cut.

  • Page 18: Rudder Pushrod Installation

    HARMON ROCKET Instruction Manual - Item code: BH100 Secure. A+B PLUS glue A+B PLUS Glue. RUDDER PUSHROD INSTALLATION. C/A glue.  1. Rudder pushrod install as same as the way of aileron control horn.  2. Rudder push - pull system install as same as picture below.

  • Page 19: Installing The Switch

    HARMON ROCKET Instruction Manual - Item code: BH100      2. Using a pen, mark the locations of the INSTALLING THE SWITCH. two mounting screws. Remove the tail wheel 1. Cut out the switch hole using a modeling ...

  • Page 20: Wing Attachment

    HARMON ROCKET Instruction Manual - Item code: BH100 WING ATTACHMENT. Locate the aluminium wing dihedral brace. 25 mm 631 mm Switch of Receiver Left wing. Battery of engine Battery of See picture wing attach to fuselage. Receiver Installing the fuselage hatch as same as pic- ture below.
  • Page 21 HARMON ROCKET Instruction Manual - Item code: BH100 Drill a hole 3mm diameter. Drill a hole 3 mm diameter . Secure. 4 x 30mm Secure. Top side Left wing...

  • Page 22: Control Throws

    HARMON ROCKET Instruction Manual - Item code: BH100 BALANCING. CONTROL THROWS. 1) It is critical that your airplane be bal- 1) We highly recommend setting up a             anced correctly. Improper balance will cause plane using the control throws listed.
