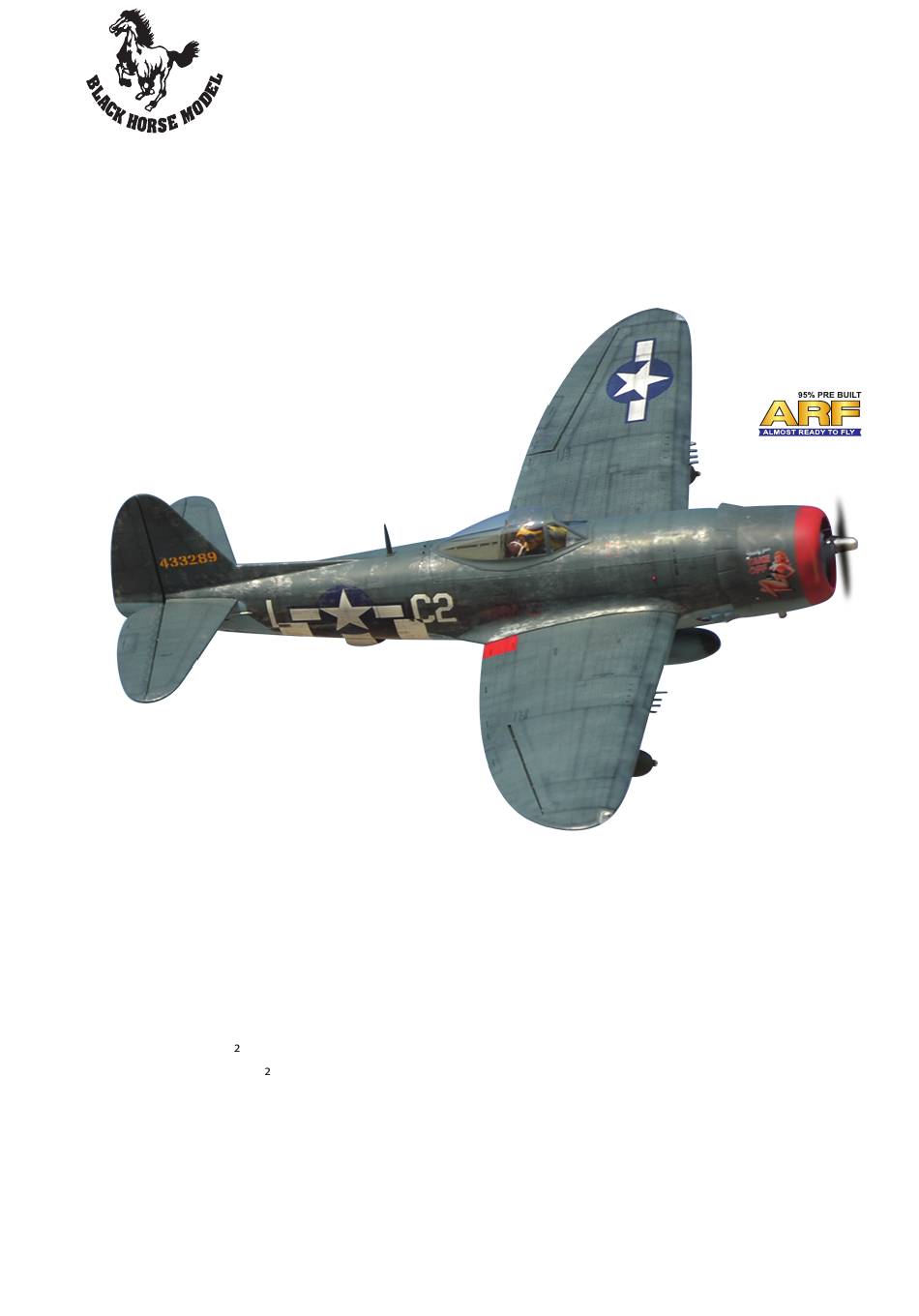

P-47 Thunderbolt
Glow and EP
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
INCLUDING MAIN ELECTRIC RETRACT GEAR
AND TAIL GEAR ELECTRIC RETRACT.
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 2,075 mm (81.7 in).
- Length: 2,259 mm (88.9 in).
- Weight: 11 kg (24.2 lbs).
- Wing area: 96.47 dm .
- Wing loading: 120 g/dm .
- Wing type: Naca Airfoil.
- Servo mount: (42 x 21) mm.
- Spinner: P-47 style (not included).
- Main gear type: Electric retract gear with oleo
struts for main gear(included).
- Tail gear type: Electric gear with CNC suspension
metal struts (included).
Instruction Manual Book
Item code: BH117
Parts listing required (not included):
- Radio: minimum 7 channels.
- Servo: 08 servos. Standard high torque servos.
- Engine: 50 - 60cc Gas.
- Motor: Brushless outrunner 5000 - 6500W, 230KV.
- Propeller: Suit with your engine.
Recommended receiver battery (not included):
- Motor: RIMFIRE. 50 cc.
- Lipo cell: 12 cells 5500 - 6000mAh.
- Receiver battery: 6.0V- 7.4V 2600-3200mAh (3 Packs).
- ESC: 120A.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-47 Thunderbolt and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model P-47 Thunderbolt

Summary of Contents for Black Horse Model P-47 Thunderbolt

  • Page 1 Instruction Manual Book Item code: BH117 P-47 Thunderbolt Glow and EP ALL BALSA - PLY WOOD CONSTRUCTION. COVERED IN A HEAT-SHRINK FILM WITH PRINTED. INCLUDING MAIN ELECTRIC RETRACT GEAR AND TAIL GEAR ELECTRIC RETRACT. 95% ALMOST READY TO FLY SPECIFICATION: Parts listing required (not included): - Wingspan: 2,075 mm (81.7 in).

  • Page 2: Table Of Contents

    Thank you for purchasing Black Horse Model products. With over 19 years experience in production and fly testing, Black Horse Model is committed to bring the best quality products and good service to customers. Along with a team of creative engineers and skilled workers, we will always accompany with customers by our great experiences, fully enthusiasm...

  • Page 3: Warranty

    In that Black Horse Model has no control over the final assembly or material used for final assembly, SUGGESTION Black Horse Model is not responsible for loss of use , or other incidental or consequential damages. To avoid scratching your new airplane, do not...

  • Page 4: Covering Tools

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 FLIGHT WARNINGS ADHESIVES AND REQUIRED TOOLS When ready to fly, first extend the transmitter aerial. Thin CA Switch on the transmitter. 30-minute epoxy Switch on the receiver. 6-minute epoxy Check that the wings are correctly fitted to the Threadlocker thread locking cement fuselage.
  • Page 5 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 • Officially designated AMA Air Show Teams (AST) are authorized to use devices and practices as defined within the Team AMA Program Document. (AMA Document #718.) (j) Not operate a turbine-powered aircraft, unless in compliance with the AMA turbine regulations. (AMA Document #510-A.)

  • Page 6: Part Listing ( Not Included )

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 PARTS LISTING (NOT INCLUDED). Servo extension leads....pcs. 330mm ..2 pcs. 190mm ..2 pcs. Propeller: Suit with your engine. Engine: 55 - 61..1 pcs. LiPo. 6S - 22.2V 300-5000mAh ..2 Packs Motor: 50cc ...
  • Page 7 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 : Fuselage set(1a: Cockpit; 1b: Pilot; : Engine set. : Cowling set. 1c: Canopy; 1d: Control stick; 1e: Antenna). : Electric motor set. : Tail gear set. : Wing set (2a; 2b; 2c: Aluminium tube dihedral brace).

  • Page 8: Installing The Ailerons And Flaps

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE AILERONS AND FLAPS. 3x12mm Tp Screw 44mm Pinned hinge - - - 2 - - - 8 Horn 67mm Pinned hinge - - - 2 - - - 8 Bottom View...

  • Page 9: Installing The Ailerons And Flap Servos

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE AILERONS AND FLAPS SERVOS. Place the servo into the servo tray. Center the servo within the tray and drill 1.5mm pilot holes through the block of wood for each of the four mounting screws provided with the servo.
  • Page 10 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Flaps servos. 2 mm approx.16mm 3x12mm Button Head Cap Screw 3mm Flat Washer 3mm Lock Nut Screw 3x12mm Tp Screw 2x10mm Tp Screw 1.5mm 1.5mm...
  • Page 11 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Aileron servos. 2 mm approx.16mm 3mm Flat Washer 3mm Lock Nut 3x12mm Button Head Cap Screw 1.5mm Screw 2x10mm Tp Screw 1.5mm...
  • Page 12 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View Aileron 3x12mm Tp Screw Horn 3x12mm Button Head Cap Screw C . A C . A...
  • Page 13 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING GUN AND LIGHT PART FOR WINGS Light part Gun part - - - 8 - - - 1 - - - 1 Bottom View Top View...

  • Page 14: Installing The Air Retractable Landing Gear

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE ELECTRIC RETRACTABLE LANDING GEAR Plastic 6x55mm Socket Head 3x12mm Button 44mm Pinned hinge 3mm Flat washer Head Cap Screw Cap Screw - - - 4 - - - 4 - - - 2...
  • Page 15 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Using a modeling knife, carefully Plastic remove the firm covering from the wing gear tray. Make sure that you do not remove any wood. 4x25mm Button Head Cap Screw 4mm Spring Washer Bottom View...
  • Page 16 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View 6x55mm Socket Head Cap Screw 6mm Flat washer...
  • Page 17 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View 2.6x30mm Push rod Ball link Aluminium ball 3x12mm Screw Head Button Cap Screw 3x10mm Head Button Cap Screw 44mm Pinned hinge...
  • Page 18 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 3x12mm Head Button Cap Screw Bottom View...
  • Page 19 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View 2x10mm Tp Screw...

  • Page 20: Installing The Plastic Part For Wings

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING BOMB PART FOR WINGS 4x16mm Socket Head Cap Screw - - - 4 4mm Spring Washer - - - 8 3x10mm Button Head Cap Screw - - - 12 Bomb part - - - 2...
  • Page 21 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View Spring Washer 3x10mm Head Button Cap Screw...

  • Page 22: Installing The Fuselage Servos

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE FUSELAGE SERVOS 1) Install the rubber grommets and brass collets into the elevator, rudder and throottle servor. Test fit the servos into the servo tray. Trim the tray if necessary to fit your servos.
  • Page 23 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View...
  • Page 24 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View 2.6x960mm Push rod Ball link Aluminium ball 3mm Lock Nut 3x12mm Button Head Horn Cap Screw...
  • Page 25 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 3x12mm Button Head Cap Screw Flash washer Push rod Ball link Servo tail 3mm Lock Nut Top View Elevator servo...

  • Page 26: Installing Vertical Stabilizer

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING VERTICAL STABILIZER Ball link 2.6x960mm Push rod - - - 2 - - 1 3x12mm Button Head Cap Screw 3mm Flat Washer - - - 2 - - - 1 3mm Lock Nut...
  • Page 27 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View 2.6x960mm Push rod Ball link Push rod Aluminium ball 3mm Lock Nut 3x12mm Button Head Horn Cap Screw...
  • Page 28 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 3x12mm Button Head Cap Screw Flash washer Push rod Ball link Servo tail 3mm Lock Nut Top View Rudder servo Rudder...

  • Page 29: Installing The Tail Gear

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE TAIL GEAR 4x20mm Socket Head 1200mm Cable rod Cap Screw - - - 2 - - - 2 Connector 4mm Spring Washer - - - 2 - - - 2 M3 Metal Clevis 2.6x40mm Push rod...
  • Page 30 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 1200mm Cable rod Bottom View...
  • Page 31 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View 4x20mm Socket Head Cap Screw 4mm Spring Washer...
  • Page 32 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 Bottom View Aluminium ball 3mm Flat Washer 3x12mm Button Head Cap Washer...
  • Page 33 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 M3 Metal Clevit 3mm Connector Cab rod Lock Nut Rudder servo...

  • Page 34: Installing The Engine Mount

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE ENGINE MOUNT May be you also need to trim some wood from the tri-angle wood for the installation is easy Using plate of plywood (supplied with the kit) mark the holes onto the fire wall for installing the engine mount for DLE-55CC or OS-60CC.

  • Page 35: Installing The Stopper

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE STOPPER Cut off shaded portion...

  • Page 36: Installing The Engine

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE ENGINE 5x100mm Socket Head 12x65mm Aluminum 5mm Flat washer Cap Screw - - - 4 - - - 6 - - - 4 5mm Spring Washer 5x25mm Socket Head 5mm Lock Nut...

  • Page 37: Installing The Fuel Tank

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE FUEL TANK Be sure to equip Not included. air vent pipe. Tygon tubing (Gas). And The stopper has been pre-assembled at the silicone tubing (Methanol). factory. 2) Using a modeling knife, cut one length of silicon...

  • Page 38: Installing The Throttle

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE THROTTLE direction. When the throttle stick is moved forward from idle to full throttle, the throttle barrel should also open and close using this motion. If not, - - - 1...

  • Page 39: Mounting The Cowl

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 MOUNTING THE COWL Mounting part - - - - - 5 3x12mm Tp Screw - - - - - 5 3x15mm Tp Screw - - - - - 5 3x15mm Tp Screw...
  • Page 40 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 3x12mm Tp Screw...

  • Page 41: Installing The Switch, Receiver And Battery

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE SWITCH, RECEIVER AND BATTERY 1) Plug the servo leads and the switch lead into INSTALLING THE SWITCH the receiver. You may want to plug an aileron 1) The switch should be mounted on the fuselage...
  • Page 42 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 ELECTRIC RETRACT GEAR SYSTEM BATTERY: 7.4V 3500mAh Tail gear Main gear POWER Retract Status Test Main gear Electric Retract Lading Gear Controller RECEIVER...

  • Page 43: Installing The Wing To The Fuselage

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE WING TO THE FUSELAGE 32x780mm Aluminium tube Test fit the aluminium tube dihedral brace into each wing haft. - - - 1 The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits properly.

  • Page 44: Installing Cockpit Fuselage

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING COCKPIT FUSELAGE Control stick part - - - 1 Atenna part Pilot part - - - 1 Cockpit - - - 1 - - - 1 Position the canopy so the rear frame on the canopy is aligned with the rear edge of the cockpit opening.
  • Page 45 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117...

  • Page 46: Installing The Plastic Part For Fuselage

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE PLASTIC PART FOR FUSELAGE 2x10mm Tp Screw - - - 8 - - - 1 Pinned Hinge - - - 2 - - - 4 Fueltank part - - - 1...
  • Page 47 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117...

  • Page 48: Installing The Propeller

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE PROPELLER...

  • Page 49: Installing The Electric Motor

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 INSTALLING THE ELECTRIC MOTOR 5x25mm Socket Head 5mm Spring Washer Cap Screw - - - - - - - - 4 - - 4 5mm Lock Nut - - - 1 5mm Plastic Washer...

  • Page 50: Balancing

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 BALANCING LATERAL BALANCE It is critical that your airplane be balanced After you have balanced a plane on the C.G. correctly. Improper balance will cause your plane to You should laterally balance it. Doing this will lose control and crash.

  • Page 51: Control Throws

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 In order to obtain the CG specified, reposition Bottom View the receiver and other equipment. If not obtain the CG specified, add a weight and adjust. 14mm Do not fly before confirming the...

  • Page 52: Exploded View

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117...
  • Page 53 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS For more information, refer to radio system instruction manual. Example of connection Follow instruction manual of Engine and Battery. Aileron Servo...

  • Page 54: Main Gear Dimensional Detail

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 MAIN GEAR DIMENSIONAL DETAIL 19.00 65.00 45.00 130.50 TAIL GEAR DIMENSIONAL DETAIL 317.00...

  • Page 55: Decoration

    INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 DECORATION L.G. L.G. TRANSFER TRANSFER VALVE VALVE SEQUENCE SEQUENCE VALVE VALVE FLAP CYLINDER BLEEDER PORT BH181_P47_DN_MT+MD_Reu1 BH181_P47_DN_MT_DenTram BH181_P47_DN_MT+MD_Reu1 BH181_P47_DN_MT_DenTram 433289 BH181_P47_ThanTrai_DenTram Decal 433289 Decal Decal BH117(2019) DecalTrong BH117(2019) DecalTrong...
  • Page 56 INSTRUCTION MANUAL P-47 Thunderbolt Item code: BH117 I/C FLYING WARNINGS Always operate in open areas, away from fly near power lines,aerials or AL WAYS adjust the engine from behind NEVER factories, hospitals, schools, buildings other dangerous areas including airports, the propeller, and do not allow any part of and houses etc.
  • Page 57 I/C FLYING GUIDELINES Operate the control sticks on the ALWAYS land the model When ready to fly, first extend transmitter and check that the the wind, this ensures that the transmitter aerial. control surfaces move freely and in model lands at the slowest possible the CORRECT directions.
