SPECIFICATION
1 Wingspan : 2,210 mm
1 Length
1 Weight
Parts listing required(not included):
1 Engine
1 Radio
1 Servo
Instruction Manual Book
87.01 in.
: 1,680 mm
: 7.5 kg
16.50 lbs.
: 50-55 cc gas
: 07 channels.
: 09 standard high torque servos.
66.14 in.
ITEM CODE: BH108.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAWKER HURRICANE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Black Horse Model HAWKER HURRICANE

Summary of Contents for Black Horse Model HAWKER HURRICANE

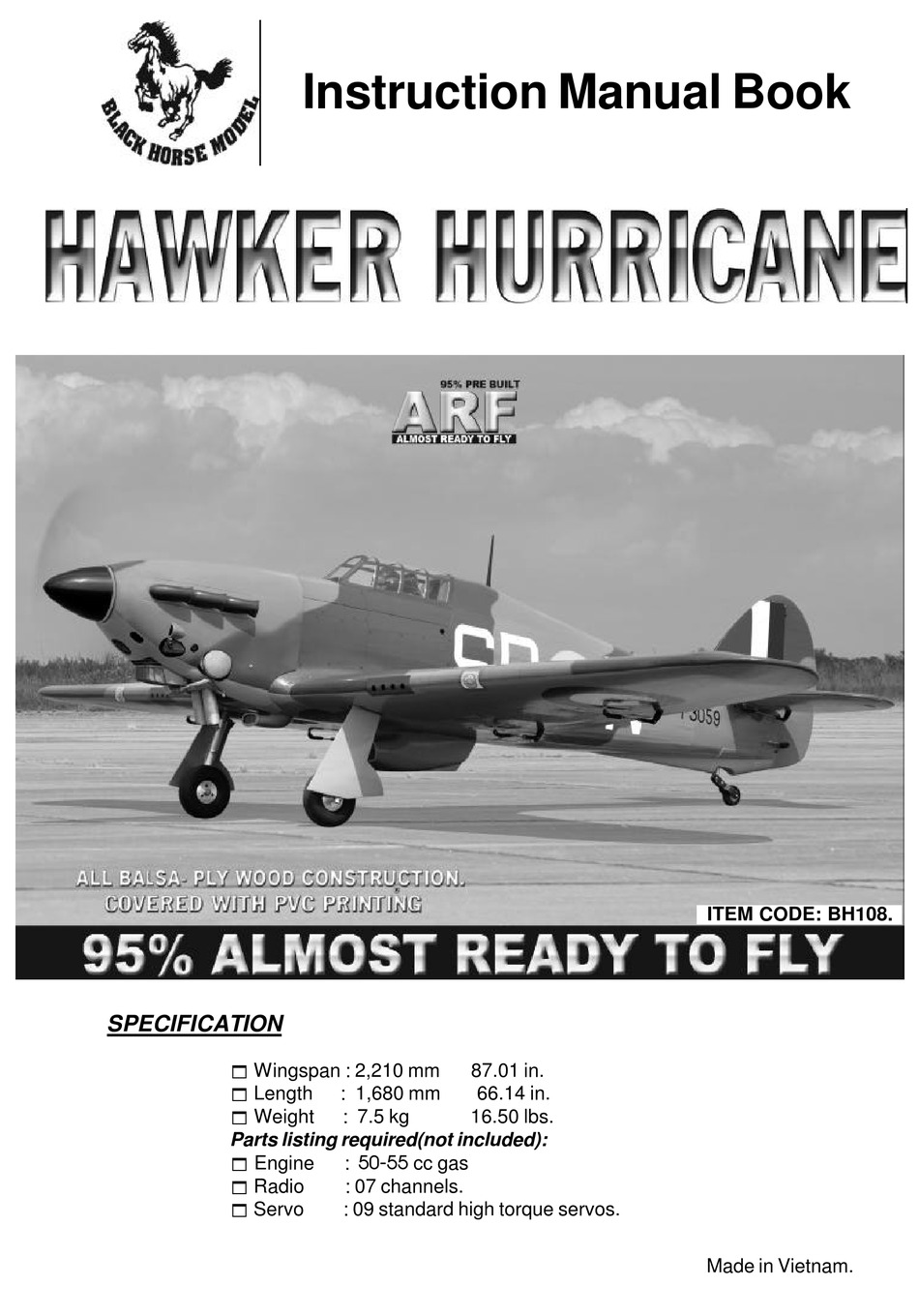

  • Page 1 Instruction Manual Book ITEM CODE: BH108. SPECIFICATION 1 Wingspan : 2,210 mm 87.01 in. 1 Length : 1,680 mm 66.14 in. 1 Weight : 7.5 kg 16.50 lbs. Parts listing required(not included): : 50-55 cc gas 1 Engine 1 Radio : 07 channels.
