5.3.1 iSolution Operation
Consistent DMX configuration enable IRock 575S to be linked with iShow and
iMove together and controlled at the same time.
DMX address can be set remotely by iLead controller ( please refer to the user
manual of iLead controller ). No need to calculate the DMX channels of each
fixture in the chain.
Automatic switching between DMX function and built-in stand alone programs.
5.3.2 DMX Controller
If you use an universal DMX controller to control the units, you have to set DMX
address from 1 to 512 channel so that the units can receive DMX signal.
Press the MENU button up to when the
ENTER button and the display will blink. Use DOWN and UP button to change the
DMX512 address. Once the address has been selected, press and keep ENTER
button pressed up to when the display stops blinking or storing automatically 8
seconds later. To go back to the functions without any change press the MENU
button again.

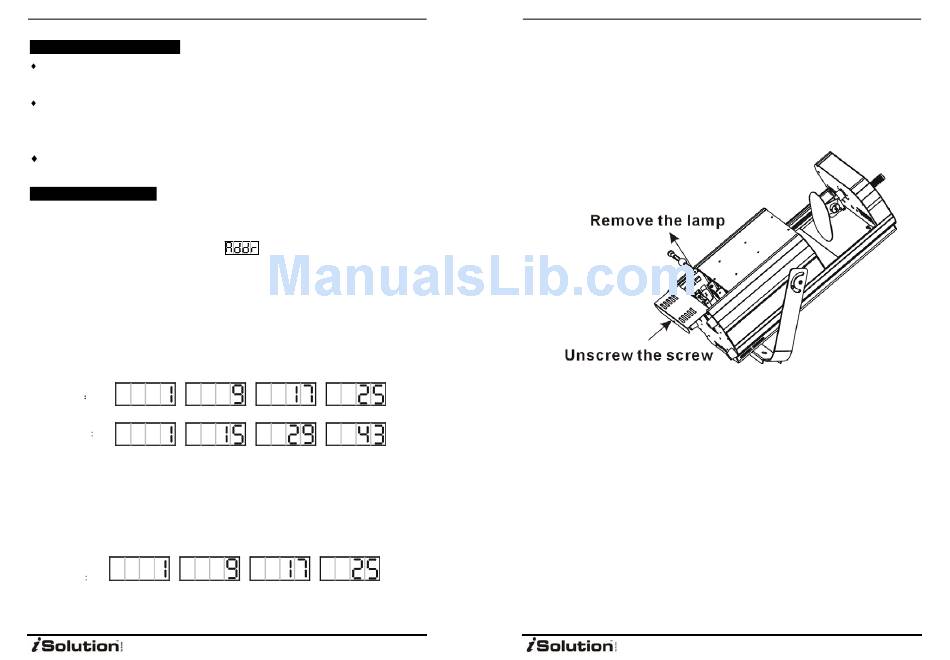

Please refer to the following diagram to address your DMX512 channel for the first 4
units.
8 Channels
14 Channels
You have to set the fixture DMX address in 8 channels mode when you use IL-0824
controller. DMX address can be set remotely by IL-0824 controller. No need to
calculate the DMX channels of each fixture in the chain.
Please refer to the following diagram to address your DMX512 channel for the first 4
units.
8 Channels
IR-575S
is shown on the display. Pressing
18A
5. Turn screws left and remove the cover as the drawing below.
6. Remove old lamp from lamp socket. Hold the new lamp only by its
Never touch the glass bulb. Insert the new lamp in the lamp socket.
7. Make sure the lamp is located in the center of the reflector for the best spot.
IR-575S
metallic base.
7A
