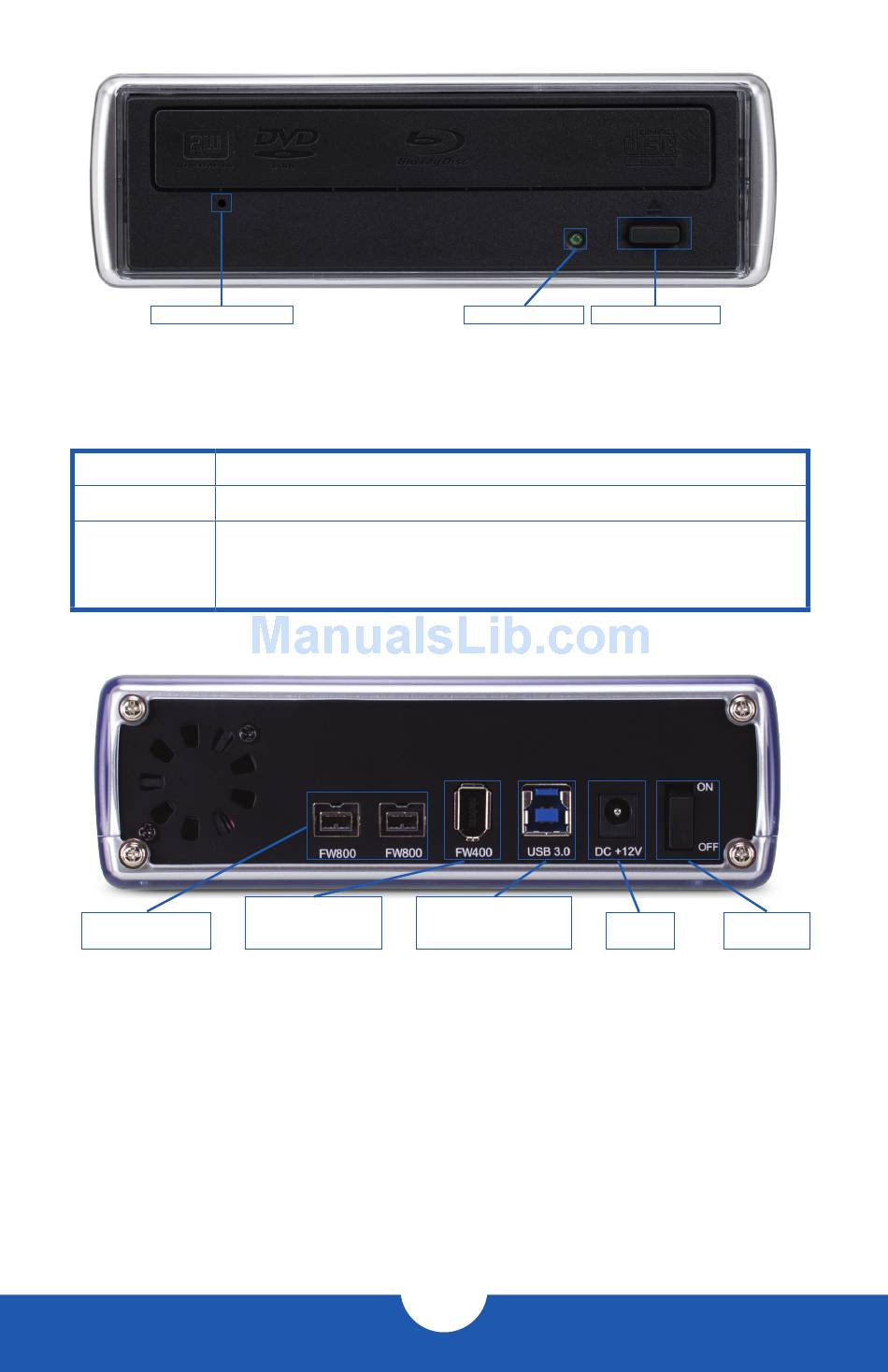

1.4 FRONT VIEW

Manual eject hole
NOTE: The look and placement of features may change based on optical drive mechanism.
1.4.1 Front Features
Activity LED
Eject button
Manual eject
hole

1.5 REAR VIEW

FireWire 800 (1394b)
9-pin ports
1.5.1 Connection
Plug the power supply into the DC power port on the OWC Mercury Pro Optical and
into a power outlet. Connect the interface cable of your choice (USB 3.0, FireWire 800, or
FireWire 400) between the computer and the Mercury Pro, then turn on the Mercury Pro
using the power on/off switch.
NOTE:
• Only one interface (USB 3.0, FireWire 800, or FireWire 400) at a time can be used. When
more than one interface cable is connected, the fastest interface has priority.
• Always eject or unmount the disc from your computer before powering off the drive.
OWC MERCURY PRO OPTICAL
LED flashes with disc activity.
Press to open the disc tray.
If the disc tray cannot be opened by the eject button or through
software eject commands, insert a straightened paper clip into
the manual eject hole and press to open the disc tray manually.
FireWire 400 (1394a)
6-pin port
(cable NOT included)
Activity LED
USB 3.0 standard-B port
(backwards compatible
with USB 2.0)
2
Eject button
DC power Power on/off
port switch
INTRODUCTION
