Network Wiring Connections; Figure 17: Network Wiring Connections - Edge-Core SMCGS26C-Smart Installation Manual

N W
ETWORK IRING
Today, the punch-down block is an integral part of many of the newer equipment
racks. It is actually part of the patch panel. Instructions for making connections
in the wiring closet with this type of equipment follows.
Attach one end of a patch cable to an available port on the switch, and the
1.
other end to the patch panel.
If not already in place, attach one end of a cable segment to the back of the
2.
patch panel where the punch-down block is located, and the other end to a
modular wall outlet.
Label the cables to simplify future troubleshooting. See
3.
Connection Records" on page

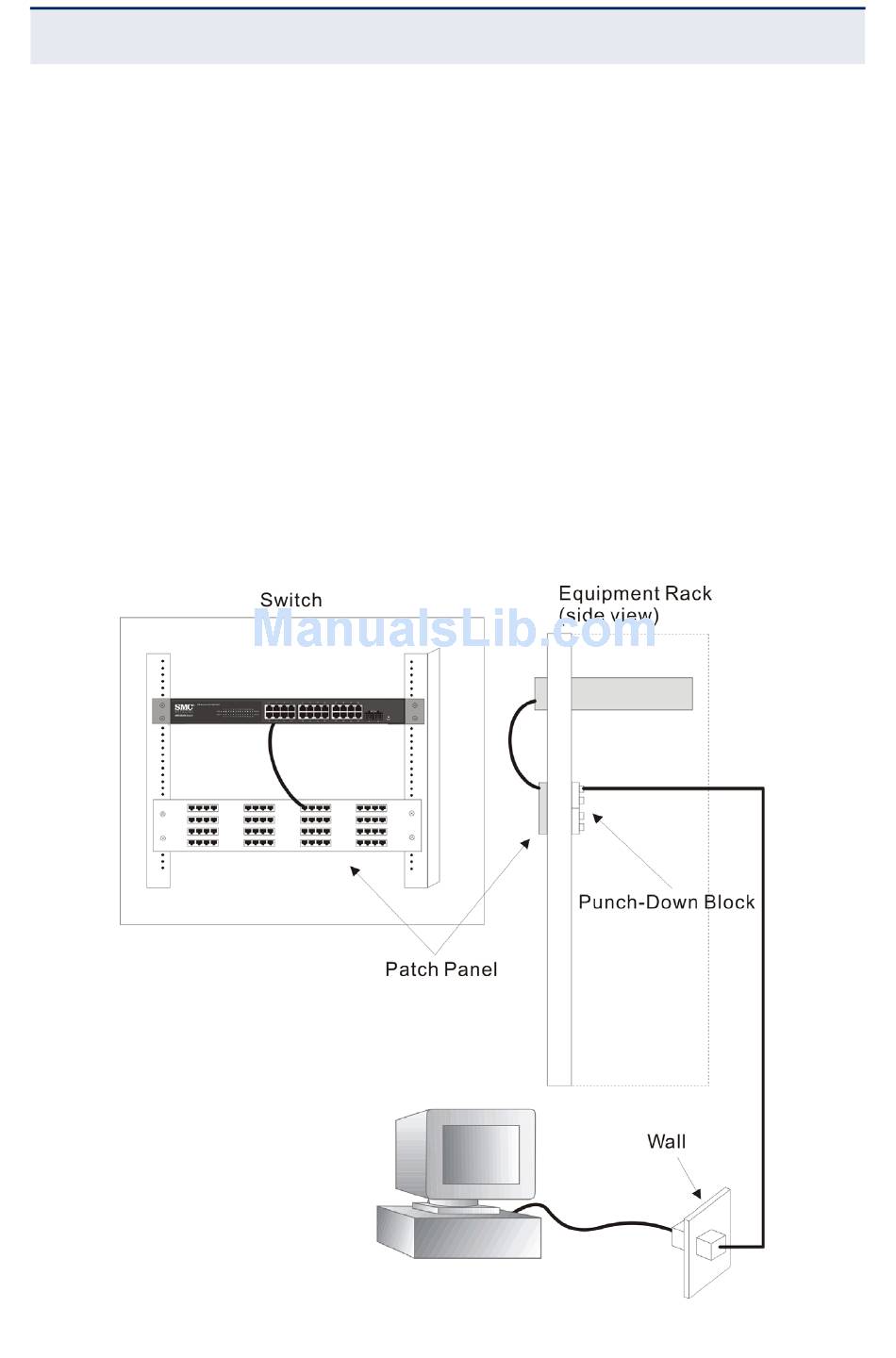

Figure 17: Network Wiring Connections

C
ONNECTIONS
49.
– 44 –
| Making Network Connections
C 4
HAPTER
Twisted-Pair Devices
"Cable Labeling and
