Edge-Core AS9716-32D Quick Start Manual

Quick Start Guide

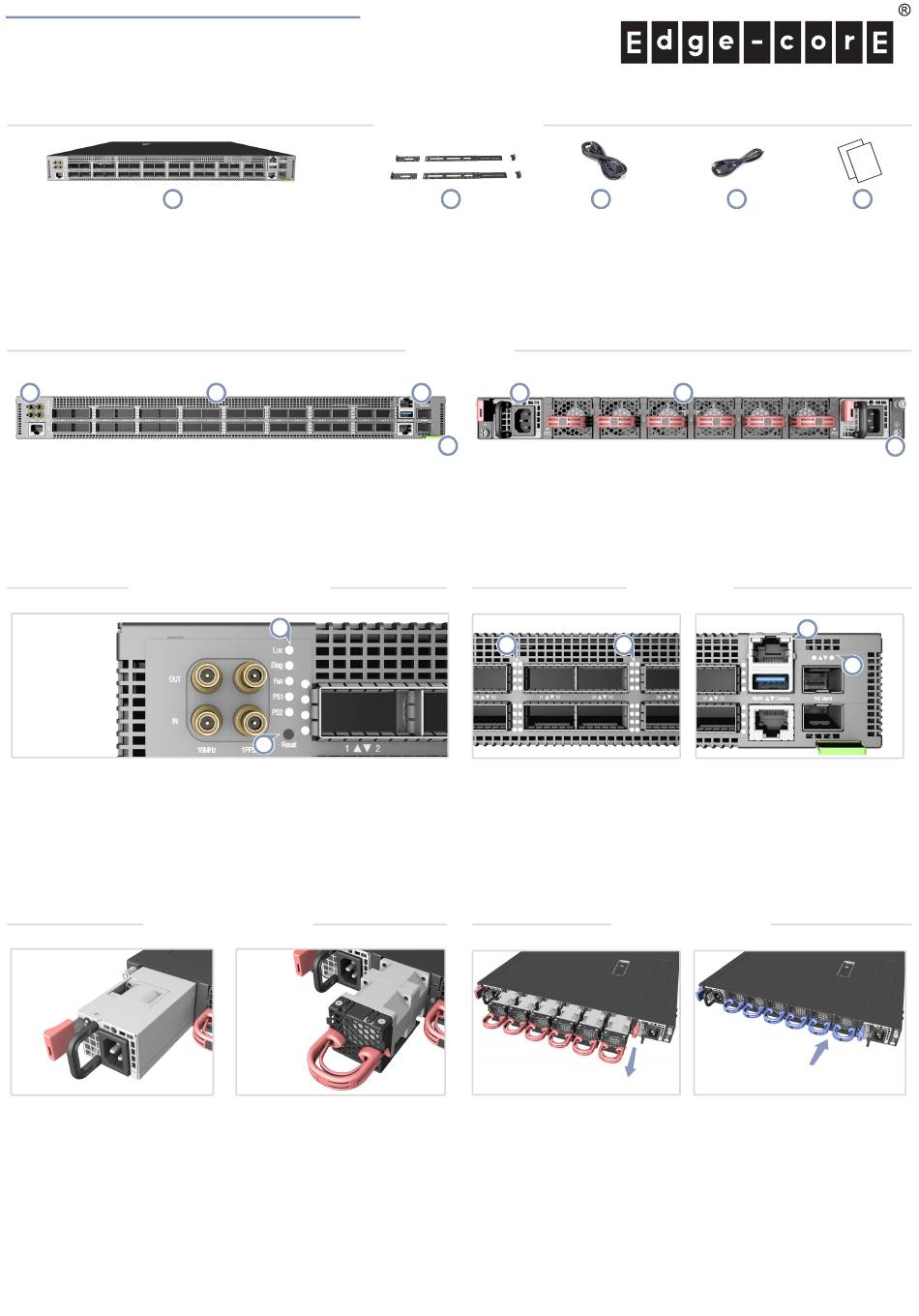

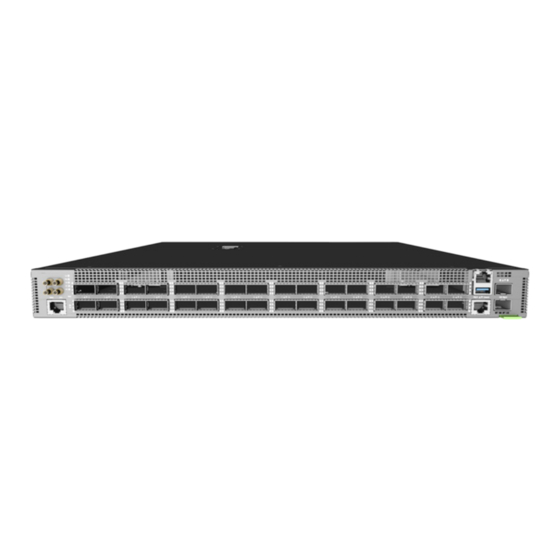

32-Port 400G Data Center Spine Switch
AS9716-32D
1
1. 32-Port 400G Data Center Spine Switch AS9716-32D
2.
Rack mounting kit—2 front-post brackets, 2 rear-post brackets,
20 screws, and 2 ear-locking screws
3.
Power cord (included with AC PSUs only)
1
1. Timing ports: 10 MHz, 1PPS, ToD
2.
32 x 400G QSFP-DD ports
3.
Management ports: 1 x 1000BASE-T RJ-45, 2 x 10G SFP+,
RJ-45 console, USB
System LEDs/Buttons
PS1/PS2: Green (OK), Amber (fault)
Diag: Green (OK), Amber (no OS or fault)
Fan: Green (OK), Amber (fault)
Loc: Flashing Amber (switch locator)
Reset Button
FRU Replacement
PSU Replacement
1.
Remove the power cord.
2. Press the release latch and
remove the PSU.
3.
Install replacement PSU with
matching airflow direction.
www.edge-core.com
Package Contents
2
Fan Tray Replacement
1.
Pull the handle release latch.
2. Remove fan tray from the
chassis.
3.
Install replacement fan with
matching airflow direction.
2
4. Console cable—RJ-45 to DE-9
5.
Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
3 5
4
4. Product label
5.
2 x AC PSUs
6.
6 x fan trays
7.
2 x grounding screws
QSFP-DD LEDs
400G: 1 LED Blue
200G Breakout: 1 LED White,
1-2 LEDs Green
100G Breakout: 1-4 LEDs Green
50G Breakout: 1 LED Cyan
1. F2B Airflow
Remove front-to-back (F2B)
airflow fan trays (red handles) and
PSUs (red release latches).
– 1 –
3 4
6
Port LEDs
SFP+ 10G Mgmt LEDs
Green (10G)
Amber (1G)
RJ-45 Mgmt LED
Green (link/activity)
Airflow Reversal
2. B2F Airflow
Install back-to-front (B2F) airflow
fan trays (blue handles) and PSUs
(blue release latches).
5
7
