| Installing the Switch
C 3
HAPTER

Ethernet Cabling

E
THERNET
To ensure proper operation when installing the switch into a network, make sure
that the current cables are suitable for 10BASE-T, 100BASE-TX, or 1000BASE-T
operation. Check the following criteria against the current installation of your
network:
Cable type: Unshielded twisted pair (UTP) or shielded twisted pair (STP)
◆
cables with RJ-45 connectors; Category 3 or better for 10BASE-T, Category
5 or better for 100BASE-TX, and Category 5, 5e, or 6 for 1000BASE-T.
Protection from radio frequency interference emissions
◆
Electrical surge suppression
◆
Separation of electrical wires (switch related or other) and electromagnetic
◆
fields from data based network wiring
Safe connections with no damaged cables, connectors or shields
◆

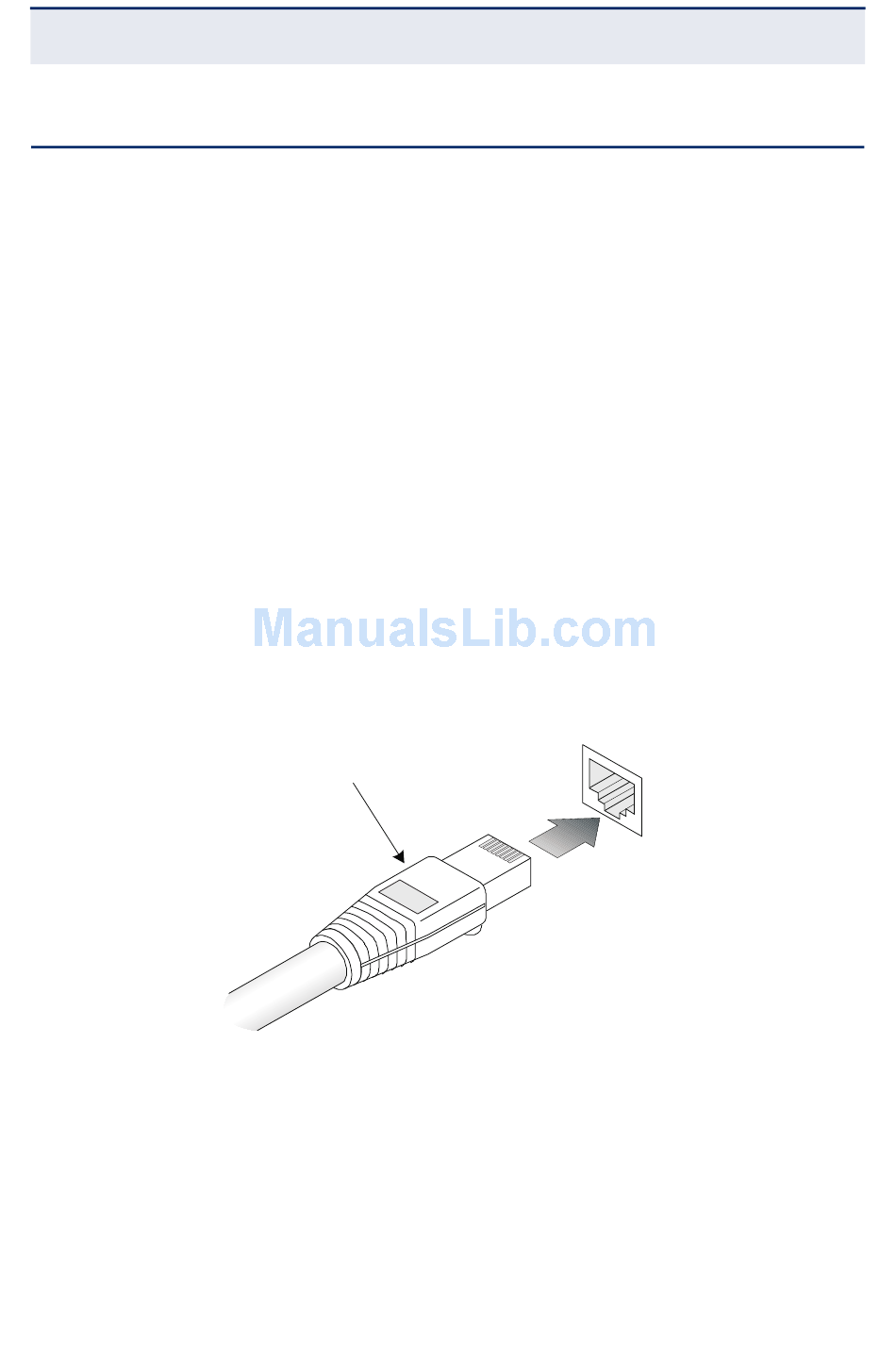

Figure 10: RJ-45 Connections
C
ABLING
RJ-45 Connector
