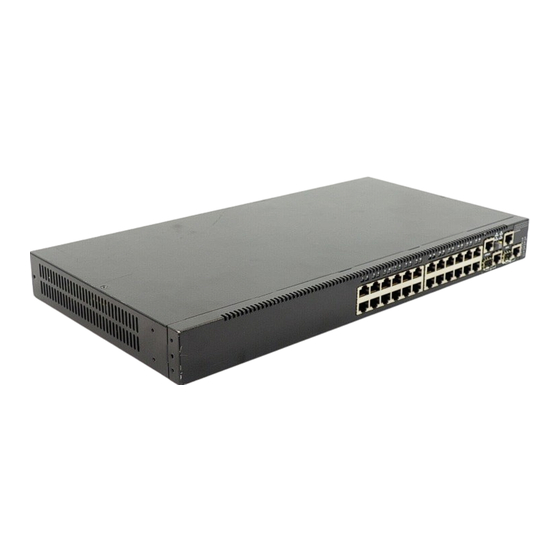

- Page 1 Powered by Accton ES3526YA/ES3550YA 24/48-Port Stackable Intelligent Switch Installation Guide www.edge-core.com...
- Page 3 Installation Guide ES3526YA Stackable Fast Ethernet Switch with 24 10/100BASE-TX (RJ-45) Ports, 2 Gigabit Combination Ports (RJ-45/SFP), and 2 1000BASE-T/Stacking Ports ES3550YA Stackable Fast Ethernet Switch with 48 10/100BASE-TX (RJ-45) Ports, 2 Gigabit Combination Ports (RJ-45/SFP), and 2 1000BASE-T/Stacking Ports...
- Page 4 ES3526YA ES3550YA E032005-R01 150000017500H...
- Page 5 Compliances and Safety Warnings FCC - Class A This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
- Page 6 CE Mark Declaration of Conformance for EMI and Safety (EEC) This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/68/EEC.
- Page 7 Safety Compliance Warning: Fiber Optic Port Safety When using a fiber optic port, never look at the transmit laser while it is powered on. Also, never look directly at the fiber TX port and fiber cable CLASS I LASER DEVICE ends when they are powered on.
- Page 8 Power Cord Set U.S.A. and Canada The cord set must be UL-approved and CSA certified. The minimum specifications for the flexible cord are: - No. 18 AWG - not longer than 2 meters, or 16 AWG. - Type SV or SJ - 3-conductor The cord set must have a rated current capacity of at least 10 A The attachment plug must be an earth-grounding type with NEMA...
- Page 9 France et Pérou uniquement: Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos alimentations sont du type impédance à la terre, ce groupe doit être alimenté par une tension de 230 V (2 P+T) par le biais d’un transformateur d’isolement à rapport 1:1, avec un point secondaire de connexion portant l’appellation Neutre et avec raccordement direct à...
- Page 10 Stromkabel . Dies muss von dem Land, in dem es benutzt wird geprüft werden: Schweiz Dieser Stromstecker muß die SEV/ASE 1011Bestimmungen einhalt- Europe Das Netzkabel muß vom Typ HO3VVF3GO.75 (Mindestanforderung) sein und die Aufschrift <HAR> oder <BASEC> tragen. Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”). Warnings and Cautionary Messages Warning: This product does not contain any serviceable user parts.
- Page 11 Environmental Statement The manufacturer of this product endeavours to sustain an environmentally-friendly policy throughout the entire production process. This is achieved though the following means: • Adherence to national legislation and regulations on environmental production standards. • Conservation of operational resources. •...
- Page 12 viii...
-
Page 13: Table Of Contents
Contents Chapter 1: Introduction Overview Switch Architecture Network Management Options Description of Hardware 10BASE-T/100BASE-TX Ports 1000BASE-T/SFP Ports Stacking Ports Port and System Status LEDs Power Supply Receptacles Features and Benefits Connectivity Expandability Performance Management Chapter 2: Network Planning Introduction to Switching Application Examples Collapsed Backbone Network Aggregation Plan... - Page 14 Contents Chapter 4: Making Network Connections Connecting Network Devices Twisted-Pair Devices Cabling Guidelines Connecting to PCs, Servers, Hubs and Switches Network Wiring Connections Fiber Optic SFP Devices Connectivity Rules 1000BASE-T Cable Requirements 1000 Mbps Gigabit Ethernet Collision Domain 100 Mbps Fast Ethernet Collision Domain 10 Mbps Ethernet Collision Domain Cable Labeling and Connection Records Appendix A: Troubleshooting A-1...
- Page 15 Tables Table 1-1 Port Status LEDs Table 1-2 System Status LEDs Table 3-1 Serial Cable Wiring Table 4-1 Maximum 1000BASE-T Gigabit Ethernet Cable Length Table 4-2 Maximum 1000BASE-SX Gigabit Ethernet Cable Lengths Table 4-3 Maximum 1000BASE-LX Gigabit Ethernet Cable Length Table 4-4 Maximum 1000BASE-LH Gigabit Ethernet Cable Length Table 4-5...
- Page 16 Figures Figure 1-1 Front and Rear Panels Figure 1-2 Stacking Ports Figure 1-3 Port LEDs Figure 1-4 System LEDs Figure 1-5 Power Supply Receptacles Figure 2-1 Collapsed Backbone Figure 2-2 Network Aggregation Plan Figure 2-3 Remote Connections with Fiber Cable Figure 2-4 Making VLAN Connections Figure 3-1...
-
Page 17: Chapter 1: Introduction
These switches also provide two 1 Gbps built-in stacking ports for connecting up to eight ES3526YA or four ES3550YA units in a stack. If you connect both ES3526YA and ES3550YA units in the same stack, then you can only stack up to four units. -
Page 18: Switch Architecture
2. Non-blocking switching is used for traffic crossing ports attached to the same switch ASIC; while blocking is employed for traffic passing between different switch chips. The ES3526YA only has one switch chip; ES3550YA has two – ASIC#1: Ports 1-12, 25-36, 49, 51 and ASIC#2:... -
Page 19: 1000Base-T/Sfp Ports
(See “1000BASE-T Pin Assignments” on page B-3.) 3. Flow control is only supported for ports attached to the same switch ASIC. The ES3526YA only has one switch chip; ES3550YA has two – ASIC#1: Ports 1-12, 25-36, 49, 51 and ASIC#2:... -
Page 20: Stacking Ports
Stacking Ports The unit provides two stacking ports that provide a 4 Gbps stack backplane connection. You can stack up to eight ES3526YA units or four ES3550YA units using Category 5 Ethernet cables (purchased separately). The Master button enables one switch in the stack to be selected as the master. -
Page 21: Port And System Status Leds
Description of Hardware Port and System Status LEDs The ES3526YA/ES3550YA includes a display panel for key system and port indications that simplify installation and network troubleshooting. The LEDs, which are located on the front panel for easy viewing, are shown below and described in the following tables. -
Page 22: Table 1-2 System Status Leds
Introduction System LEDs Figure 1-4 System LEDs Table 1-2 System Status LEDs Condition Status On Green The unit’s internal power supply is operating normally. On Amber The unit’s internal power supply has failed. The unit has no power connected. Diag On Green The system diagnostic test has completed successfully. -
Page 23: Power Supply Receptacles
Figure 1-5 Power Supply Receptacles Features and Benefits Connectivity • 24 (ES3526YA) or 48 (ES3550YA) 100BASE-TX ports, 2 1000BASE-T ports, and 2 combination 1000BASE-T/SFP ports for easy integration and for protection of your investment in legacy LAN equipment. • Auto-negotiation enables each RJ-45 port to automatically select the optimum speed (10, 100 or 1000 Mbps), and the communication mode (half or full duplex) if this feature is supported by the attached device;... -
Page 24: Expandability
• Provides stacking capability via RJ-45 ports with 4 Gbps stacking bandwidth. You can connect up to eight ES3526YA units or four ES3550YA units in a stack. Expandability • 2 Small Form Factor Pluggable (SFP) transceiver slots (shared with 1000BASE-T ports) •... -
Page 25: Chapter 2: Network Planning
Chapter 2: Network Planning Introduction to Switching A network switch allows simultaneous transmission of multiple packets via non-crossbar switching. This means that it can partition a network more efficiently than bridges or routers. The switch has, therefore, been recognized as one of the most important building blocks for today’s networking technology. -
Page 26: Application Examples
Network Planning Application Examples The ES3526YA/ES3550YA switches are not only designed to segment your network, but also to provide a wide range of options in setting up network connections. Some typical applications are described below. Collapsed Backbone The ES3526YA/ES3550YA are an excellent choice for mixed Ethernet, Fast Ethernet, and Gigabit Ethernet installations where significant growth is expected in the near future. -
Page 27: Network Aggregation Plan
You can stack up to eight ES3526YA switch units together, forming a single “virtual” switch containing up to 208 ports. Or you can stack up to four ES3550YA units, forming a virtual switch containing up to 200 ports. -
Page 28: Remote Connections With Fiber Cable
Network Planning Remote Connections with Fiber Cable Fiber optic technology allows for longer cabling than any other media type. A 1000BASE-SX (MMF) link can connect to a site up to 550 meters away, a 1000BASE-LX (SMF) link up to 5 km, and a 1000BASE-LH link up to 70 km. This allows a Gigabit Ethernet Switch to serve as a collapsed backbone, providing direct connectivity for a widespread LAN. -
Page 29: Making Vlan Connections
Application Examples Making VLAN Connections This switch supports VLANs which can be used to organize any group of network nodes into separate broadcast domains. VLANs confine broadcast traffic to the originating group, and can eliminate broadcast storms in large networks. This provides a more secure and cleaner network environment. -
Page 30: Application Notes
• 1000BASE-LH: 70 km (43.5 miles) for singlemode fiber. However, power budget constraints must also be considered when calculating the maximum cable length for your specific environment. The maximum number of units that can be stacked together are: • 8 ES3526YA units • 4 ES3550YA units... -
Page 31: Chapter 3: Installing The Switch
- be at the center of all the devices you want to link and near a power outlet. - be able to maintain its temperature within 0 to 40 °C (32 to 104 °F) for the ES3526YA, 0 to 50 °C (32 to 122 °F) for the ES3550YA, and... -
Page 32: Equipment Checklist
Then, before beginning the installation, be sure you have all other necessary installation equipment. Package Contents • Stackable Fast Ethernet Switch (ES3526YA or ES3550YA) • Four adhesive foot pads • Bracket Mounting Kit containing two brackets and eight screws for attaching the brackets to the switch •... -
Page 33: Mounting
Mounting Mounting This switch can be mounted in a standard 19-inch equipment rack or on a desktop or shelf. Mounting instructions for each type of site follow. Rack Mounting Before rack mounting the switch, pay particular attention to the following factors: •... -
Page 34: Figure 3-3 Installing The Switch In A Rack
If also installing an RPS, mount it in the rack below the other devices. Montage (Rack Mounting Instructions - German) ES3526YA/ES3550YA Switch-Einheiten können an ein standardmäßiges 19-Zoll Einrichtungsrack, einen Arbeitstisch oder ein Regal montiert werden. Folgend finden Sie die Montageanweisungen für jeden Positionstyp. -
Page 35: Desktop Or Shelf Mounting
Mounting So montieren Sie Geräte an ein Rack: 1. Befestigen Sie die Metallwinkel mit den im Metallwinkel-Montageset erhältlichen Schrauben an dem Gerät. 2. Befestigen Sie das Gerät mit vier Rackmontageschrauben (nicht beigelegt) an dem Rack. 3. Wenn Sie nur einen Switch installieren, dann springen Sie bitte über zu "Verbinden mit einer Stromquelle"... -
Page 36: Installing An Optional Sfp Transceiver
Installing the Switch Installing an Optional SFP Transceiver Figure 3-5 Installing an SFP Transceiver into a slot This switch supports 1000BASE-SX, 1000BASE-LX, and 1000BASE-LH SFP transceivers. To install an SFP transceiver, do the following: Consider network and cabling requirements to select an appropriate SFP transceiver type. -
Page 37: Figure 3-6 Connecting Switches In A Ring-Topology Stack
Connecting Switches in a Stack You can form a stack containing up to eight ES3526YA units or up to four ES3550YA units. To connect switches in a stack, perform the following steps: Enable the stacking ports on each unit (i.e., the Stack button pushed out) Note: Pressing the Stack button during normal operation will cause the system to reboot. -
Page 38: Connecting To A Power Source
Master, or if no switches are selected, the stack will not function. Connecting to a Power Source To connect a switch to a power source: Insert the power cable plug directly into the AC receptacle located at the back of the switch. ES3526YA 12V 4.5A 100-240V~ 50-60Hz 1.5A ES3550YA 12V 4.5A... -
Page 39: Connecting To The Console Port
Connecting to the Console Port Connecting to the Console Port The DB-9 serial port on the switch’s back panel is used to connect to the switch for out-of-band console configuration. The command-line-driven configuration program can be accessed from a terminal or a PC running a terminal emulation program. The pin assignments used to connect to the serial port are provided in the following table. - Page 40 Installing the Switch 3-10...
-
Page 41: Chapter 4: Making Network Connections
Chapter 4: Making Network Connections Connecting Network Devices These switches are designed to be connected to 10, 100 or 1000 Mbps network cards in PCs and servers, as well as to other switches and hubs. They may also be connected to remote devices using optional 1000BASE-SX, 1000BASE-LX, or 1000BASE-LH SFP transceivers. -
Page 42: Connecting To Pcs, Servers, Hubs And Switches
Making Network Connections Connecting to PCs, Servers, Hubs and Switches Attach one end of a twisted-pair cable segment to the device’s RJ-45 connector. Figure 4-1 Making Twisted-Pair Connections If the device is a network card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet. -
Page 43: Figure 4-2 Network Wiring Connections
Twisted-Pair Devices Label the cables to simplify future troubleshooting. See “Cable Labeling and Connection Records” on page 4-7. Equipment Rack Switch (side view) Punch-Down Block Patch Panel Wall Figure 4-2 Network Wiring Connections... -
Page 44: Fiber Optic Sfp Devices
Making Network Connections Fiber Optic SFP Devices An optional Gigabit SFP transceiver (1000BASE-SX, 1000BASE-LX, or 1000BASE-LH) can be used for a backbone connection between switches, or for connecting to a high-speed server. Each single-mode fiber port requires 9/125 micron single-mode fiber optic cable with an LC connector at both ends. -
Page 45: Connectivity Rules
Connectivity Rules Connect one end of the cable to the LC port on the switch and the other end to the LC port on the other device. Since LC connectors are keyed, the cable can be attached in only one orientation. Figure 4-3 Making Fiber Port Connections As a connection is made, check the Link LED on the switch corresponding to the port to be sure that the connection is valid. -
Page 46: 1000 Mbps Gigabit Ethernet Collision Domain
Making Network Connections Category 5 cabling for running 1000BASE-T is a simple test of the cable installation to be sure that it complies with the IEEE 802.3-2002 standards. 1000 Mbps Gigabit Ethernet Collision Domain Table 4-1 Maximum 1000BASE-T Gigabit Ethernet Cable Length Cable Type Maximum Cable Length Connector... -
Page 47: Cable Labeling And Connection Records
Cable Labeling and Connection Records Cable Labeling and Connection Records When planning a network installation, it is essential to label the opposing ends of cables and to record where each cable is connected. Doing so will enable you to easily locate inter-connected devices, isolate faults and change your topology without need for unnecessary time consumption. - Page 48 Making Network Connections...
-
Page 49: Appendix A: Troubleshooting
Appendix A: Troubleshooting Diagnosing Switch Indicators Table A-1 Troubleshooting Chart Symptom Action PWR LED is Off • Check connections between the switch, the power cord and the wall outlet. • Contact your dealer for assistance PWR LED is Amber • Internal power supply has failed. Contact your local dealer for assistance. -
Page 50: Power And Cooling Problems
Troubleshooting Power and Cooling Problems If the power indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply. However, if the unit powers off after running for a while, check for loose power connections, power losses or surges at the power outlet. -
Page 51: Appendix B: Cables
Appendix B: Cables Twisted-Pair Cable and Pin Assignments For 10/100BASE-TX connections, the twisted-pair cable must have two pairs of wires. For 1000BASE-T connections the twisted-pair cable must have four pairs of wires. Each wire pair is identified by two different colors. For example, one wire might be green and the other, green with white stripes. -
Page 52: Straight-Through Wiring
Cables Table B-1 10/100BASE-TX MDI and MDI-X Port Pinouts MDI Signal Name MDI-X Signal Name Transmit Data plus (TD+) Receive Data plus (RD+) Transmit Data minus (TD-) Receive Data minus (RD-) Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) Not used Not used... -
Page 53: 1000Base-T Pin Assignments
Twisted-Pair Cable and Pin Assignments You must connect all four wire pairs as shown in the following diagram to support Gigabit Ethernet. EIA/TIA 568B RJ-45 Wiring Standard 10/100BASE-TX Crossover Cable White/Orange Stripe Orange White/Green Stripe End A End B Blue White/Blue Stripe Green White/Brown Stripe... -
Page 54: Fiber Standards
Cables Cable Testing for Existing Category 5 Cable Installed Category 5 cabling must pass tests for Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT). This cable testing information is specified in the ANSI/TIA/EIA-TSB-67 standard. Additionally, cables must also pass test parameters for Return Loss and Equal-Level Far-End Crosstalk (ELFEXT). -
Page 55: Appendix C: Specifications
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ ES3526YA... - Page 56 Specifications Humidity Operating: 5% to 95% (non-condensing) Power Supply Internal, auto-ranging transformer: 100 to 240 VAC, 50 to 60 Hz, 1.5A External, supports a 14-pin connection for a redundant power supply Power Consumption 25 Watts maximum Maximum Current 1.2 A @ 100 VAC 0.6 A @ 240 VAC _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ ES3550YA...
-
Page 57: Switch Features
Switch Features Size 44.0 x 23 x 4.4 cm (17.32 x 9.06 x 1.73 in.) Temperature Operating: 0°C to 50°C (32°F to 122°F) Storage: -40°C to 70°C (-40°F to 158°F) Humidity Operating: 5% to 95% (non-condensing) Power Supply Internal, auto-ranging transformer: 100 to 240 VAC, 50 to 60 Hz, 2A External, supports a 14-pin connection for a redundant power supply Power Consumption 54 Watts maximum... -
Page 58: Standards
Specifications Software Loading TFTP in-band, or XModem out-of-band Standards IEEE 802.3-2002 Ethernet, Fast Ethernet, Gigabit Ethernet Full-duplex flow control Link Aggregation Control Protocol IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1X Port Access Authentication IEEE 802.1Q VLANs ISO/IEC 8802-3 Compliances Emissions... -
Page 59: Glossary
Glossary 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 100BASE-FX IEEE 802.3 specification for 100 Mbps Ethernet over two strands of 50/125, 62.5/ 125 micron, or 9/125 micron core fiber cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Ethernet over two pairs of Category 5 UTP cable. - Page 60 Glossary Collision A condition in which packets transmitted over the cable interfere with each other. Their interference makes both signals unintelligible. Collision Domain Single CSMA/CD LAN segment. CSMA/CD CSMA/CD (Carrier Sense Multiple Access/Collision Detect) is the communication method employed by Ethernet, Fast Ethernet, and Gigabit Ethernet. End Station A workstation, server, or other device that does not forward traffic.
- Page 61 Glossary IEEE 802.3u Defines CSMA/CD access method and physical layer specifications for 100BASE-TX Fast Ethernet. (Now incorporated in IEEE 802.3-2002.) IEEE 802.3x Defines Ethernet frame start/stop requests and timers used for flow control on full-duplex links. (Now incorporated in IEEE 802.3-2002.) IEEE 802.3z Defines CSMA/CD access method and physical layer specifications for 1000BASE Gigabit Ethernet.
- Page 62 Glossary RJ-45 Connector A connector for twisted-pair wiring. Switched Ports Ports that are on separate collision domains or LAN segments. Telecommunications Industry Association Transmission Control Protocol/Internet Protocol (TCP/IP) Protocol suite that includes TCP as the primary transport protocol, and IP as the network layer protocol.
-
Page 63: Index
Index 100 Mbps 4-6 Numerics 1000 Mbps 4-6 10 Mbps connectivity rules 4-6 console port, pin assignments 3-9 100 Mbps connectivity rules 4-6 contents of package 3-2 1000 Mbps connectivity rules 4-6 cooling problems A-2 1000BASE-LH fiber cable length 4-6 cord sets, international 3-8 1000BASE-LX fiber cable length 4-6 1000BASE-SX fiber cable length 4-6... - Page 64 Index laser safety 4-4 rack mounting 3-3 LC port connections 4-4 rear panel of switch 1-1 LED indicators rear panel receptacles 1-7 Diag 1-6 RJ-45 port Power 1-6 connections 4-1 problems A-1 pinouts B-3 Stack 1-6 RMON 1-2 location requirements 3-1 RS-232 port 1-2 rubber foot pads, attaching 3-5 management...
- Page 65 Index VLANs tagging 2-5 web-based management 1-2 Index-3...
- Page 66 Index Index-4...
- Page 68 ES3526YA ES3550YA E032005-R01 150000017500H...
