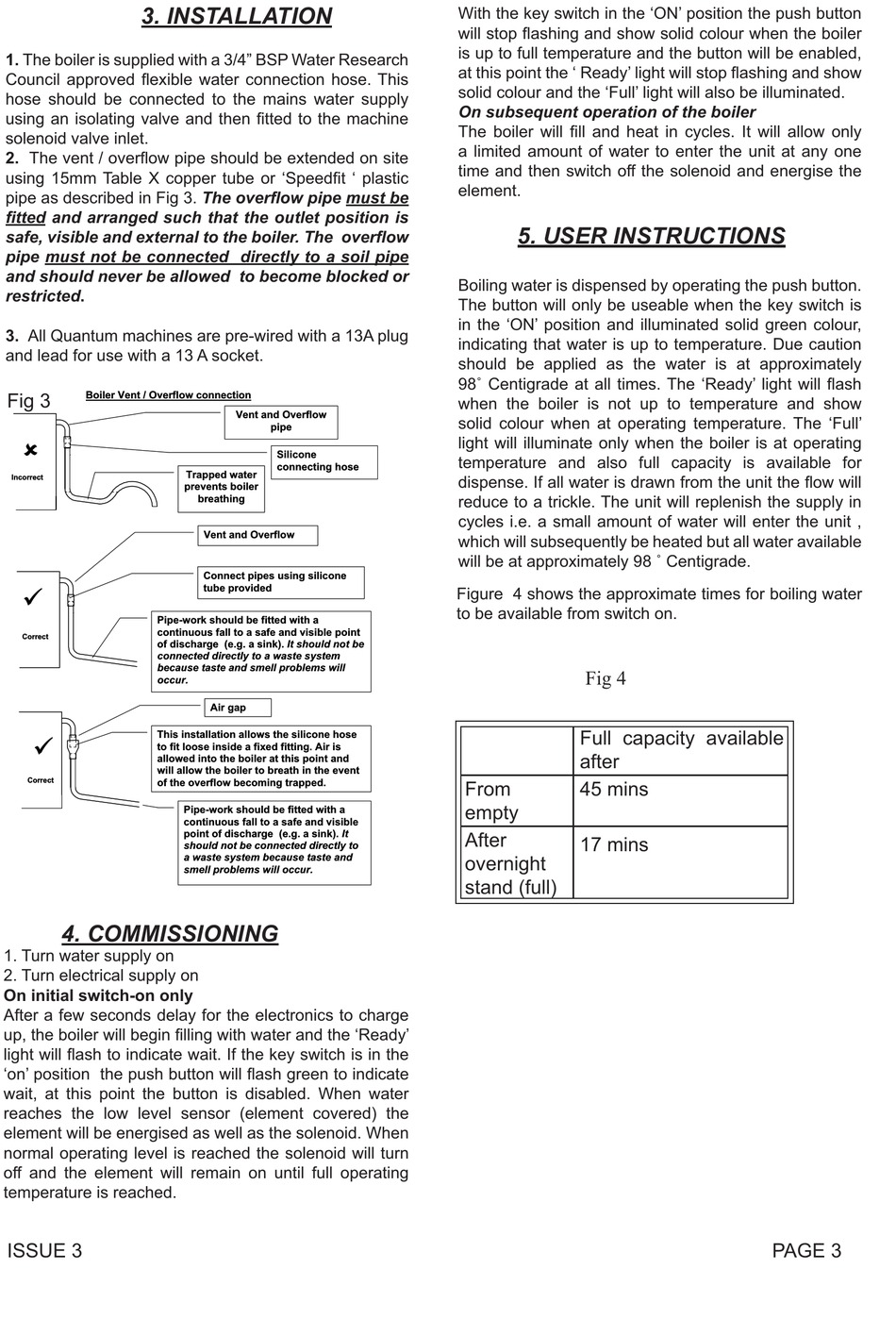

3. INSTALLATION

1. The boiler is supplied with a 3/4" BSP Water Research
Council approved fl exible water connection hose. This
hose should be connected to the mains water supply
using an isolating valve and then fi tted to the machine
solenoid valve inlet.
2. The vent / overfl ow pipe should be extended on site
using 15mm Table X copper tube or 'Speedfi t ' plastic
pipe as described in Fig 3. The overfl ow pipe must be
fi tted and arranged such that the outlet position is
safe, visible and external to the boiler. The overfl ow
pipe must not be connected directly to a soil pipe
and should never be allowed to become blocked or
restricted.
3. All Quantum machines are pre-wired with a 13A plug
and lead for use with a 13 A socket.
Boiler Vent / Overflow connection
Fig 3
8
Incorrect
9
Pipe-work should be fitted with a
continuous fall to a safe and visible point
Correct
of discharge (e.g. a sink). It should not be
connected directly to a waste system
because taste and smell problems will
occur.
This installation allows the silicone hose
9
to fit loose inside a fixed fitting. Air is
allowed into the boiler at this point and
will allow the boiler to breath in the event
Correct
of the overflow becoming trapped.

4. COMMISSIONING

1. Turn water supply on
2. Turn electrical supply on
On initial switch-on only
After a few seconds delay for the electronics to charge
up, the boiler will begin fi lling with water and the 'Ready'
light will fl ash to indicate wait. If the key switch is in the
'on' position the push button will fl ash green to indicate
wait, at this point the button is disabled. When water
reaches the low level sensor (element covered) the
element will be energised as well as the solenoid. When
normal operating level is reached the solenoid will turn
off and the element will remain on until full operating
temperature is reached.
ISSUE 3
Vent and Overflow
pipe
Silicone
connecting hose
Trapped water
prevents boiler
breathing
Vent and Overflow
Connect pipes using silicone
tube provided
Air gap
Pipe-work should be fitted with a
continuous fall to a safe and visible
point of discharge (e.g. a sink). It
should not be connected directly to
a waste system because taste and
smell problems will occur.
With the key switch in the 'ON' position the push button
will stop fl ashing and show solid colour when the boiler
is up to full temperature and the button will be enabled,
at this point the ' Ready' light will stop fl ashing and show
solid colour and the 'Full' light will also be illuminated.
On subsequent operation of the boiler
The boiler will fi ll and heat in cycles. It will allow only
a limited amount of water to enter the unit at any one
time and then switch off the solenoid and energise the
element.

5. USER INSTRUCTIONS

Boiling water is dispensed by operating the push button.
The button will only be useable when the key switch is
in the 'ON' position and illuminated solid green colour,
indicating that water is up to temperature. Due caution
should be applied as the water is at approximately
98˚ Centigrade at all times. The 'Ready' light will fl ash
when the boiler is not up to temperature and show
solid colour when at operating temperature. The 'Full'
light will illuminate only when the boiler is at operating
temperature and also full capacity is available for
dispense. If all water is drawn from the unit the fl ow will
reduce to a trickle. The unit will replenish the supply in
cycles i.e. a small amount of water will enter the unit ,
which will subsequently be heated but all water available
will be at approximately 98 ˚ Centigrade.
Figure 4 shows the approximate times for boiling water
to be available from switch on.
Fig 4
Full capacity available
after
From 45 mins
empty
After
17 mins
overnight
stand (full)
