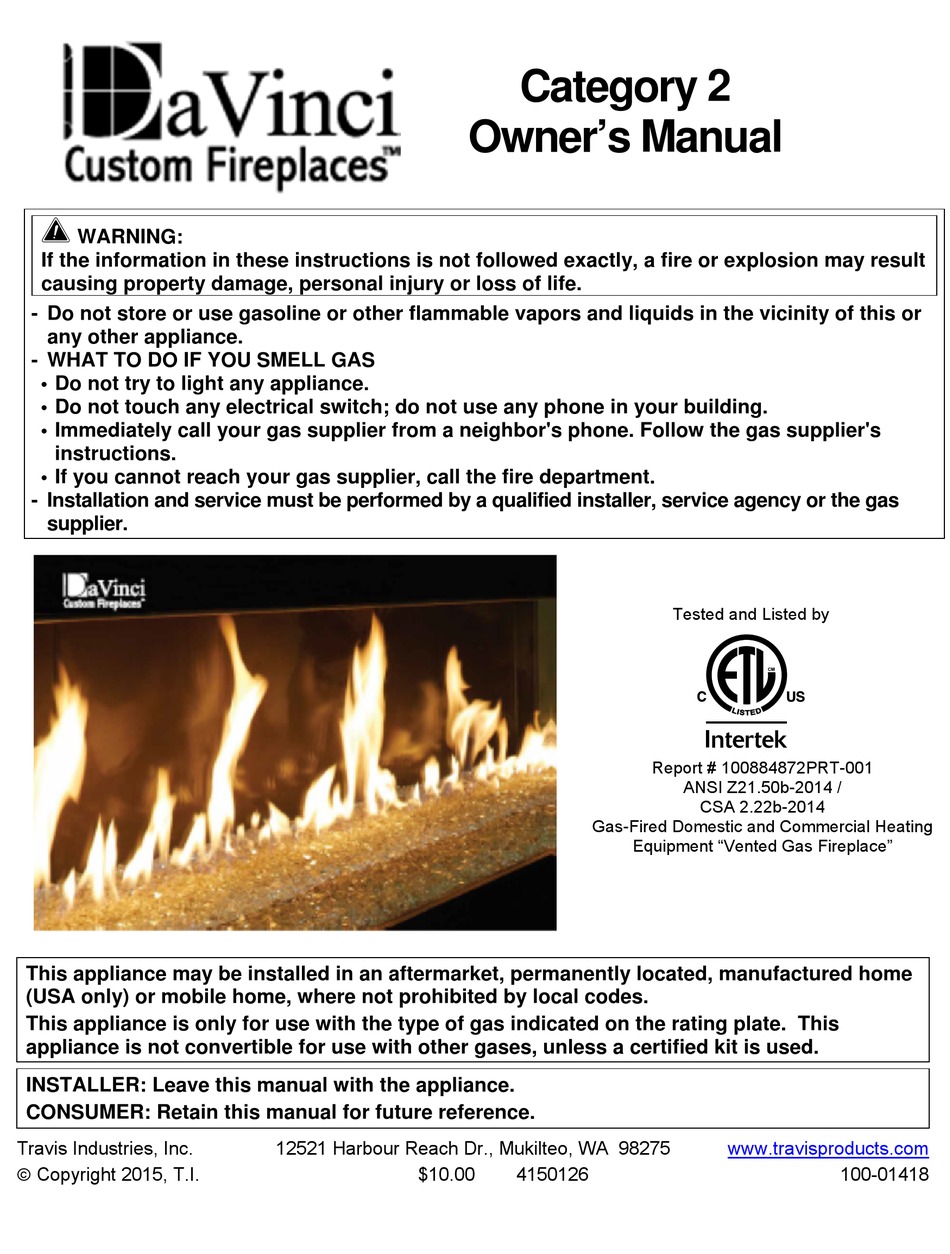

DaVinci fireplace Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases, unless a certified kit is used.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc.
 Copyright 2015, T.I.
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
Category 2
Owner's Manual
Gas-Fired Domestic and Commercial Heating
Equipment "Vented Gas Fireplace"
4150126
Tested and Listed by
Report # 100884872PRT-001
ANSI Z21.50b-2014 /
CSA 2.22b-2014
www.travisproducts.com
100-01418

Advertisement

Table of Contents
loading

Related Manuals for DaVinci fireplace

Summary of Contents for DaVinci fireplace

  • Page 1 ANSI Z21.50b-2014 / CSA 2.22b-2014 Gas-Fired Domestic and Commercial Heating Equipment “Vented Gas Fireplace” This appliance may be installed in an aftermarket, permanently located, manufactured home (USA only) or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certified kit is used.

  • Page 2: Overview

    Introduction Overview This manual details the DaVinci category 2 fireplace. Listing Details This appliance was listed by Intertek (Warnock Hersey) to ANSI Z21.50b-2014 / CSA 2.22b-2014. The listing label is chained to the appliance near the glass frame. A copy is shown to the right.

  • Page 3: Table Of Contents

      Connecting the Power Exhaust Damper Harness to the Fireplace ................46   Connecting the Power Exhaust Lead to the Fireplace ..47   Wiring the Power Exhaust Assembly ....... 48   Wiring the Power Exhaust Assembly (continued) .... 49  ...

  • Page 4: Safety Warnings

    Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at-risk individuals in the house. To restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers, young children and other at-risk individuals out of the room and away from hot surfaces.
  • Page 5 Safety Precautions Safety Warnings (continued)  Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near the appliance.  Light the heater using the built-in igniter. Do not use matches or any other external device to light your heater.

  • Page 6: Installation Options

    (see “Air Intake Duct Location” on page 54). Power Exhaust If the fireplace uses a burner that is 7’ or longer, you will need to use the high-volume blower. For shorter fireplaces, use the low-volume blower. The power exhaust location is always centered on the master module (the exhaust is not centered on the fireplace, it is centered on the module –...

  • Page 7: Dimensions - Single Sided Or See Through Configurations

    (b) Exhaust – Uses 10” or 8” Diameter B-Vent (determined by power exhaust type). Centered on fireplace. (c) Gas Control Valve – Located to the front of the master module (the front of the fireplace is determined by gas control valve location).

  • Page 8: Dimensions - Pier Configuration

    (b) Exhaust – Uses 10” or 8” Diameter B-Vent (determined by power exhaust type). Centered on fireplace. (c) Gas Control Valve – Located to the front of the master module (the front of the fireplace is determined by gas control valve location).

  • Page 9: Dimensions - Island Configuration

    (b) Exhaust – Uses 10” or 8” Diameter B-Vent (determined by power exhaust type). Centered on fireplace. (c) Gas Control Valve – Located to the front of the master module (the front of the fireplace is determined by gas control valve location).

  • Page 10: Dimensions - Full Bay Configuration

    (b) Exhaust – Uses 10” or 8” Diameter B-Vent (determined by power exhaust type). Centered on fireplace. (c) Gas Control Valve – Located to the front of the master module (the front of the fireplace is determined by gas control valve location).

  • Page 11: Dimensions - Right Side Corner Configuration

    (b) Exhaust – Uses 10” or 8” Diameter B-Vent (determined by power exhaust type). Centered on fireplace. (c) Gas Control Valve – Located to the front of the master module (the front of the fireplace is determined by gas control valve location).

  • Page 12: Dimensions - Left Side Corner Configuration

    (b) Exhaust – Uses 10” or 8” Diameter B-Vent (determined by power exhaust type). Centered on fireplace. (c) Gas Control Valve – Located to the front of the master module (the front of the fireplace is determined by gas control valve location).

  • Page 13: Packing List For Fireplace Modules

    (A) Refer to the dimensions page of your fireplace to determine the number of intakes required. (B) Refer to the dimensions page of your fireplace to determine the type of power exhaust required. Finalization Hardware (install after fireplace is in place – you may hold at dealership)

  • Page 14: Category 2 Joining Components

    (4) 1/2-20 x 3.5” Bolts (4) 1/2-20 Nuts * The upper outer braces vary for the type of fireplace. For See-Through, Island and Pier fireplaces, the braces are identical (all are 14” Long). For Single-Sided, Side, and Bay fireplaces, the two front braces are 14”...

  • Page 15: Recommended Installation Procedure

    If framing the opening prior to fireplace placement, you will also need to make the framing 6” (150mm) wider on each framed side (12” / 300mm wider for singled sided/see through configurations). This 6” gap allows for fireplace assembly and will be covered with drywall (or other material) after the fireplace is assembled.

  • Page 16: Massachusetts Requirements

    Installation (for qualified installers only) Massachusetts Requirements NOTE: The following requirements reference various Massachusetts and national codes not contained in this document. Requirements for the Commonwealth of Massachusetts For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:...

  • Page 17: Alignment Track Installation

    (see “c” below). Make sure to align the track to the platform and framing (the front edge of the track is 3.375” (86mm) from the front edge of the fireplace and platform). 3.375" 86mm 3.375"...

  • Page 18: Tension Rod Installation

    This greatly reduces the chance of damage to the fireplace or injury to installers. NOTE: You may wish to leave one or both side of the framing open to allow for fireplace placement and assembly – especially on one-sided or bay installations. The framing may be temporarily removed to allow for fireplace placement, then replaced once the fireplace is in place and assembled.

  • Page 19: Remove The Shipping End Caps From Fireplace Modules

    Remove the Shipping End Caps from Fireplace Modules The shipping end caps are used to support the fireplace during shipping and placement. Do not remove the end caps until the fireplace is on the alignment track. The shipping end caps (and screws) may be recycled once removed.

  • Page 20: Remove Components To Allow For Fireplace Joining

    Remove Media Trays and Burners Near Center of Fireplace Remove the media trays and the burners near the center of the fireplace where the two fireplace modules join (see illustration below and pictures on the following page). This allows for access to the area near where the fireplaces join).
  • Page 21 Installation (for qualified installers only) Burner Removal Remove the burner lock-down bracket (it is held in place with a single screw). . Lift the burner up and out of the fireplace. Remove the burner supports. © Travis Industries 4150126 100-01418...
  • Page 22 Remove Baffle and Access Panels The fireplace utilizes a baffle above the firebox to regulate air flow. Remove the baffle by lifting it up, tilting the front edge down, and moving the baffle out of the fireplace (see “a” below). .

  • Page 23: Slide The Fireplace Modules Together

    Slide the Fireplace Modules Together MAKE SURE TO ROUTE THE INTAKE DAMPER WIRES Before sliding the fireplace modules together, you will want to route the intake damper wires from the master module to the secondary module. Route the wires through the intake channel between the fireplaces and out the intake starter collar (see illustration below).

  • Page 24: Install Upper Titan Lock Braces (Do Not Fully Tighten)

    Do not tighten the Titan braces until the glass opening is adjusted (see 26 for details). With the fireplace slid together (“a”), insert the upper outer brace into place (see “b” below). Hand-tighten the coupler nuts onto the brace. Insert the upper inner brace into place (see “c” below). Place washers over the studs then hand-tighten the nuts to secure the brace in place.

  • Page 25: Install Lower Titan Lock Braces (Do Not Fully Tighten)

    Do not tighten the Titan braces until the glass opening is adjusted (see 26 for details). With the fireplace slid together (“a”), insert the lower outer braces into place (see “b” below). Hand- tighten the coupler nuts onto the brace. Insert the lower inner braces into place (see “c” below). Place washers over the studs then hand-tighten the nuts to secure the brace in place.

  • Page 26: Place Installation Alignment Tool In Center Of Glass Opening And Adjust

    Place Installation Alignment Tool in Center of Glass Opening and Adjust The installation alignment tool is used to align the two fireplace modules so the glass opening is uniform in height. Single-Sided, Bay, and Side fireplaces use one alignment tool. Double-Sided, Pier, and Island fireplaces use two alignment tools.

  • Page 27: Tightening The Titan Lock Connectors

    Remove the Installation Alignment Tool(s) Loosen the wing nuts on the alignment tool(s) and remove them from the fireplace. The alignment tools may be recycled after fireplace installation is complete. © Travis Industries...

  • Page 28: Attach Tension Rods

    (for qualified installers only) Attach Tension Rods The tension rods pull the fireplace together to prevent the center from dipping down. This ensures the glass opening remains square and the glass aligns properly. Follow the directions below to adjust: a) Remove the cover plates over the tension rods.

  • Page 29: Secure The Fireplace To The Alignment Track

    (or washers/spacers) under the fireplace, if necessary, to make sure the fireplace is level. The alignment track as hoirzontal holes that allow for the fireplace to be secured to the track. Make sure the fireplace is correctly positioneed left to right, then use #8 zip screws to secure the fireplace to the track.

  • Page 30: Attach The Gas And Electrical Lines Between The Fireplace Modules

    (for qualified installers only) Attach the Gas and Electrical Lines Between the Fireplace Modules After the fireplace is in place and secured to the alignment track, the gas and electrical systems between the modules may be joined. Gas Inlet Connection ...
  • Page 31 Installation (for qualified installers only) Fireplace Module Jumper Wires  Route the 5-wire jumper from the master module to the IFC on the secondary module (see photo below to the left). The green/white/blue wires attach to the power input on the IFC (green to ground, white to neutral “N”, blue to line “L”...

  • Page 32: Fireplace Placement Requirements

    HINT: We typically have displayed this fireplace on a 24” to 36” raised platform. Keep in mind that the firebox opening (base of the flames) is 12” above the base. Desired position may vary depending upon room size, typical viewing angle, and aesthetic intent.

  • Page 33: Typical Framing Dims. - One Sided Configuration

    Typical Framing Dims. – One Sided Configuration Important Notes Regarding Framing We strongly suggest framing around the fireplace after it is in place. If you do frame before fireplace placement, add 6” to each side to allow for fireplace assembly. Dimension “x”...

  • Page 34: Typical Framing Dims. - See Through Configuration

    Typical Framing Dims. – See Through Configuration Important Notes Regarding Framing We strongly suggest framing around the fireplace after it is in place. If you do frame before fireplace placement, add 6” to each side to allow for fireplace assembly. Dimension “x”...

  • Page 35: Typical Framing Dims. - Pier Configuration

    3" (77mm) Maximum for vent clearance. Do not place vertical framing directly in the center above the fireplace - it will infringe upon the vent clearance requirements. The framing above the fireplace must be self-supporting (the fireplace is not load-bearing).

  • Page 36: Typical Framing Dims. - Island Configuration

    3" (77mm) Maximum for vent clearance. Do not place vertical framing directly in the center above the fireplace - it will infringe upon the vent clearance requirements. The framing above the fireplace 19.625"...

  • Page 37: Typical Framing Dims. - Full Bay Configuration

    Installers may wish to recess the back of the fireplace to allow for a more shallow installation, placing the side glass next to the side wall(s). If you decide to recess the back of the fireplace, make sure to accommodate the framing and facing dimensions. The back edge of the glass extends to a location 5.75”...

  • Page 38: Typical Framing Dims - Right-Sided Corner

    Installers may wish to recess the back of the fireplace to allow for a more shallow installation, placing the side glass next to the side wall(s). If you decide to recess the back of the fireplace, make sure to accommodate the framing and facing dimensions.

  • Page 39: Typical Framing Dims - Left-Sided Corner

    Installers may wish to recess the back of the fireplace to allow for a more shallow installation, placing the side glass next to the side wall(s). If you decide to recess the back of the fireplace, make sure to accommodate the framing and facing dimensions.

  • Page 40: Nailing Brackets

    – the see through has 4, the island has 0). These brackets are shipped flat against the side of the fireplace (see “a” below). Remove the 2 mounting screws, position the bracket, and secure it as shown to the right (“a”...

  • Page 41: Accessing Internal Components

    The internal shutoff is accessed following the directions above. The valve is positioned near the gas inlet (left, right, or bottom). NOTE: The shut off valve must be closed while pressure testing the gas line leading to the fireplace. © Travis Industries...
  • Page 42 Remove the burner lock-down bracket (it is held in place with a single screw). . Lift the burner up and out of the fireplace. Remove the burner supports. © Travis Industries 4150126...

  • Page 43: Gas Line Requirements

    Only direct vent sealed combustion products are approved for bedrooms or bathrooms.  Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas log.  A carbon monoxide (CO) detector is required in the same room as the appliance.

  • Page 44: Gas Inlet Location

    Gas inlet is determined by fireplace configuration and how the fireplace was ordered. Refer to the dimensions pages for the configuration being used to determine what options are available (pages 7 through 12). When ordering the fireplace, the gas inlet is either from the side (left or right) or from the base (left or right).

  • Page 45: Electrical Input Connection

    Caution: improper and dangerous operation. HINT: Keep the cover plates disconnected until all wiring to the fireplace is attached. You may also wish to leave the romex clamps loose until the cover plates are ready to be attached. Power Exhaust Power Out...

  • Page 46: Connecting The Power Exhaust Damper Harness To The Fireplace

    (for qualified installers only) Connecting the Power Exhaust Damper Harness to the Fireplace  This fireplace uses a damper near the power exhaust to prevent air from flowing through the fireplace when the fireplace is off.  The power exhaust damper harness is available in various lengths (see page 13 for details).

  • Page 47: Connecting The Power Exhaust Lead To The Fireplace

    12 gauge sheathed three-wire electrical line to the power exhaust lead (included loose with fireplace) and connect it to the molex connector on the fireplace – see illustration below. This wire is routed to the power exhaust assembly (see “Wiring the Power Exhaust Assembly” for details)..

  • Page 48: Wiring The Power Exhaust Assembly

    Once power is supplied to the blower capacitor, it will retain a charge for approximately 5 minutes, even after power is shut off. Take care when working with this circuit, especially with the hot (black) wire and circuit board/wiring inside the fireplace. © Travis Industries...

  • Page 49: Wiring The Power Exhaust Assembly (Continued)

    Wiring the Power Exhaust Assembly (continued)  In addition to the exhaust blower line, a low-voltage wire harness is routed from the fireplace to the damper inside the power exhaust assembly (see page 6 for wire lengths and part numbers).

  • Page 50: Connecting The On-Off Led Harness To The Fireplace

    HINT: Keep the cover plates disconnected until all wiring to the fireplace is attached. You may also wish to leave the romex clamps loose until the cover plates are ready to be attached.

  • Page 51: Installing The On-Off Switch And Led Controller

    (for qualified installers only) Installing the On-Off Switch and LED Controller Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace.  The included junction box is used to mount the on-off switch and LED controller. Mount the junction box in an accessible location to allow the user to operate the fireplace.

  • Page 52: Air Intake Requirements

    R4.2 or greater with vapor barrier). Insulated ducting prevents condensation from forming on the exterior of the ducts or fireplace. This is especially important when the ducts are routed through heated areas that may be subject to humidification.

  • Page 53: Intake Dampers

    The DaVinci Custom Fireplace™ uses air-cooled glass to ensure proper temperatures near the viewing area. If operating the fireplace when the outside temperature is hot (above 90 deg. F.), you will notice the glass will become warm to the touch. When temperatures are more moderate, the glass will be cooler.

  • Page 54: Air Intake Duct Quantity And Location

    Installation (for qualified installers only) Air Intake Duct Quantity and Location Single Sided, Side, or Full Bay Single Sided 72" Version Single Sided 84" Version Single Sided 96" Version Single Sided 108" Version Single Sided 120" Version Side 78" Version Side 90"...

  • Page 55: Air Intake Installation - Horizontal With Termination

    Installation (for qualified installers only) Air intake Installation – Horizontal with Termination 6” Version 98900093 8” Version 98900094 After removing the inner and outer cover plates, install the starter collar. Bend the tabs down to secure it. Locate the intake damper wires and make sure they are accessible before proceeding.

  • Page 56: Air Intake Installation (Continued)

    DAMAGE TO THE INTAKE DAMPER ACTUATOR. Use suitable tape to seal the duct joint. Route the flex duct to the fireplace air intake. Connect the wires from the air intake damper to the wires from the fireplace. NOTE: The air intake wires may be shortened to ease installation.

  • Page 57: Air Intake Dampers (For Hori. Or Vert. Termination)

    The intake damper wires are located inside the air intake on some fireplaces. Carefully fashion a hole in the intake damper (or fireplace) and route the wires to the exterior of the duct. Make sure the wires do not contact any sharp edges (use grommets if necessary). Seal the duct to ensure proper airflow.

  • Page 58: Vent Requirements

    Altitude Considerations  This fireplace has been tested at altitudes ranging from sea level to 6,000 feet (1800 M). In this testing we have found that the fireplace, with its standard orifice, burns correctly with just an air shutter adjustment.

  • Page 59: Approved Vent Configurations

    Installation (for qualified installers only) Approved Vent Configurations Maximum Vent Run and Rise The fireplace vent must meet the following requirements (measured from base of fireplace):  Minimum Vent Length 3’ (1 M)  Maximum Horizontal Run = 50’ (15 M)* ...

  • Page 60: Rheostat Adjustment

    NOTE: The exhaust blower will run on high for approximately 30 seconds once the fireplace is turned on (pre-purge). After 30 seconds the burner will turn on and the rheostat controls the speed of the exhaust blower.

  • Page 61: Termination Requirements

    Installation (for qualified installers only) Termination Requirements Venting terminals shall not be recessed into a wall or siding. Minimum 9" (229mm) clearance from any door or window Minimum 12" (305mm) above any grade, veranda, porch, deck or balcony Minimum 1" (25mm) from outside corner walls NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier.

  • Page 62: Power Vent - Dimensions And Framing

    Installation (for qualified installers only) Power Vent – Dimensions and Framing Power Exhaust Dimensions – Low Volume (RS12) 94400903 11.25" 286mm 2.75" 70mm 2.875" 2.875" 7.75" 73mm 73mm 197mm 11.75" 298mm 20.25" 514mm 21.5" 546mm 10.75" 273mm 17" 21.75" 432mm 552mm 22.75"...
  • Page 63 Installation (for qualified installers only) Power Exhaust Dimensions – High Volume (RS16) 94400904 16" 407mm 2.625" 67mm 3" 3" 8.625" 76mm 76mm 220mm 14.125" 359mm 25" 635mm 26.25" 667mm 13.125" 334mm (centered) 21.625" 26.75" 550mm 680mm 27.5" 29.75" 699mm 756mm ©...
  • Page 64 Installation (for qualified installers only) Power Exhaust Dimensions – Inline Version (Lo 160) 94400905 The blower may be placed on its side or with the motor upwards. DO NOT POSITION THE ASSEMBLY SO THE BLOWER MOTOR IS BELOW THE ASSEMBLY. This will greatly shorten blower life and void the warranty.
  • Page 65 Installation (for qualified installers only) Power Exhaust Dimensions – Inline Version (Hi 180) 94400906 The blower may be placed on its side or with the motor upwards. DO NOT POSITION THE ASSEMBLY SO THE BLOWER MOTOR IS BELOW THE ASSEMBLY. This will greatly shorten blower life and void the warranty.
  • Page 66 Installation (for qualified installers only) Framing For Power Exhaust Termination (for 94400903 & 94400904 only)  The exhaust box must be mounted into framing capable of supporting the weight of the exhaust box and any vent.  Box must be properly weatherized to prevent rain or snow from entering. ...

  • Page 67: Hearth Requirements

    (for qualified installers only) Hearth Requirements A hearth is not required for this fireplace. If a hearth is installed, it must not extend above the glass opening (we recommend the hearth be a minimum 1” below the glass opening to allow for glass installation).

  • Page 68: Mantel Requirements

    (for qualified installers only) Do Not Drill or Screw Zone When using screws to secure drywall to the fireplace, make sure to avoid the area shown below. Make sure screws penetrate no more than ½” (13mm) into the fireplace. 2"...

  • Page 69: Fireback Installation

    There are three different sizes of firebacks (12”, Divider, and End Firebacks). Depending upon the type of fireplace, you will need multiple pieces (see table below). Follow the instructions below to install. Fireback Quantity Needed – Category 2 Fireplaces...
  • Page 70 Left Side Right Side Bay Fireback Bay Fireback 5.5" Wide End Fireback The end fireback has a hole Front of Fireplace Front of Fireplace on the bottom. The end firebacks are side specific (each side is not Left End Right End interchangeable).
  • Page 71 Installing the Bay Firebacks NOTE: If using a fireplace with bay firebacks, install the bay firebacks before installing the 12” firebacks. The bay firebacks install in the same fashion as the 12” firebacks. Place the fireback in place, approximately 6”...
  • Page 72 Installing the Divider and End Firebacks These firebacks use two magnets to hold each fireback in place. The magnets are shipped pre-attached to the fireplace walls. NOTE: The divider firebacks have a notch at the bottom. Place it as shown below.

  • Page 73: Glass Pane Installation And Removal

    Pier Full Bay Island 2-Sided Check for the DaVinci Logo Before Installing the Glass The outer piece of glass has a DaVinci logo. Make sure it is on the lower right and is facing outwards. © Travis Industries 4150126 100-01418...
  • Page 74 Installation (for qualified installers only) Attaching the Suction Cups to the Glass Panes NOTE: Make sure the glass and suction cups are clean before attaching the suction cups. These surfaces must be clean and dry for the suction cups to work properly. NOTE: The larger glass panes may require an additional helper.
  • Page 75 Installation (for qualified installers only) Installing the Glass Panes Into the Fireplace Before installing the glass, make sure to measure it to verify it is the correct piece. Refer to the section “When to Install the Glass” on page 73 to determine when to install the glass.

  • Page 76: Steps For Finalizing The Installation

    (see “Crushed Glass Installation”). c) If adjustment is needed, the fireplace will need to be shut off and allowed to cool. Remove the front outer piece of glass. Remove the media tray directly behind the glass to access each air shutter (see illustration below).

  • Page 77: Crushed Glass Installation

    So...1 Slightly Rounded Cup = 1 lb. Determine the amount of glass needed for the fireplace being installed. Set this glass aside in portions to allow for an even amount of glass to be placed over the surface of the burner and media tray. NOTE: It is better to install too little glass than too much.
  • Page 78 So...1 Slightly Rounded Cup = 1 lb. Determine the amount of glass needed for the fireplace being installed. Set this glass aside in portions to allow for an even amount of glass to be placed over the media trays in the intake channel. NOTE: It is better to install too little glass than too much.

  • Page 79: Wiring Diagram

    White (1 Amp) Switch Green Power Exhaust Blower Junction Box Exhaust Warning: Do not disconnect or alter the flow switch wiring. This is a safety component that is critical to the safety of this fireplace. © Travis Industries 4150126 100-01418...

  • Page 80: Before You Begin

    Blue Flames will occur on the heater when it first comes on. After fifteen minutes the flames will turn a more realistic yellow and orange color.  NOTE: Whenever power is connected to the fireplace (e.g.: power outage or breaker re-set), the exhaust blower will turn on and run for approximately 6 minutes). Location of Controls...

  • Page 81: Yearly Service Procedure

    Inspect the pilot flame. It should touch approximately 3/8" of the top of the flame sensor. If it does not, contact your dealer for service. Shut off gas to the fireplace and let it cool for 15 minutes. Remove the glass (see page 73). Remove crushed glass. If excessive sooting is found, the fireplace will require adjustment. Contact your dealer.

  • Page 82: Conditions & Exclusions

    Burner Pan Assembly, Air Shutter Assembly, Main Burner Orifice Electrical Assembly Wiring Harness, Snap Discs, Rheostat Speed Control, Exhaust Blower, Dampers Gas Control Assembly Adjustable control valve, fireplace controller, pilot assembly and pilot wiring Glass Glass (breakage from thermal shock) Ceramic Logs Log Set, Embers Gold, Nickel &...
  • Page 83 Limited 7 Year Warranty © Travis Industries 4150126 100-01418...
  • Page 84 ................. 6 Drywall Installation ..............67 Electrical Connection ..............51 Exhaust Box Mounting ..............62 Facing Requirements ..............67 Fireplace Placement Requirements ..........32 Fuel .................... 43 Gas Inlet Pressure ..............43 Gas Line Connection ..............43 Gas Line Location ...............
