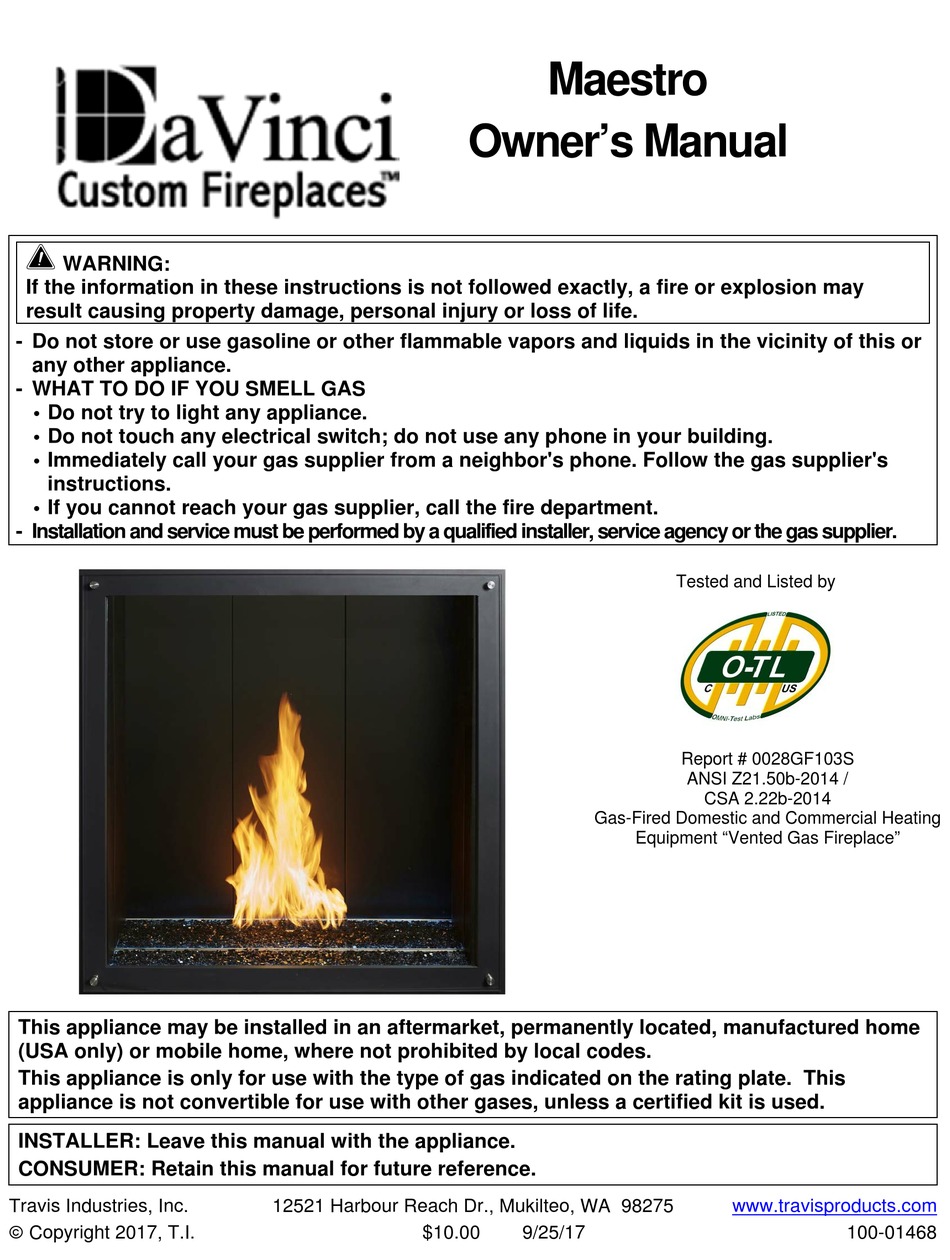

WARNING:
If the information in these instructions is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases, unless a certified kit is used.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc.
Copyright 2017, T.I.
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
Maestro
Owner's Manual
Gas-Fired Domestic and Commercial Heating
Equipment "Vented Gas Fireplace"
9/25/17
Tested and Listed by
Report # 0028GF103S
ANSI Z21.50b-2014 /
CSA 2.22b-2014
www.travisproducts.com
100-01468
