I
NTRODUCTION
Please read and save this manual !
Thank you for selecting this uninterruptible power system (UPS). It provides you with a
perfect protection for connected equipment. The manual is a guide to install and use the
UPS. It includes important safety instructions for operation and correct installation of the
UPS. If you should have any problems with the UPS, please refer to this manual before
calling customer service.
1. P
RESENTATION
The UPS is a line interactive uninterruptible power system (UPS). When utility input is
normal, the UPS would provide surge protection and energy to charge the internal
battery. If the utility input is abnormal, the UPS can supply AC power to the load
immediately.
(1). Utilizes microprocessor based controls, it will minimizes the dependency on
hardware. Beside this, it maximizes system flexibility and optimizes the assurance of
reliability.
(2). Automatic frequency selection to match with utility power.
(3). Hi level battery charger to prolong battery's life and fully charge the battery.
(4). With actual overload protection both in line and battery mode.

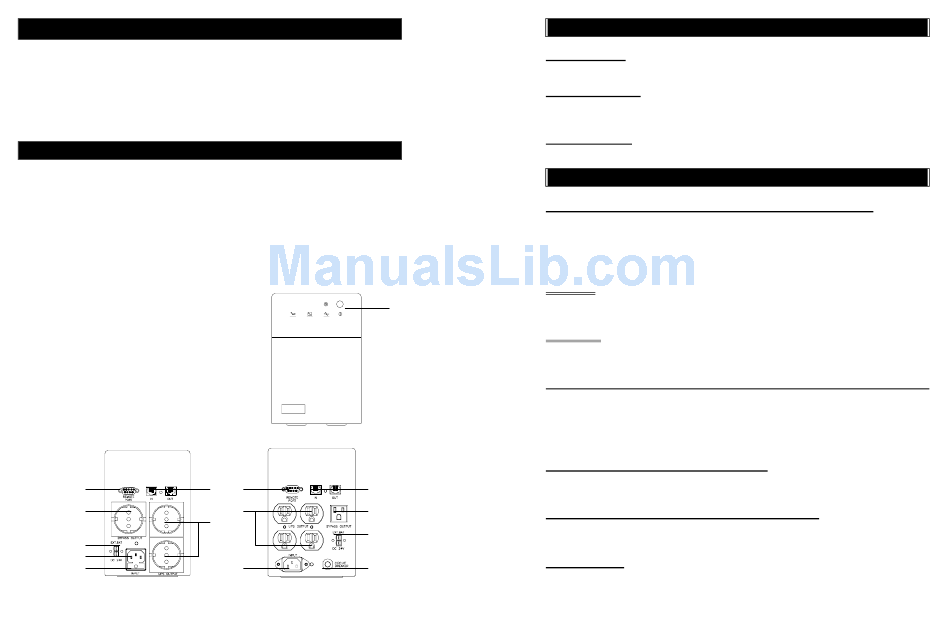

1.1) Power Switch
1.2) Remote Port (option)
1.3) Phone Jack (option)
1.4) Output Bypass
1.5) Outlet Socket
1.6) External Battery Pack Connector (option)
1.7) AC Input
1.8) AC Fuse/ Breaker
1.2
1.4
1.6
1.7
1.8
1 . 1
1.3
1.3 1.2
1.5
1.4
1.5
1 . 6
1.7
1.8
- 3 -
D : \ m a n u a l \ U M _ P C M - B N T \ 6 6 1 - B T 1 K - 0 0 0 . d o c
2. I
NSTALLATION
2.1 Inspection:
Inspect the UPS upon receipt. The packaging is recyclable; save it
for reuse or dispose of it properly.
2.2 Utility Power:
The input power cord on the rear panel needs to plug into a
socket on the wall. Please notice the voltage of utility power should match with the UPS.
(For example, the UPS is 220V, the input utility power should be 220V as well.)
2.3 Connection:
The employed equipment's power cords (such as computer) are
plugged into the sockets on the rear panel.
3. O
PERATION
3.1 Switch on with "Green Mode" Function under AC mode:
input is connected to the UPS, press "ON" button and keep pressing less than 1 sec to
turn on the UPS. After that, connect the electrical cords of the equipments that will be
used (such as desktop computer and CRT monitor) to the rear panel of UPS. In order
to save the power, it will also automatically enable the "Green mode" - No Load (or
Light load) shut-down function under backup mode (about 4 minutes later).
Attention:
At backup mode, UPS can be automatically turned off if none of the
connected loads is operating. (Green mode; No Load shut down function) Once the
utility power is normal again, the unit can be waked up by itself.
CAUTION:
Never connect a laser printer or plotter to the UPS with other computer
equipment. A laser printer or plotter periodically draws significantly more power than
when its idle status, and may overload the UPS.
3.2 Switch on with "Disabled Green Mode" Function under AC mode:
When utility input is connected to the UPS, press "ON" button and keep pressing until
the "Bi..........Bi-Bi" beeps stopped to turn on the UPS. After that, connect the electrical
cords of the equipments that will be used (such as Notebook computer and LCD
monitor) to the rear panel of UPS. If the load is lighter than 15W, please also refer this
function to avoid any inconvenience cause by "Green Mode" function.
3.3 DC Start with "Green Mode" Function:
utility but by the internal batteries to engage the UPS, press the power button and keep
pressing less then 3 seconds.
3.4 DC Start with "Disabled Green Mode" Function:
supplied by utility but by the internal batteries to engage the UPS, press the power
button and keep pressing until the sounds of "Bi...... Bi-Bi".
3.5 Switch off:
Press the power switch and keep pressing more than 3 seconds to
turn off the UPS.
When utility
If the power of UPS isn't supplied by
If the power of UPS isn't
