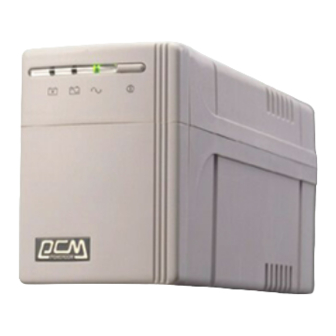

- Page 1 U P S Uninterruptible Power System Line Interactive (Network) UPS 325VA/ 425VA/ 525VA/ 625VA ■ ■ ■ ■ USER‘S MANUAL ■ ■ ■ ■...
-
Page 2: Table Of Contents
MPORTANT AFETY NSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS ● WARNING (SAVE THESE INSTRUCTIONS): This manual contains important instructions that should be followed during installation and maintenance of the UPS and batteries. WARNING (Controlled Environment): These units are intended for installation ●... -
Page 3: Presentation
1. P RESENTATION The UPS is a line interactive uninterruptible power system (UPS). When utility input is normal, the UPS would provide surge protection and energy to charge the internal battery. If the utility input is abnormal, the UPS can supply AC power to the loads immediately. -
Page 4: Installation
Rear View 1.4 RS-232 Port 1.5 Phone Jack 1.6 AC Input 1.7 Fuse 1.8 UPS Outlet 2. I NSTALLATION 2.1 Inspection: Inspect the UPS upon receipt. The packaging is recyclable; save it for reuse or dispose of it properly. 2.2 Placement: Install the UPS in controlled area with adequate air flowing and free of excessive dust. -
Page 5: Alarms
3.2 Switch on with “Disabled Green Mode” Function: When utility input is connected to the UPS, press “ON” button and keep pressing until the ”Bi……….Bi-Bi” beeps stopped to turn on the UPS. After that, connect the electrical cords of the equipments that will be used (such as Notebook computer and LCD monitor) to the rear panel of UPS. -
Page 6: Software And Interface Port
5. S OFTWARE AND NTERFACE PTION 5.1 Power Monitoring Software The UPSMON series software (or other power monitoring software) is applied standard RS-232 interface to perform monitoring functions, and then provides an orderly shutdown of a computer in the event of power failure. Moreover, UPSMON displays all the diagnostic symptoms on monitor, such as Voltage, Frequency, Battery level and so on. -
Page 7: Appendix A . Troubleshooting
PPENDIX A ROUBLESHOOTING PROBLEM POSSIBLE CAUSE ACTION TO TAKE cannot ON/OFF/TEST/SILENCE Press the ON/OFF/TEST/SILENCE turn on button pushed button more than 1 second LED not light push-time too short Battery voltage less than Recharge the ups at least 6 hours PCB failure Replace the PCB, call for service Load less than 20W at... -
Page 8: Appendix B . Specifications
PPENDIX B PECIFICATIONS MODEL 325A 425A(P) 525A(P) 625A(P) INPUT Capacity 325VA 425VA 525VA 625VA 100V, 110V, 115V, 120V, 220V, 230V Voltage 240V +/- 25% at line input Frequency 50 or 60Hz +/- 10% (auto sensing) OUTPUT Voltage (on battery) Simulated sine wave as utility input power +/-5 %.
