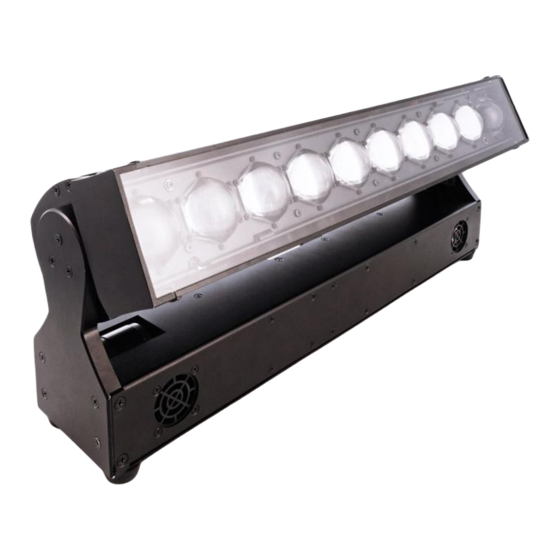

GLP impression x4 bar Instruction Manual
Hide thumbs
Also See for impression x4 bar:
- Instruction manual (19 pages) ,
- Instruction manual (29 pages) ,
- Programming notes (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for GLP impression x4 bar
Summary of Contents for GLP impression x4 bar

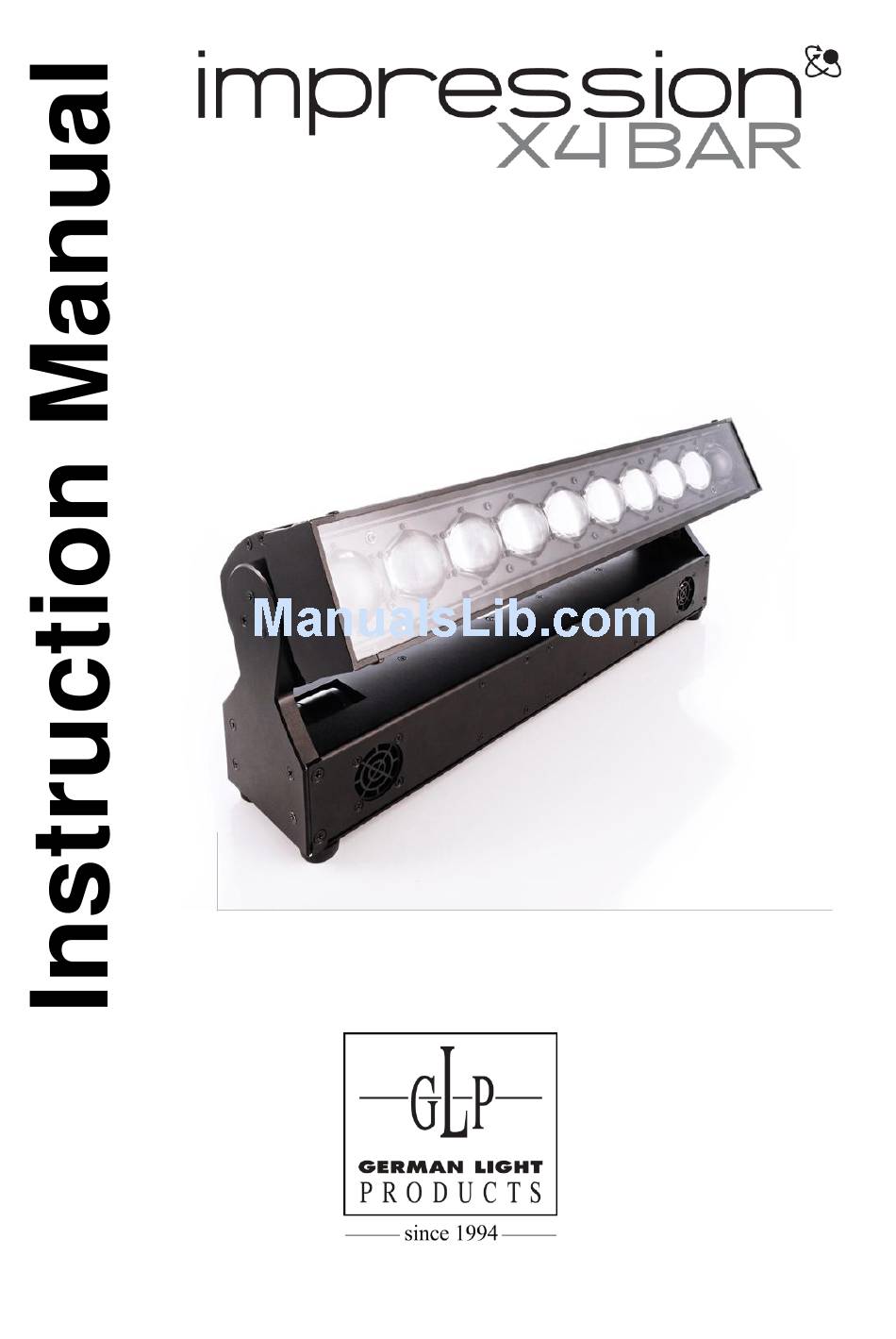

- Page 1 www.glp.de...
-
Page 2: Table Of Contents
Single Pixel Mode (spix) 48 DMX Channels: ............14 Accessories ........................16 Optional diffuser filter: ....................16 Maintaining and Cleaning ....................17 Safety regulations ....................17 Maintenance and Interval (rule-of-thumb) ...............17 Technical Specifications: ....................18 Dimensions ........................19 impression X4 BAR 10 manual (v1.1) from software version: v0.26... -
Page 3: Description Of Device
A) Base side left 4. DMX Input (5 pin) 5. Mains Input (blue powerCON) 6. Micro-fuse 5x20mm, T5A B) Base side right 7. Mains Output (white powerCON) 8. DMX Output (5 pin) impression X4 BAR 10 manual (v1.1) from software version: v0.26... -
Page 4: Safety Instructions
8. Repair, maintenance, and installation work shall be done by qualified or GLP certified staff only. You need to pay attention to the common rules of technology that are not explicitly mentioned in this manual. -
Page 5: Preparation And Installation
GLP German Light Products GmbH 2 Preparation and Installation 2.1 Safety Information 0 fixture from GLP is fitted with a number of plano- convex lenses in a highly efficient collimator cluster. This type of lens can act as a strong magnifying glass. -
Page 6: Mounting
GLP German Light Products GmbH Should you have any questions about the operation of your fixture then please contact your local GLP office, or their authorized distributor, a list of which can be found at http://www.glp.de. 2.2 Mounting 0 is fully operational whether it hangs or is mounted to the wall. -
Page 7: Operating On The Floor (Upright)
Insert the pins in the related holes of the next fixture. Do the opposite to slide in the pins again after every usage to avoid any damage or injuries that could be caused by them. impression X4 BAR 10 manual (v1.1) from software version: v0.26... -
Page 8: Connections
USITT DMX-512 Standard input/output in 5-pin connectors. Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4&5 N.C. The DMX- Addressing starts at the DMX- Address [001]. impression X4 BAR 10 manual (v1.1) from software version: v0.26... -
Page 9: The Menu Field
Fixture works in "Single Pixel" mode see also Single Pixel Mode section 4 below Position Switch automatic position feedback ON/OFF feedback Reverse Tilt Invert Tilt movements: ON/OFF Reset RESET and new calibration for all functions impression X4 BAR 10 manual (v1.1) from software version: v0.26... -
Page 10: Dmx Chanel Selection (Dmx Protocol)
– fast Shutter pulse random 16..47 slow – fast Fade on, snap off (random patterns) 48..79 slow – fast Snap on, fade off (random patterns) 80..111 slow – fast 112..143 impression X4 BAR 10 manual (v1.1) from software version: v0.26... - Page 11 29 Set 1 Pattern 0..255 Movement 30 Set 2 Pattern 0..255 Select 31 Set 2 Pattern 0..255 Movement 32 Pixel Select 0..255 1 - 8 33 Pixel Select 0..255 9 - 10 impression X4 BAR 10 manual (v1.1) from software version: v0.26...
-
Page 12: Compressed Mode (Comp) 20 Dmx Channels
Fade on, fade off (random patterns) 112..143 Strobe random 5s - 0.1s 144..199 Strobe effect slow - fast 1 Hz - 10 Hz 200..239 Shutter open 240..255 11 Intensity Intensity 0 - 100% 0..255 impression X4 BAR 10 manual (v1.1) from software version: v0.26... - Page 13 Wide (flood) - narrow (spot) 50° - 7° 0..255 17 Set 1 Pattern 0..255 Select 18 Pixel Select 0..255 1 - 8 19 Pixel Select 0..255 9 - 10 20 None reserved impression X4 BAR 10 manual (v1.1) from software version: v0.26...
-
Page 14: Single Pixel Mode (Spix) 48 Dmx Channels
0 - 100% 0..255 26 Set 5 Green Color mixing system - Green 0 - 100% 0..255 27 Set 5 Blue Color mixing system - Blue 0 - 100% 0..255 impression X4 BAR 10 manual (v1.1) from software version: v0.26... - Page 15 If you choose a color different from the ones marked with in the tables above the rainbow start- color will be red. Rainbow-effect Stop will pause this function. After resuming the rainbow-effect will be continued from the current color. impression X4 BAR 10 manual (v1.1) from software version: v0.26...
-
Page 16: Accessories
To remove the installed cover pull down the latch shown below and pull the filter out. To insert the new filter pull the latch down again and slide in the new filter until fully inserted, then release the latch to secure the new filter. impression X4 BAR 10 manual (v1.1) from software version: v0.26... -
Page 17: Maintaining And Cleaning
Attention: Never let optical parts come into contact with oil or fat. Before running the fixture wait until all parts are dry. Never touch lenses with bare fingers. impression X4 BAR 10 manual (v1.1) from software version: v0.26... -
Page 18: Technical Specifications
Length 500 mm / 19.7´´ Width 100 mm / 3.9´´ Height 240 mm / 9.4´´ Weight (net) 8.0 kg / 17.6 lbs Weight with bracket 9.8 kg / 21.6 lbs impression X4 BAR 10 manual (v1.1) from software version: v0.26... -
Page 19: Dimensions
GLP German Light Products GmbH 8 Dimensions impression X4 BAR 10 manual (v1.1) from software version: v0.26... - Page 20 GLP German Light Products GmbH impression X4 BAR 10 manual (v1.1) from software version: v0.26...
