8

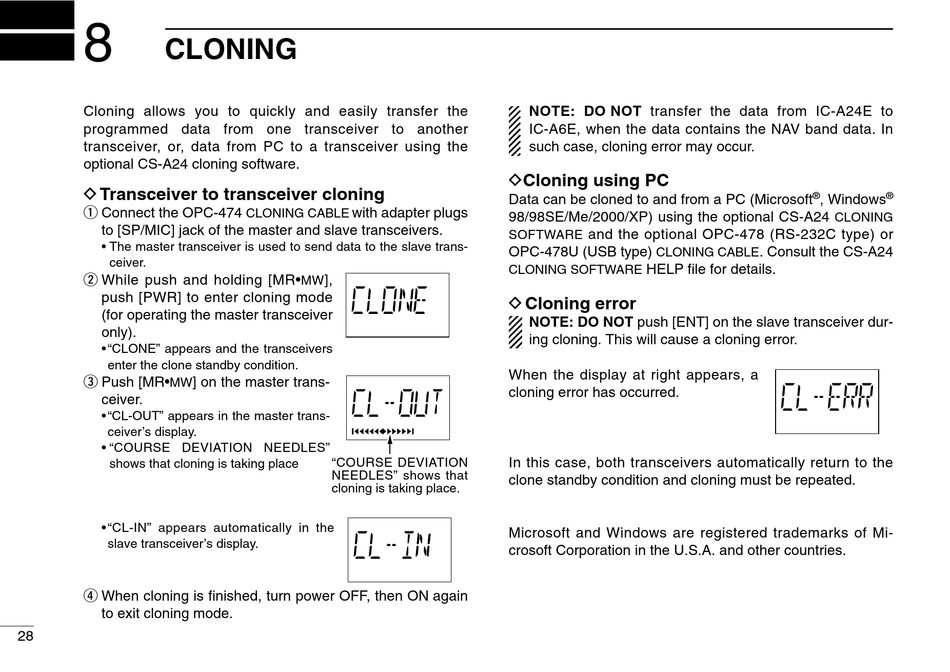

CLONING

Cloning allows you to quickly and easily transfer the
programmed data from one transceiver to another
transceiver, or, data from PC to a transceiver using the
optional CS-A24 cloning software.
D Transceiver to transceiver cloning
q Connect the OPC-474
to [SP/MIC] jack of the master and slave transceivers.
• The master transceiver is used to send data to the slave trans-
ceiver.
w While push and holding [MR•
push [PWR] to enter cloning mode
(for operating the master transceiver
only).
• "CLONE" appears and the transceivers
enter the clone standby condition.
e Push [MR•
] on the master trans-
MW
ceiver.
• "CL-OUT" appears in the master trans-
ceiver's display.
• "COURSE DEVIATION NEEDLES"
shows that cloning is taking place
• "CL-IN" appears automatically in the
slave transceiver's display.
r When cloning is finished, turn power OFF, then ON again
to exit cloning mode.
28
with adapter plugs
CLONING CABLE
],
MW
"COURSE DEVIATION
NEEDLES" shows that
cloning is taking place.
NOTE: DO NOT transfer the data from IC-A24E to
IC-A6E, when the data contains the NAV band data. In
such case, cloning error may occur.
DCloning using PC
Data can be cloned to and from a PC (Microsoft
98/98SE/Me/2000/XP) using the optional CS-A24
and the optional OPC-478 (RS-232C type) or
SOFTWARE
OPC-478U (USB type)
CLONING CABLE
HELP file for details.
CLONING SOFTWARE
D Cloning error
NOTE: DO NOT push [ENT] on the slave transceiver dur-
ing cloning. This will cause a cloning error.
When the display at right appears, a
cloning error has occurred.
In this case, both transceivers automatically return to the
clone standby condition and cloning must be repeated.
Microsoft and Windows are registered trademarks of Mi-
crosoft Corporation in the U.S.A. and other countries.
® ®
, Windows
CLONING
. Consult the CS-A24
