THE AIRCRAFT IS ON COURSE
THE AIRCRAFT IS OFF COURSE

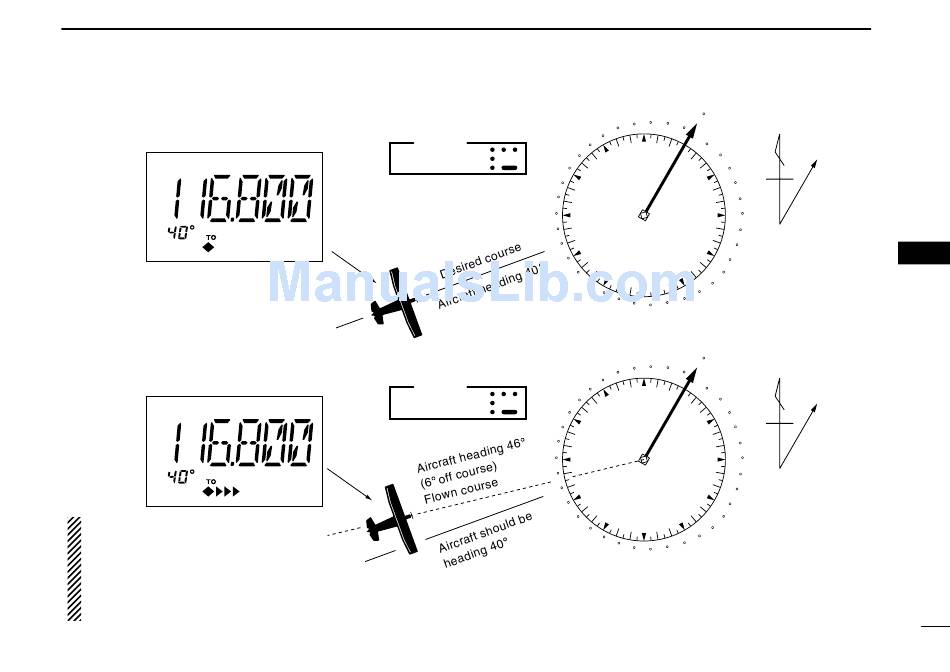

NOTE: The course deviation indica-
tor appears when the aircraft is off
course. In this example, the aircraft is
6 degrees off course to the left. The
pilot must turn more than 6 degrees
right to get back on course.
VOR NAVIGATION (IC-A24E ONLY)
